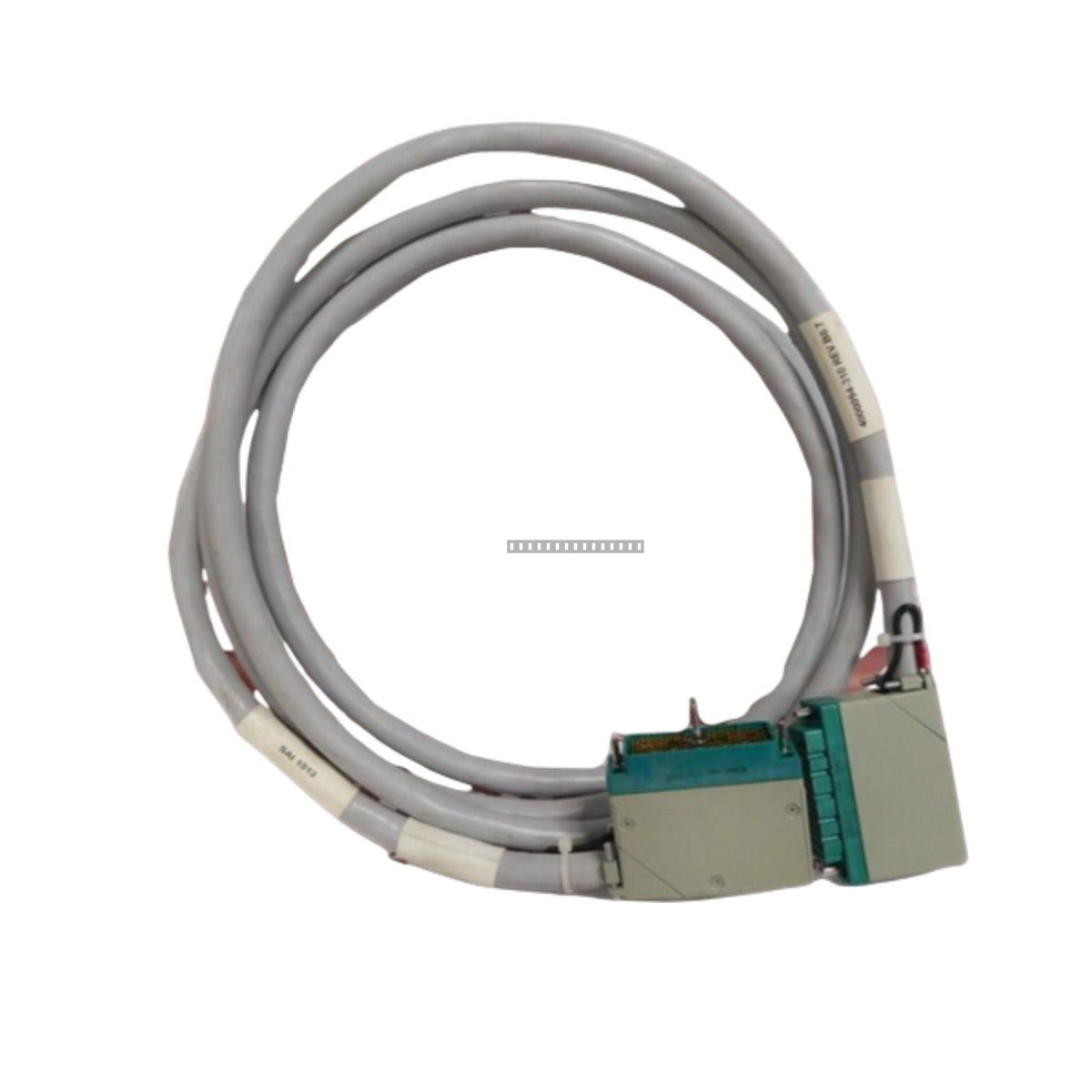

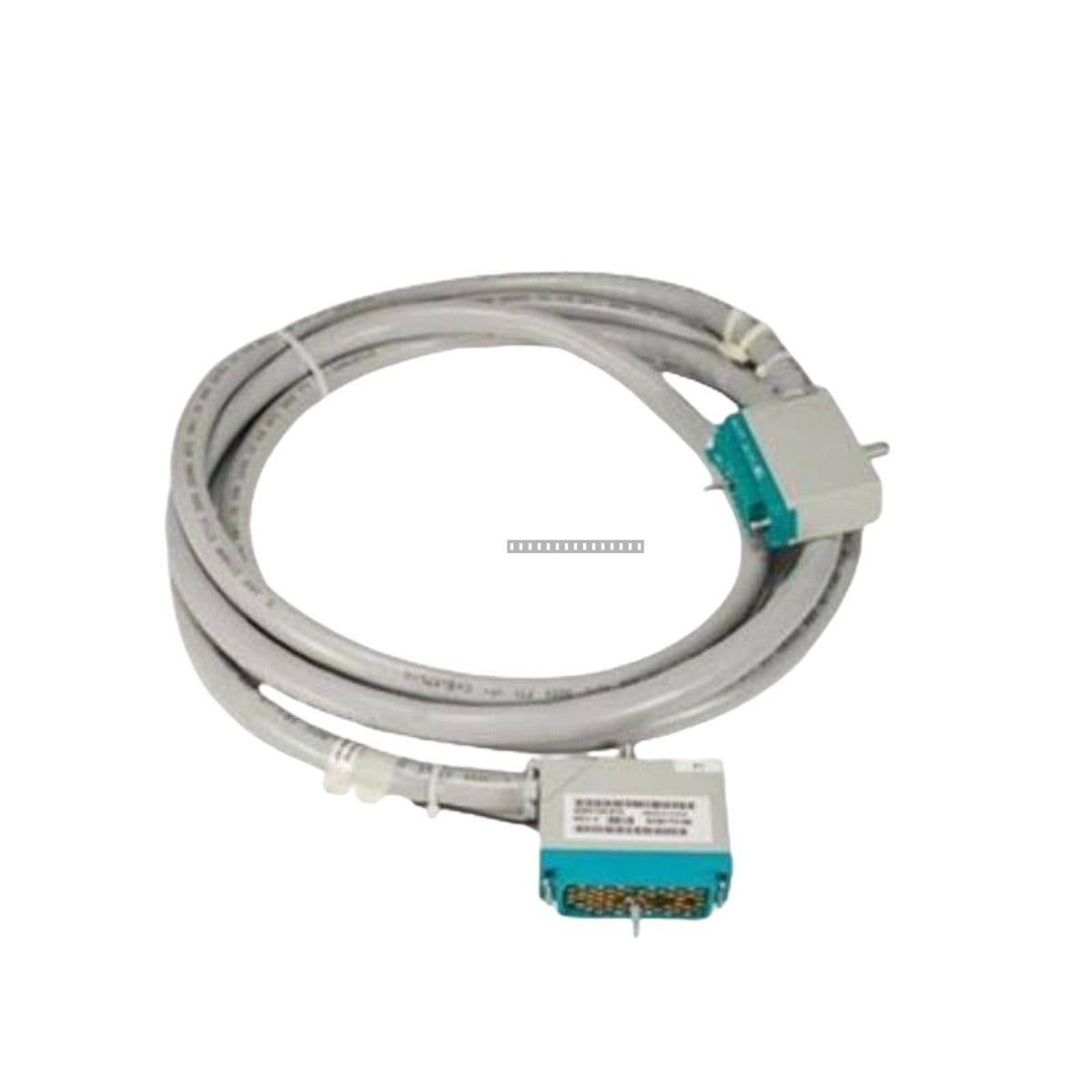

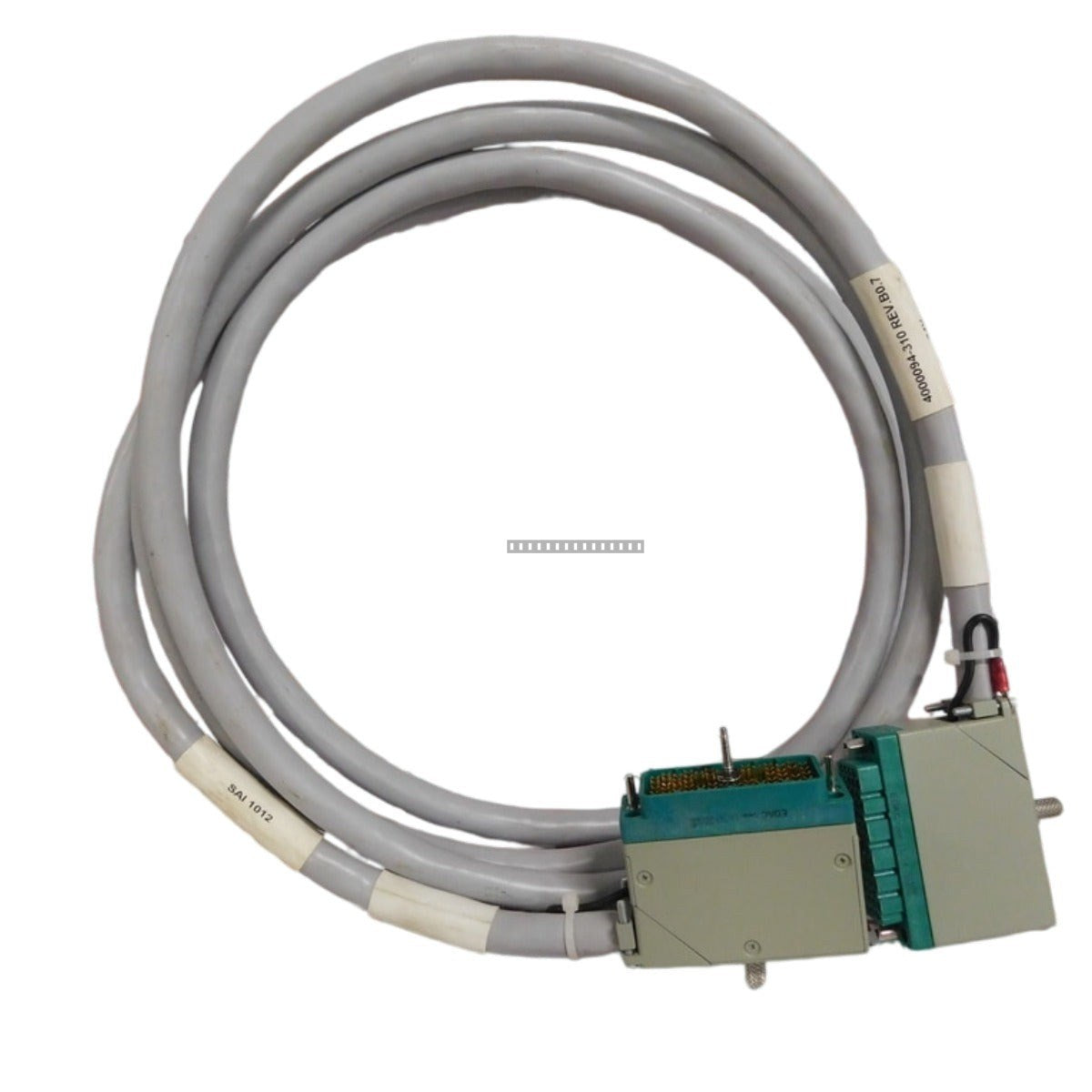

The Triconex 4000094-310 is a high-reliability External Output Cable Assembly engineered specifically for integration within Triconex Triple Modular Redundancy (TMR) safety systems. This cable assembly provides a secure, low-impedance interface between output modules and external termination panels. Designed for mission-critical applications in oil and gas, chemical processing, and power generation, it ensures signal integrity and maintains the functional safety of SIL 3 rated control loops.
Features
Optimized for TMR architecture, maintaining independent paths for redundant signals.
Ruggedized multi-conductor design for high-density signal transmission.
Precision-molded connector heads with mechanical locking to prevent disconnection from vibration.
Flame-retardant jacket material suitable for harsh industrial environments.
Color-coded internal wiring aligned with standard Triconex termination schemes.
Applications
This cable assembly is utilized in safety-critical industrial control systems where high availability and signal reliability are required. It is commonly deployed in emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas monitoring loops where the Triconex TMR platform is installed.
Technical Specifications
Model
4000094-310
Brand
Triconex
Module Type
External Output Cable Assembly
Cable Length
33.0 cm
Connector Type
Multi-pin high-density industrial connector
Jacket Material
Flame-retardant PVC / Low smoke zero halogen
Operating Temperature
-20 to +70 deg C
Installation Guidelines
Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or signal faults.
Inspect connector pins for debris or damage prior to insertion; ensure the mechanical locking mechanism is fully engaged.
Route cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
Avoid sharp bends or tension on the cable assembly during installation to prevent internal conductor fatigue.
Use appropriate cable management (e.g., cable ties or trays) to secure the assembly and reduce mechanical stress on the connectors.
FAQ
Is this cable compatible with all Triconex systems?
The 4000094-310 is designed for specific Triconex TMR output module configurations. Please verify your system documentation or the specific output module part number to ensure compatibility with this cable assembly.
What is the primary function of this cable?
It acts as the physical link between the output module backplane and the field termination assembly, ensuring that redundant safety signals are transmitted reliably without interference.
