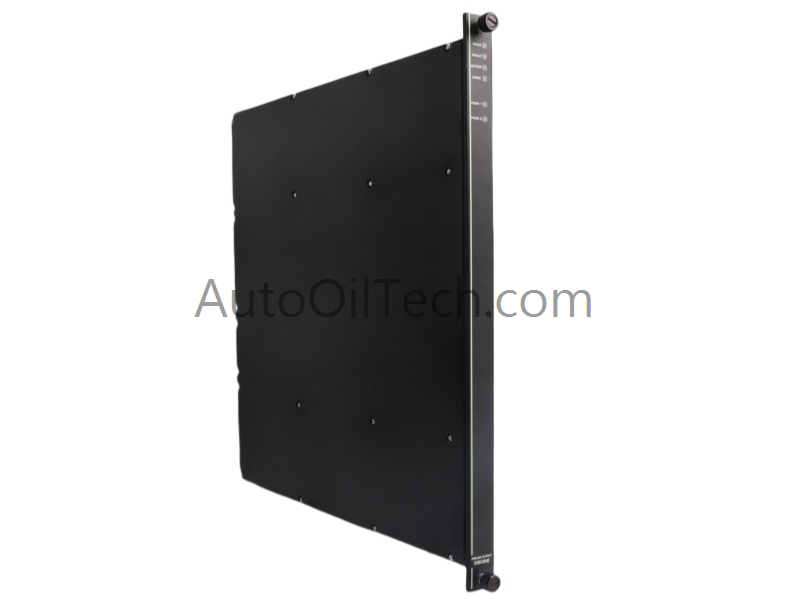

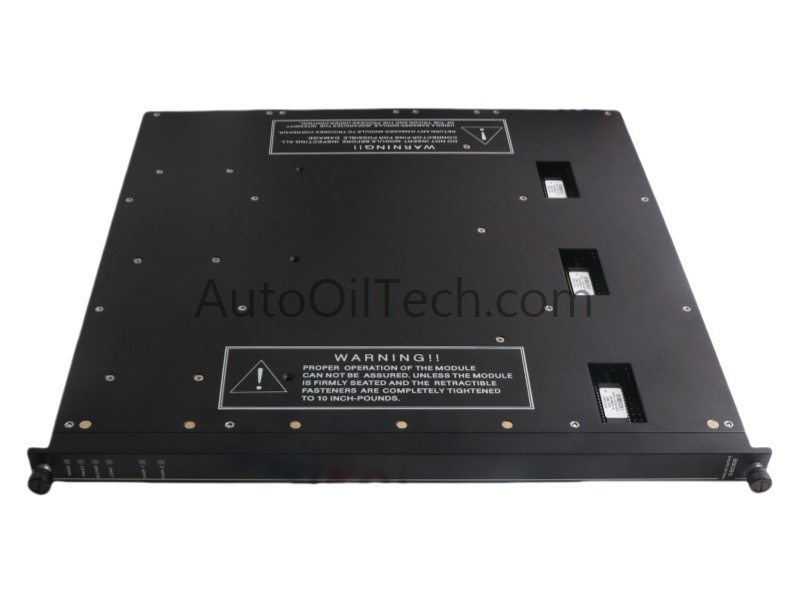

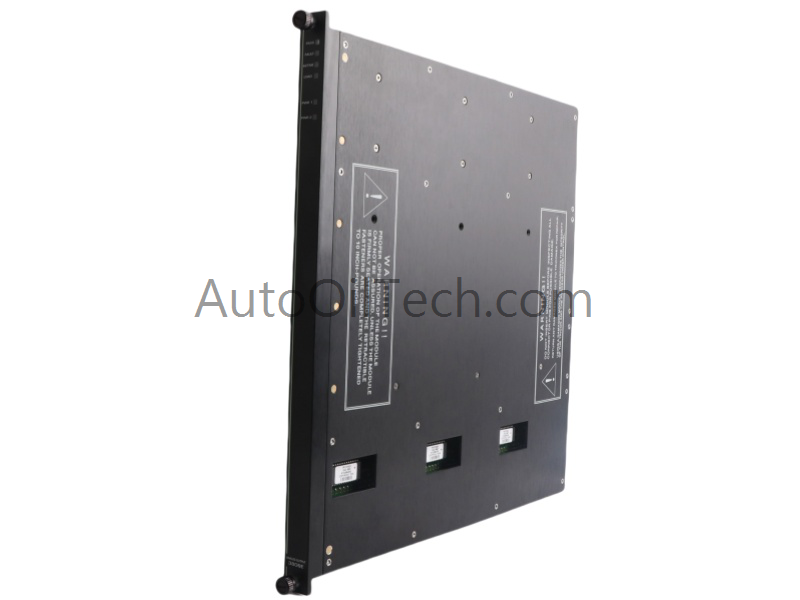

The Triconex 3806E Analog Output Module delivers high-precision current and voltage outputs for safety-critical DCS environments. Designed with triple modular redundancy (TMR), it ensures fault-tolerant analog control in legacy Tricon Systems installations.
Technical Specifications
Parameter
Specification
Model Number
3806E
Manufacturer
Triconex
Product Series
Tricon Systems
Module Type
Analog Output Module
System Compatibility
DCS
Output Signal Types
4–20 mA / 20–320 mA / 0–10 V / 0–5 V / 0–20 mA
Output Accuracy
±0.1%
Architecture
Triple Modular Redundancy (TMR)
Isolation
I/O and channel-to-channel, 1500 V AC/DC
Diagnostics
Self-monitoring with alarm generation
Safety Certification
SIL3 with integrated HART filter
Communication
Ethernet router
Operating Temp
–40°C to +70°C
Dimensions
2.2 × 40.7 × 39.8 cm
Weight
2.16 kg (up to 5 kg depending on config)
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
Minimum Order
1 unit
Country of Origin
USA
Lifecycle Status
Active (Discontinued by OEM)
Key Features
Supports multiple analog output ranges including 4–20 mA and 0–10 V
TMR architecture ensures fault-tolerant analog signal delivery
SIL3-rated with integrated HART filter for safety compliance
Self-diagnostics enable proactive fault detection and alarm generation
Applications & Compatibility
The Triconex 3806E is ideal for legacy DCS systems in oil and gas, chemical, and power generation sectors. It integrates with Triconex safety platforms and supports actuators, control valves, and analog-driven safety loops.
