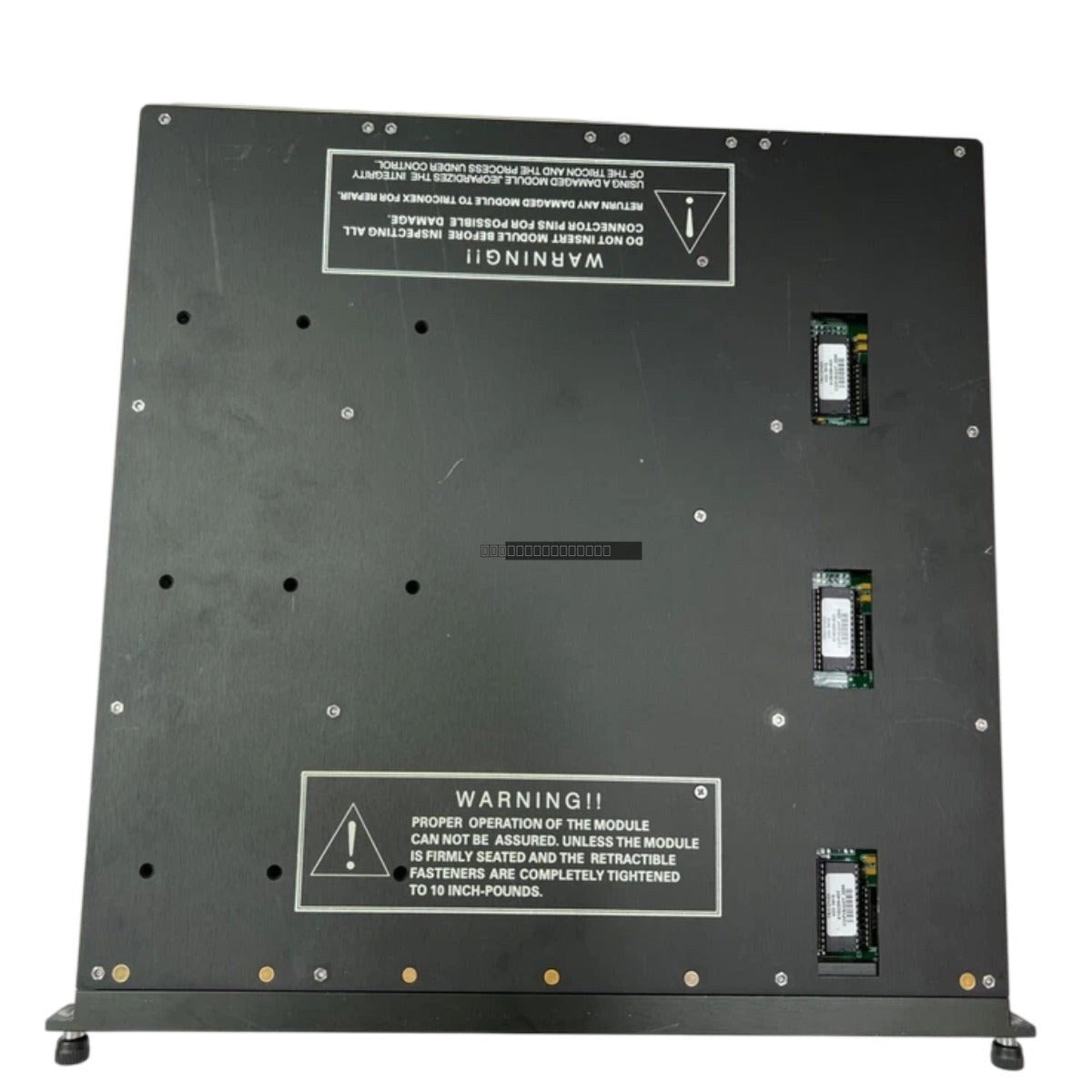

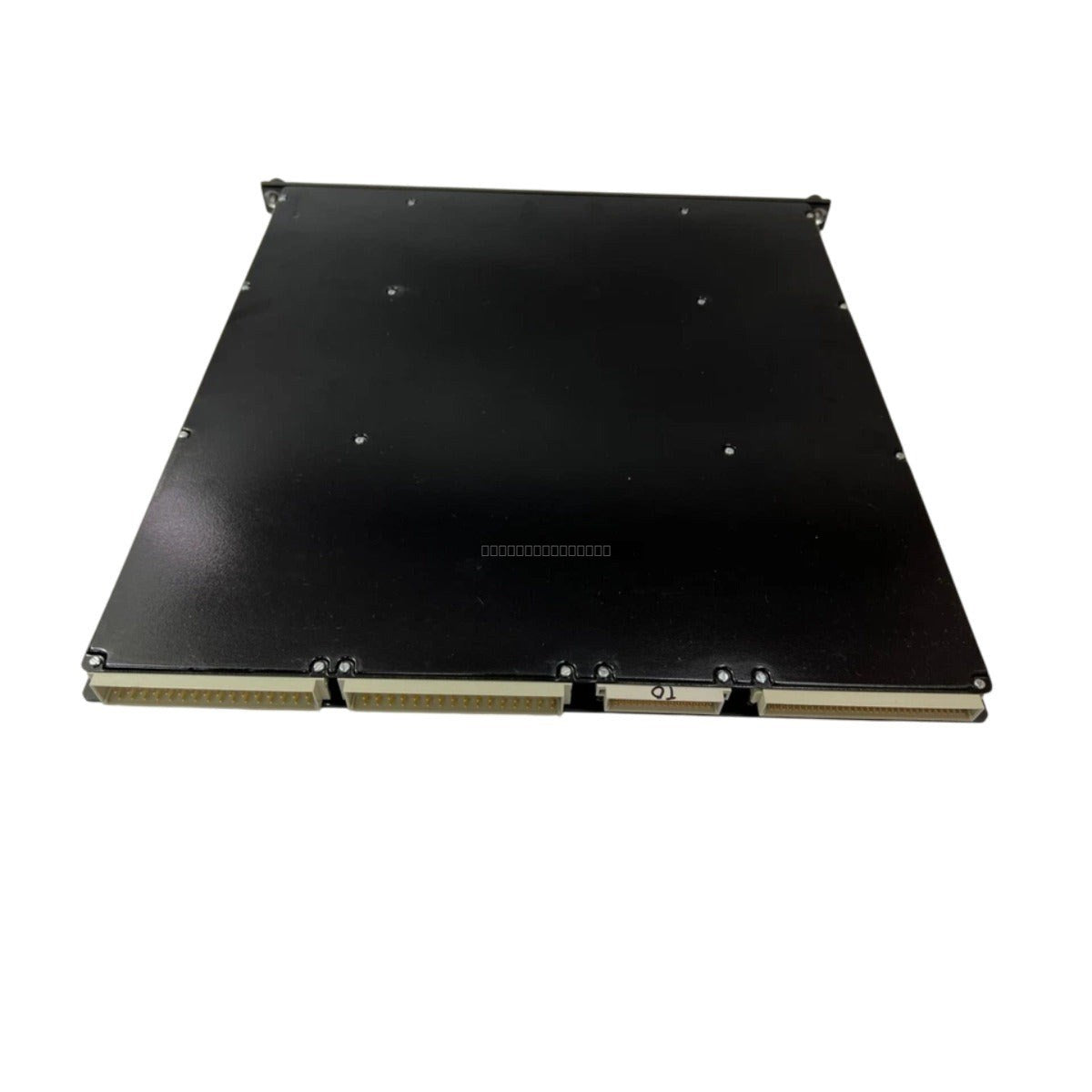

The Triconex 3704E is a high-density analog input module engineered for integration within Triconex safety-critical control systems. This module provides 64 independent input channels, enabling high-capacity signal processing for complex industrial automation environments, including oil and gas refineries, power generation facilities, and large-scale mining operations. It is designed to interface directly with a variety of field transmitters, supporting multiple signal ranges to ensure precise data acquisition and system reliability.
Features
64 independent analog input channels for high-density signal processing.
Supports configurable input ranges including 0-5 VDC, 0-10 VDC, and 0-20 mA current loops.
Robust electrical isolation rated for 150 VDC or 115 VAC continuous operation.
Integrated signal filtering to mitigate electromagnetic interference (EMI) and electrical noise.
Designed for high-availability architectures to reduce process downtime and protect central processing assets.
Applications
The 3704E is typically utilized in safety instrumented systems (SIS) and distributed control systems (DCS) where high-density analog monitoring is required. Common applications include monitoring pressure, temperature, flow, and level transmitters in hazardous or mission-critical industrial processes.
Technical Specifications
Model
3704E
Brand
Triconex
Module Type
Analog Input Module (64-Channel)
Input Ranges (Voltage)
0-5 VDC, 0-10 VDC
Input Ranges (Current)
0-20 mA
Isolation Voltage
150 VDC / 115 VAC continuous
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the system is powered down before inserting or removing the module from the chassis.
Handle the module using proper ESD (Electrostatic Discharge) prevention techniques to avoid damaging sensitive internal components.
Verify that field wiring is properly shielded and grounded to minimize noise interference.
Ensure the module is fully seated in the designated backplane slot to maintain reliable electrical connectivity.
Maintain adequate ventilation within the cabinet to keep operating temperatures within the specified 0-60 deg C range.
FAQ
Is the 3704E compatible with all Triconex systems?
The 3704E is designed for specific Triconex architectures. Please verify your system's hardware compatibility and revision requirements before installation.
What is the primary function of the isolation on this module?
The isolation circuitry prevents field-side voltage surges or ground loops from propagating to the internal system bus, thereby protecting the host controller and ensuring signal integrity.
