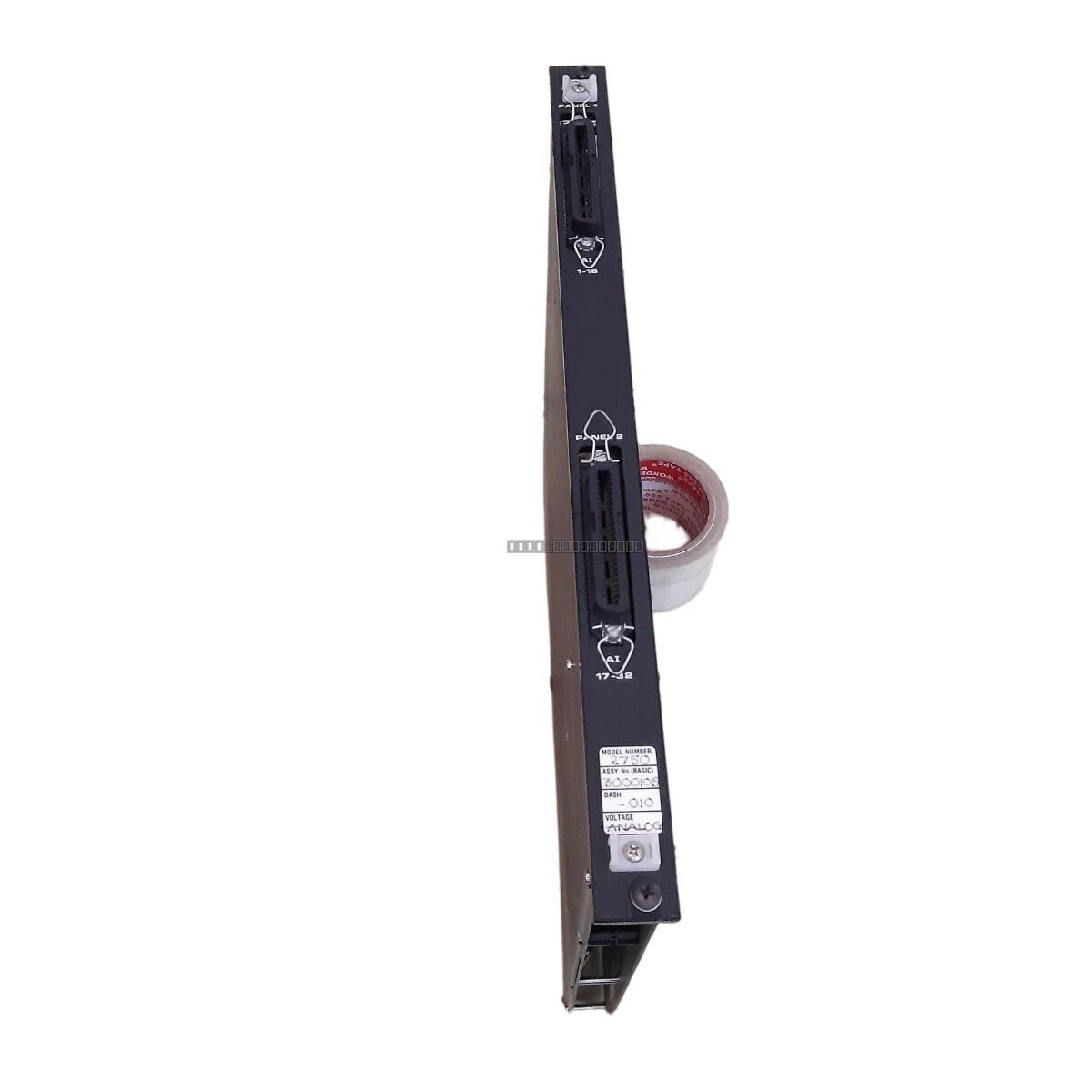

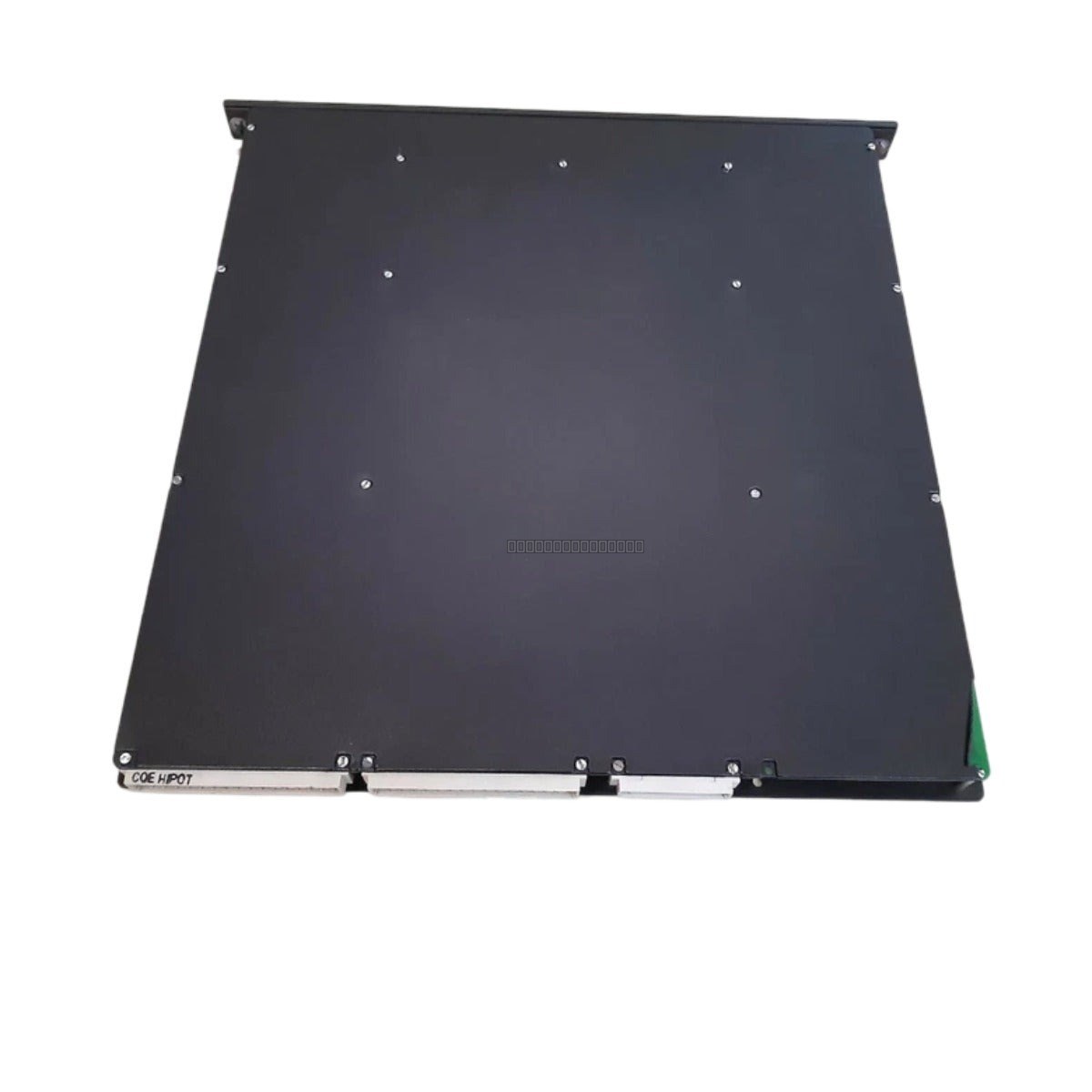

Triconex 2750 Analog Digital Input Module

Description

The Triconex 2750 is a high-reliability hybrid Analog Digital Input Module engineered for the Triconex safety-instrumented platform. This multi-purpose interface board is designed to condition and process both discrete states and continuous variable inputs from field instrumentation simultaneously. It is optimized for use in demanding industrial environments, including petrochemical refining, thermal power generation, and subsea mining infrastructure, providing high-speed signal conversion and continuous verification loops to minimize plant downtime.

Features

• Triple Modular Redundant (TMR) architecture for high-availability safety applications.
• Mixed-signal acquisition capabilities, consolidating analog and digital inputs on a single module.
• Independent optical isolation barriers for each input circuit to ensure separation between field-side loops and the central backplane.
• Continuous online diagnostics, including monitoring for loop resistance, open-wire faults, and out-of-range sensor metrics.
• Deterministic update rates via high-speed proprietary serial communication with primary processors.

Applications

The 2750 module is intended for critical safety-instrumented systems (SIS) where fault tolerance and high reliability are required. Typical applications include emergency shutdown systems (ESD), fire and gas detection, and critical process control monitoring in hazardous industrial settings.

Technical Specifications

Installation Guidelines

• Ensure the Triconex rack is powered down before inserting or removing the module to prevent electrical damage or system faults.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
• Verify that the module is fully seated in the designated backplane slot and that the locking mechanisms are engaged.
• Ensure all field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
• Confirm that field-side power supplies match the 24 VDC nominal requirements for digital inputs.

FAQ

What is the primary function of the Triconex 2750 module?

The 2750 is a hybrid input module that processes both analog (4-20 mA or 0-5 VDC) and digital (24 VDC) signals, allowing for consolidated I/O management within a TMR safety system.

Does this module support online diagnostics?

Yes, the module performs continuous online diagnostics, including monitoring for open-wire faults, loop resistance, and out-of-range signal conditions without interrupting the process data flow.
