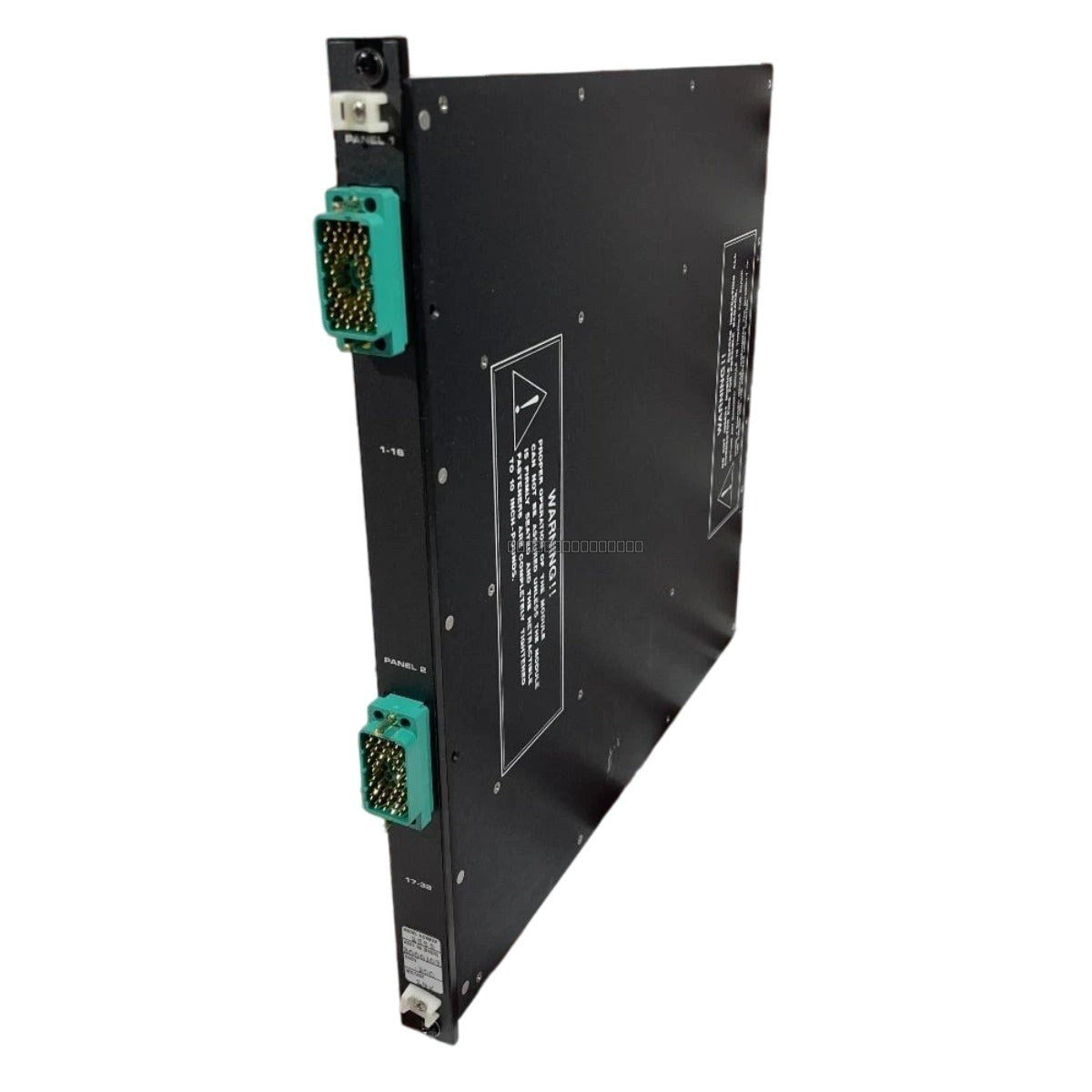

The Triconex 2553 is a dual-panel External Termination Assembly (ETA) designed for integration with Triconex digital input subsystem architectures. This interface module serves as a critical bridge between field-side instrumentation and high-density PLC input cards, providing reliable signal conditioning for 24 VAC/VDC discrete inputs. It is widely utilized in hazardous process environments, including petrochemical plants, thermal power stations, and mining operations, to ensure high-integrity data transmission while protecting downstream processing hardware from electrical transients.
Features
Dual-panel hardware architecture for high-density field wiring management.
Optimized for DIN rail mounting within marshalling cabinets.
Integrated signal conditioning for 24 VAC/VDC discrete inputs.
Provides accessible test points and field-side fusing for simplified maintenance and troubleshooting.
Physical layout designed to separate low-voltage system cables from field wiring to minimize electromagnetic interference.
Robust construction to support proximity sensors, mechanical limit switches, and auxiliary contacts.
Applications
This module is specifically engineered for use in industrial control systems where high-density digital input termination is required. It is commonly deployed in safety-critical and process-critical applications where signal stability and ease of maintenance are paramount, such as emergency shutdown systems (ESD) and distributed control system (DCS) I/O marshalling.
Technical Specifications
Model
2553
Brand
Triconex
Module Type
Digital Input External Termination Panel
Configuration
2 Panels
Input Nominal Rating
24 VAC/VDC
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the marshalling cabinet is properly grounded before installing the ETA.
Mount the unit on standard DIN rail, ensuring adequate clearance for heat dissipation and cable routing.
Maintain physical separation between high-voltage field wiring and low-voltage system signal cables to prevent cross-talk.
Verify that all field-side fuses are correctly seated and rated for the specific loop requirements.
Always power down the associated I/O modules before connecting or disconnecting interface cables to prevent electrical damage.
Use shielded cables for field inputs where high-EMI environments are present.
FAQ
What is the primary function of the 2553 ETA? The 2553 acts as a termination interface that connects field devices to Triconex digital input modules, providing signal conditioning, fusing, and test points for easier system maintenance.
Is this module suitable for 24V systems? Yes, the 2553 is rated for 24 VAC/VDC discrete input applications.
