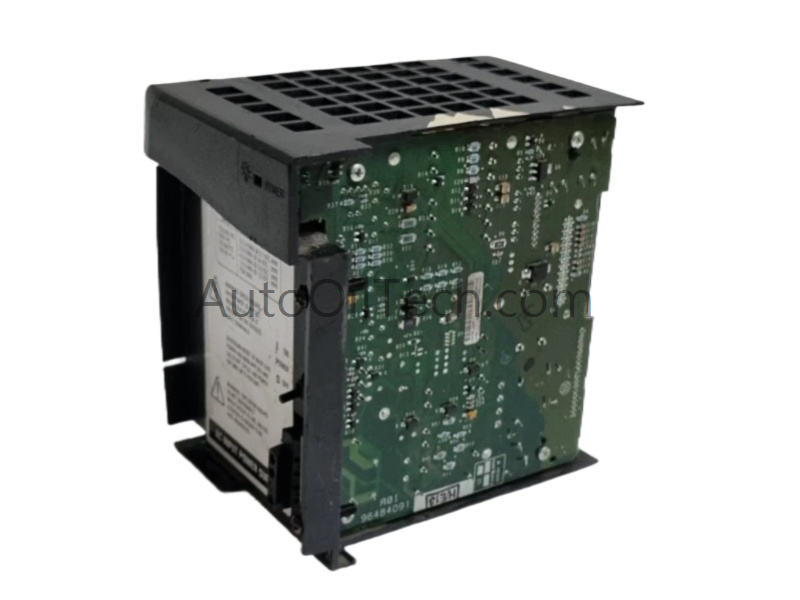

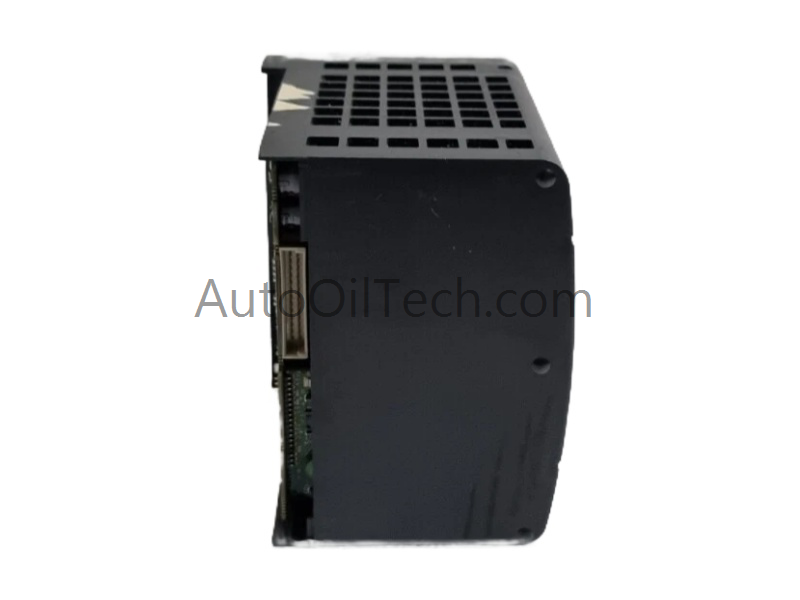

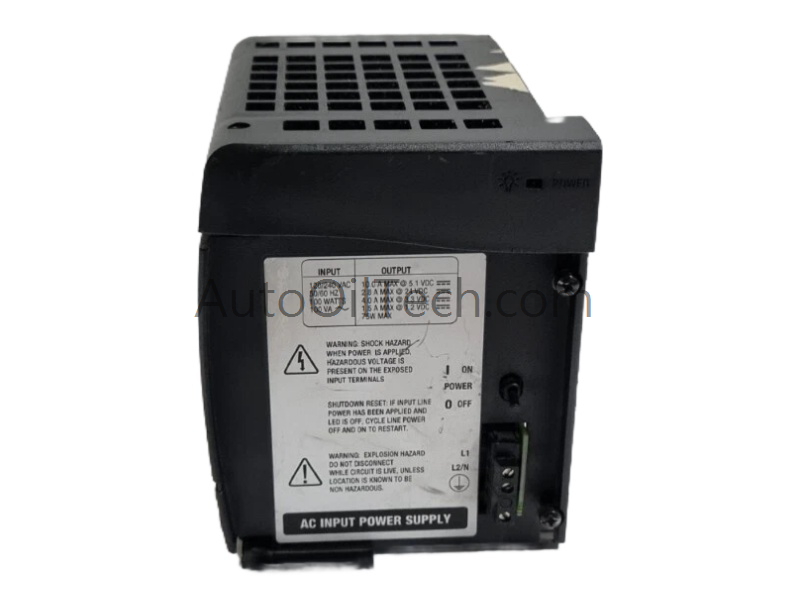

The Honeywell TK-FPCXX2, also cataloged as the FPCXX2 power supply module, serves as the primary hardware unit for regulated AC-to-DC conversion across Honeywell process control platforms.
Hardware Specifications
Parameter
Specification
Model
TK-FPCXX2
Brand
Honeywell
Origin
Honeywell process control systems
Weight
1.1 kg (Shipping weight: 2.5 kg)
Dimensions
11.2 × 14.5 × 14.0 cm
Operating Temp
Standard industrial ambient range
Power Consumption
92 W input, 70 W output @ 60 deg C
Core Function
AC-to-DC regulated power supply
Input Voltage Range
85–132 VAC or 170–265 VAC (selectable)
Input Power
150 VA, 92 W
Inrush Current
15 A max
Frequency Range
47–63 Hz
Output Power
70 W max @ 60 deg C
Profinet / EtherNet/IP Deterministic Networks
The TK-FPCXX2 integrates into Honeywell control environments where Profinet and EtherNet/IP deterministic networks are deployed. Its regulated output ensures stable backplane bus communication velocity, supporting firmware flash compatibility across distributed I/O modules. This deterministic behavior is critical for synchronous process control operations.
Frequently Asked Questions
Q: What is the maximum inrush current? A: The module supports up to 15 A inrush current during startup.
Q: Can the input voltage range be selected? A: Yes, selectable ranges are 85–132 VAC or 170–265 VAC.
Q: What is the maximum output power rating? A: 70 W at 60 deg C ambient conditions.
Field Installation Guidelines
Verify input voltage selector position before energizing.
Ensure chassis slot connectors are fully engaged.
Maintain clearance for convection cooling around module housing.
Ground shielding at a single point to minimize EMI.
Confirm load demand does not exceed 70 W at rated ambient temperature.
