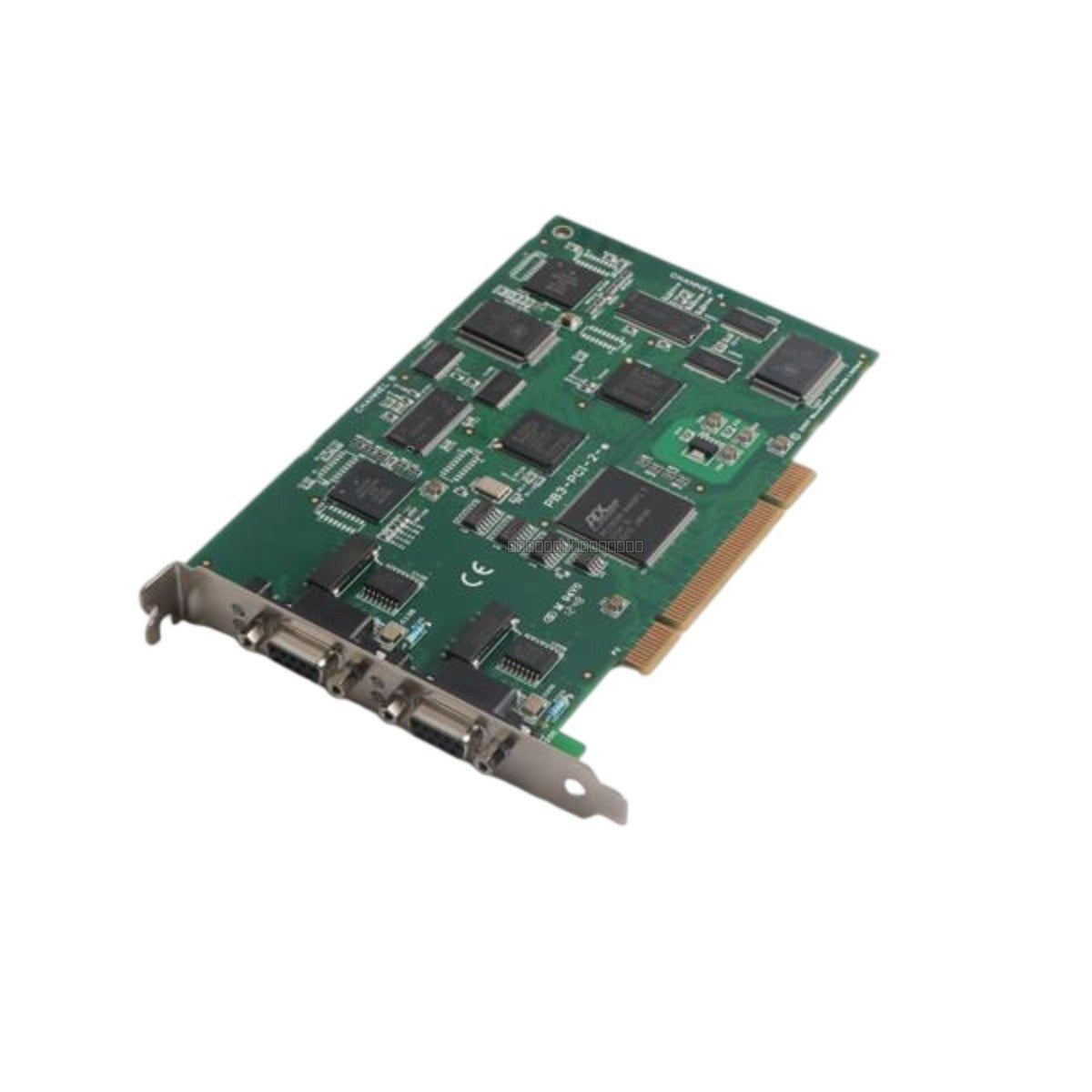

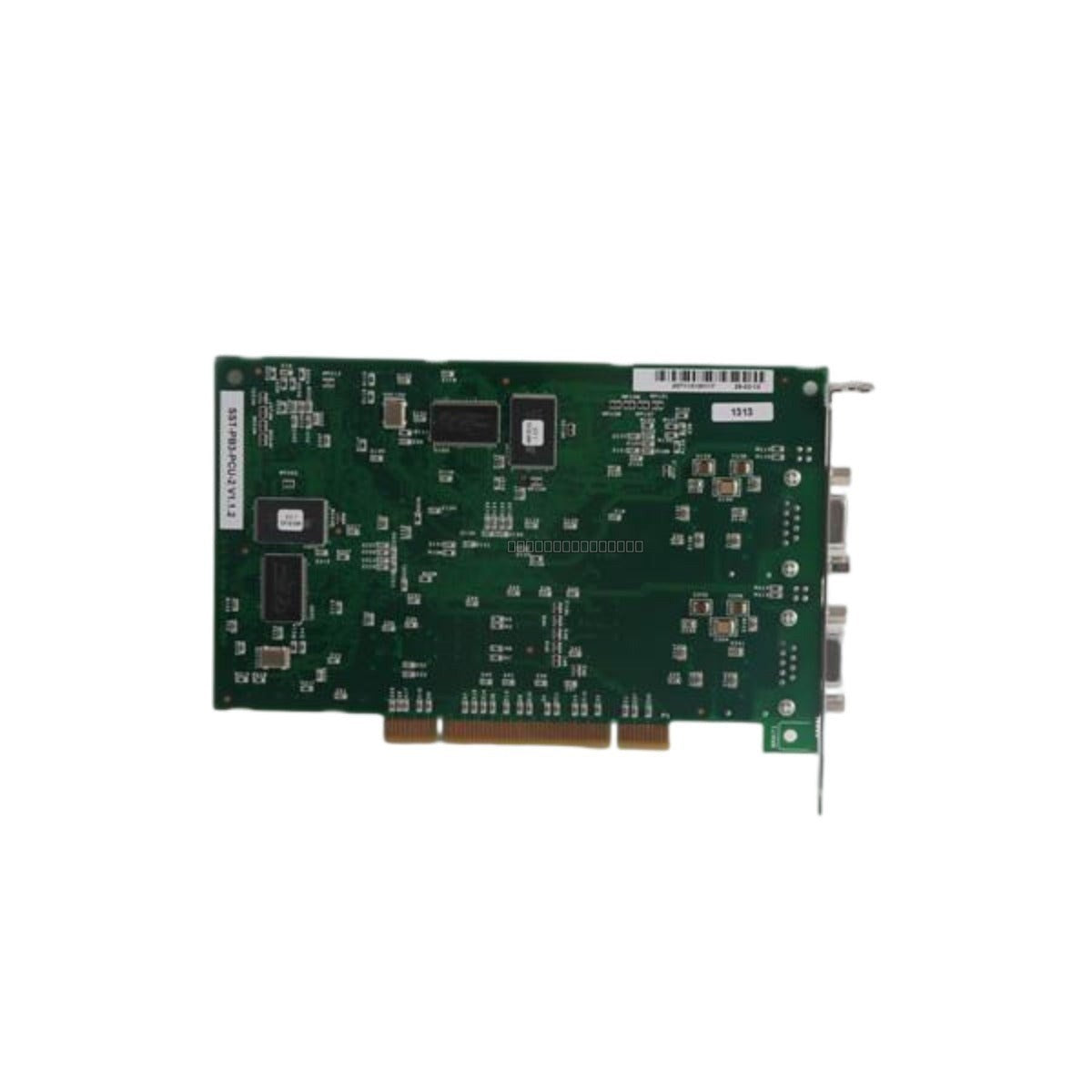

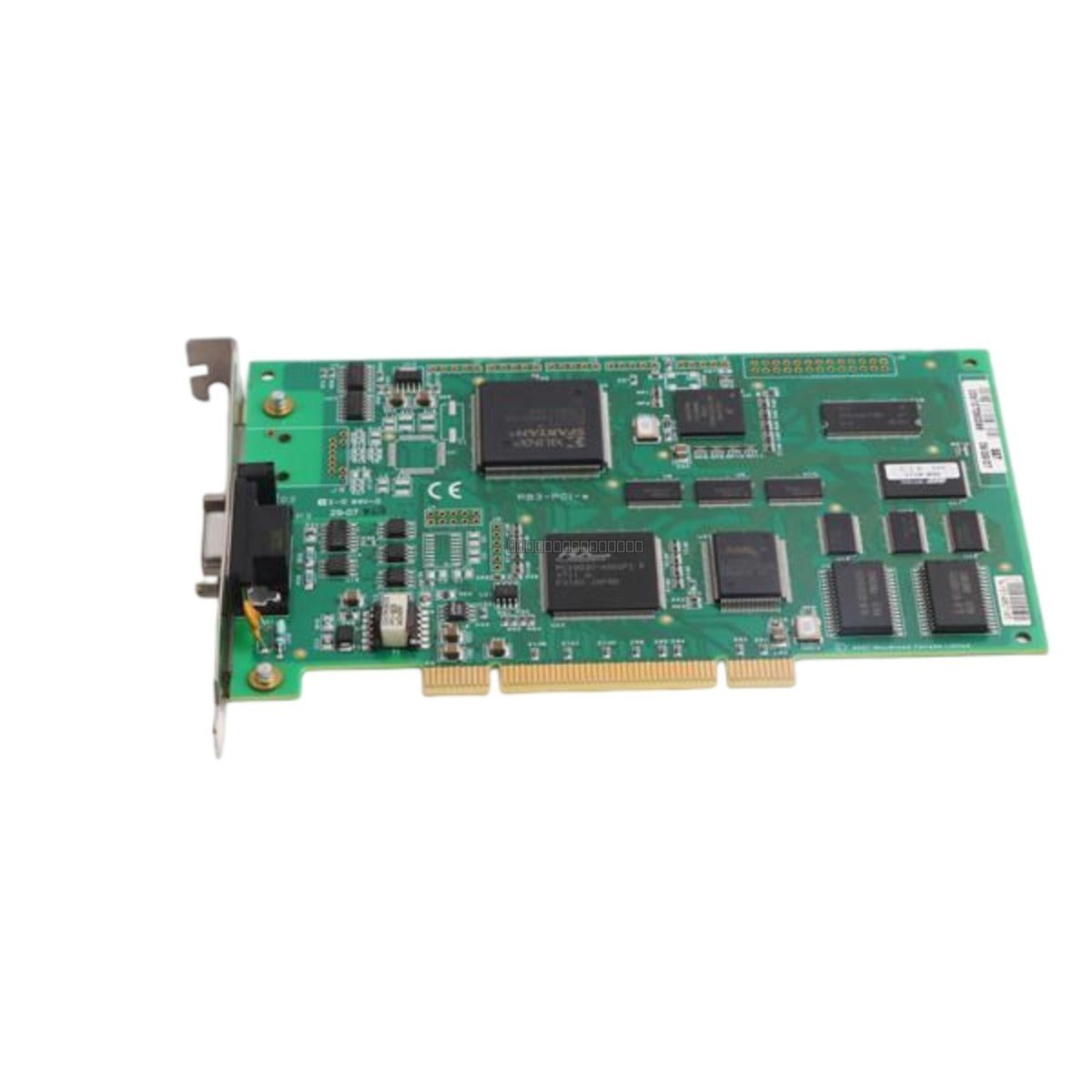

Woodward SST-PB3-PCU PROFIBUS Interface Card

Description

The SST-PB3-PCU is a high-performance PROFIBUS interface card designed for PCI bus architectures. This communication module facilitates seamless data exchange between industrial PCs and PROFIBUS DP or MPI networks. Engineered for mission-critical automation environments such as oil refineries, power generation facilities, and large-scale manufacturing plants, it ensures high-speed deterministic control. The hardware is optimized to minimize latency and system overhead, contributing to reduced operational downtime and enhanced process synchronization.

Communication Architecture

This PCI card utilizes an on-board processor to manage the PROFIBUS protocol stack independently of the host CPU, ensuring consistent performance even under heavy network loads. It supports DP-V0 and DP-V1 master/slave configurations and MPI messaging. The interface provides galvanic isolation to protect the host system from electrical noise and transients common in industrial grounding systems. The hardware is compatible with 3.3 V and 5 V PCI slots, offering universal integration across legacy and modern industrial computing platforms.

Features

• High-speed PROFIBUS DP and MPI communication.
• On-board processor for offloading protocol stack management from the host CPU.
• Galvanic isolation for enhanced noise immunity and system protection.
• Universal 32-bit PCI interface (3.3 V / 5 V compatible).
• Supports DP-V0 and DP-V1 master/slave modes.

Applications

The SST-PB3-PCU is primarily utilized in industrial PC-based control systems where reliable, deterministic PROFIBUS communication is required. Typical applications include process control in oil and gas, power generation monitoring, and complex factory automation systems requiring high-speed data exchange with field devices.

Technical Specifications

Installation Guidelines

• Ensure the host system is powered down and disconnected from the main power source before inserting or removing the card.
• Handle the card by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
• Ensure the PCI slot is clean and free of debris before seating the card.
• Secure the card bracket to the chassis to ensure proper grounding and mechanical stability.
• Verify that the PROFIBUS cable is properly shielded and terminated at both ends of the network segment to prevent signal reflections.
• Keep communication cables routed away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

Is this card compatible with both 3.3 V and 5 V PCI slots?

Yes, the SST-PB3-PCU is designed as a universal PCI card, making it compatible with both 3.3 V and 5 V PCI bus architectures.

Does the card require host CPU resources for protocol processing?

No, the card features an on-board processor that manages the PROFIBUS protocol stack independently, which helps maintain system performance even during high network traffic.
