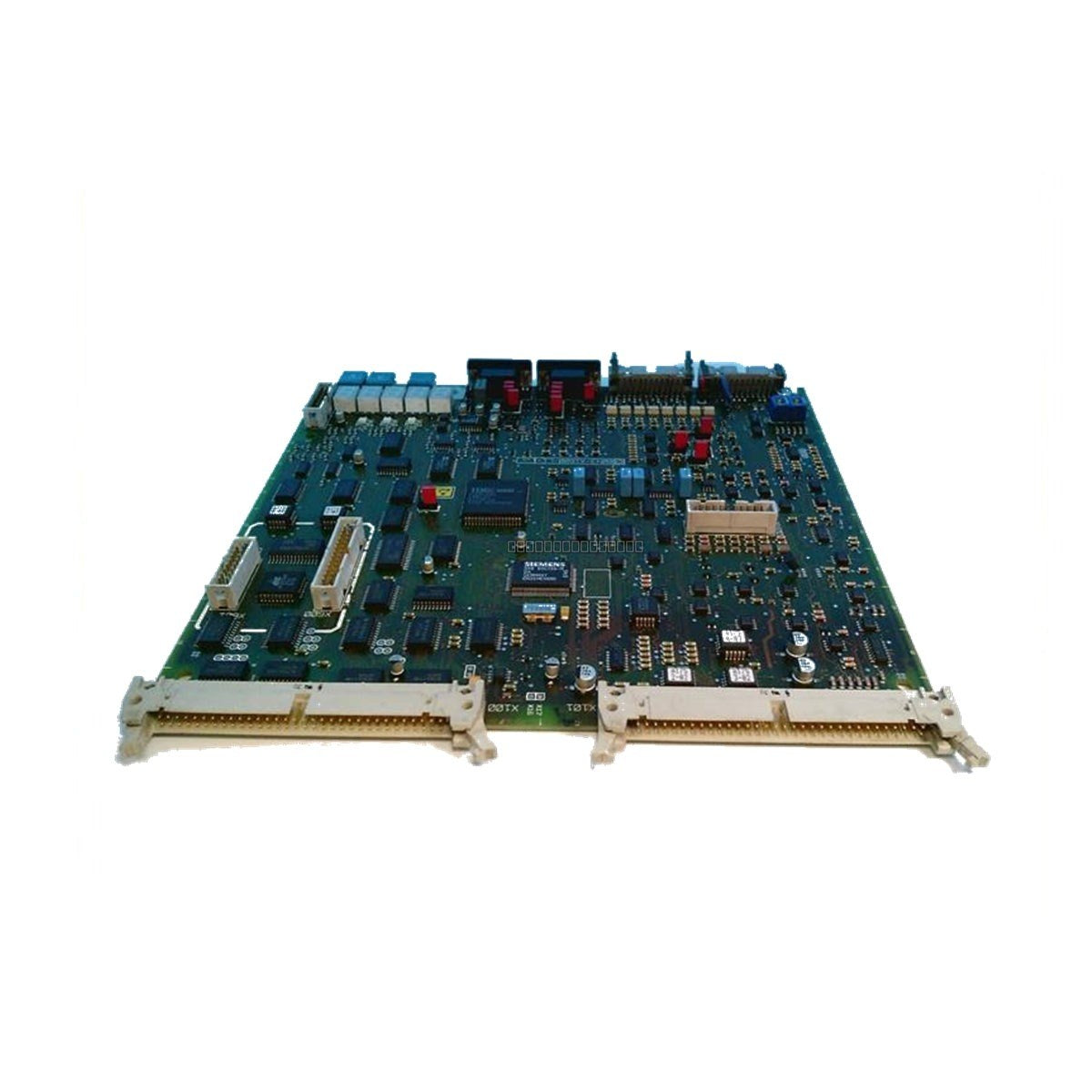

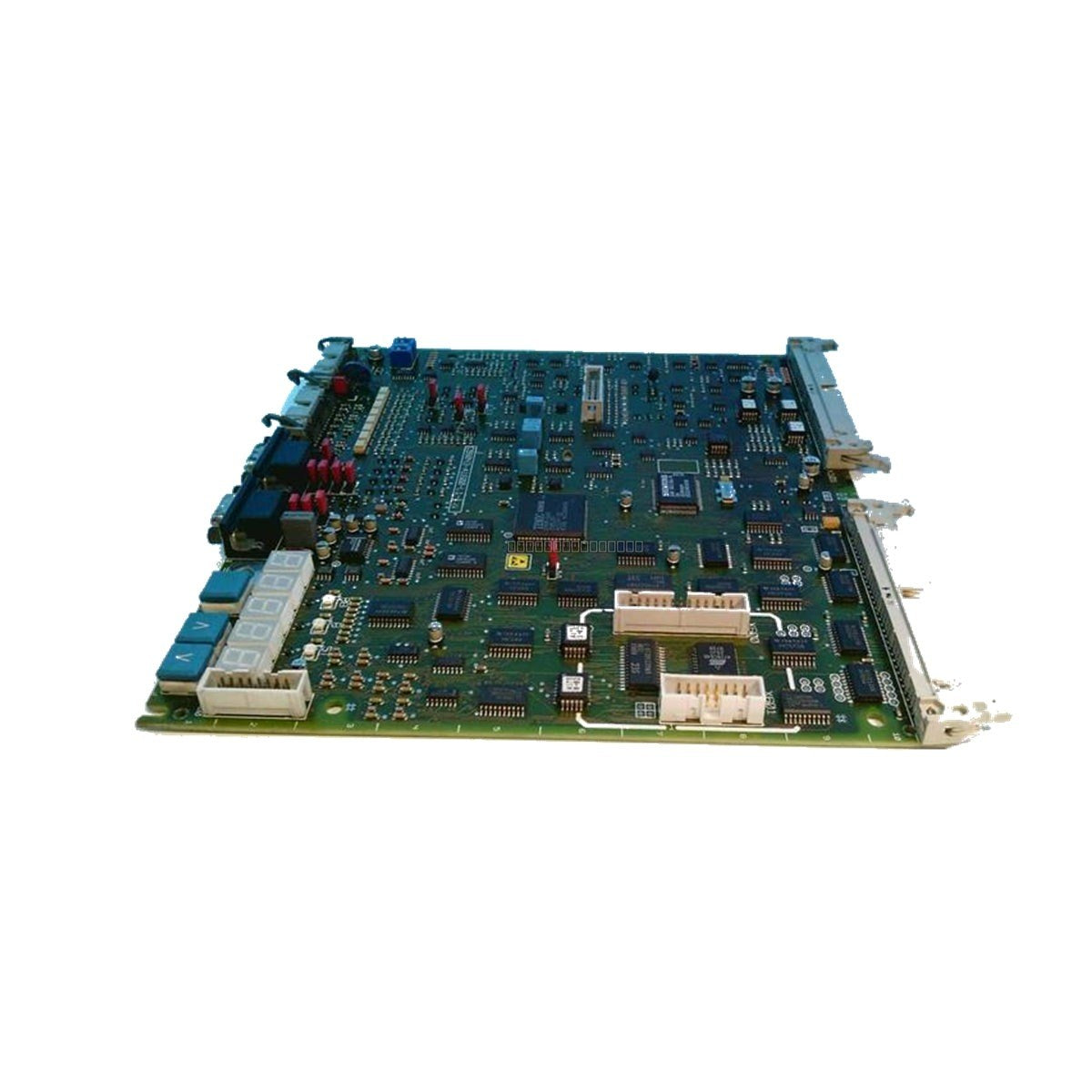

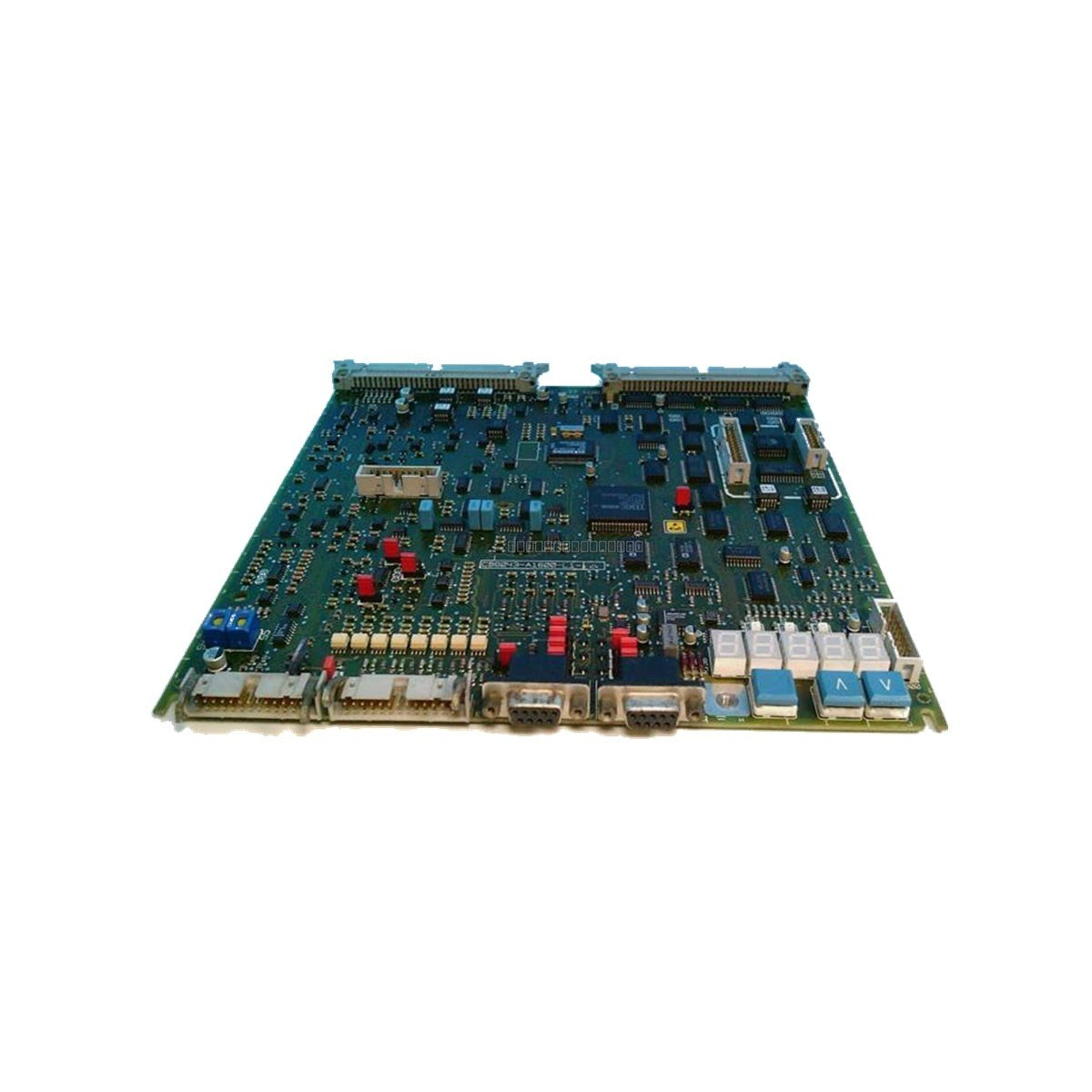

Siemens C98043-A1600-L1-17 SIMOREG K Control Board

Description

The Siemens C98043-A1600-L1-17 (also identified as C98043A1600L117) is a high-performance control and inverter power board designed for the SIMOREG K series DC converters. This 32-bit microcontroller-based module manages critical switching logic and power distribution for large-scale industrial drives. It is engineered for demanding applications such as steel rolling mills, mining hoists, and harbor crane systems, where precise torque control and reliable high-current management are required. By maintaining DC link integrity and providing rapid signal processing, this board serves as a core component in legacy motor control architectures.

Features

• Advanced 32-bit microcontroller-based control logic for high-speed processing.
• Integrated gate-drive circuitry for power section management of SIMOREG K converters.
• Multi-layer PCB design for optimized heat dissipation and signal isolation.
• Robust construction designed to withstand industrial electromagnetic interference and high-vibration environments.
• Supports rated currents up to 1,600 A.

Applications

This control board is intended for use in heavy-duty industrial drive systems, specifically within the SIMOREG K series. Typical applications include:

• Steel and metal processing plants (rolling mills).
• Mining and material handling (hoists and conveyors).
• Large-scale harbor crane systems.
• Legacy DC motor control and power conversion systems.

Technical Specifications

Installation Guidelines

• ESD Protection: Always use an anti-static wrist strap and handle the board by its edges to prevent electrostatic discharge damage to sensitive components.
• Power Down: Ensure all power to the SIMOREG K drive is completely disconnected and the DC link capacitors are fully discharged before attempting to install or remove the board.
• Mounting: Ensure the board is securely seated in the designated slot within the drive housing. Verify that all connector pins are aligned correctly to prevent bending or short-circuiting.
• Environment: Ensure the installation area is free from conductive dust and excessive moisture. Maintain adequate clearance for airflow to prevent overheating.
• Grounding: Verify that the drive chassis is properly grounded according to local electrical codes to mitigate EMI effects.

FAQ

Is this board compatible with all SIMOREG K converters?

This board is specific to the C98043-A1600-L1-17 configuration. Please verify your existing part number and drive model to ensure full compatibility with your specific SIMOREG K system.

What should I do if the board displays a fault?

Check the diagnostic LEDs on the drive interface and consult the SIMOREG K technical manual for the specific error code. Ensure all cable connections to the board are tight and free from corrosion.
