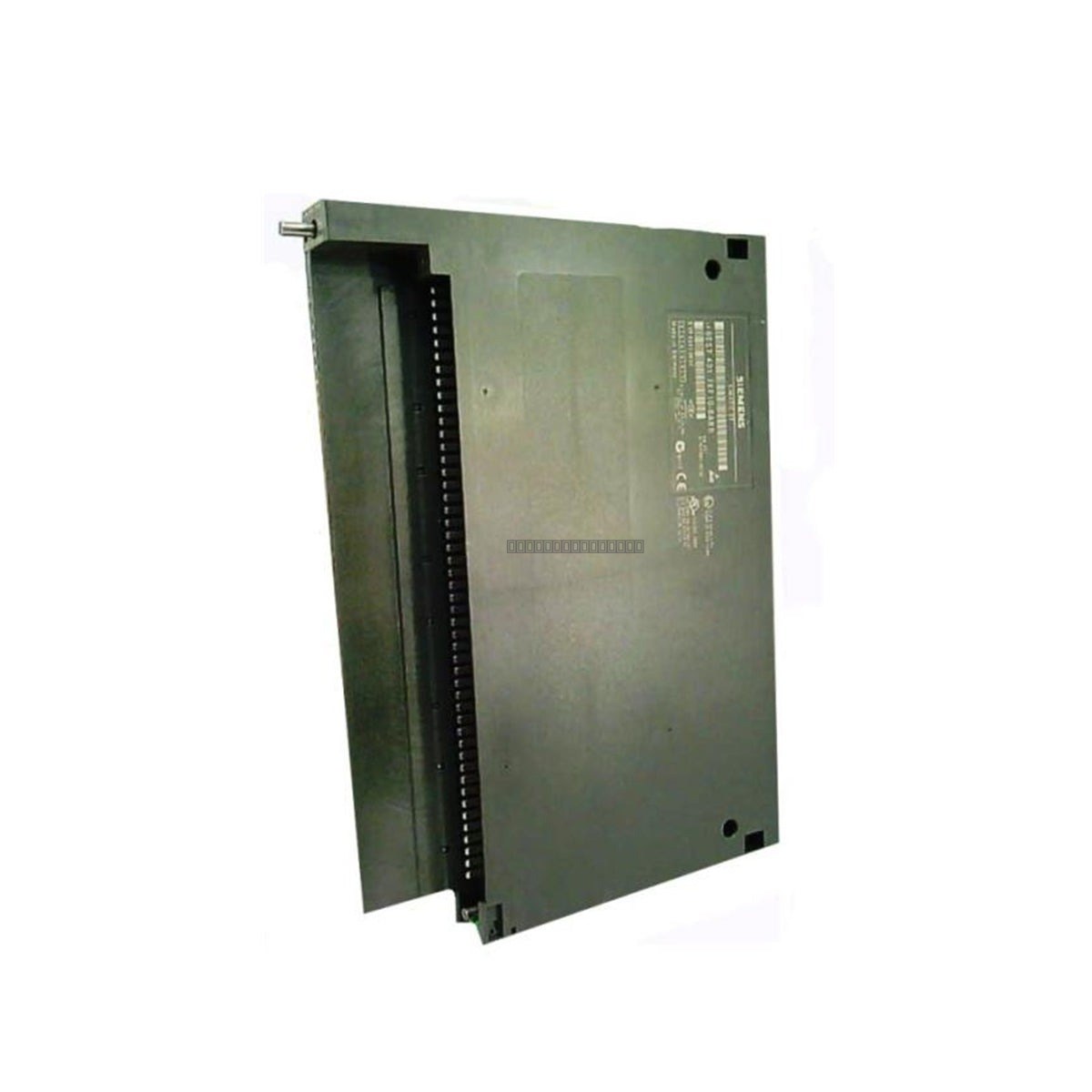

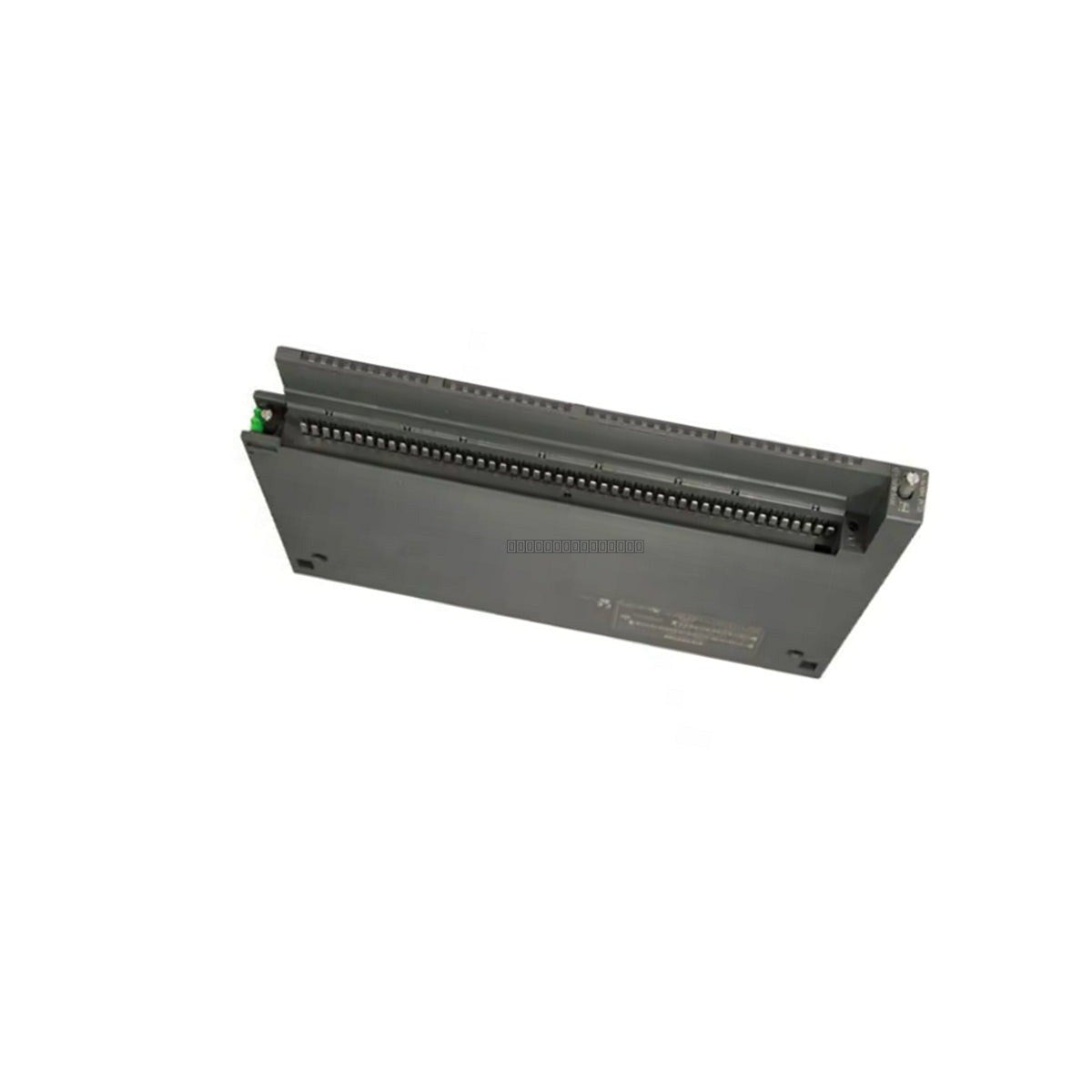

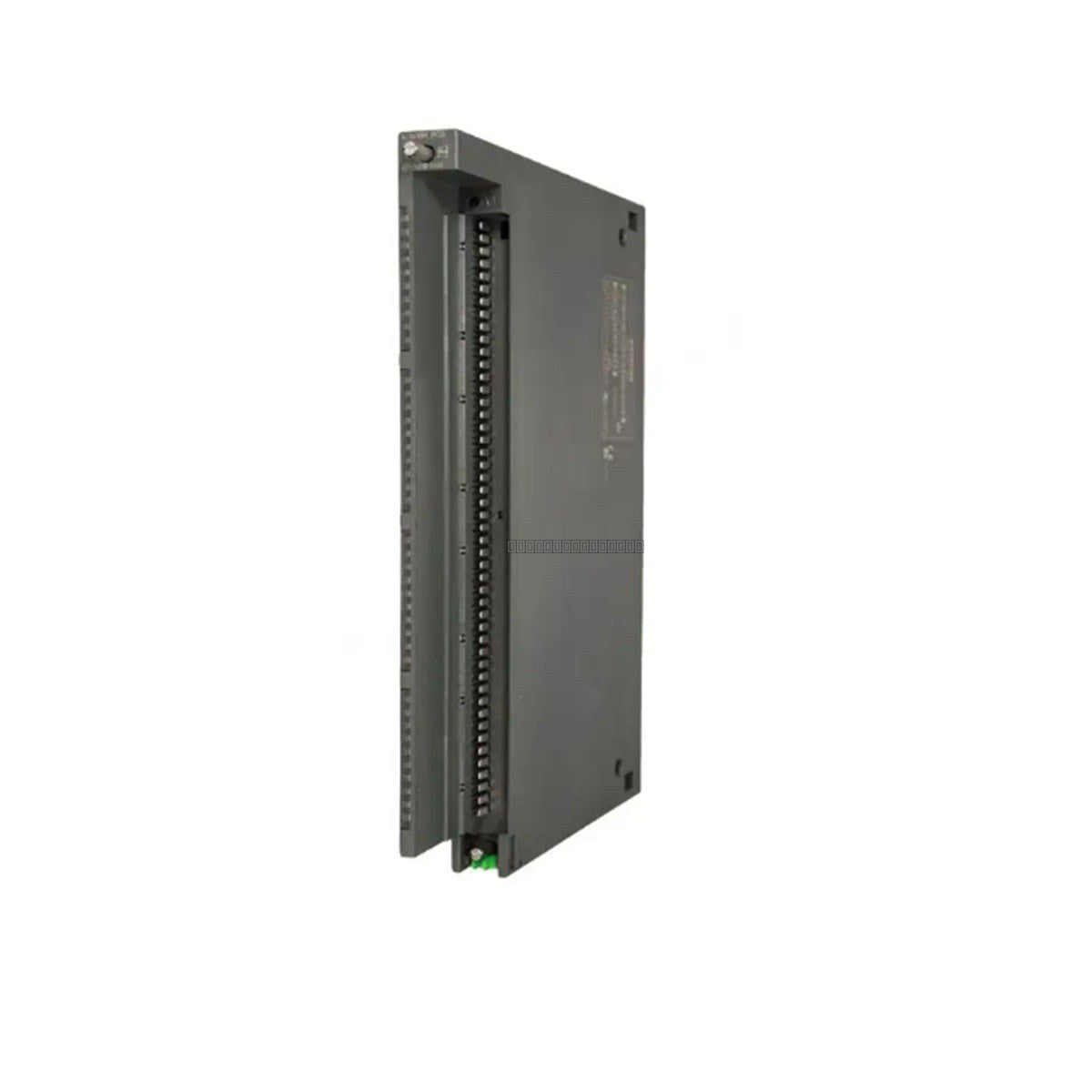

The Siemens 6ES7431-7KF10-0AB0 is a high-performance analog input module designed for the SIMATIC S7-400 automation system. This SM 431 module provides 8 input channels specifically configured for resistance-based measurements, including support for Pt100 and Ni100 temperature sensors. It features 16-bit resolution, ensuring high-precision data acquisition for critical industrial processes. The module is optically isolated to protect against electrical interference and includes built-in diagnostic and alarm capabilities to maintain system integrity.
Features
8 analog input channels for RTD (Resistance Temperature Detector) measurement.
Supports Pt100 and Ni100 sensor types.
High-precision 16-bit resolution for accurate signal processing.
Integrated optical isolation for enhanced noise immunity.
Advanced diagnostic functions with alarm signaling.
Fast module update time of 20 ms.
Applications
This module is widely used in SIMATIC S7-400 PLC systems for temperature monitoring and process control in industries such as power generation, chemical processing, water treatment, and manufacturing automation where reliable RTD signal integration is required.
Technical Specifications
Product Model
6ES7431-7KF10-0AB0
Module Type
Analog Input (RTD)
Number of Inputs
8
Resolution
16-bit
Supported Sensors
Pt100, Ni100
Isolation
Optically Isolated
Update Time
20 ms
System Compatibility
SIMATIC S7-400
Installation Guidelines
Ensure the S7-400 rack power is disconnected before inserting or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the backplane slot and secured with the locking mechanism.
Use shielded twisted-pair cabling for RTD connections to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cable shields at the module terminal block or the designated grounding bus.
Maintain adequate ventilation within the control cabinet to ensure the module operates within its specified temperature range.
Handle the module using ESD-safe practices to prevent damage to sensitive internal components.
FAQ
Is this module compatible with all S7-400 CPUs?
The 6ES7431-7KF10-0AB0 is designed for the S7-400 series. Compatibility depends on the specific CPU firmware and the configuration within the STEP 7 engineering software. Please consult your project hardware configuration to ensure the module is supported.
Does this module require external power?
The module is powered via the S7-400 backplane bus. However, ensure that your power supply module (PS) is sized correctly to handle the total current consumption of all modules installed in the rack.
