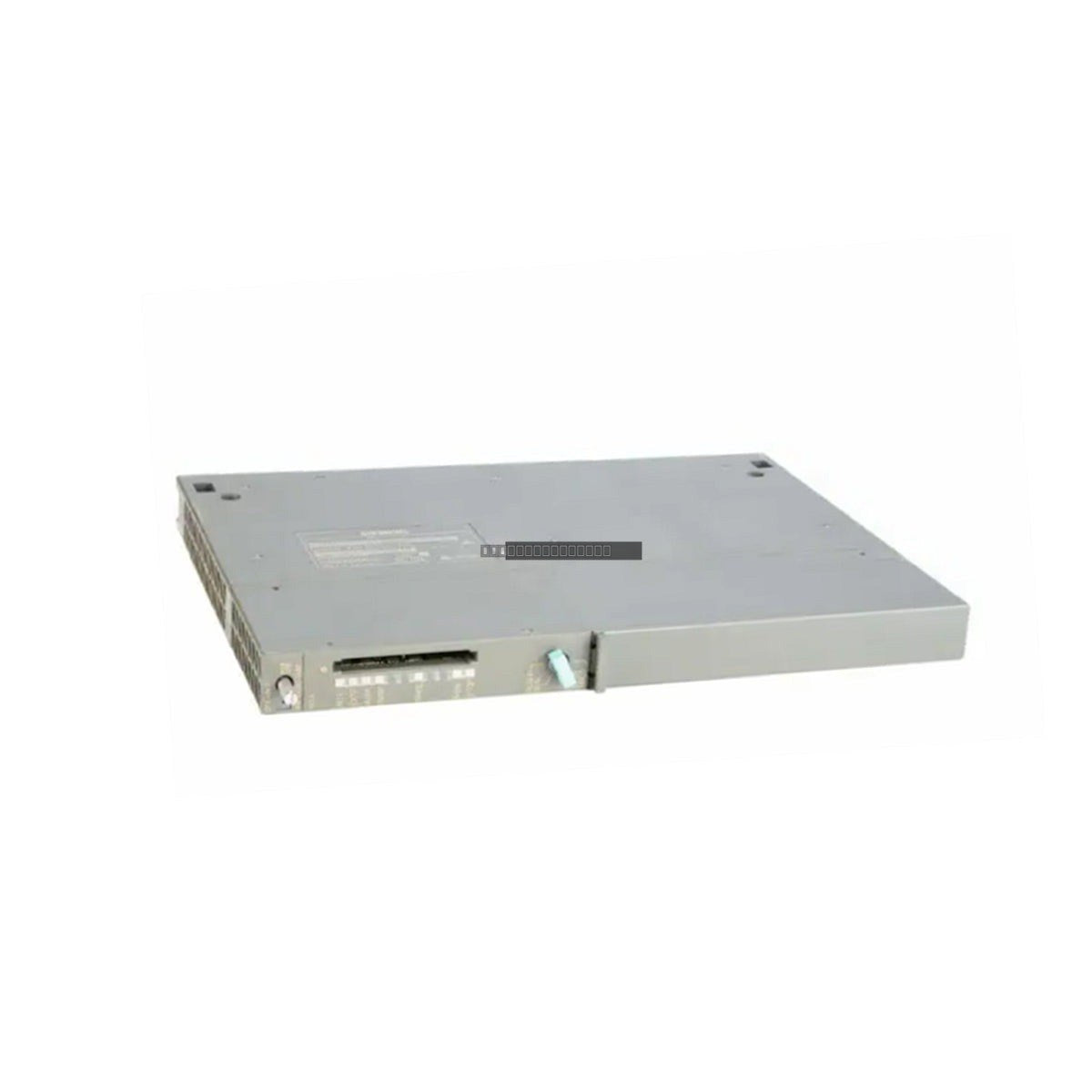

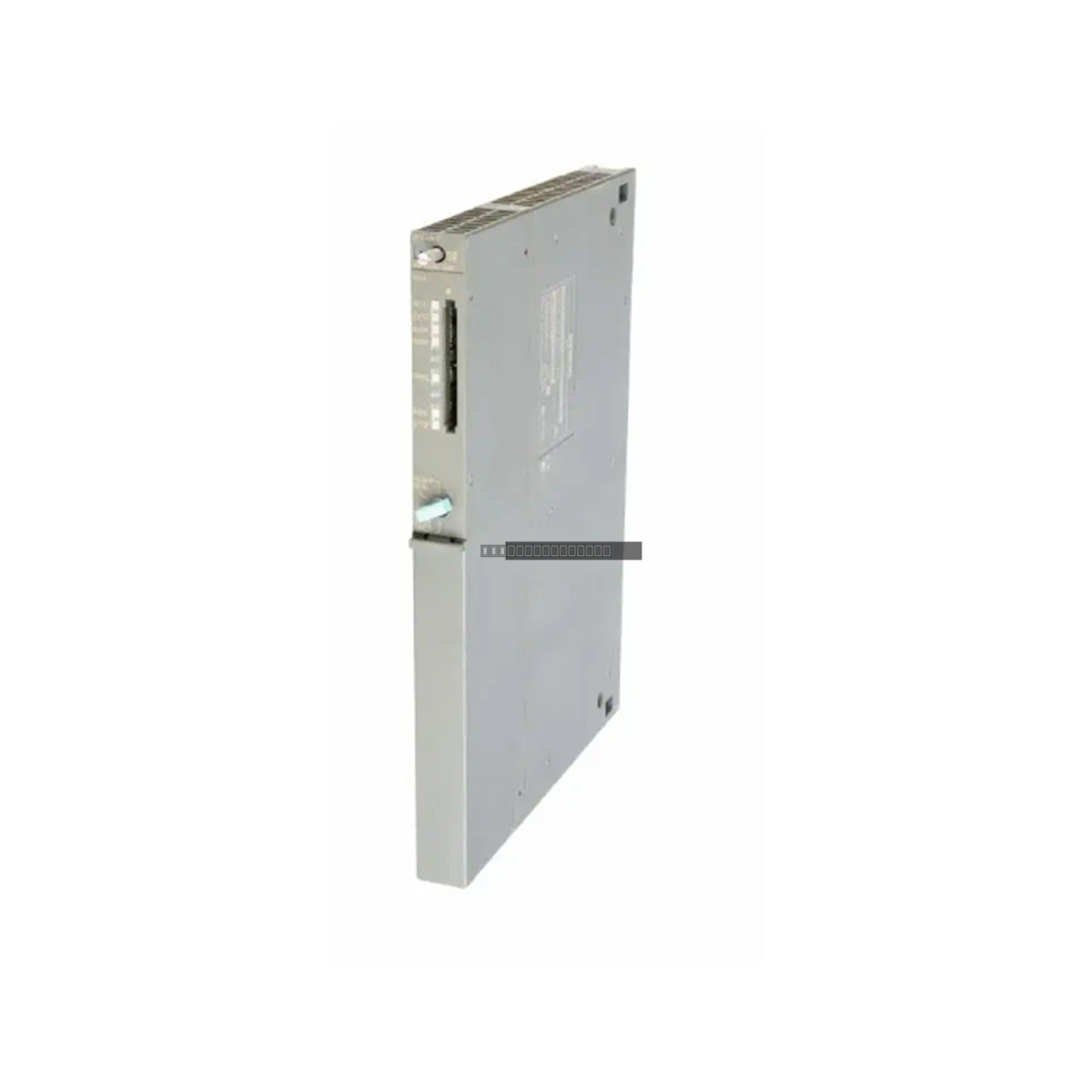

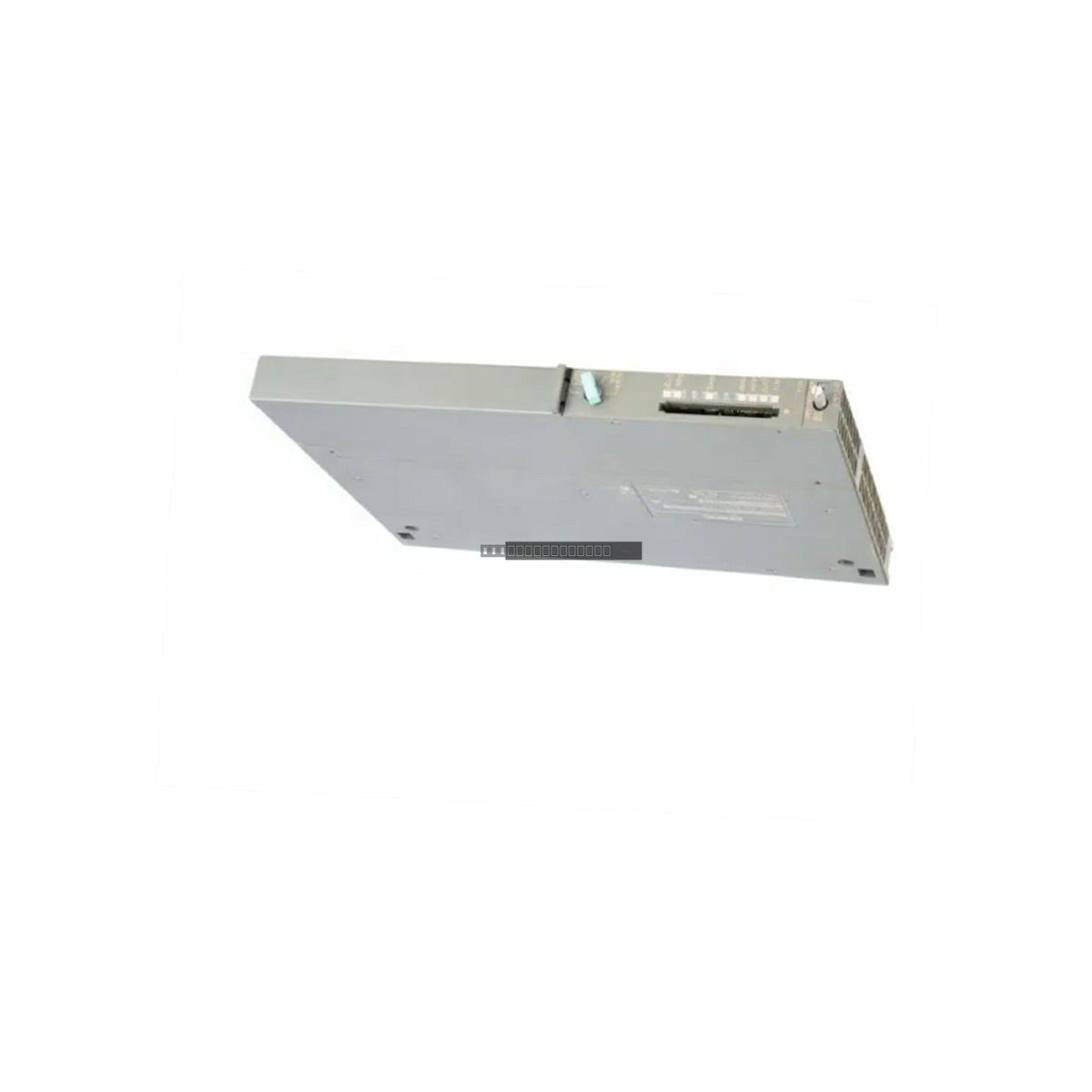

The Siemens 6ES7414-2XG03-0AB0 is a high-performance central processing unit engineered for the SIMATIC S7-400 automation system. This CPU 414-2 module provides 256 KB of total work memory, balanced between code and data storage, to support complex control sequences in demanding industrial environments. Designed for reliability in large-scale applications such as power generation and process manufacturing, this processor ensures high-speed logic execution and efficient task management.
Features
Integrated MPI and PROFIBUS DP interface supporting speeds up to 12 Mbit/s.
256 KB total work memory (128 KB for code, 128 KB for data).
Supports external load memory up to 12 MB via memory cards for extensive project data.
Multi-computing capability for load distribution across multiple CPUs in a single rack.
Integrated diagnostic functions for rapid system monitoring and fault identification.
Applications
This CPU is widely utilized in heavy industry, including oil and gas refineries, automotive assembly lines, and chemical processing plants, where deterministic control and high availability are required to minimize production downtime.
Technical Specifications
Model
6ES7414-2XG03-0AB0
Series
SIMATIC S7-400
Work Memory
256 KB (128 KB Code / 128 KB Data)
Communication
MPI / PROFIBUS DP
Max Transmission Rate
12 Mbit/s
Operating Temperature
0 to 60 deg C
Successor Model
6ES7414-2XL07-0AB0
Installation Guidelines
Ensure the rack power supply is disconnected before inserting or removing the CPU module.
Verify that the backplane bus connectors are clean and free of debris to ensure reliable communication.
Use shielded PROFIBUS cables for the MPI/DP interface to minimize EMI interference in high-noise environments.
Maintain proper ventilation in the control cabinet to keep the ambient temperature within the 0 to 60 deg C range.
Always follow standard ESD (Electrostatic Discharge) mitigation practices when handling the module to prevent damage to internal circuitry.
FAQ
Is this a direct replacement for older S7-400 CPUs?
The 6ES7414-2XG03-0AB0 is a specific model within the S7-400 family. While it shares the same architecture as other S7-400 modules, you should verify project compatibility in STEP 7 and check if the successor model (6ES7414-2XL07-0AB0) is required for your specific hardware configuration.
Does this CPU support multi-computing?
Yes, this module supports multi-computing mode, allowing you to install multiple processors in a single S7-400 rack to handle increased processing loads.
