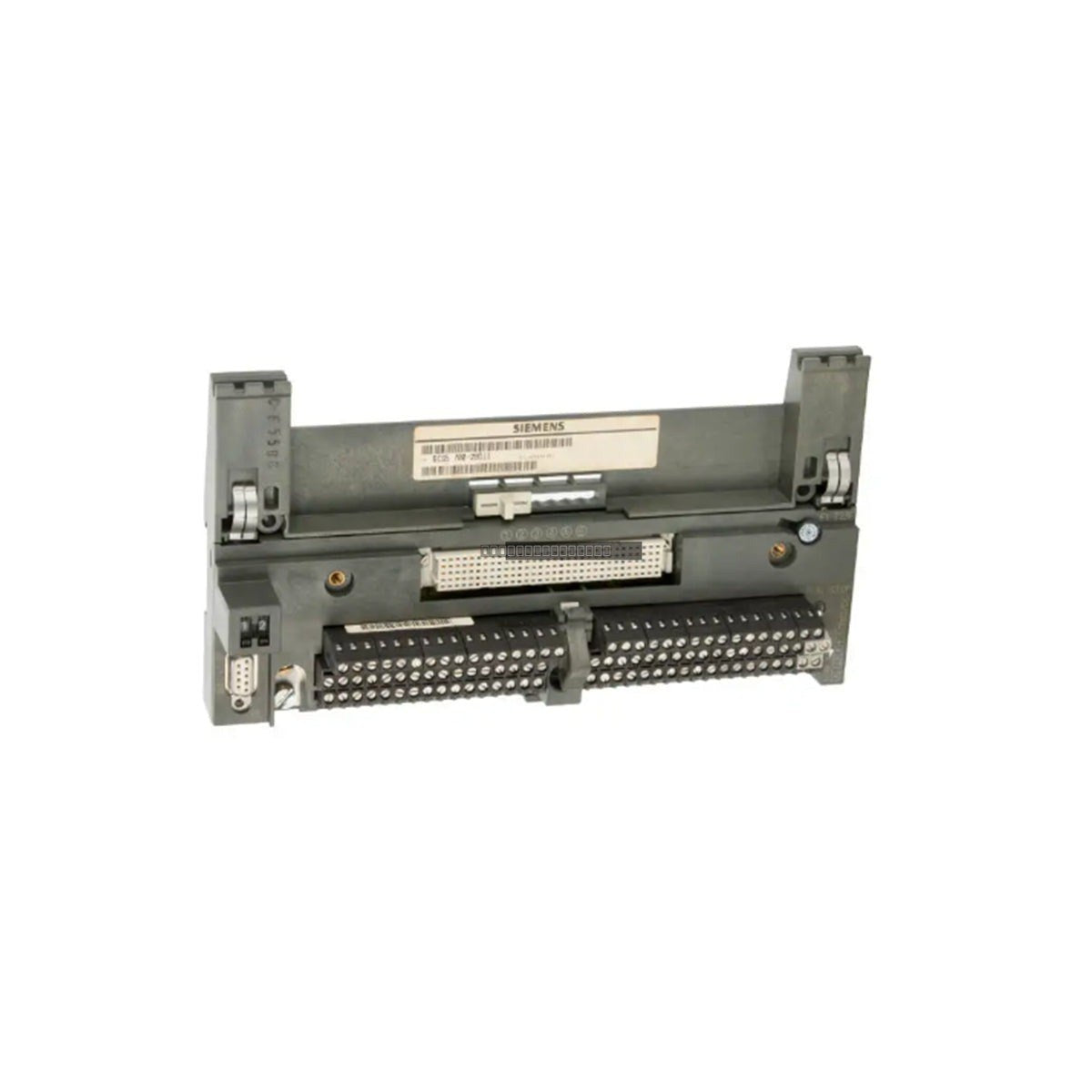

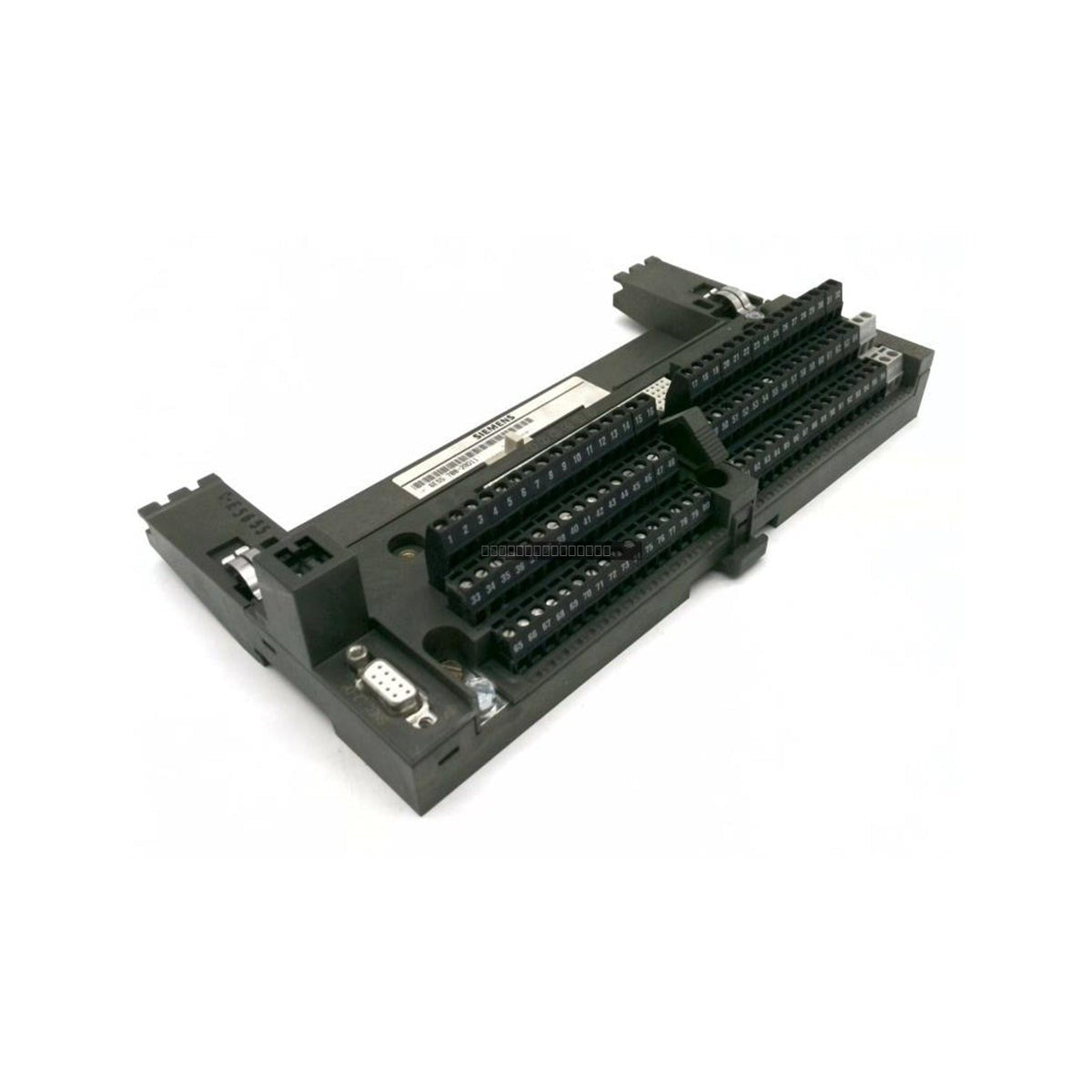

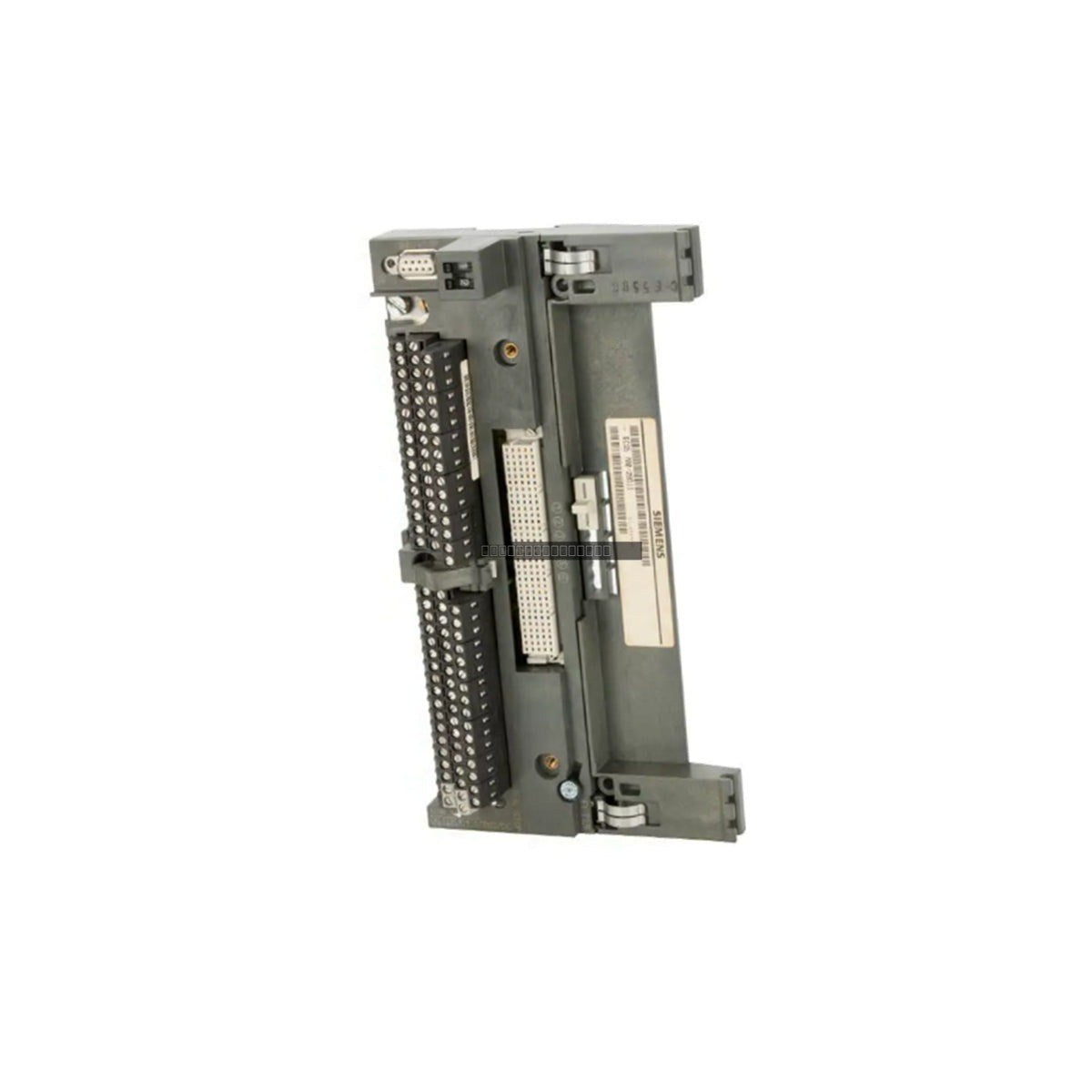

The Siemens Simatic S5 6ES5700-2BD11 is a specialized terminal block designed for the ET 200B distributed I/O system, compatible with the Simatic S5-135 and S5-155 controller families. This component provides the critical physical interface between field-level instrumentation and the S5 automation backplane, ensuring secure electrical connectivity for high-density I/O configurations. By facilitating standardized wiring termination, this terminal block minimizes human error during field installation and maintenance, which is essential for reducing unscheduled downtime in complex industrial environments such as steel processing, power generation, and large-scale manufacturing facilities.
Features
Designed for seamless integration with Siemens ET 200B distributed I/O systems.
Supports high-density terminal layout for efficient field signal management.
Plug-and-socket mechanism allows for rapid module replacement without disturbing permanent field wiring.
Constructed from impact-resistant materials to withstand thermal and mechanical stresses in industrial cabinets.
Passive design ensures reliable signal transmission without active power requirements.
Applications
This terminal block is primarily utilized in industrial automation environments where the Simatic S5-135 and S5-155 controller families are deployed. It is suitable for field signal distribution in heavy manufacturing, power generation plants, and automated process control systems requiring robust and reliable I/O connectivity.
Technical Specifications
Model
6ES5700-2BD11
Brand
Siemens Simatic S5
Component Type
Terminal Block
Compatibility
ET 200B I/O System
Operating Temperature
0 to 60 deg C
Power Consumption
Passive (N/A)
Mounting
DIN-rail or rack-mount
Installation Guidelines
Ensure the control system is powered down before installing or removing any I/O modules or terminal blocks.
Verify that the terminal block is securely seated in the ET 200B interface to prevent intermittent signal loss.
Route field wiring away from high-voltage power cables to minimize electromagnetic interference (EMI).
Ensure proper grounding of the cabinet and mounting rail to maintain signal integrity.
Handle with care to avoid damage to the connector pins during the mating process.
FAQ
Is this terminal block active or passive?
The 6ES5700-2BD11 is a passive component; it serves as a physical interconnection point for field wiring and does not require an external power supply or internal logic processing.
Can this be used with systems other than the ET 200B?
This terminal block is specifically engineered for the ET 200B distributed I/O system. It is not intended for use with other I/O families unless explicitly stated in the Siemens technical documentation for those specific systems.
