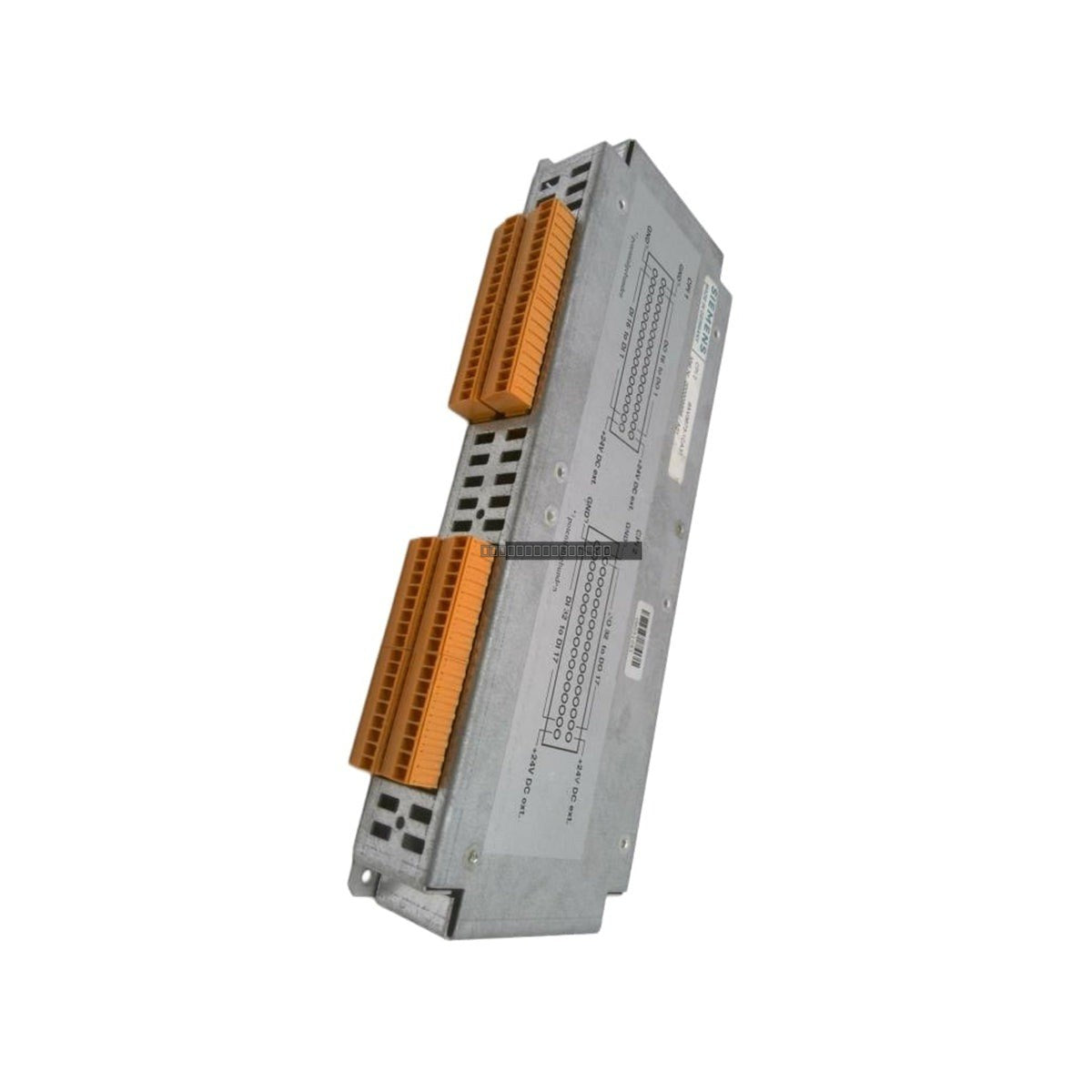

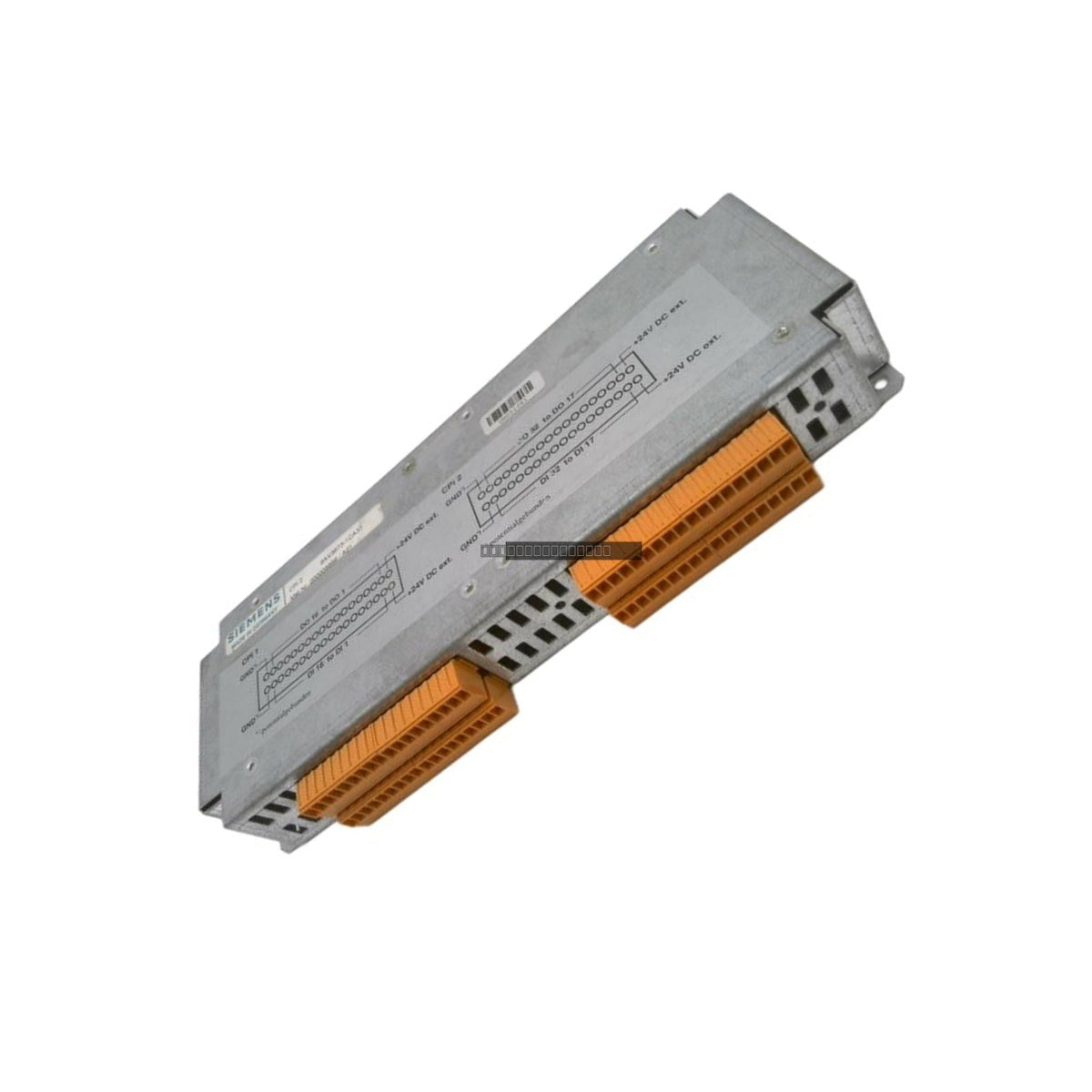

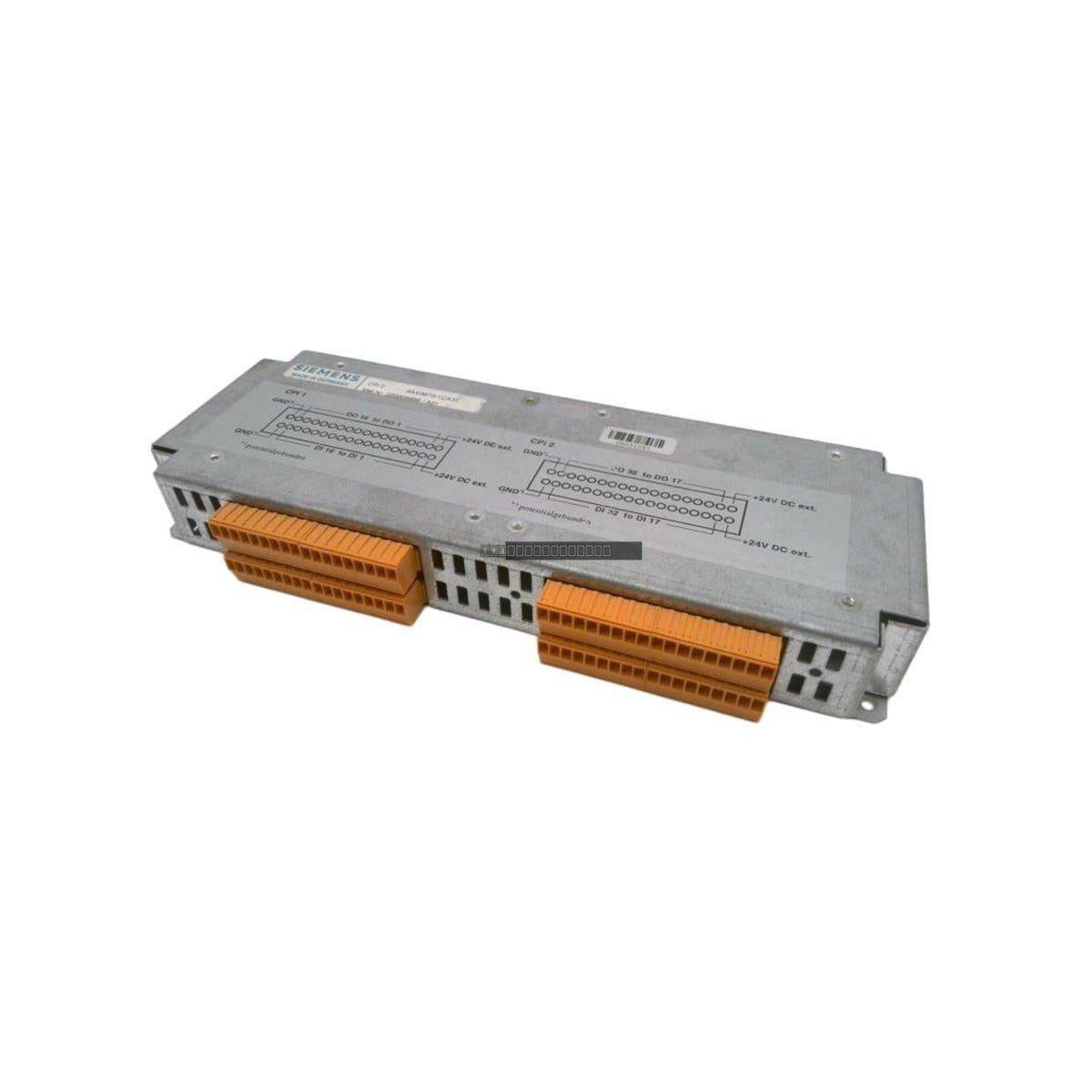

Siemens 6AV3673-1CA31 Simatic S5 Operator Interface Module

Description

The Siemens 6AV3673-1CA31 is a specialized Control Panel Interface (CPI 2) module designed for integration with Siemens OP27, OP37, TP27-10, and TP37 operator panels. This hardware module functions as a digital interface expander, providing 32 discrete input/output points that allow for the direct connection of field devices such as pushbuttons, indicator lamps, and selector switches. By offloading these signals from the primary PLC bus, the module simplifies field wiring, improves signal response times, and facilitates easier maintenance and diagnostic operations within industrial HMI environments.

Features

• Provides 32 configurable digital I/O points for localized control.
• Designed for seamless integration with OP27, OP37, TP27-10, and TP37 series HMI terminals.
• High galvanic isolation to protect internal circuitry from electrical noise and voltage surges.
• Solid-state design optimized for low power dissipation and thermal stability.
• Direct backplane mounting for reliable communication and power distribution.

Applications

This interface module is suitable for demanding industrial environments including automotive manufacturing, chemical processing, water treatment plants, and power generation facilities. It is ideal for applications requiring localized control logic and reduced wiring complexity at the operator station level.

Technical Specifications

Installation Guidelines

• Ensure the operator panel is powered down before installing or removing the CPI 2 module.
• The module is designed for installation into the rear expansion slot of compatible Siemens operator terminals.
• Verify that the backplane header is correctly aligned before securing the module to prevent pin damage.
• Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range.
• Use shielded cabling for external I/O connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to sensitive internal components.

FAQ

What is the primary purpose of the 6AV3673-1CA31 module?

This module acts as an expansion interface for Siemens operator panels, allowing for the direct connection of 32 digital I/O points to handle field control signals locally at the HMI.

Is this module compatible with modern Siemens HMI panels?

No, this specific model is engineered for the legacy Simatic S5 era operator panels, specifically the OP27, OP37, TP27-10, and TP37 series.

Does the module require an external power supply?

The module operates on 24 VDC, which is typically provided via the host operator panel's internal power distribution system upon installation.
