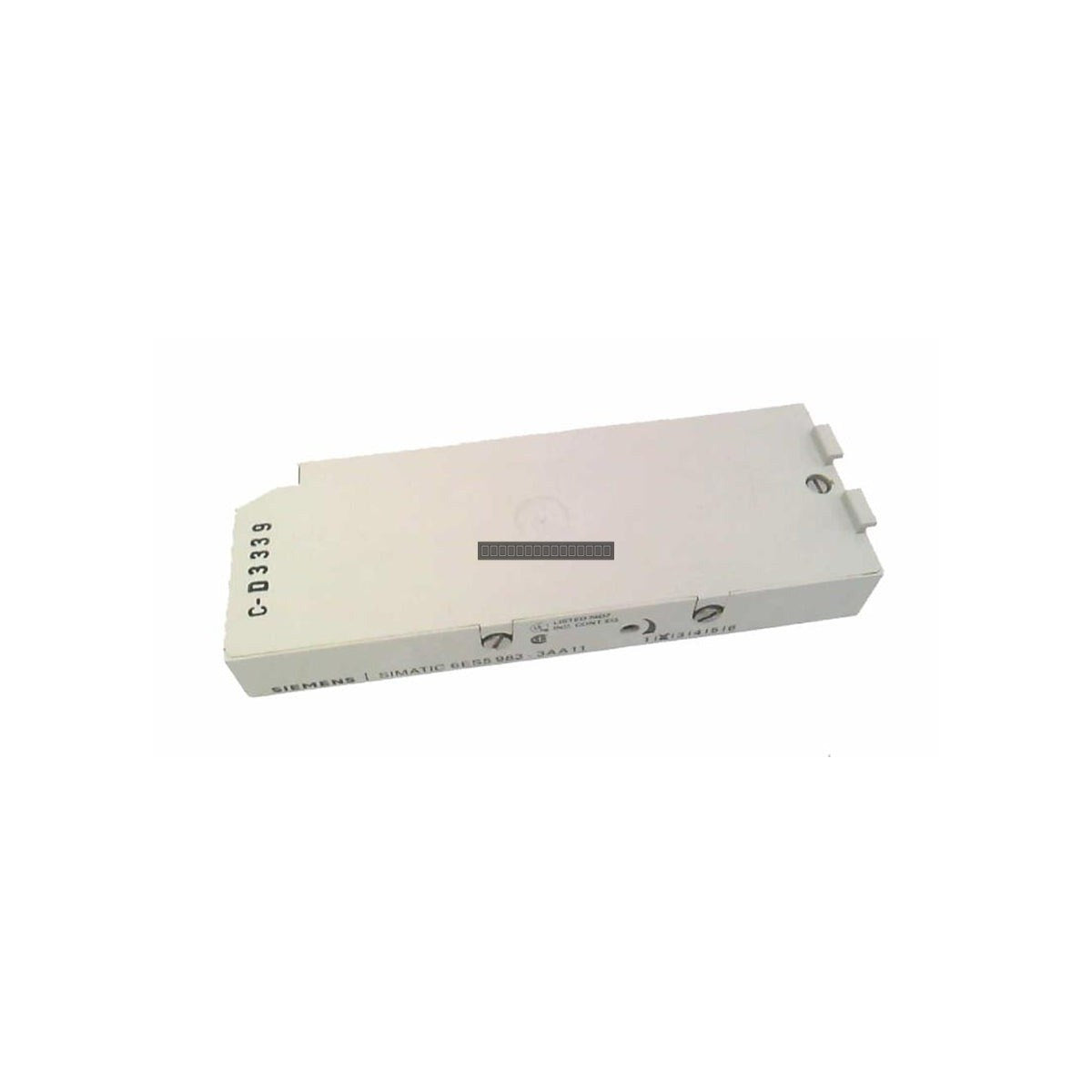

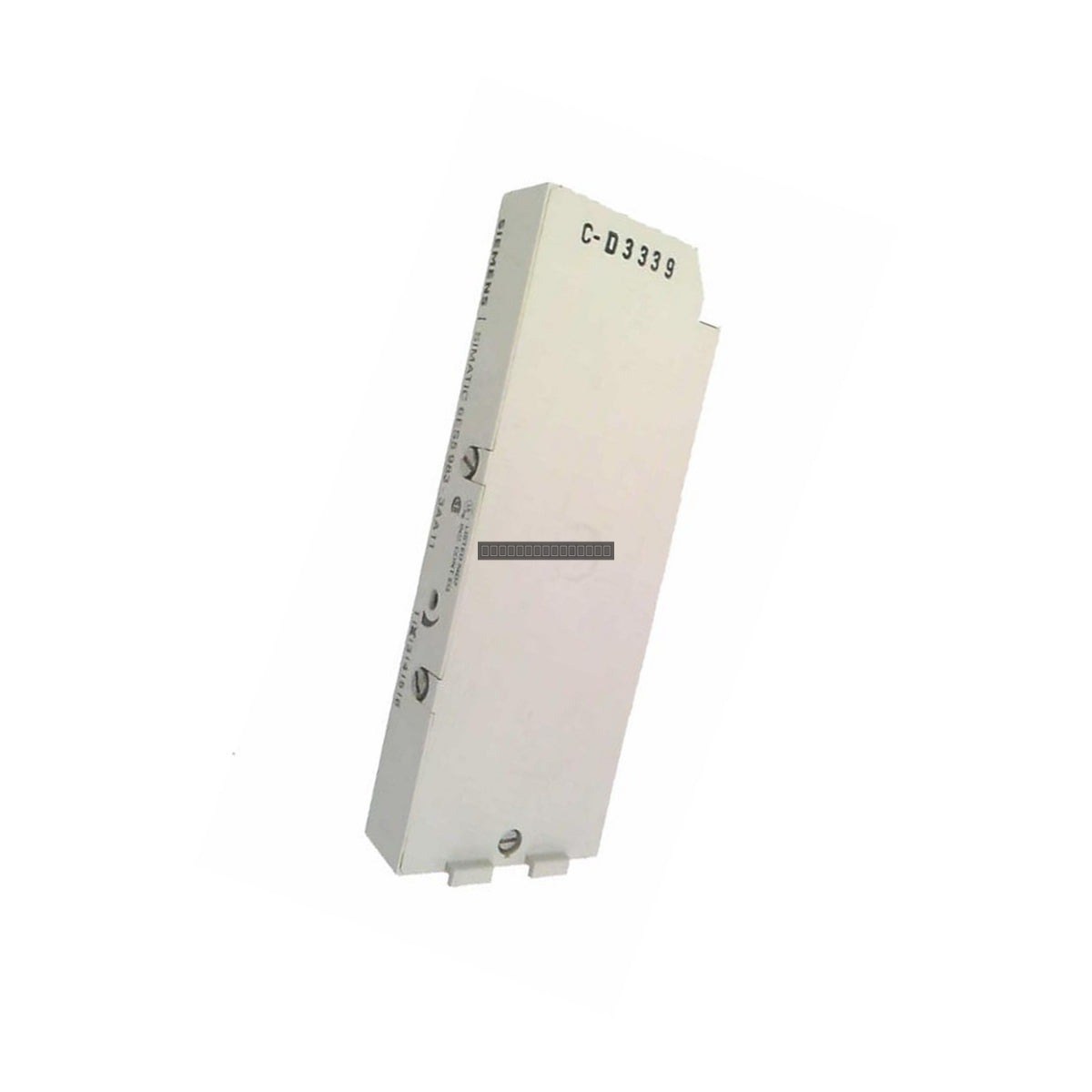

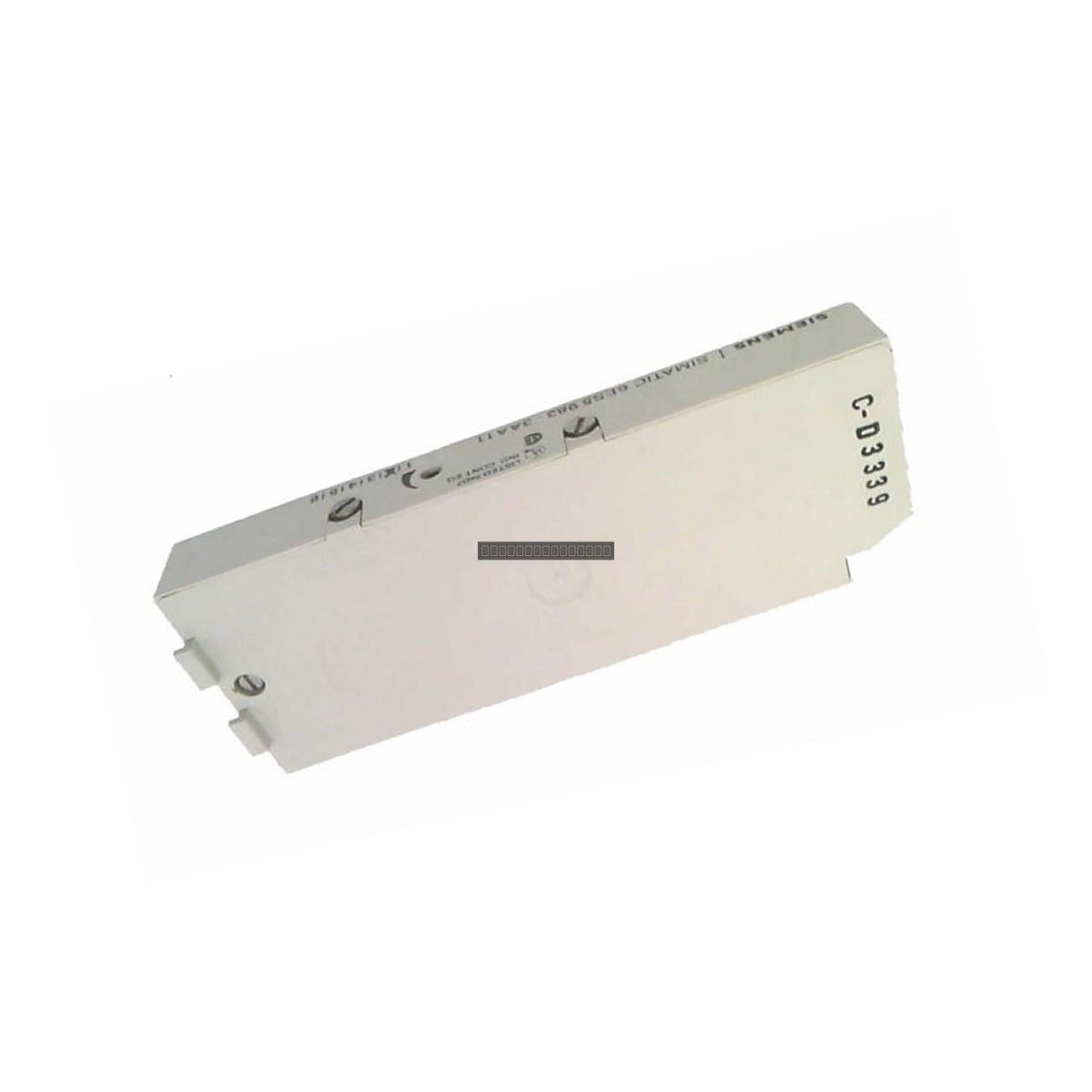

The Siemens 6ES5983-3AA11 is a specialized cable connector assembly designed for the Simatic S5 automation series. This component serves as a robust interface block, featuring a 25-pin female D-Sub connection, specifically engineered to facilitate reliable communication between external feedback loops, programming interfaces, and the S5 control rack. As a critical component for legacy system maintenance, it ensures signal integrity in demanding industrial environments such as steel manufacturing and maritime automation.
Features
High-density 25-pin female D-Sub interface for secure signal transmission.
Designed for high-vibration industrial environments to maintain structural and electrical contact integrity.
Integrated shielding properties to mitigate electromagnetic interference (EMI) when used with compatible shielded cabling.
Supports closed-loop diagnostic configurations to assist in rapid fault detection and communication line monitoring.
Gold-plated pin contacts to prevent oxidation and ensure low-resistance connectivity over long-term operation.
Technical Specifications
Model
6ES5983-3AA11
Brand
Siemens
Series
Simatic S5
Connector Type
25-Pin Female D-Sub
Max Working Voltage
60 VDC / 42 VAC
Current Capacity
1 A per pin (continuous)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Installation Guidelines
Ensure the control system is powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or damage to the I/O pins.
Verify that the connector is fully seated and the locking mechanism is engaged to maintain vibration resistance.
Use properly shielded cables and ensure the cable shield is correctly terminated to the connector housing to maintain EMI protection.
Avoid excessive mechanical strain on the connector housing; use appropriate cable strain relief methods to prevent port damage.
Inspect pins for debris or oxidation before mating; ensure the environment is free of conductive dust or moisture during installation.
FAQ
Is this connector compatible with modern S7 systems?
No, the 6ES5983-3AA11 is specifically designed for the legacy Simatic S5 series. It is not intended for direct use with S7-series hardware.
What is the primary function of this connector?
It acts as a high-reliability interface for serial data, feedback loops, and programming connections, ensuring that signal integrity is maintained within the S5 rack architecture.
