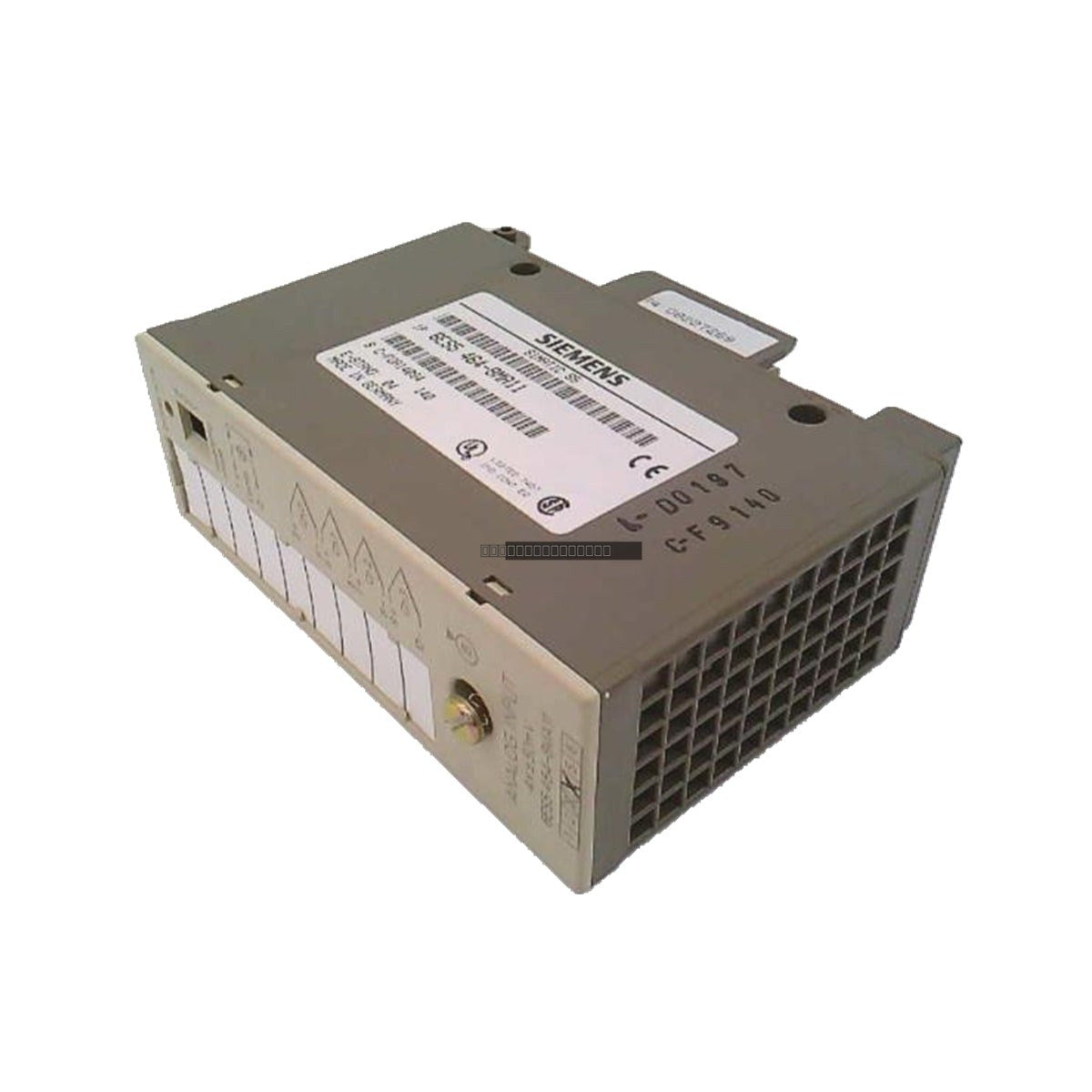

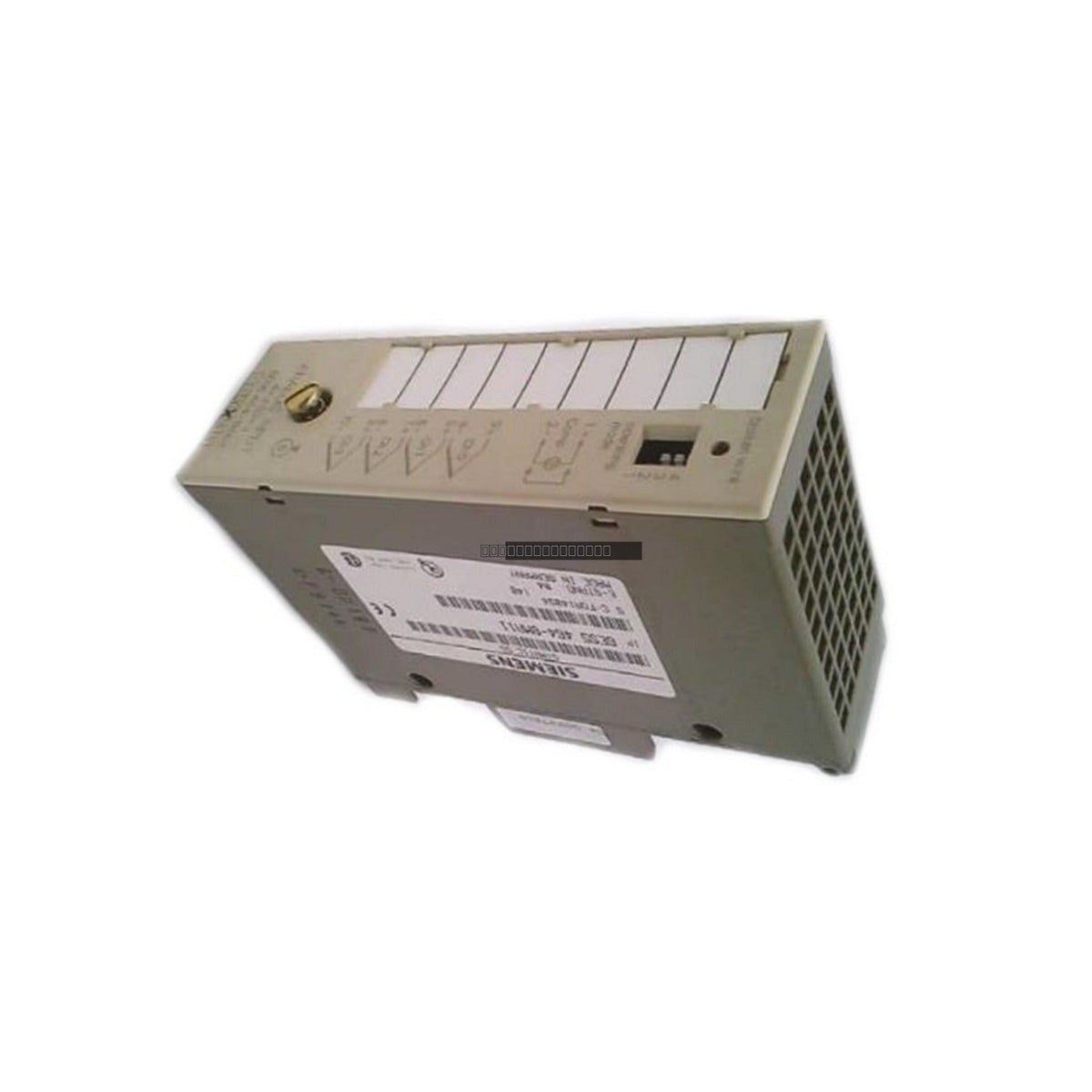

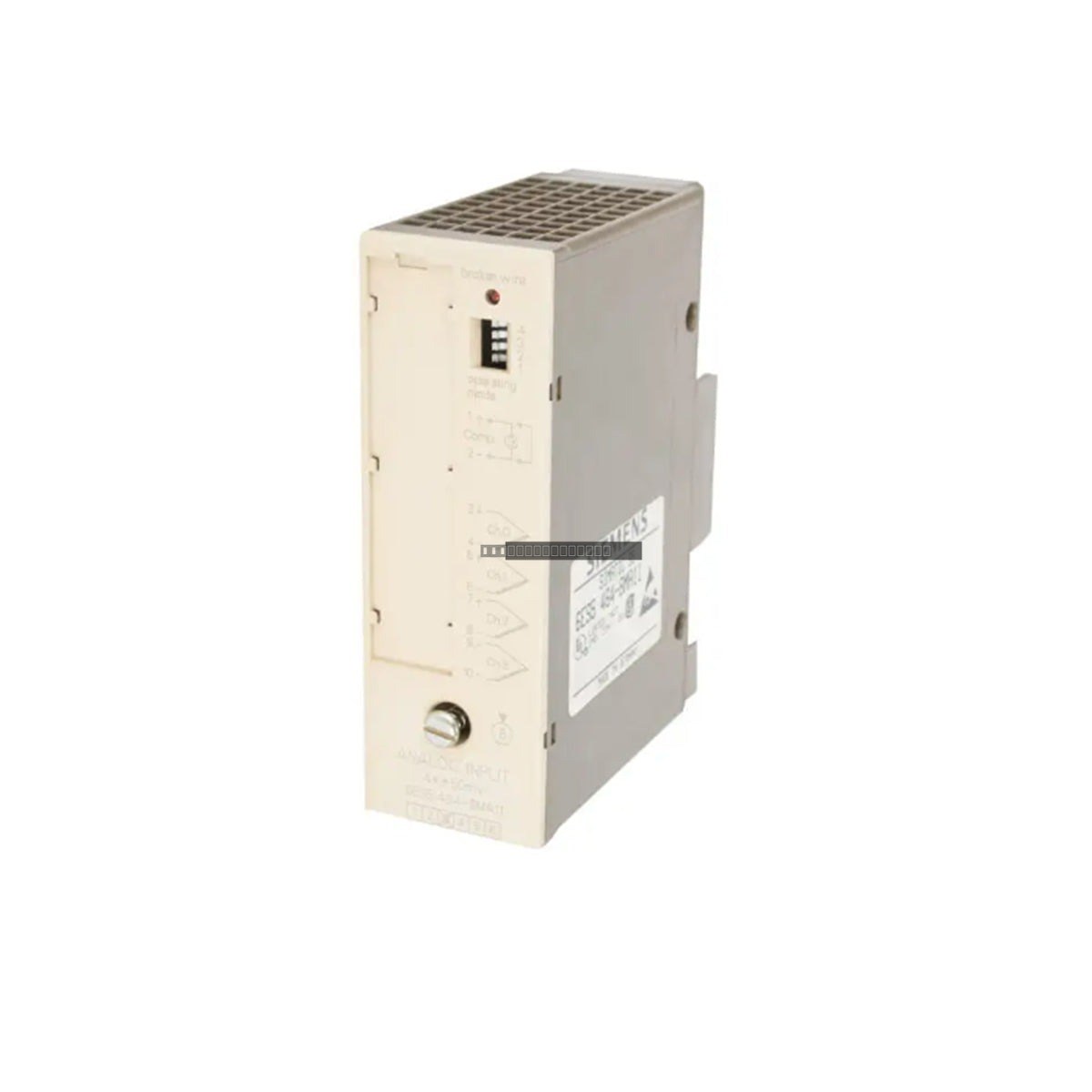

Siemens 6ES5464-8MA11 Simatic S5 Analog Input Module

The Siemens 6ES5464-8MA11 is a high-reliability analog input module designed for integration within the Simatic S5 automation ecosystem. This module provides four galvanically isolated differential input channels, specifically engineered to handle low-voltage signals in demanding industrial environments. It is a critical component for legacy S5-90U, S5-95U, and S5-100U PLC systems, as well as ET 100U and ET 200U distributed I/O configurations, ensuring precise data acquisition for sensitive process monitoring.

Features

• Four isolated differential input channels for robust signal integrity.
• Optimized for low-level sensor signals with a range of +/- 50 mV.
• Galvanic isolation protects the internal backplane from field-side electrical interference and surges.
• Compact modular design suitable for standard S5 rack mounting and decentralized ET station blocks.
• Efficient power consumption profile for sustained operation in industrial cabinets.

Applications

This module is widely utilized in legacy automation sectors, including power generation, petrochemical processing, and heavy manufacturing. It is primarily deployed for interfacing with low-voltage field instrumentation, such as thermocouples, where accurate measurement and common-mode noise suppression are essential for maintaining stable control loops.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is fully disconnected before inserting or removing the module to prevent damage to the backplane circuitry.
• Verify that the module is properly seated in the designated S5 rack slot to ensure reliable bus communication.
• Use shielded cabling for all analog input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the 0 to 60 deg C operating range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.

FAQ

What is the primary function of the 6ES5464-8MA11?

This module is an analog input device for Siemens Simatic S5 systems, designed to convert low-level analog signals (specifically +/- 50 mV) into digital data for processing by the PLC.

Is this module compatible with modern S7 systems?

No, this module is specifically engineered for the Simatic S5 family, including the S5-90U, S5-95U, and S5-100U series, and is not directly compatible with S7-300 or S7-1500 architectures.

Does the module require external power?

The module is powered via the backplane of the S5 rack or the ET station, with a power consumption rating of 1.8 W.
