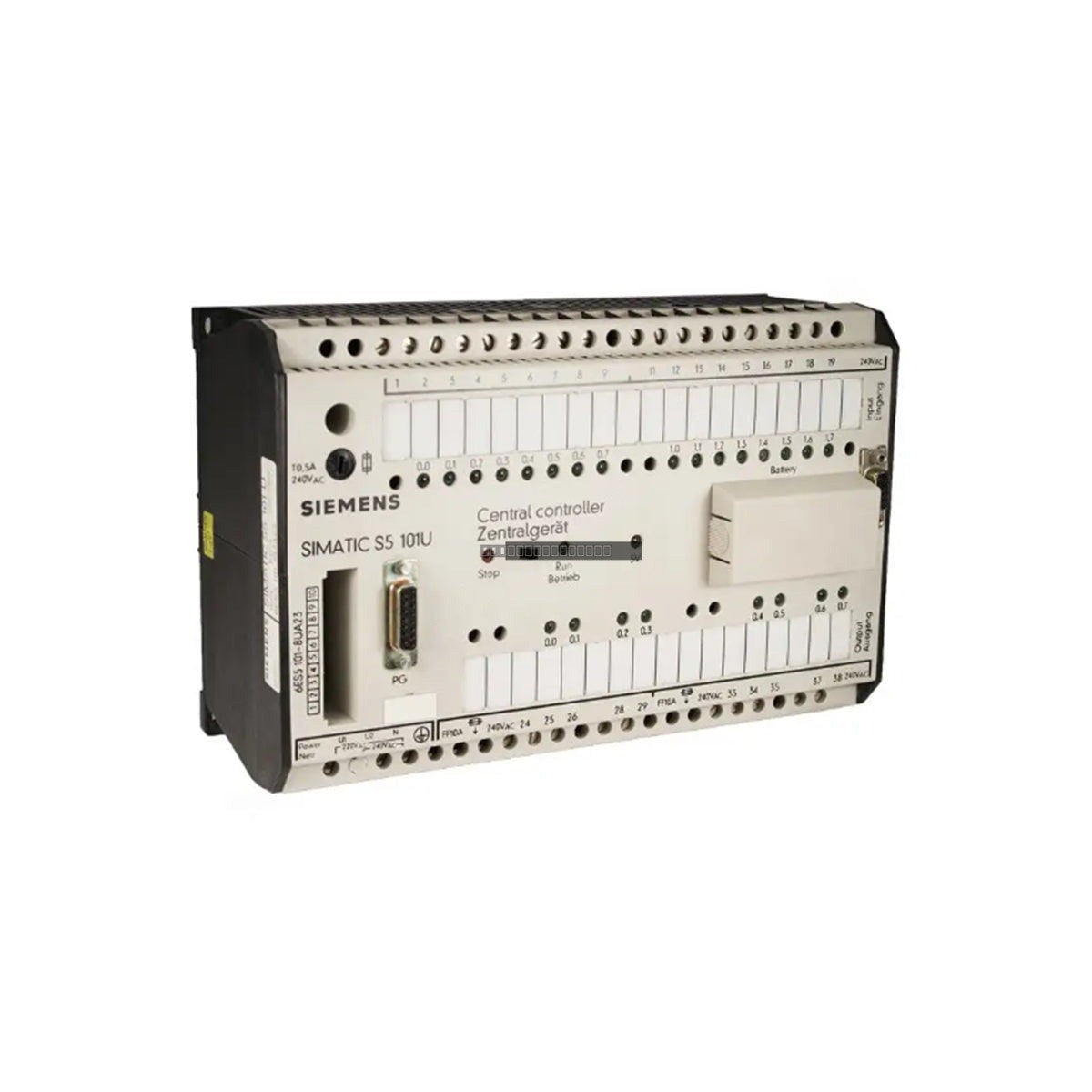

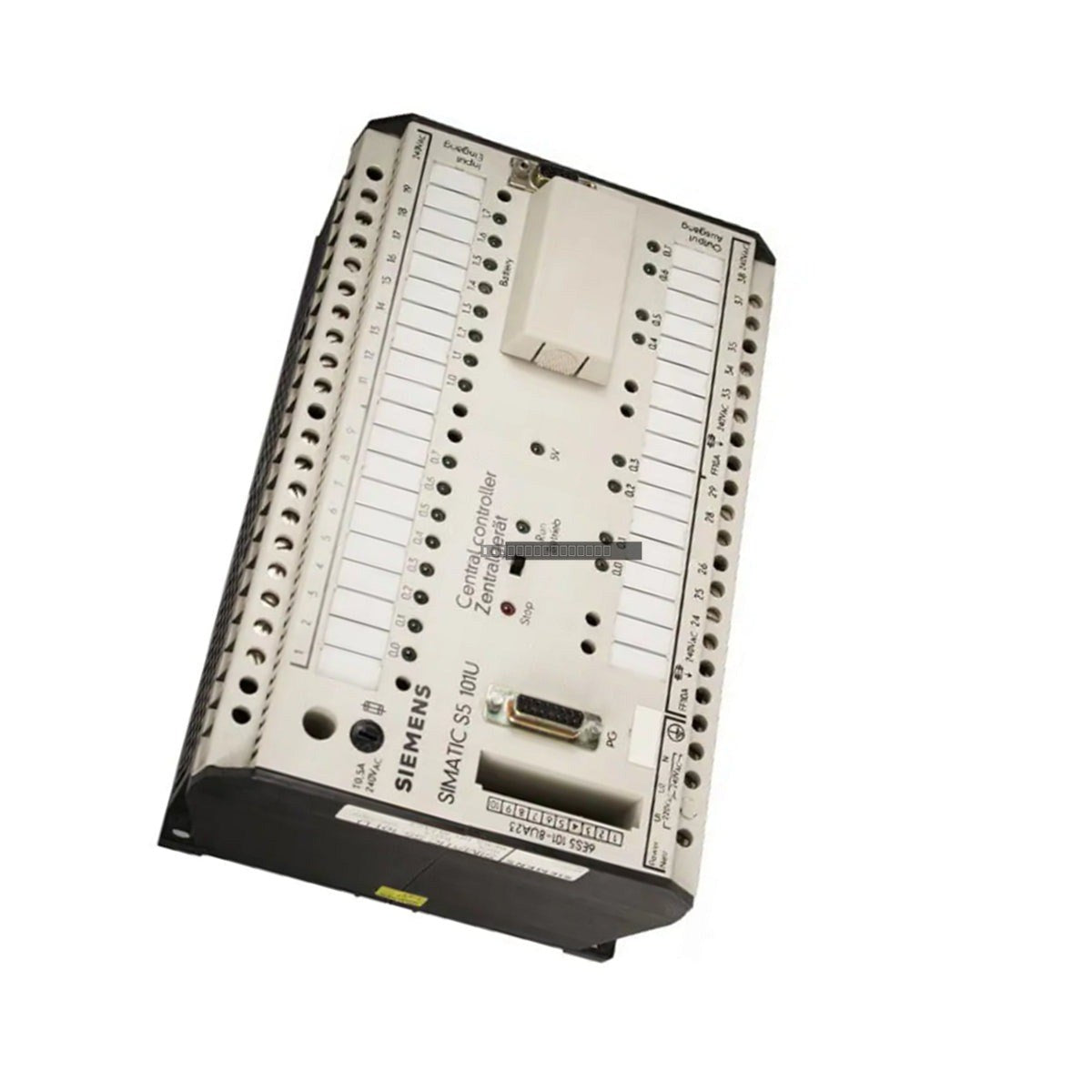

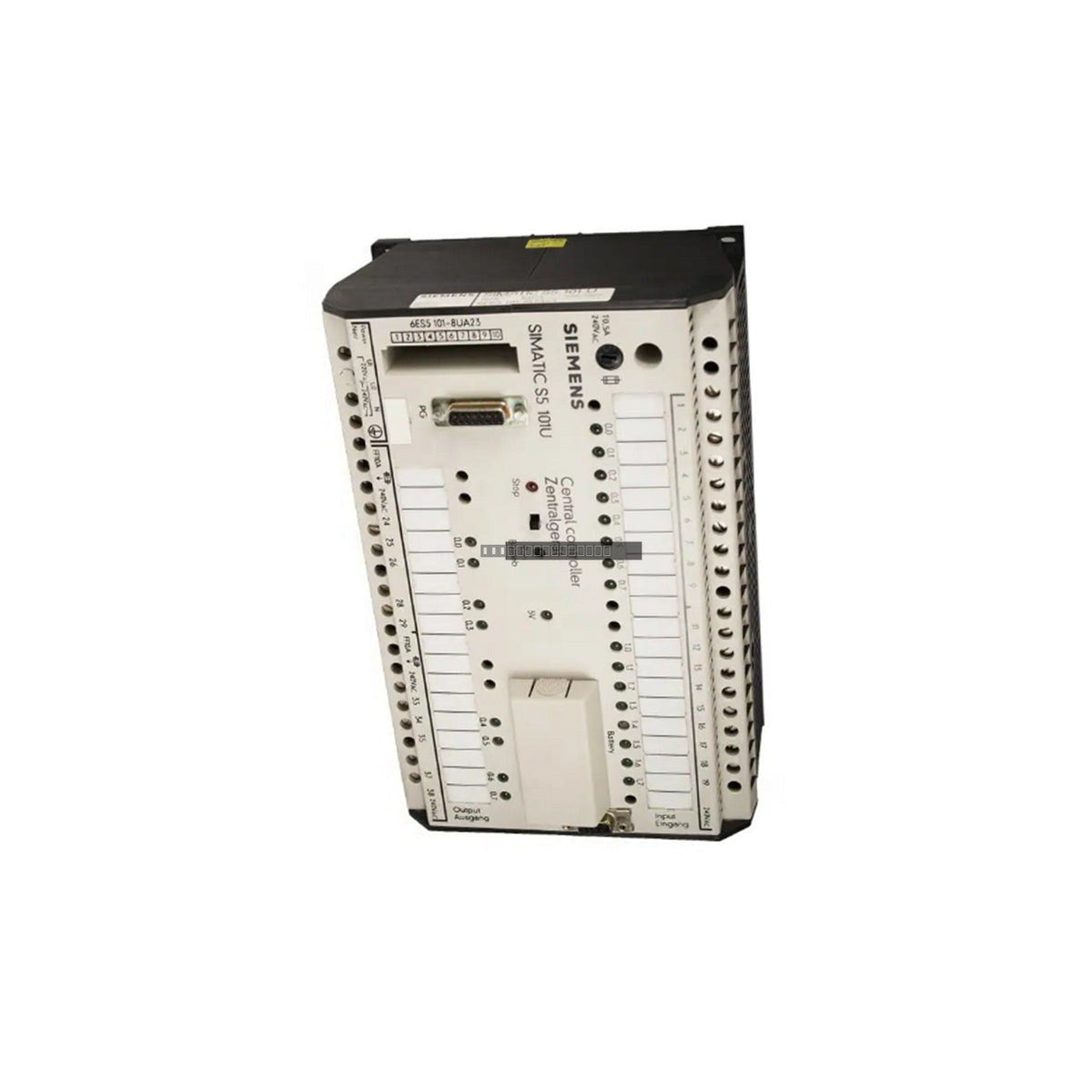

Siemens 6ES5101-8UA23 Simatic S5-101U Central Controller

Description

The Siemens 6ES5101-8UA23 is a central controller module engineered for the legacy Simatic S5-101U automation platform. As a compact ZG (Zentralgeraet) unit, it serves as the primary processing hub for small-scale industrial applications, managing logic execution and localized I/O monitoring within a single, integrated hardware package. This controller is commonly utilized in specialized industrial machinery, conveyor control systems, and legacy ventilation management where deterministic, reliable boolean processing is required. Maintaining a spare unit on-site is a standard practice to facilitate rapid recovery during hardware failures and to reduce operational downtime in aging control environments.

Features

• Integrated processing core designed for rapid execution of boolean logic, timers, and counters.
• Compact, self-contained architecture reduces the need for complex external bus coupling.
• Galvanic isolation via high-frequency optocouplers ensures protection against electrical noise and supply fluctuations.
• Integrated programming port allows for direct connection to legacy programming devices for maintenance and software updates.
• Designed for high-reliability performance in demanding industrial environments.

Applications

This controller is specifically designed for integration into Siemens Simatic S5-101U systems. It is frequently deployed in legacy manufacturing equipment, small-scale process control loops, and auxiliary plant automation systems where the S5 architecture remains the standard for logic control.

Technical Specifications

Installation Guidelines

• Ensure the control cabinet power is completely disconnected before attempting to install or remove the module.
• Mount the unit in a clean, dry environment protected from excessive dust, moisture, and corrosive gases.
• Maintain adequate clearance around the module to allow for proper airflow and heat dissipation, as the unit dissipates up to 15 W during operation.
• Ensure all signal cables are properly routed away from high-voltage power lines to prevent electromagnetic interference (EMI).
• Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to internal logic circuitry.
• Verify that the backplane connections are secure and properly aligned before powering up the system.

FAQ

Is this controller compatible with modern S7-series software?

No, the 6ES5101-8UA23 is designed exclusively for the Simatic S5-101U legacy platform and requires appropriate S5 programming tools for configuration and logic loading.

Does this unit require external power supplies?

The module operates within the S5-101U rack environment; please refer to your specific system documentation for backplane power requirements and voltage levels.
