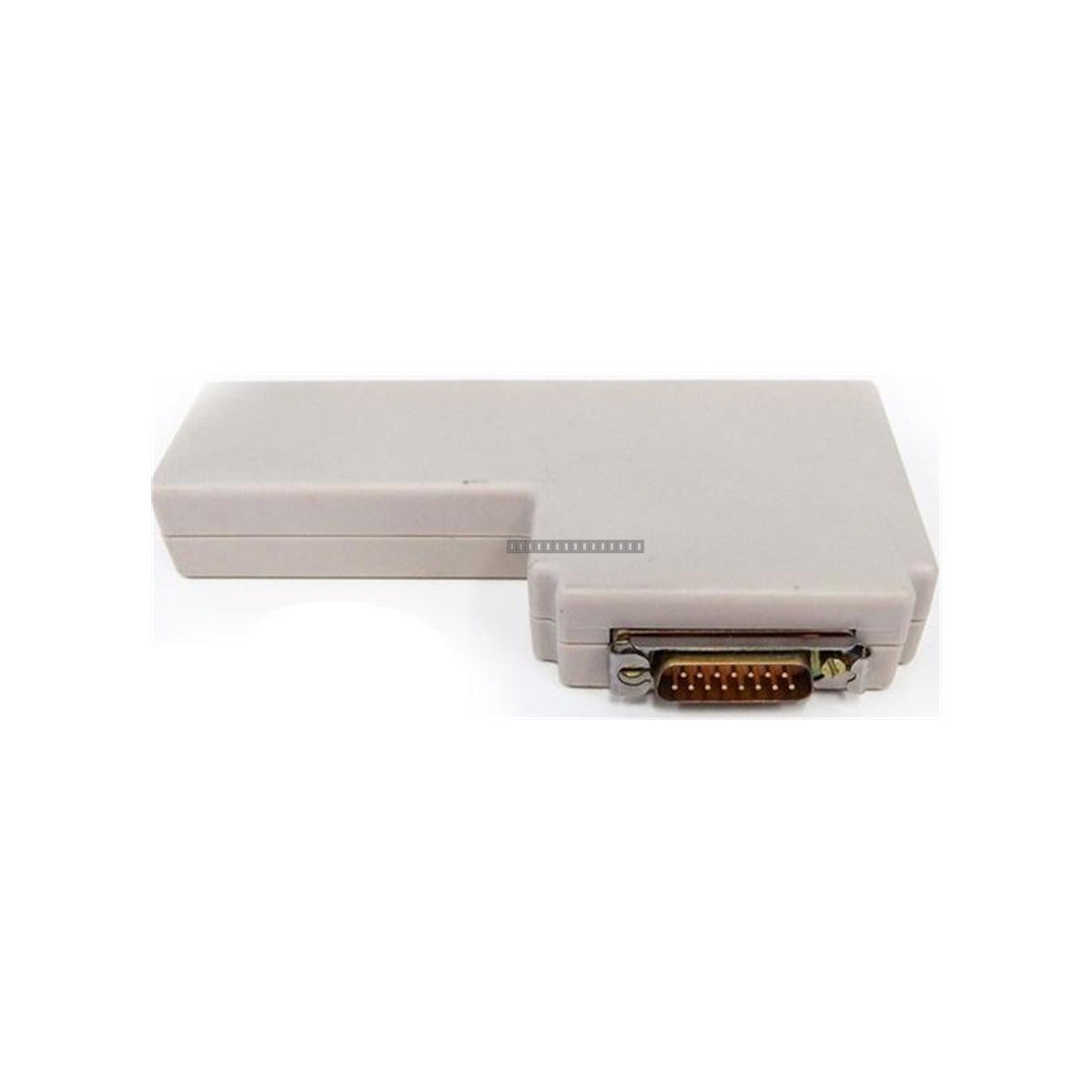

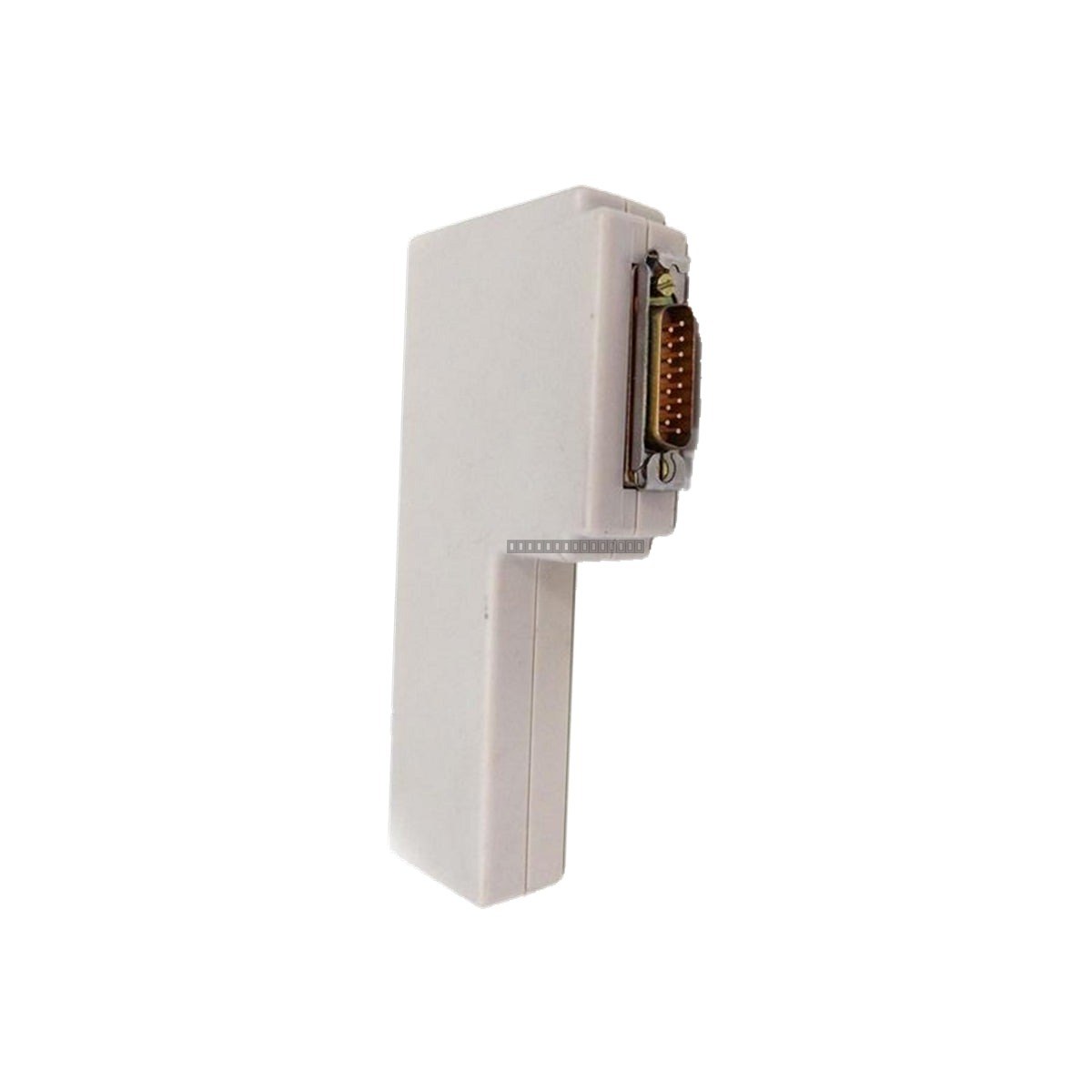

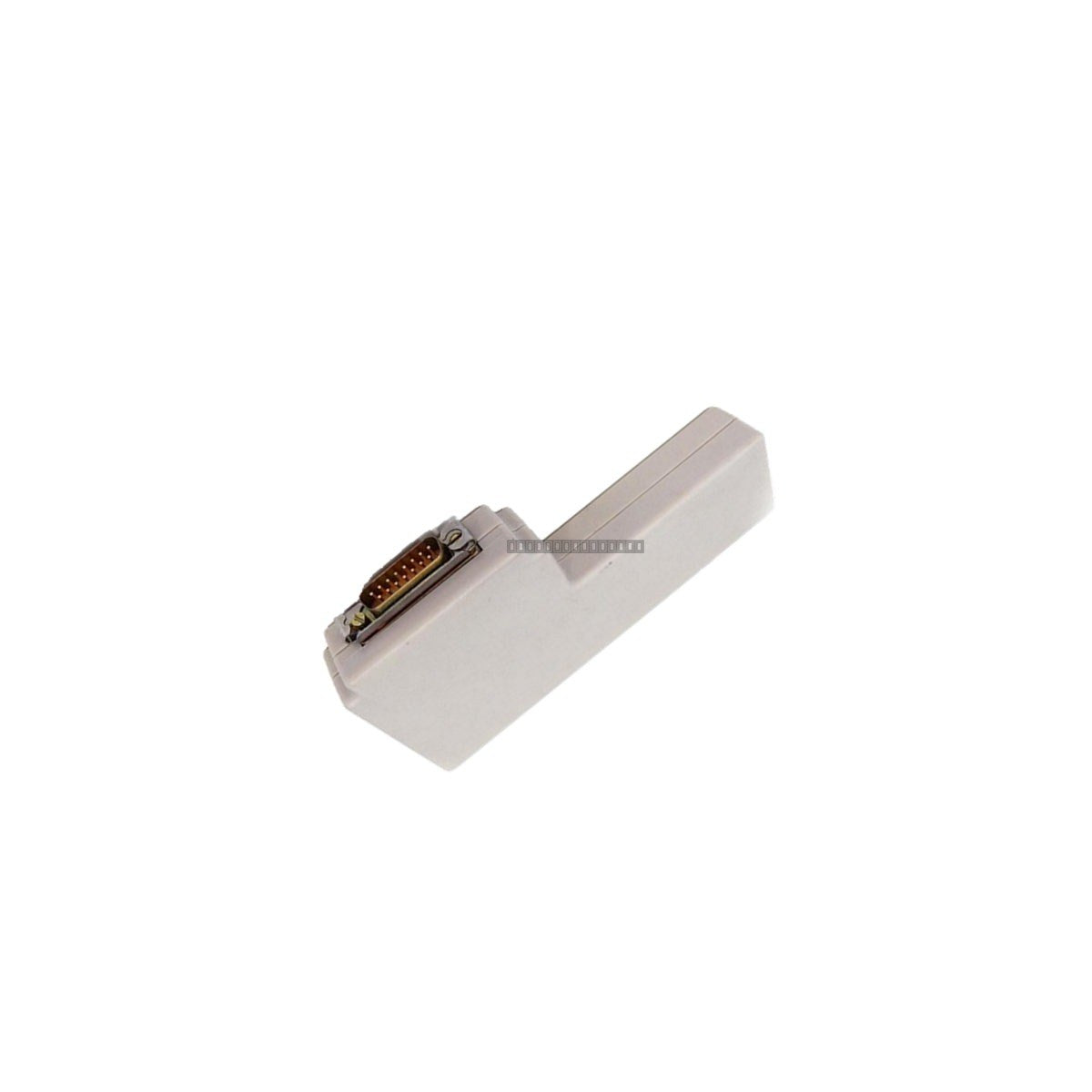

The Siemens 6ES5984-1UB11 is a specialized programming adapter engineered to interface the legacy PG605 handheld programmer with the Siemens Simatic S5-110U programmable logic controller system. This interface device facilitates essential physical layer translation between the programmer unit and the PLC CPU port, enabling maintenance technicians to perform diagnostics, program modifications, and logic verification on legacy S5-110U systems.
Features
Direct interface compatibility between PG605 handheld programmers and S5-110U CPUs.
Robust mechanical connector design suitable for frequent insertion in industrial environments.
High-grade internal pin mapping to ensure signal integrity and prevent data corruption during EEPROM programming.
Passive architecture utilizing host-provided reference voltages from the PLC programming port.
Compact form factor designed for reliable physical locking to minimize communication dropouts.
Applications
This adapter is primarily utilized in legacy manufacturing facilities, automated assembly lines, and power plant control systems where S5-110U controllers remain in operation. It is essential for field maintenance, rapid diagnostic troubleshooting, and manual logic overrides.
Technical Specifications
Model
6ES5984-1UB11
Brand
Siemens
Product Family
Simatic S5-110
Device Type
Programming Adaptor
Target Interface
PG605 Handheld Programmer
Operating Temperature
0 to 55 deg C
Storage Temperature
-20 to 70 deg C
Power Consumption
Powered via host port
Installation Guidelines
Ensure the PLC CPU is powered down or in a safe state before connecting or disconnecting the programming adapter.
Inspect connector pins for debris or damage prior to insertion to prevent short circuits or bent pins.
Ensure the adapter is fully seated to maintain a secure physical lock and prevent intermittent communication errors.
Avoid applying excessive mechanical strain to the adapter or attached cables during operation.
Store in a clean, dry environment when not in use to protect the connector interface from oxidation.
FAQ
Is this adapter compatible with other S5 series programmers? No, this model is specifically engineered for the PG605 handheld programmer and the S5-110U CPU interface.
Does this device require an external power supply? No, the 6ES5984-1UB11 is a passive device that draws its required operating voltage directly from the host controller's programming port.
