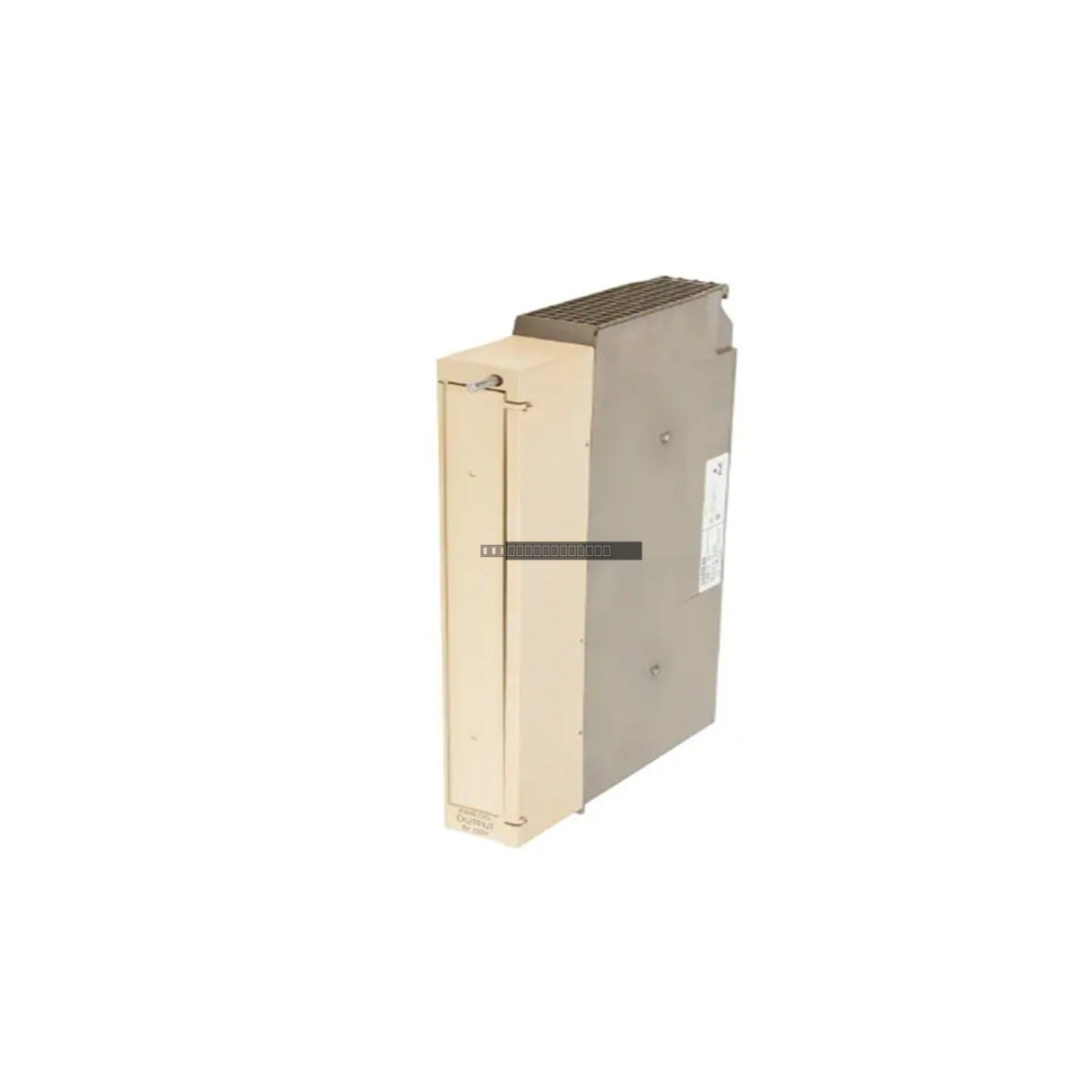

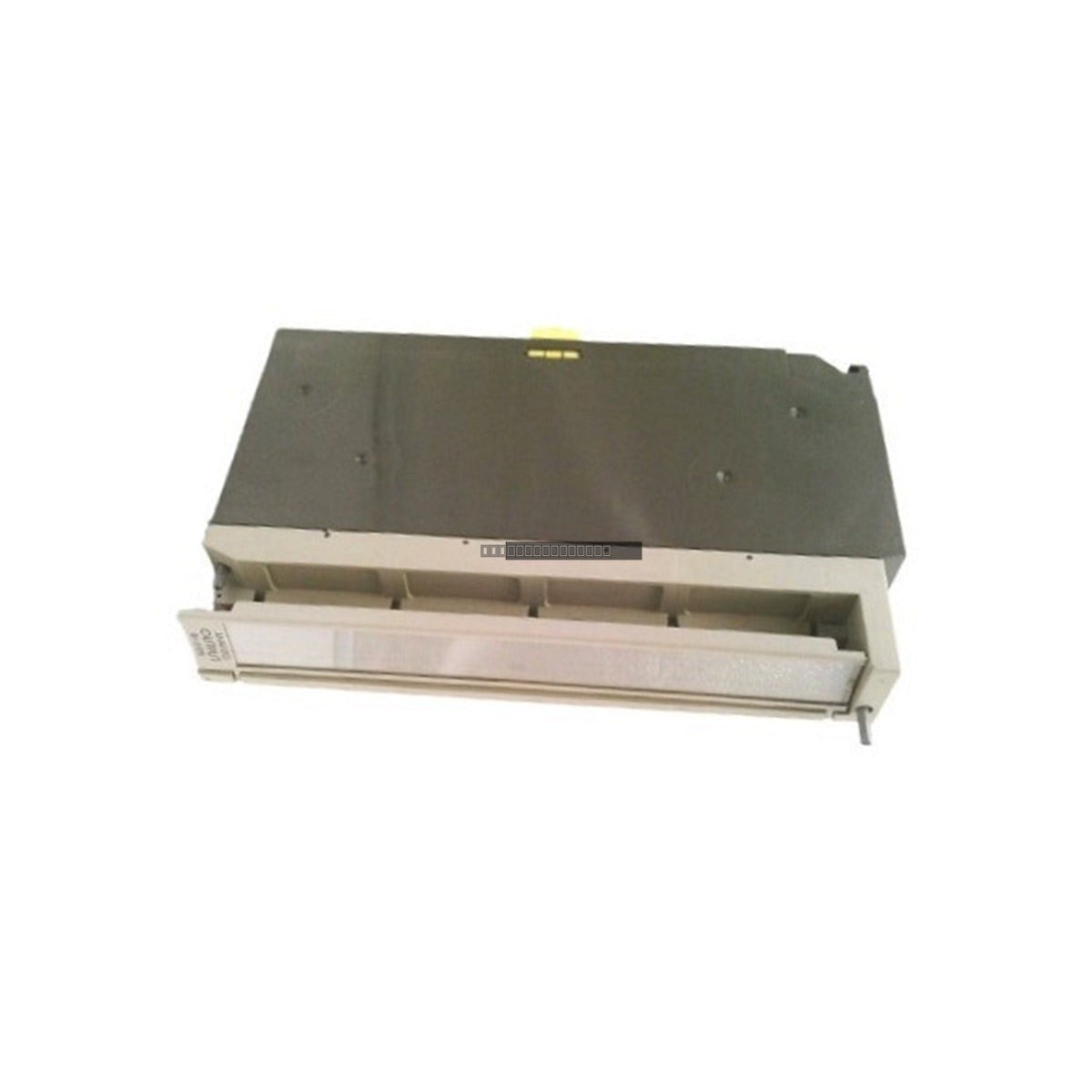

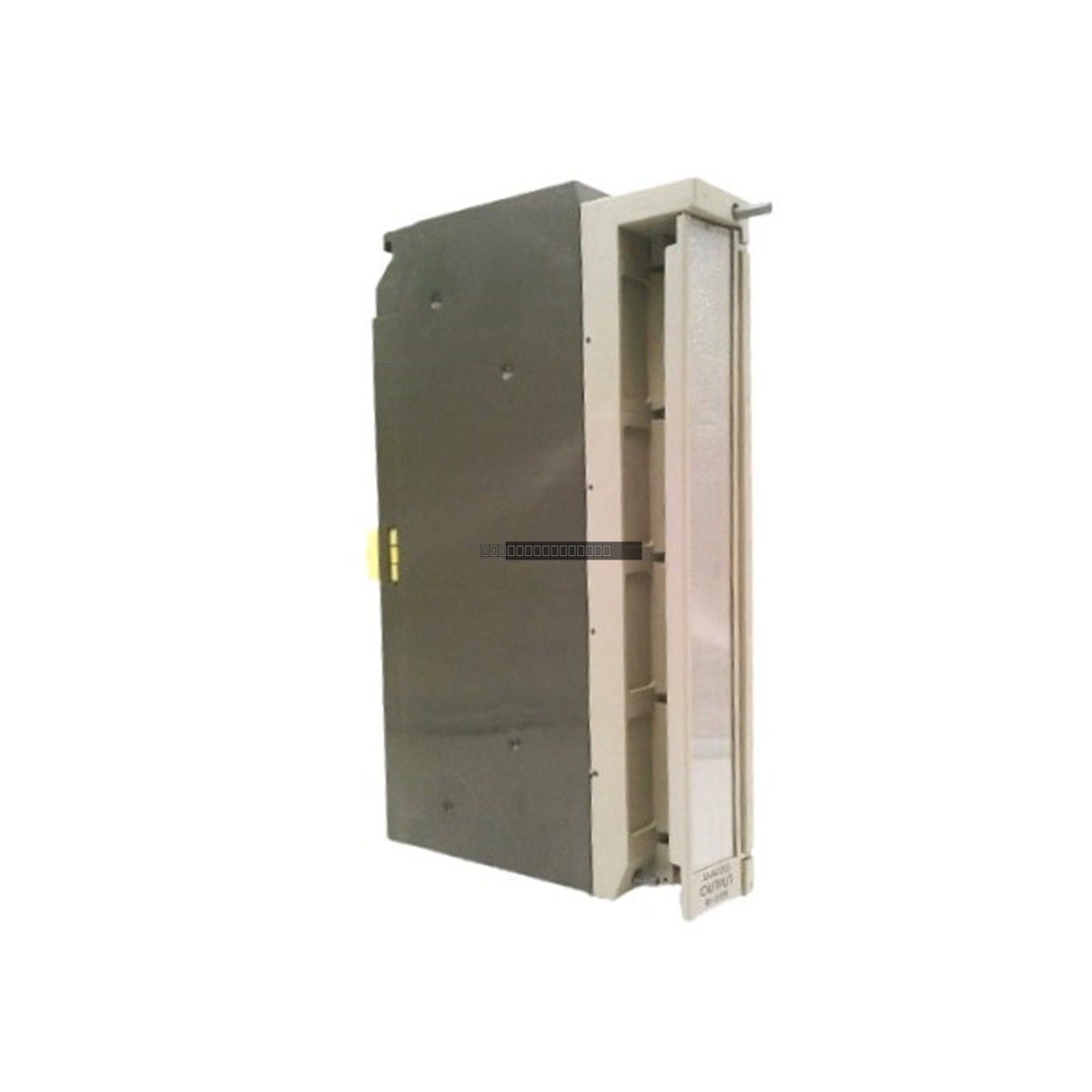

The Siemens 6ES5470-7LB12 is a specialized analog output module designed for integration within the SIMATIC S5-115U and S5-115F programmable controller environments. This unit facilitates the conversion of digital control data into precise bipolar voltage signals, enabling seamless interaction with field devices such as proportional valves, actuators, and speed controllers. By providing eight independent, galvanically isolated channels, the module ensures robust signal integrity and protection for the central processor in demanding industrial automation applications.
Features
Provides 8 independent analog output channels for high-density control.
Configured for a standard bipolar signal range of +/- 10 V.
Galvanically isolated design protects internal backplane logic from field-side electrical interference and ground loops.
Engineered for direct installation into standard S5-115 rack architectures.
Optimized for stable performance in high-vibration and thermally challenging industrial environments.
Applications
This module is widely utilized in process-critical sectors including petrochemical refining, chemical manufacturing, and heavy industrial machinery. It is essential for managing proportional control loops where deterministic signal output is required to maintain system stability and prevent hardware-induced process disruptions.
Technical Specifications
Model
6ES5 470-7LB12
Brand
Siemens
Series
SIMATIC S5-115U
Module Type
Analog Output Module
Channels
8 Analog Outputs
Signal Range
+/- 10 V
Isolation
Floating / Galvanically Isolated
Power Consumption
4.5 W
Operating Temperature
0 to 60 deg C
Installation Guidelines
Ensure the PLC rack power is disconnected before inserting or removing the module to prevent electrical damage.
Verify that the module is securely seated in the S5-115 rack and that the bus connectors are properly aligned.
Use shielded cabling for all analog output connections to minimize EMI and ensure signal accuracy.
Maintain proper ventilation within the cabinet to stay within the 0 to 60 deg C operating temperature range.
Handle the module using standard ESD-safe practices to protect sensitive internal components.
FAQ
What is the primary function of the 6ES5470-7LB12? It serves as an 8-channel analog output module that converts digital control signals from the S5-115U/F controller into +/- 10 V bipolar voltage signals for field devices.
Does this module require external isolation? No, the module features built-in galvanic isolation between the field-side and the backplane, which helps prevent ground loops and protects the CPU from transient spikes.
