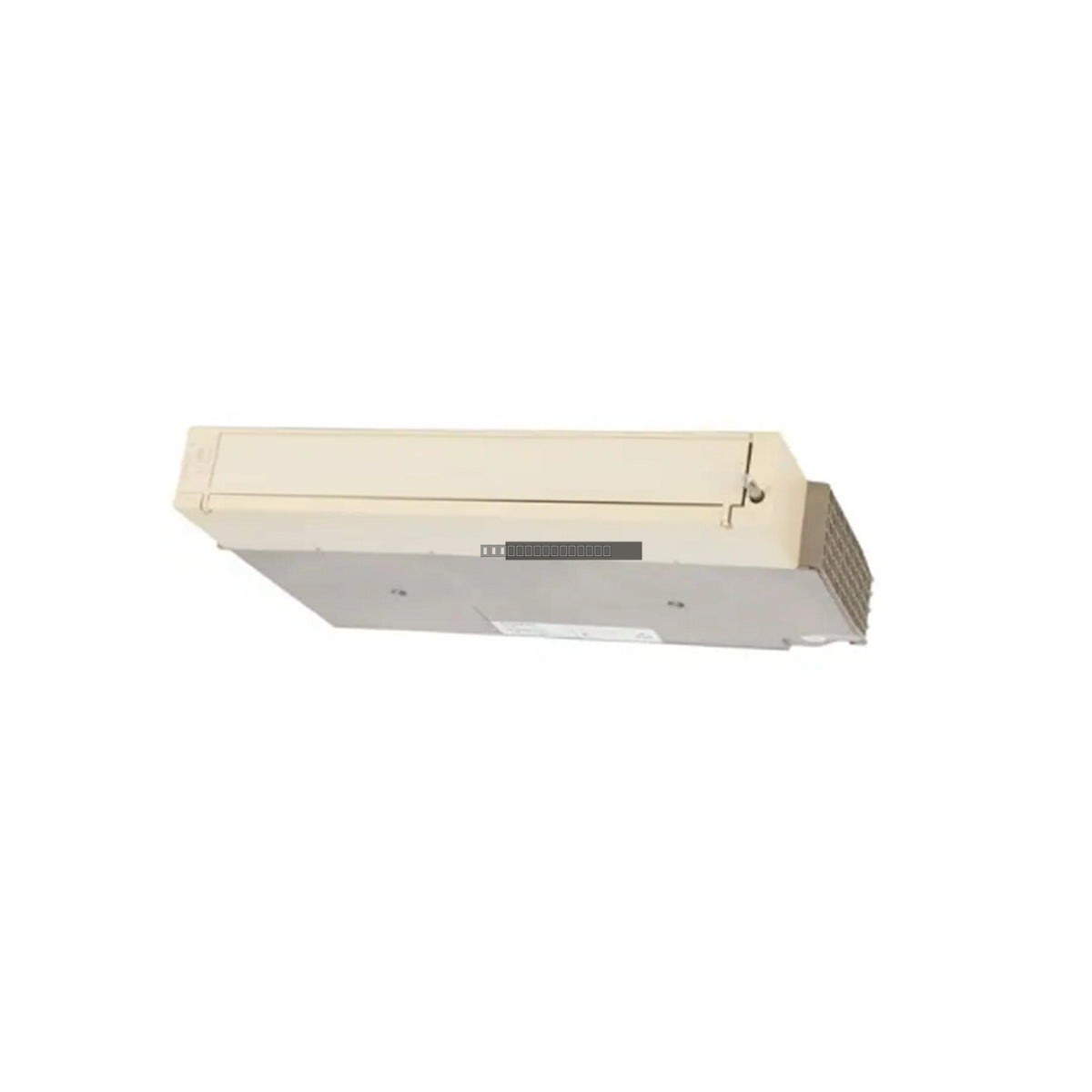

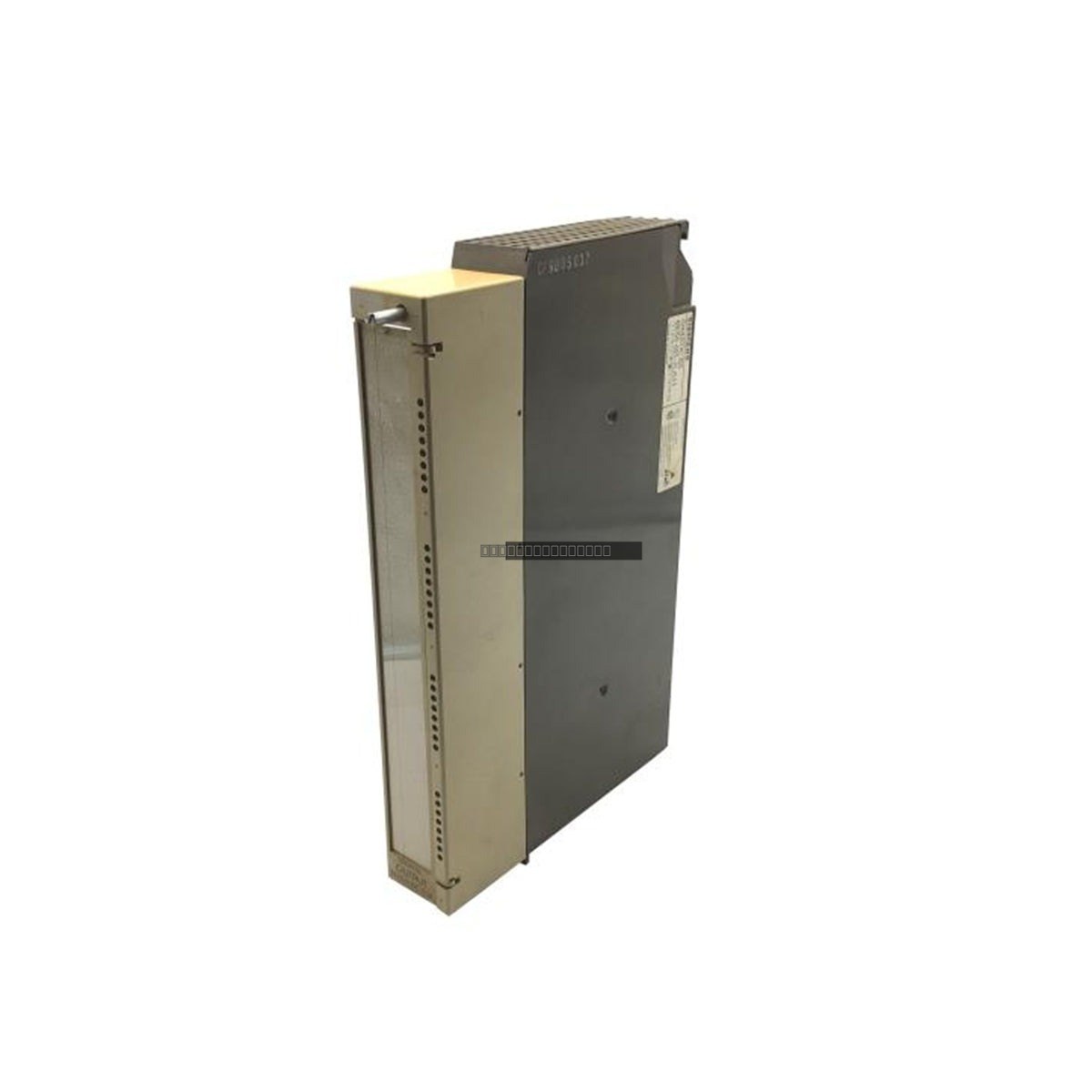

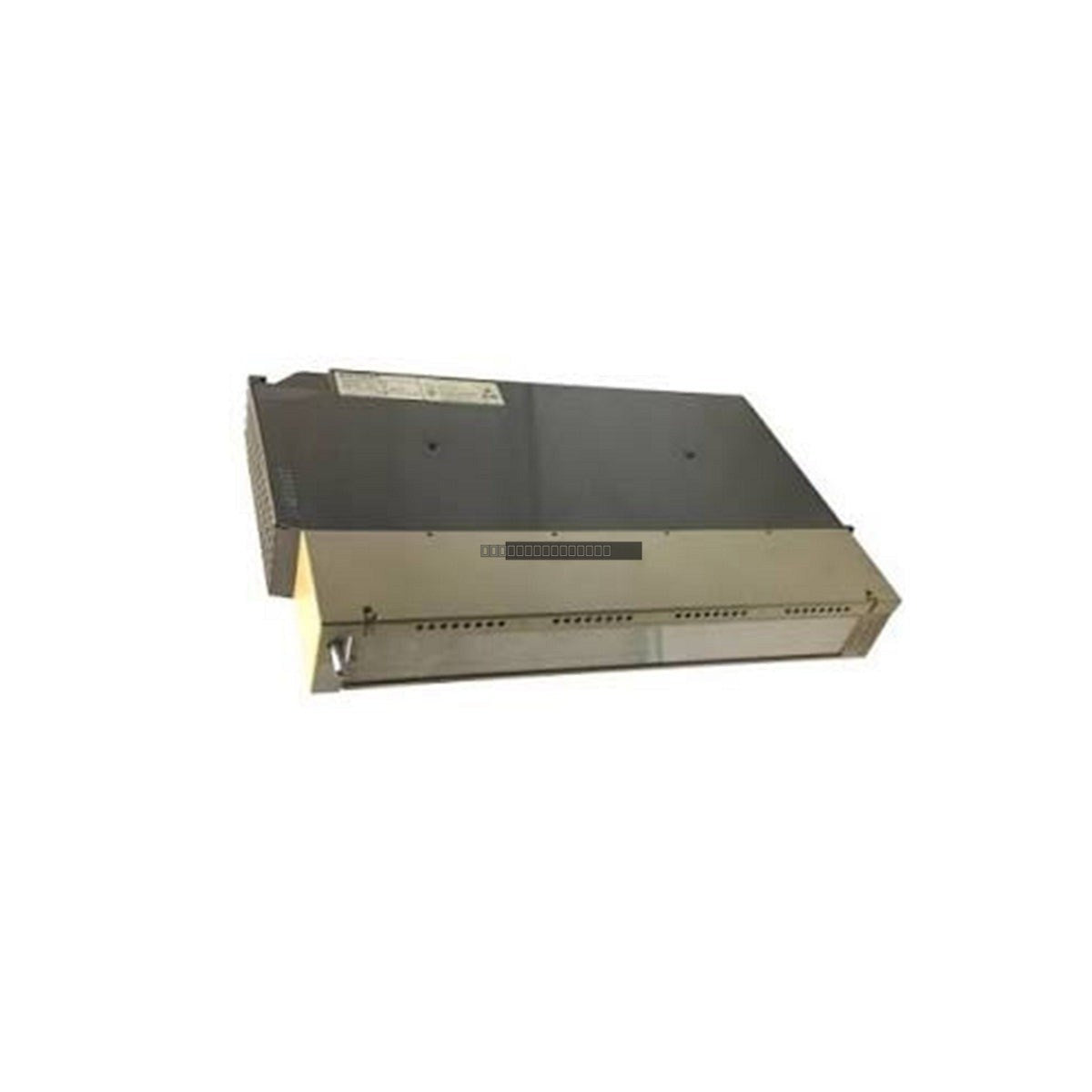

The Siemens 6ES5460-7LA13 is an 8-channel analog input module designed for integration within the SIMATIC S5-115U programmable logic controller system. This module is specifically engineered to interface directly with Pt100 resistance temperature detectors (RTDs), providing reliable temperature data acquisition for critical industrial control applications. By performing onboard signal conditioning and analog-to-digital conversion, the module ensures accurate thermal monitoring without requiring external signal transmitters.
Features
Channel Density: 8 independent analog input channels dedicated to Pt100 sensor monitoring.
Signal Integrity: Integrated hardware-based linearization and compensation for high-precision temperature readings.
Isolation: Robust optocoupler isolation between the field-side inputs and the backplane bus to prevent electrical interference and protect the CPU.
Noise Rejection: Built-in line frequency filtering (50/60 Hz) to mitigate electromagnetic interference in high-noise industrial environments.
Applications
This module is widely utilized in process automation and monitoring systems, including thermal power generation, oil and gas refining, and heavy mineral processing, where precise temperature feedback is essential for system safety and process stability.
Technical Specifications
Model
6ES5460-7LA13
Product Family
SIMATIC S5-115U
Number of Channels
8
Sensor Type
Pt100 RTD
Power Consumption
2.5 W (typical)
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Installation Guidelines
Ensure the PLC system is powered down before inserting or removing the module from the rack.
Use shielded twisted-pair cabling for all RTD connections to minimize noise pickup.
Verify that the module is securely seated in the S5-115U backplane and that the front connector is properly locked.
Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the specified 0 to 60 deg C range.
Follow standard ESD (electrostatic discharge) prevention procedures when handling the module to avoid damage to internal components.
FAQ
Does this module require external signal transmitters for Pt100 sensors? No, the 6ES5460-7LA13 is designed to interface directly with Pt100 sensors, performing the necessary signal conditioning and linearization internally.
Is this module compatible with other SIMATIC S5 series? This module is specifically designed for the SIMATIC S5-115U system. Please consult your system documentation for compatibility with other S5 series racks.
