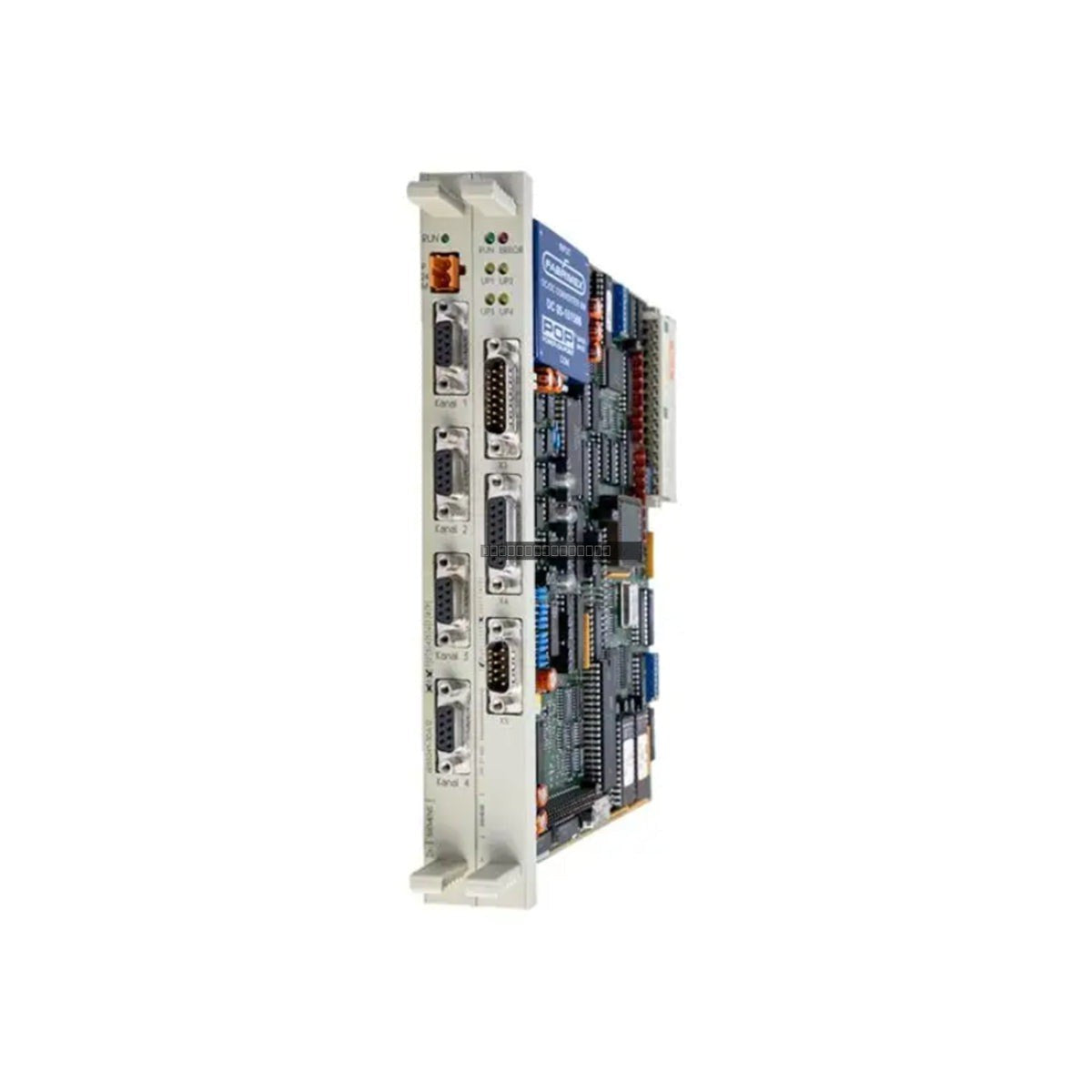

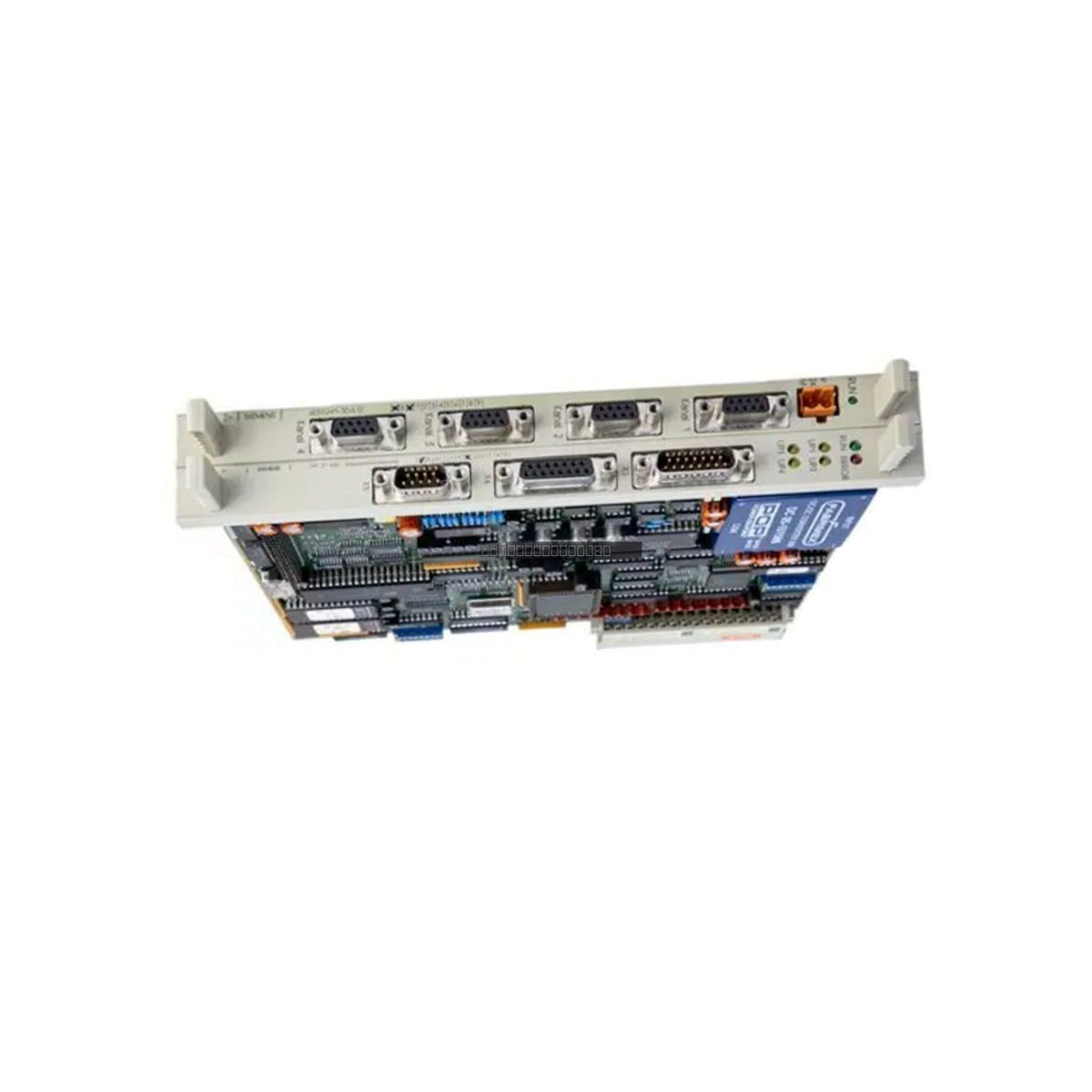

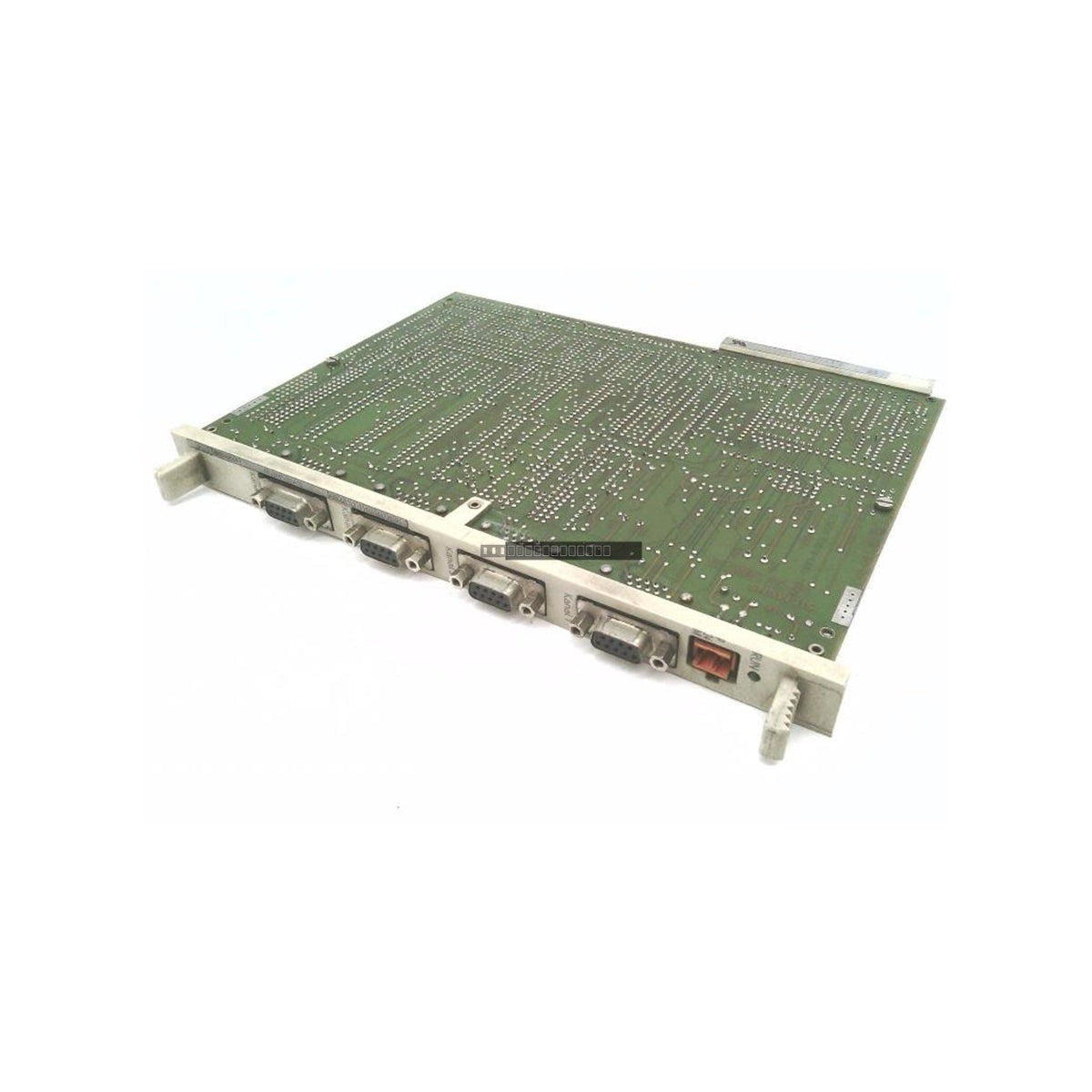

Siemens 6ES5241-3DA12 SIMATIC S5 Position Decoder Module

The Siemens 6ES5241-3DA12 is a specialized position decoder module designed for the SIMATIC S5 automation series. Functioning as an IP 241 interface card, this unit is engineered to process ultrasonic sensor signals, translating acoustic feedback into reliable mechanical positioning data for industrial control loops. It is widely utilized in legacy automation architectures where precise distance measurement is required for material handling, automated storage systems, and heavy-duty manufacturing processes.

Features

• Designed specifically for the Siemens SIMATIC S5 rack-based architecture.
• Processes high-frequency ultrasonic transducer inputs for accurate distance telemetry.
• Optimized for high-speed data transfer across the S5 backplane bus.
• Integrated diagnostic registers to monitor sensor signal integrity and detect noise interference.
• Compact, single-slot module design for efficient rack utilization.

Applications

This module is frequently deployed in demanding industrial environments, including steel mills, mining facilities, and automotive assembly lines. It serves as a critical component in systems requiring consistent and repeatable mechanical positioning feedback, helping to maintain system synchronization and minimize unplanned downtime in legacy production lines.

Technical Specifications

Installation Guidelines

• Ensure the S5 rack power is fully disconnected before inserting or removing the module to prevent electrical damage.
• Verify that the module is firmly seated in the backplane connector to ensure stable signal transmission.
• Use appropriate shielded cabling for ultrasonic transducer connections to mitigate external electromagnetic interference (EMI) on the factory floor.
• Ensure the environment meets standard industrial temperature requirements; avoid installation near high-heat sources or excessive vibration zones.
• Perform a full system diagnostic check after installation to confirm that the module is correctly recognized by the CPU and that signal registers are reading within expected parameters.

FAQ

What is the primary function of the 6ES5241-3DA12?
This module acts as an ultrasonic position decoder, converting raw acoustic signals from transducers into digital position data for the SIMATIC S5 PLC system.

Is this module compatible with modern S7 systems?
No, the 6ES5241-3DA12 is specifically designed for the SIMATIC S5 series architecture and is not natively compatible with S7 backplanes.

What should I do if the module reports diagnostic errors?
First, inspect the physical wiring between the transducer and the module for loose connections or damage. If wiring is secure, check the diagnostic registers via the S5 programming interface to determine if the error is related to acoustic noise or a faulty sensor input.
