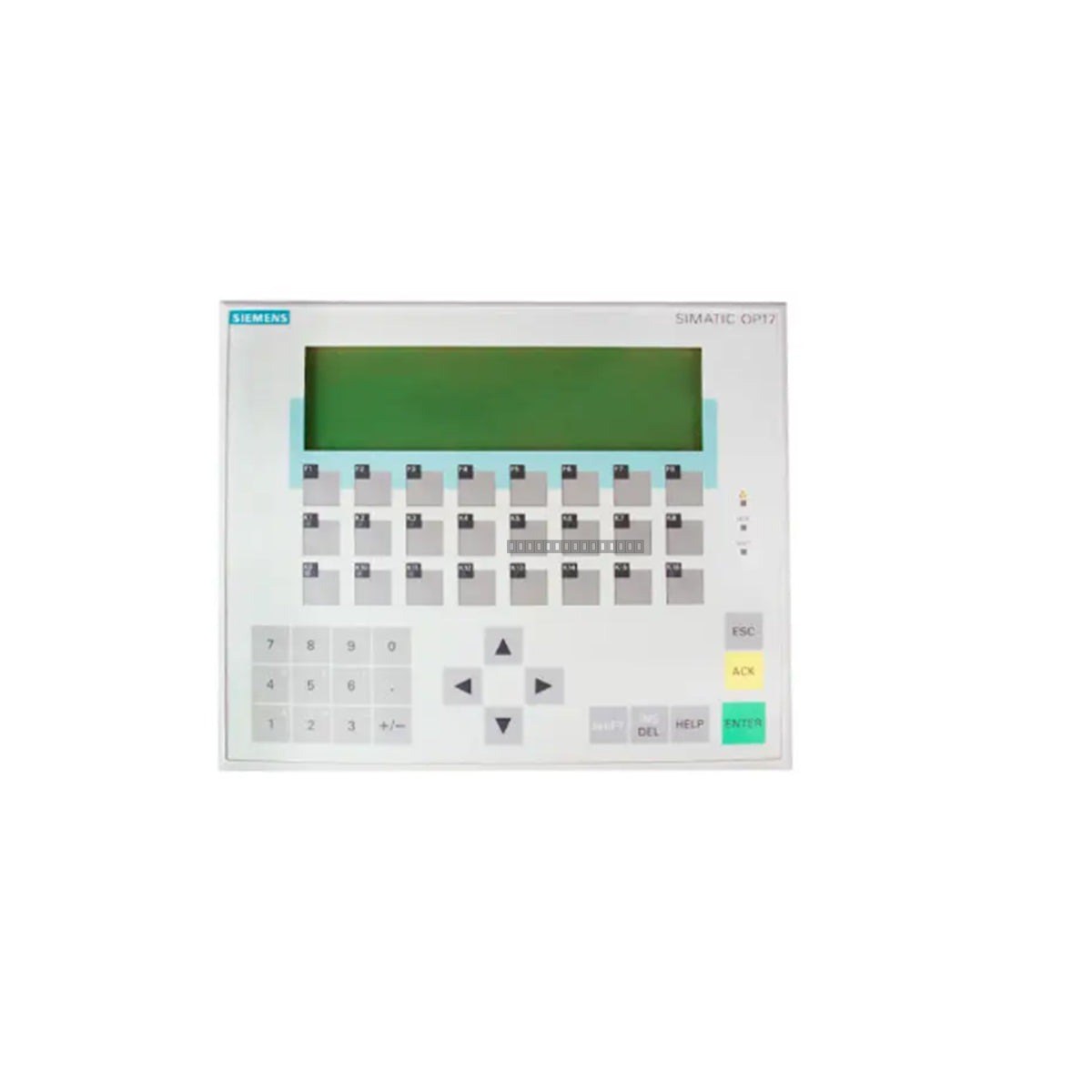

The Siemens Simatic OP 17 (6AV3617-1JC00-0AX1) is an industrial operator panel designed for real-time monitoring and process control within automated systems. It features a monochrome LED-backlit LC display capable of showing 4 lines by 20 characters or 8 lines by 40 characters. This interface allows plant personnel to execute commands, modify system parameters, and monitor diagnostic data, making it a reliable solution for localized process management in demanding industrial environments.
Features
Integrated membrane keypad designed for high-duty cycles and resistance to industrial contaminants.
Non-volatile memory for secure storage of alarm logs, function key assignments, and system parameters.
Native drivers for direct communication with Simatic S5 automation controllers.
Compact, robust housing suitable for panel-mount applications in harsh environments.
Efficient 24 VDC power operation with low current consumption.
Applications
The OP 17 operator panel is widely utilized in sectors such as automotive assembly, oil refining, wastewater treatment, and mining control stations. It is intended for use where immediate localized process visibility and alarm handling are required to minimize downtime and improve operator response times.
Technical Specifications
Model
6AV3617-1JC00-0AX1
Brand
Siemens
Product Family
Simatic S5 HMI
Supply Voltage
24 VDC
Current Consumption
0.4 A
Display Type
LC Display, LED Backlit
Display Capacity
4 x 20 or 8 x 40 characters
Operating Temperature
0 to 50 deg C
Storage Temperature
-20 to 60 deg C
Certifications
UL, CSA
Installation Guidelines
Ensure the panel is mounted in a clean, dry location with adequate clearance for ventilation.
Verify that the supply voltage is 24 VDC and correctly polarized before connection.
Use shielded communication cables to prevent interference in high-EMI environments.
Ensure the membrane keypad is not exposed to sharp objects or aggressive solvents.
Power down the unit before performing any wiring changes or maintenance.
FAQ
What is the primary function of the OP 17?
The OP 17 serves as an HMI for Siemens Simatic S5 controllers, allowing operators to view process data, acknowledge alarms, and input control parameters directly at the machine level.
Does this unit require external memory?
No, the unit includes integrated non-volatile memory to ensure that configuration data and alarm logs are retained during power interruptions.
