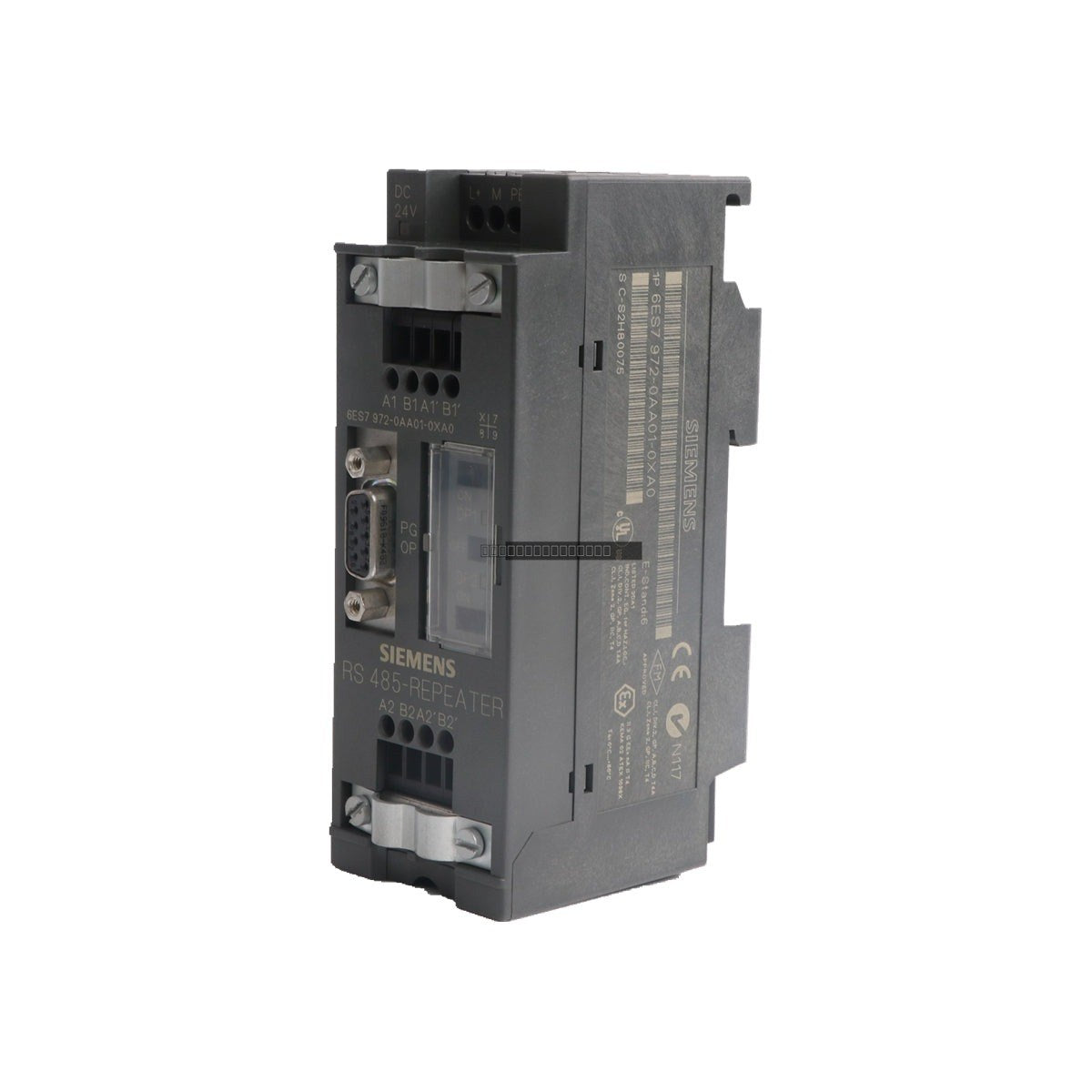

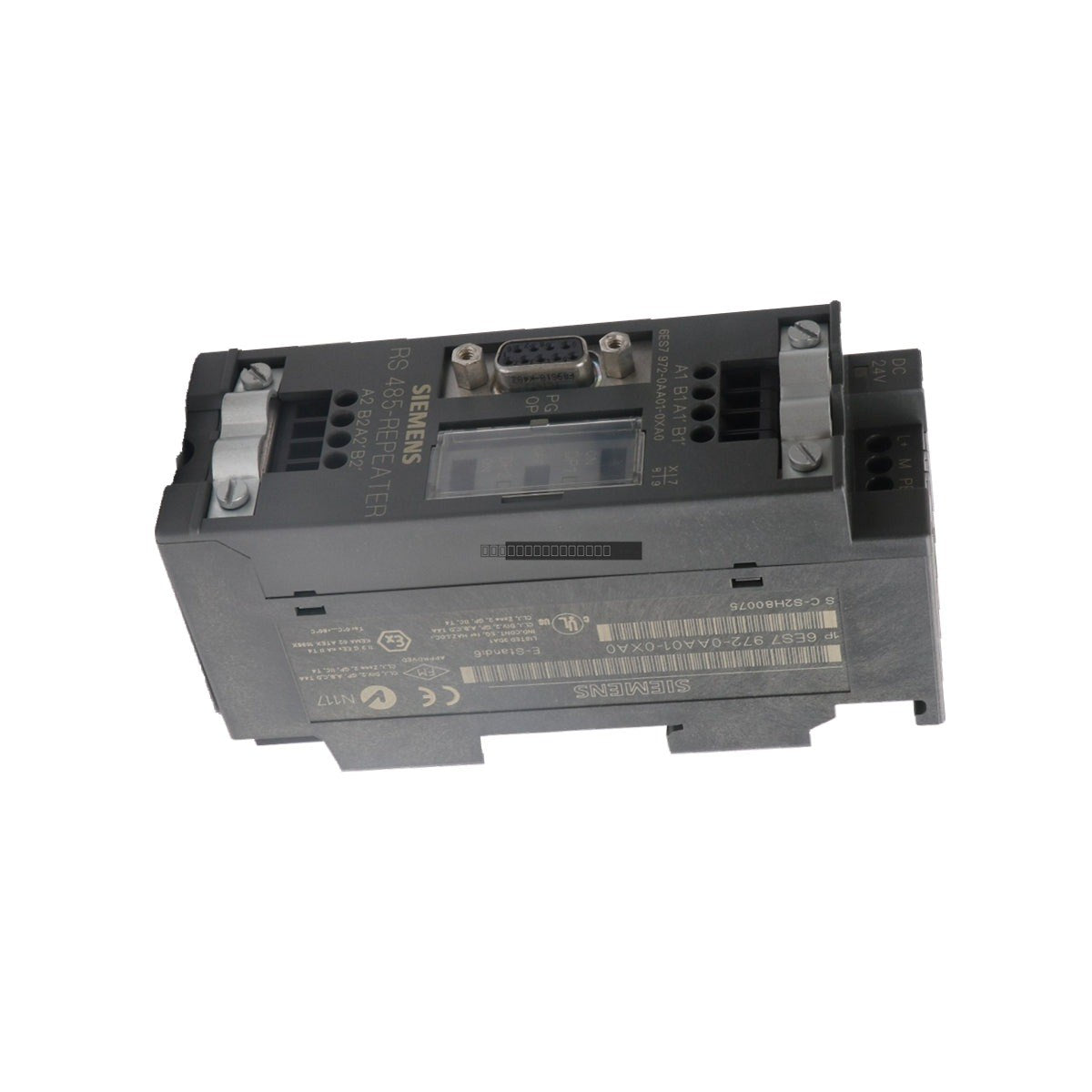

The Siemens 6ES7972-0AA01-0XA0 is a dedicated SIMATIC DP RS485 repeater designed for the reliable connection and signal regeneration of PROFIBUS and MPI bus systems. By electrically isolating bus segments, this unit prevents ground loop interference and maintains signal integrity across extended cable runs. It operates as a transparent network component, requiring no specific configuration or GSD files, making it a plug-and-play solution for industrial communication expansion.
Features
Supports PROFIBUS and MPI network protocols.
Regenerates signals to extend maximum bus length.
Provides electrical isolation between network segments.
Supports up to 31 nodes per segment.
Wide transmission rate range from 9.6 kbit/s up to 12 Mbit/s.
Compact, DIN-rail mountable design for control cabinet efficiency.
Applications
Industrial automation for packaging, conveyor, and assembly lines.
Building automation systems, including HVAC and lighting control.
Water and wastewater management infrastructure.
Material handling, including sorting and positioning systems.
Remote HMI connectivity for unmanned plant monitoring.
Technical Specifications
Model
6ES7972-0AA01-0XA0
Device Type
SIMATIC DP RS485 Repeater
Supply Voltage
24 V DC (20.4 V to 28.8 V)
Max Current Consumption
200 mA
Transmission Rate
9.6 kbit/s to 12 Mbit/s
Max Nodes per Segment
31
Degree of Protection
IP20
Weight
0.26 kg
Installation Guidelines

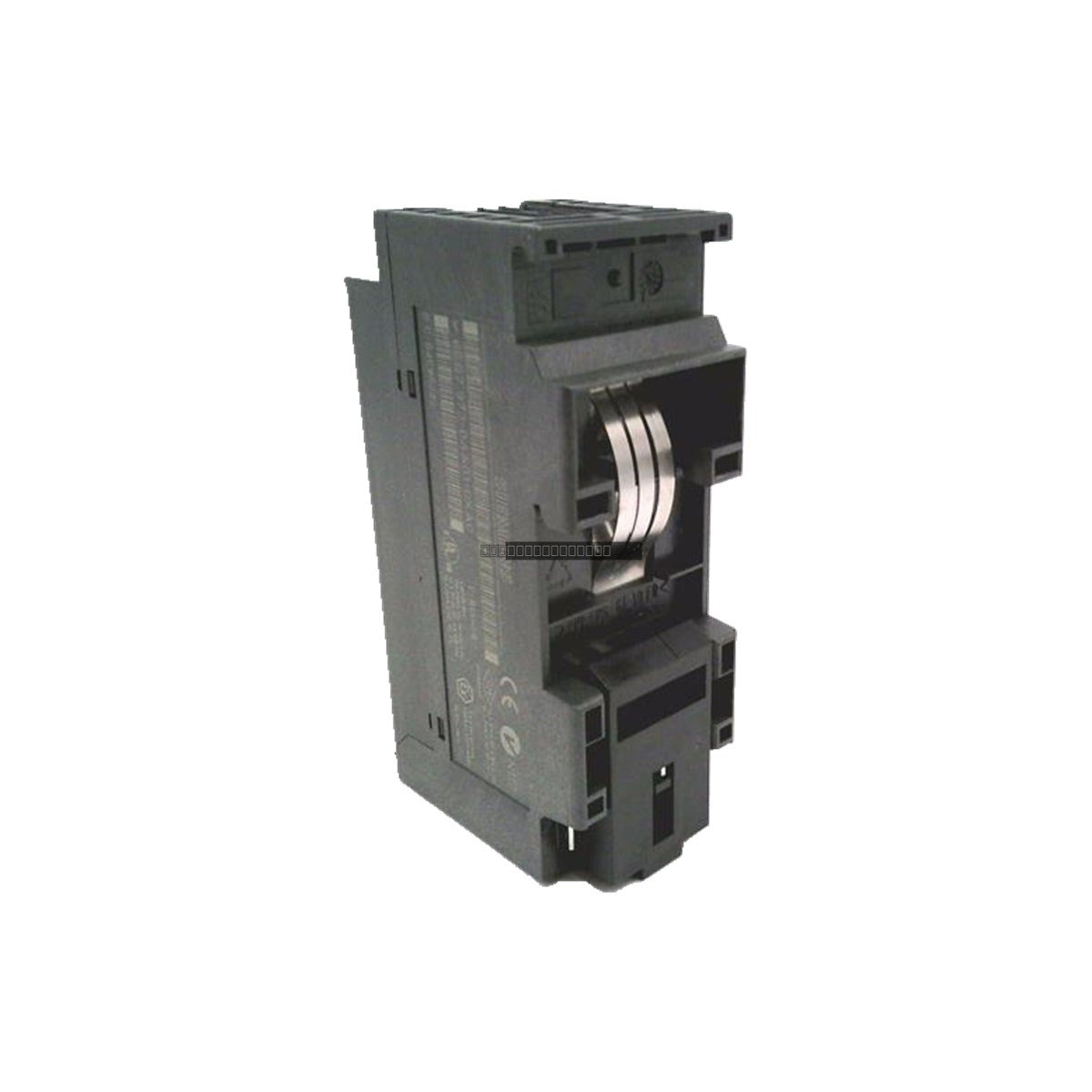

Mounting: Designed for installation on a standard 35 mm DIN rail inside a protective control cabinet.
Orientation: Can be mounted horizontally or vertically. Note that ambient temperature limits are 60 degC for horizontal mounting and 40 degC for vertical mounting.
Environment: Ensure the unit is housed within an enclosure that meets IP20 requirements or higher to protect against dust and debris.
Safety: Always disconnect the 24 V DC power supply before performing wiring or maintenance on the bus terminals.
FAQs
Does this repeater require software configuration?
No, the 6ES7972-0AA01-0XA0 is a transparent hardware device. It does not require GSD files, STEP 7 configuration, or TIA Portal setup to function.
How can I interpret the LED status?
The DP1 and DP2 LEDs indicate bus activity. Flickering or blinking LEDs suggest low message traffic, while solid illumination indicates high bus traffic levels.
Does this unit provide network diagnostics?
No, this model does not include internal diagnostics. If you require advanced network topology mapping or specific fault location capabilities, a dedicated Diagnostics Repeater is recommended.
