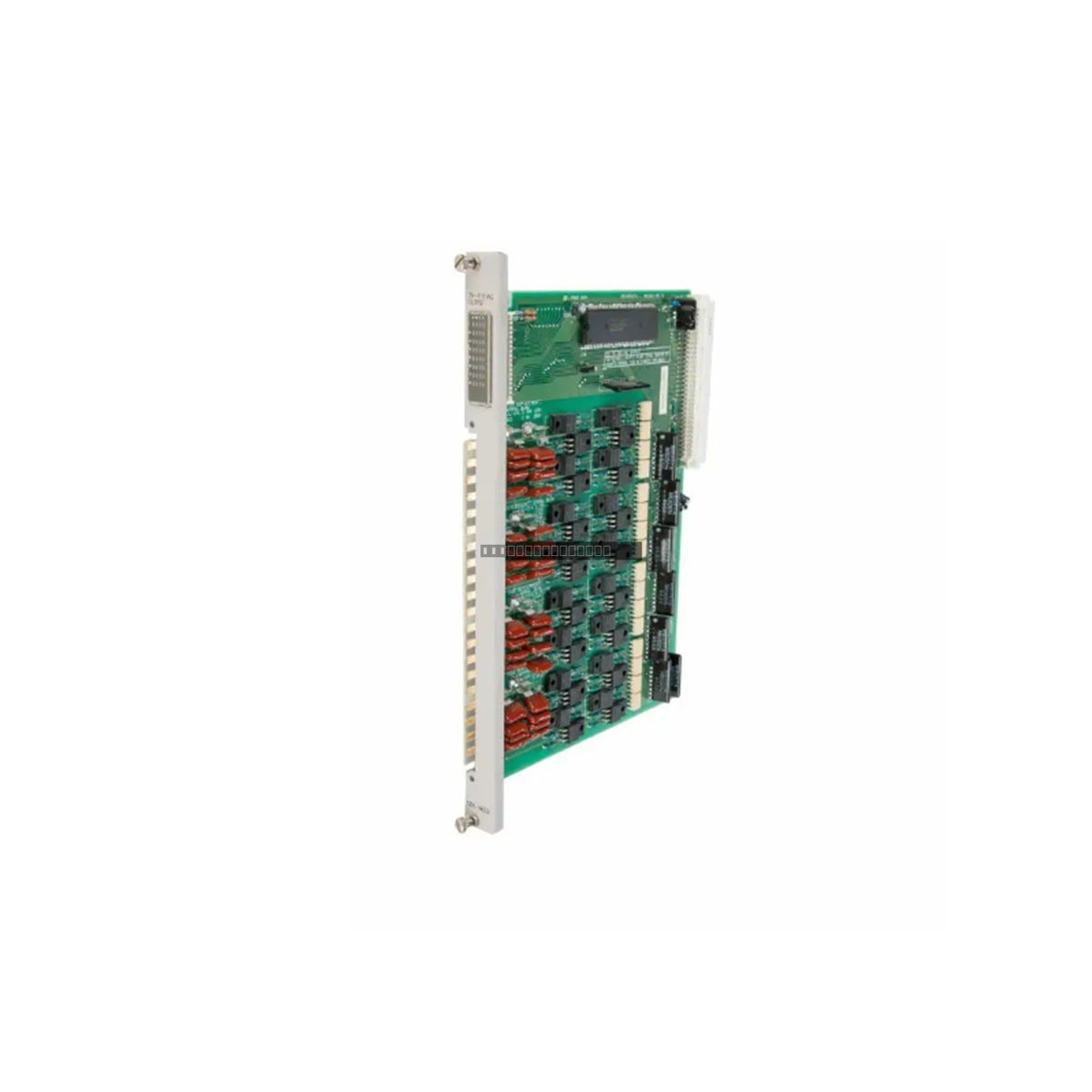

The Siemens 505-4632 is a 32-point digital output module designed for use within the TI 505 series programmable logic controller (PLC) systems. This module provides high-density output control, facilitating the interface between the PLC processor and external field devices such as relays, contactors, and indicators. As a legacy component in the TI 505 family, it is engineered to provide reliable switching in industrial automation environments.
Features
32-point digital output configuration for high-density I/O requirements.
Operating voltage range of 24-110VAC, suitable for various AC control applications.
Designed specifically for integration with the Siemens TI 505 PLC platform.
Robust construction for standard industrial control cabinet mounting.
Technical Specifications
Model Number
505-4632
Manufacturer
Siemens
Module Type
Digital Output Module
Point Count
32 Points
Voltage Range
24-110VAC
Product Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the PLC system power is completely disconnected before inserting or removing the module from the baseplate to prevent electrical damage.
Verify that the module is properly seated in the backplane slot and that the retaining screws are tightened to maintain a secure connection.
Ensure that the field wiring corresponds to the correct voltage and current ratings specified for this module to avoid overloading the output circuits.
Maintain adequate spacing within the enclosure to allow for proper airflow and heat dissipation.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal electronic components.
FAQ
Is the Siemens 505-4632 still in production?
No, the 505-4632 has been discontinued by the manufacturer. It is typically sourced through surplus or refurbished channels for maintenance of legacy TI 505 systems.
What is the voltage rating for this module?
This module is designed for 24-110VAC digital output applications.
