Siemens 6AV6647-0AF11-3AX0 SIMATIC HMI KTP1000 Basic Color PN

Description

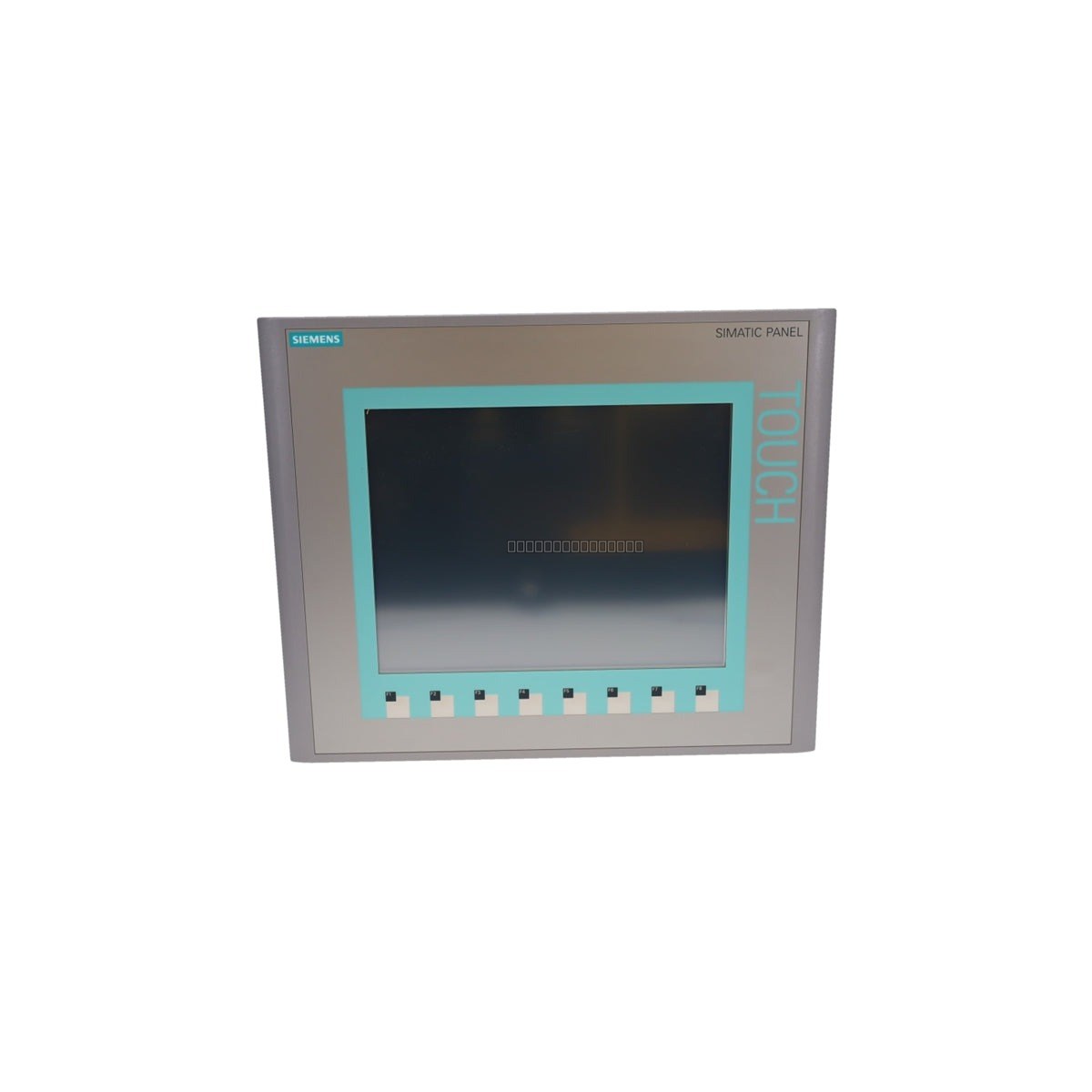

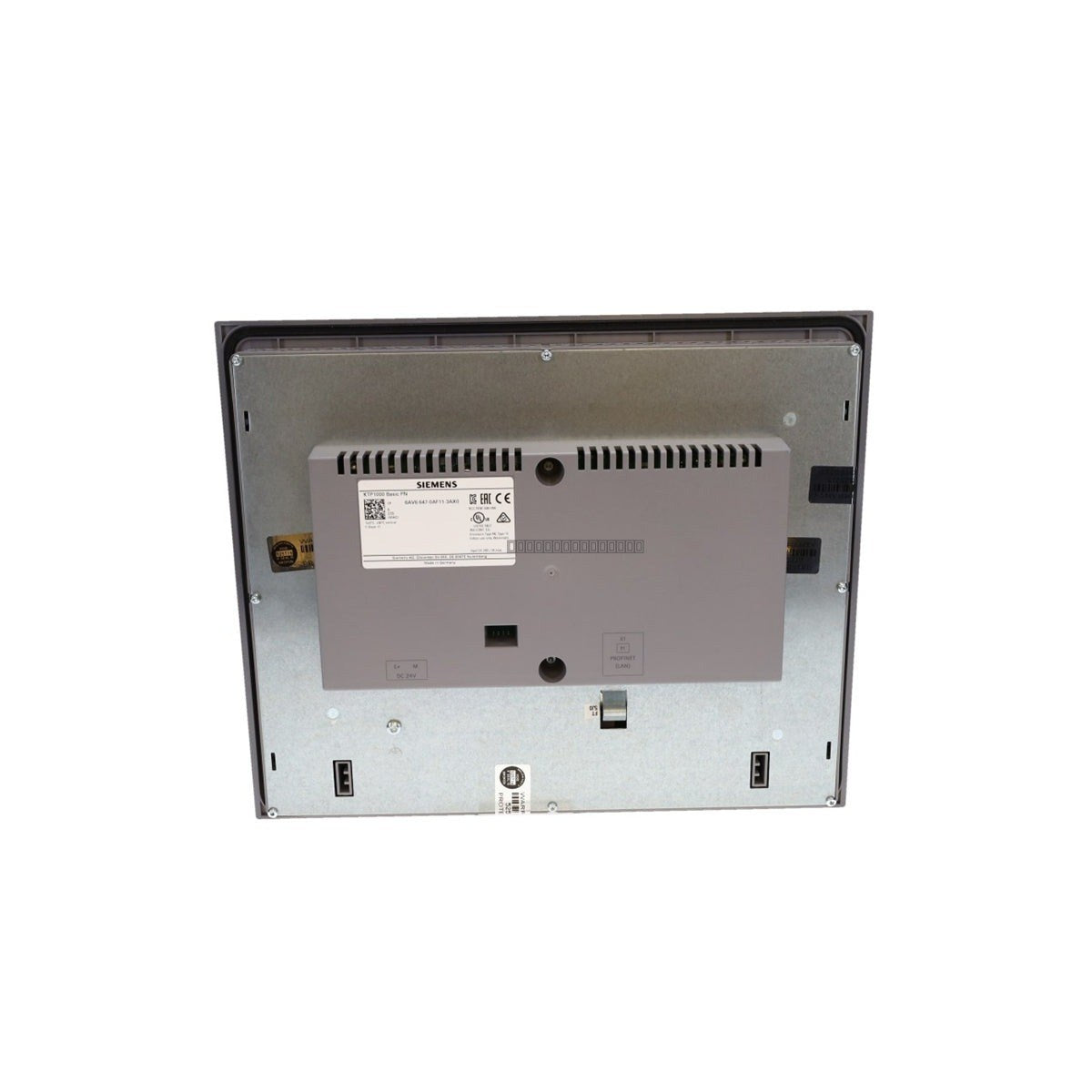

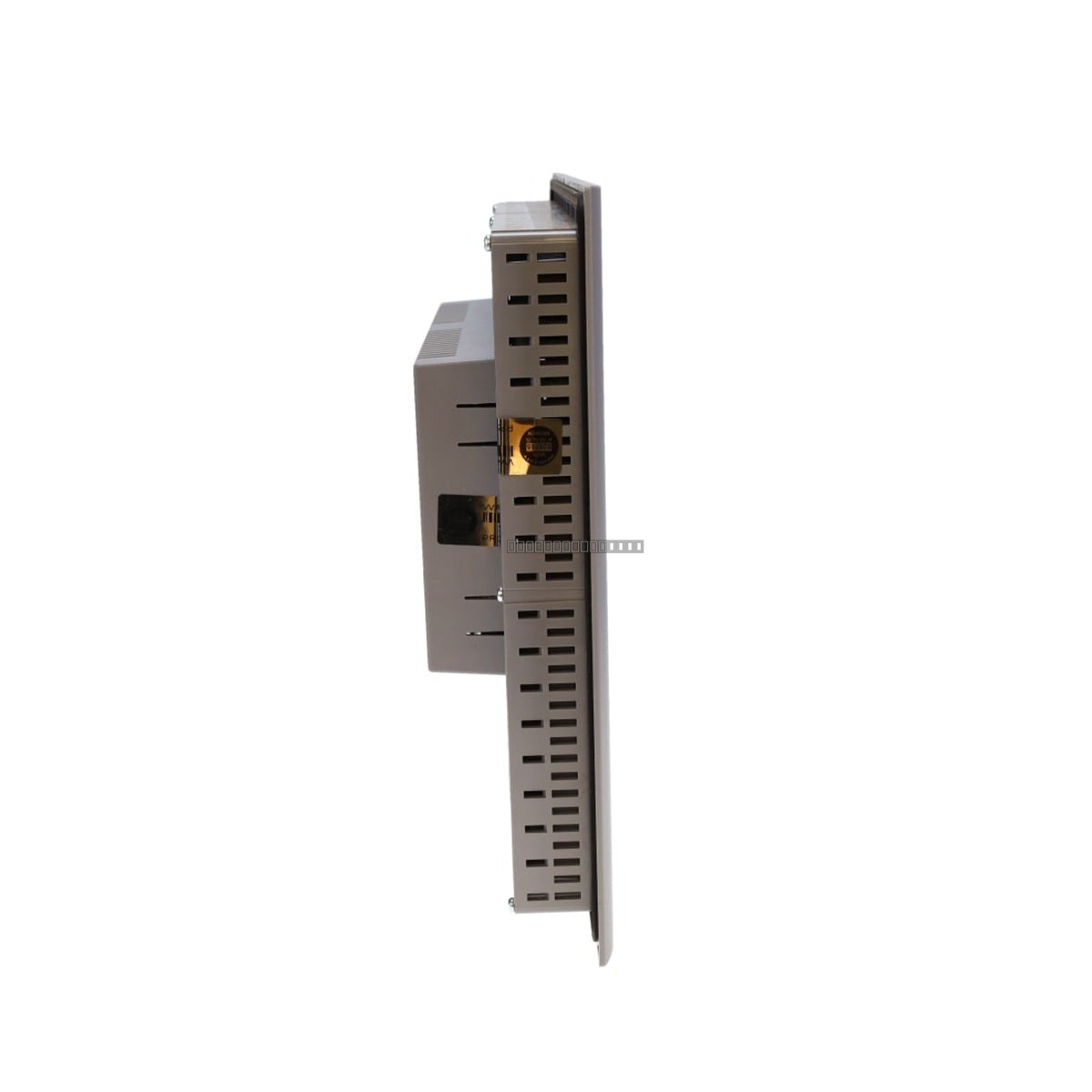

The Siemens 6AV6647-0AF11-3AX0 is a SIMATIC HMI KTP1000 Basic Color PN operator panel. As part of the Siemens Basic Panel series, this unit is designed for cost-effective operator control and monitoring of machines and industrial plants. It features a 10.4-inch TFT display with 256 colors and provides a dual-input interface combining a resistive touchscreen with tactile function keys. This model is equipped with a PROFINET interface, allowing for high-speed, Ethernet-based communication with SIMATIC controllers such as the S7-1200, S7-1500, S7-300, and S7-400 series.

Features

• 10.4-inch TFT display with 640 x 480 pixel resolution.
• Dual-mode operation: Resistive touch screen and 8 tactile function keys.
• Integrated PROFINET interface for seamless integration into industrial Ethernet networks.
• Supports configuration via WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5.
• Robust design suitable for standard machine-level HMI applications.

Applications

• General Manufacturing: Visualization for assembly lines and conveyor control.
• Packaging Machinery: Monitoring of speed, temperature, and motion parameters.
• Food & Beverage Processing: Recipe management and filling process control.
• Process Automation: Auxiliary process monitoring, pump control, and tank level management.
• Machine Building: Standardized HMI interface for custom industrial equipment.

Technical Specifications

Installation Guidelines

• Mounting: Designed for horizontal mounting. Note that vertical mounting reduces the maximum allowable ambient temperature by 10 degC.
• Panel Cutout: Prepare a precise cutout of 310 mm (width) x 248 mm (height).
• Clearance: Maintain at least 50 mm of free space around all sides of the device to ensure adequate natural convection cooling.
• Panel Thickness: Compatible with cabinet walls between 1.5 mm and 6.0 mm thick.
• Sealing: Ensure the rubber seal is seated perfectly flat in the groove to maintain the IP65 front-face protection rating.
• Clamping: Tighten mounting clamps evenly to a torque of 0.2 Nm. Avoid over-tightening to prevent damage to the plastic housing.

FAQ

What is the 6AV6647-0AF11-3AX0?

The Siemens SIMATIC HMI KTP1000 Basic Color is a 1st generation operator panel used for industrial automation and man-machine interaction.

What PLC types can it communicate with?

It is primarily used with S7-1200 and S7-1500 PLCs, but supports S7-300/400 series controllers over PROFINET.

What are the key display specifications?

The unit features a 10.4-inch TFT display with 256 colors and a resolution of 640 x 480 pixels. It features a resistive touchscreen complemented by 8 tactile function keys.

What are the power requirements?

It operates on 24 V DC electrical power, with a typical active power input of 15 W and a rated current consumption of 0.6 A.
