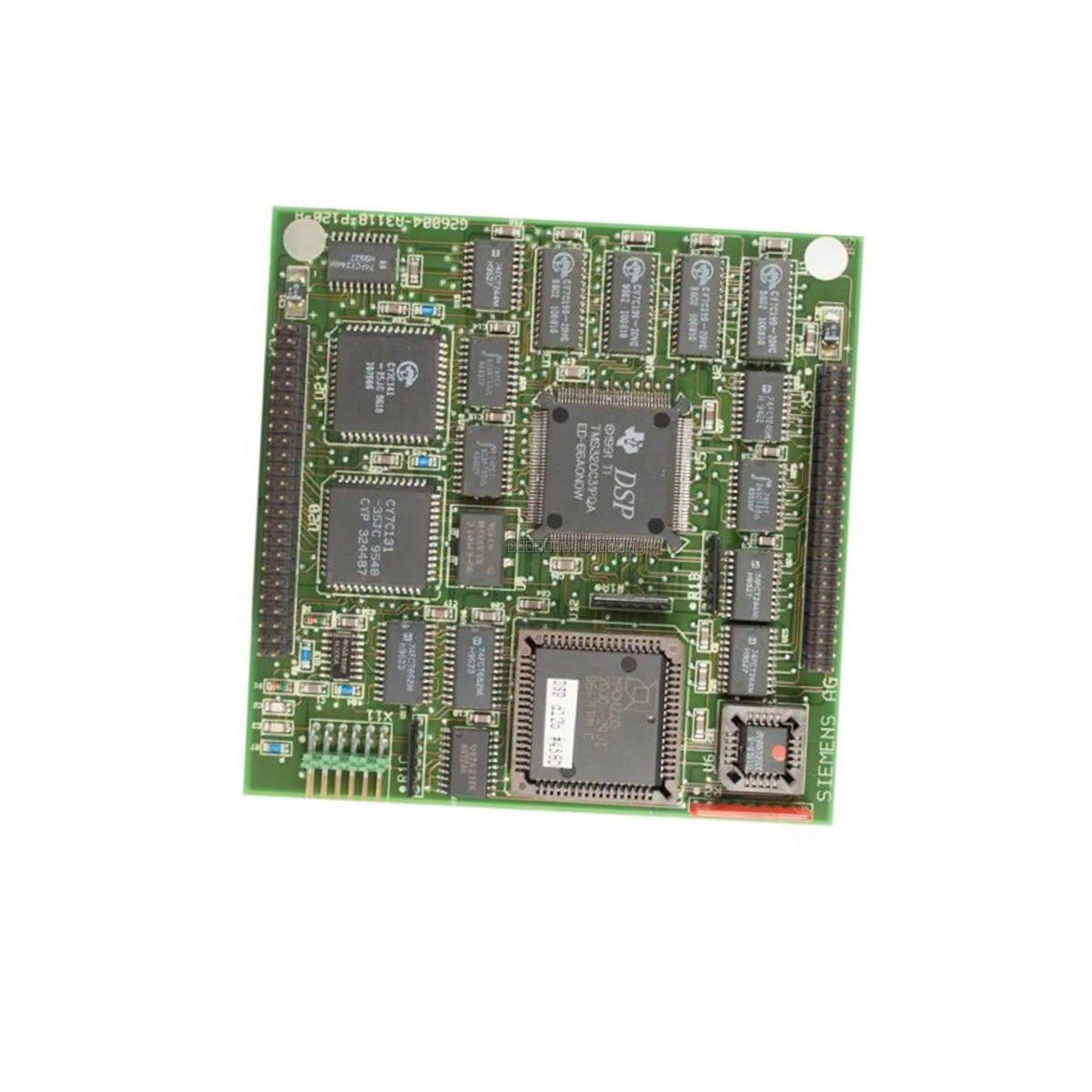

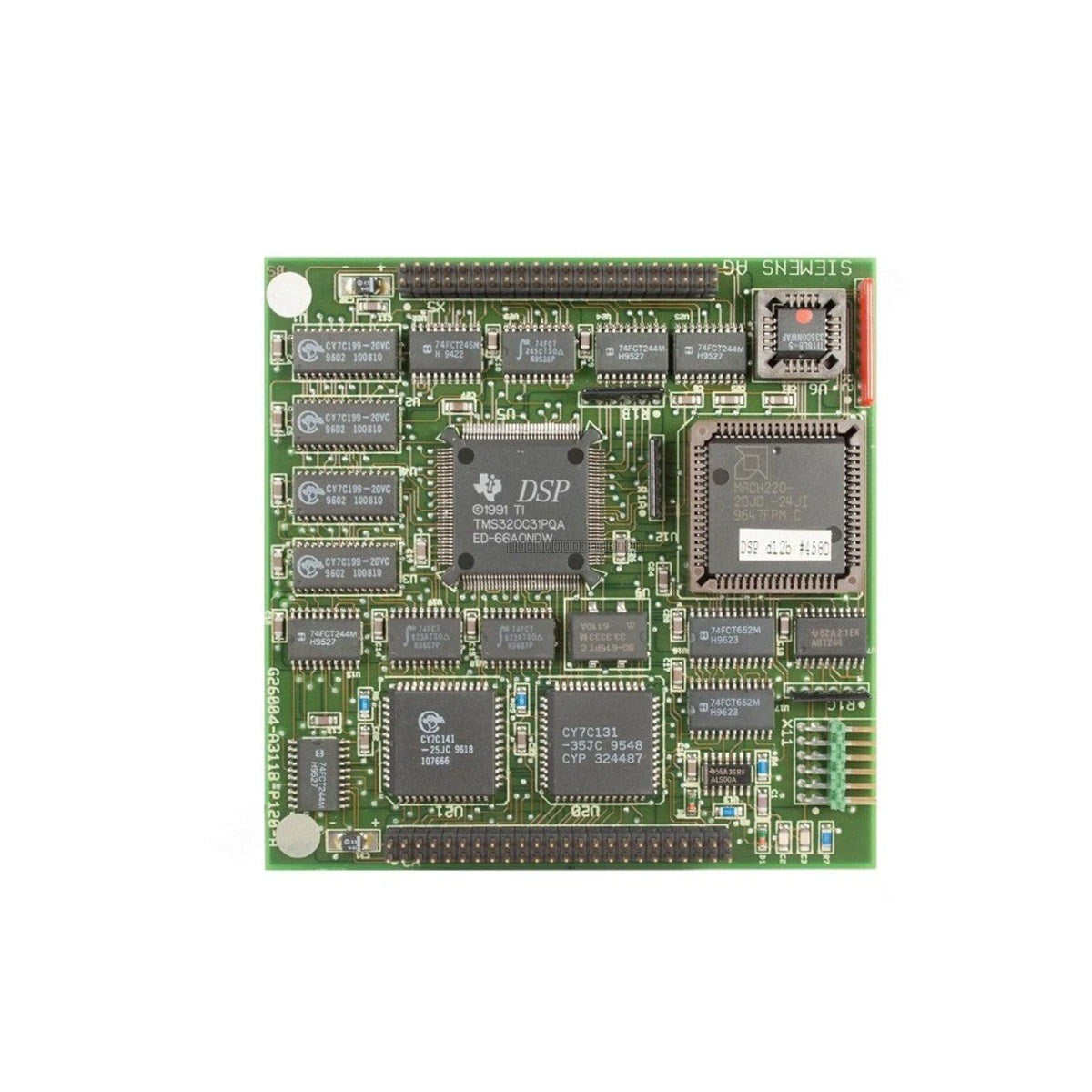

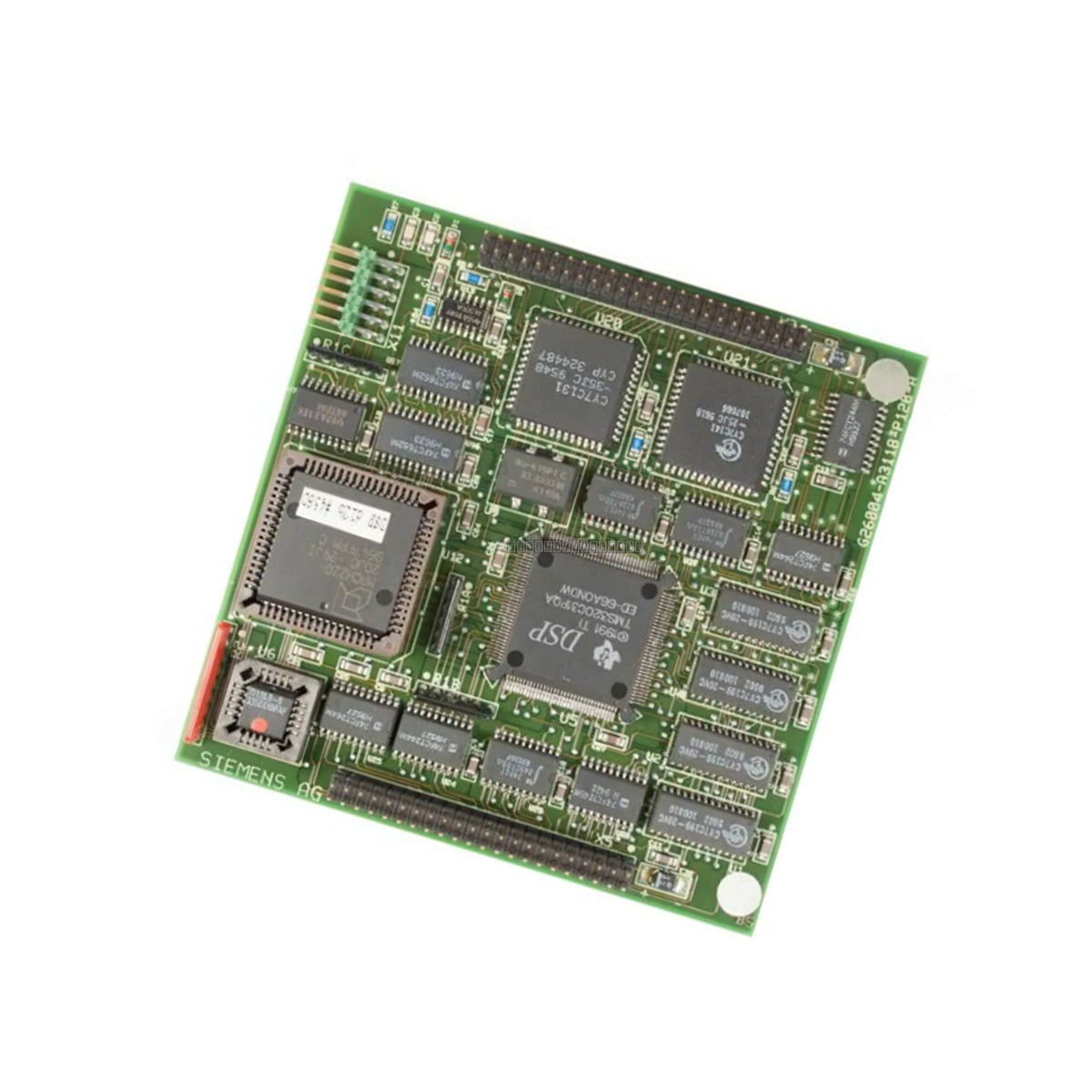

The Siemens G26004-A3118-P120 is an intelligent signal processor module designed for the legacy SIMATIC S5 automation architecture, functioning as an IP252 IP-DSP (Intelligent Processor - Digital Signal Processor) module. This unit is engineered to offload complex computational tasks from the central processing unit, enabling high-speed, deterministic execution of control loops and motion control algorithms independently of the main PLC cycle time.
Features
Dedicated onboard DSP hardware for autonomous execution of control logic.
High-speed input channels for direct interfacing with industrial sensors and encoders.
Optimized for real-time control loops and advanced closed-loop operations.
Seamless integration with the SIMATIC S5 backplane bus for parameterization and data exchange.
Robust design suitable for heavy industrial environments including chemical, steel, and automotive sectors.
Applications
This module is primarily utilized in legacy SIMATIC S5 systems requiring high-speed signal processing or specialized motion control. Typical applications include precision positioning, high-speed data acquisition from transducers, and complex algorithmic processing that would otherwise exceed the cycle time capabilities of the standard S5 CPU.
Technical Specifications
Model
G26004-A3118-P120
Brand
Siemens
Series
SIMATIC S5
Module Type
IP252 IP-DSP Intelligent Processor
Operating Temperature
0 to 55 deg C
Storage Temperature
-40 to 70 deg C
Relative Humidity
95 percent non-condensing
Power Supply
5 VDC (via backplane)
Current Consumption
1.2 A typical
Installation Guidelines
Ensure the SIMATIC S5 rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the designated backplane slot and that the locking mechanism is engaged.
Maintain proper ventilation within the control cabinet to ensure ambient temperatures remain within the 0 to 55 deg C operating range.
Use shielded cabling for all sensor and encoder inputs to minimize electromagnetic interference (EMI).
Handle the module using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
FAQ
What is the primary function of the IP252 module?
The IP252 acts as an intelligent co-processor that handles high-speed signal processing and control tasks, offloading these duties from the main SIMATIC S5 CPU to ensure deterministic performance.
Is this module compatible with modern S7 systems?
No, the G26004-A3118-P120 is specifically designed for the legacy SIMATIC S5 architecture and is not natively compatible with S7 series hardware.
