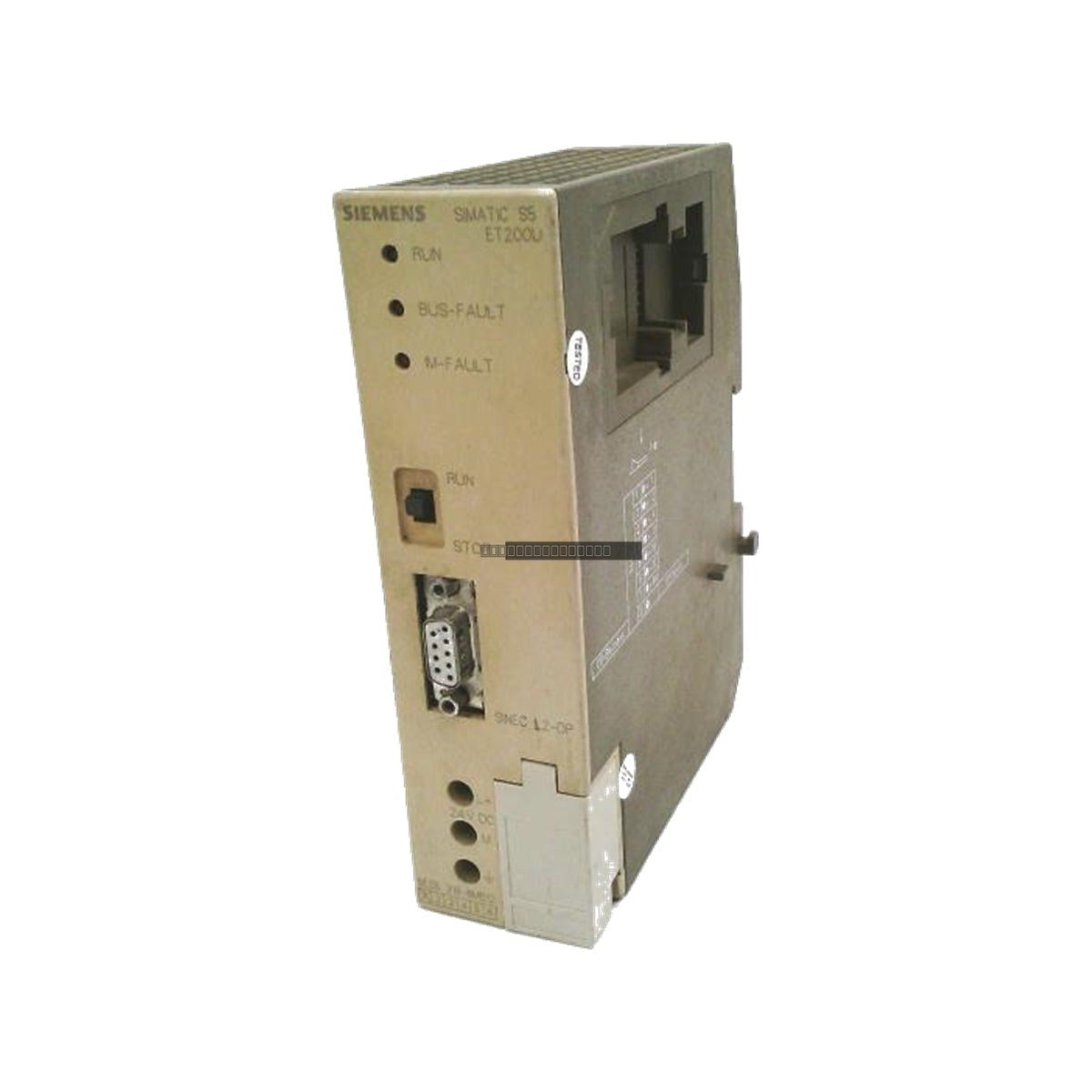

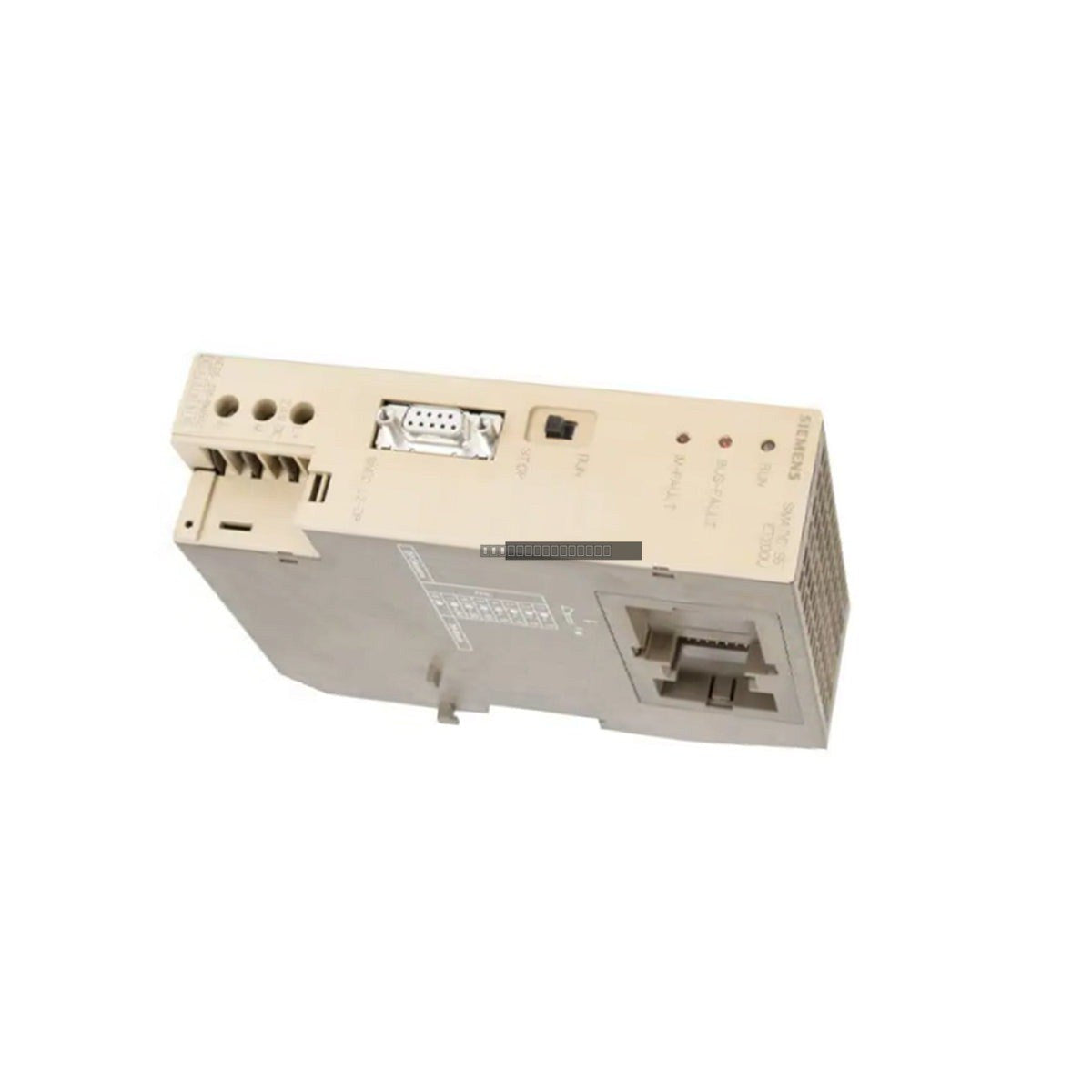

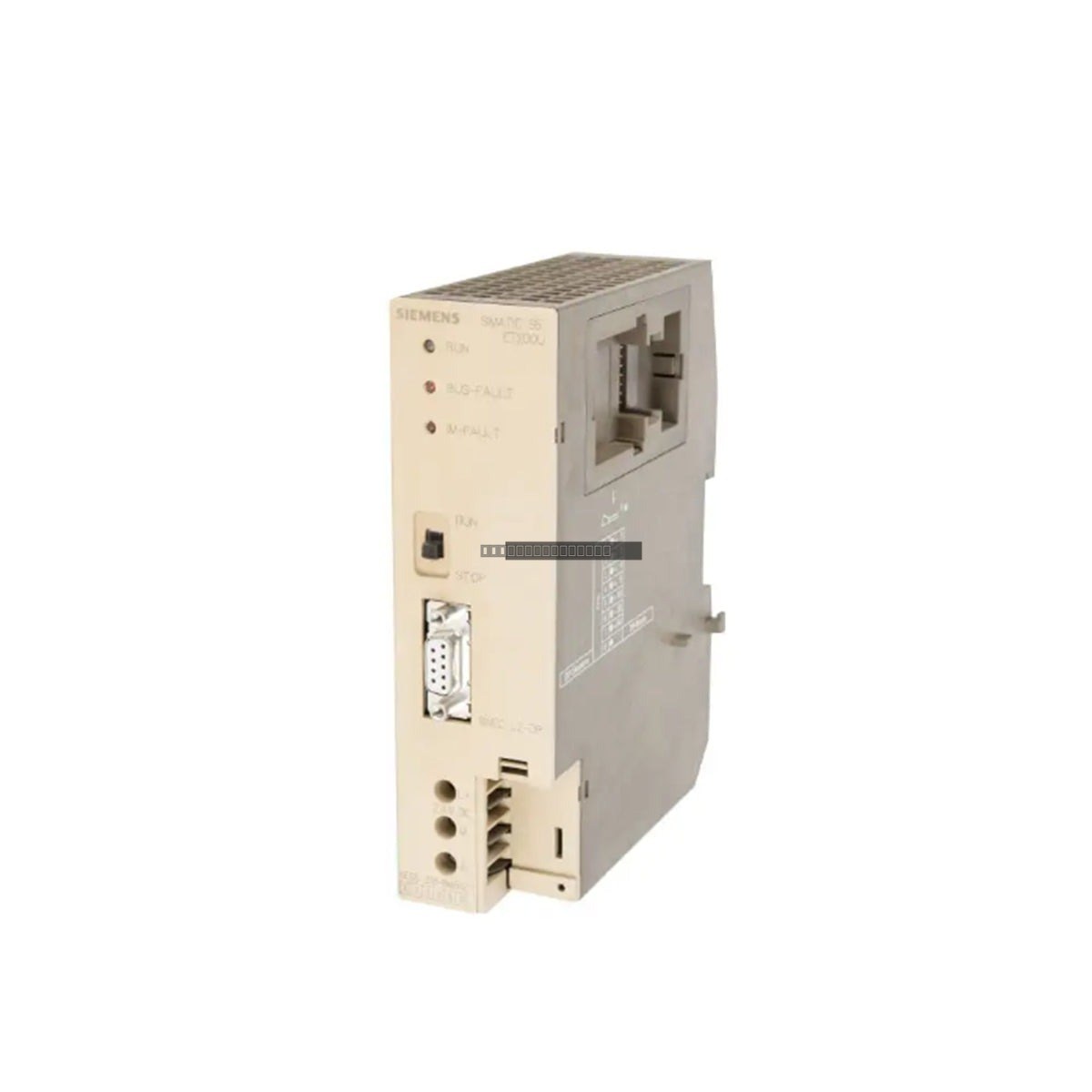

Siemens 6ES5318-8MB12 ET 200U Profibus DP Interface Module

Description

The Siemens 6ES5 318-8MB12 functions as a decentralized slave interface module designed to integrate the ET 200U distributed I/O station into a standard Profibus DP network architecture. Operating within legacy Simatic S5 automation platforms, this hardware component manages high-speed serial data transmission between the central master controller and local field I/O expansion racks. It is deployed across automated heavy industries, including continuous-casting steel mills, power plant water treatment facilities, and underground mining conveyor networks. By facilitating robust, real-time distributed communication, this module eliminates extensive point-to-point field wiring, simplifies network diagnostics, and ensures localized fault containment.

Communications Architecture

The internal electronics feature an optimized ASIC protocol chip dedicated to executing the Profibus DP slave state machine. The module interfaces with the RS485 physical layer via a standard 9-pin Sub-D connector, sustaining deterministic data rates up to 1.5 Mbps. Galvanic isolation circuits shield the internal backplane logic from transient voltage surges and common-mode noise propagation. Station addresses are assigned via hardware rotary switches located behind the front panel. The hardware architecture handles cyclical process data exchange and diagnostic frame transmission, providing the host master with real-time transparency into channel-level status.

Features

• Designed for ET 200U distributed I/O integration within Simatic S5 systems.
• Supports Profibus DP protocol via RS485 physical layer.
• Automatic baud rate detection from 9.6 kbps to 1.5 Mbps.
• Galvanic isolation for protection against field bus noise and surges.
• Hardware-based station addressing (up to 125 addresses).
• Cyclical data exchange and diagnostic reporting capabilities.

Technical Specifications

Installation Guidelines

• Ensure the power supply is disconnected before installing or removing the module from the ET 200U rack.
• Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures below 60 deg C.
• Use shielded twisted-pair cabling for Profibus DP connections to minimize EMI interference.
• Ensure proper grounding of the cable shield at the designated points to prevent ground loops.
• Verify that the station address rotary switches are set correctly before energizing the system.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal components.

FAQ

What is the primary function of the 6ES5 318-8MB12?

This module acts as a Profibus DP slave interface, allowing an ET 200U distributed I/O station to communicate with a central master controller in a Siemens Simatic S5 automation environment.

Does the module require manual baud rate configuration?

No, the module features autonomous detection for transmission rates ranging from 9.6 kbps up to 1.5 Mbps.

How is the station address configured?

The station address is configured manually using the hardware rotary switches located on the front panel of the module.
