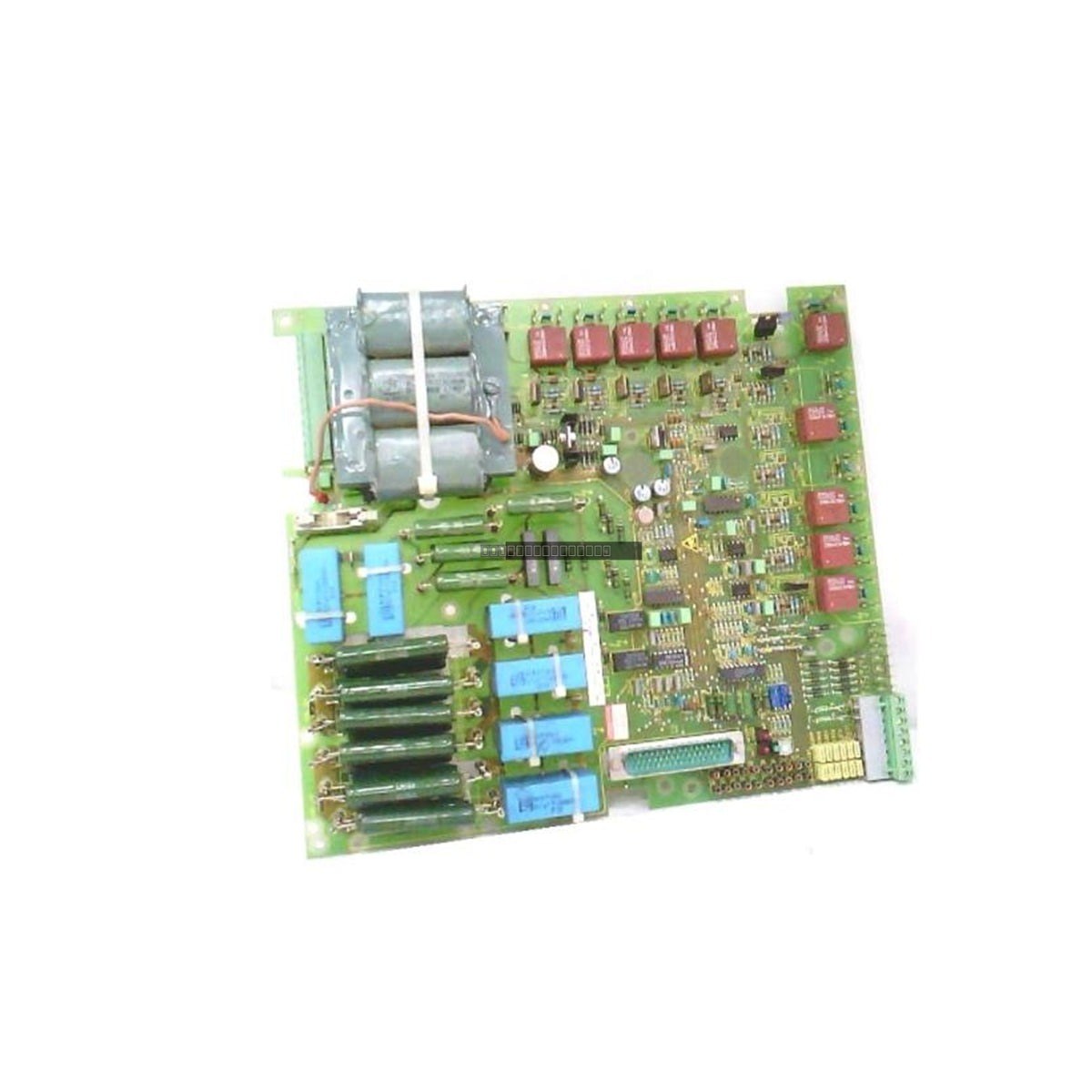

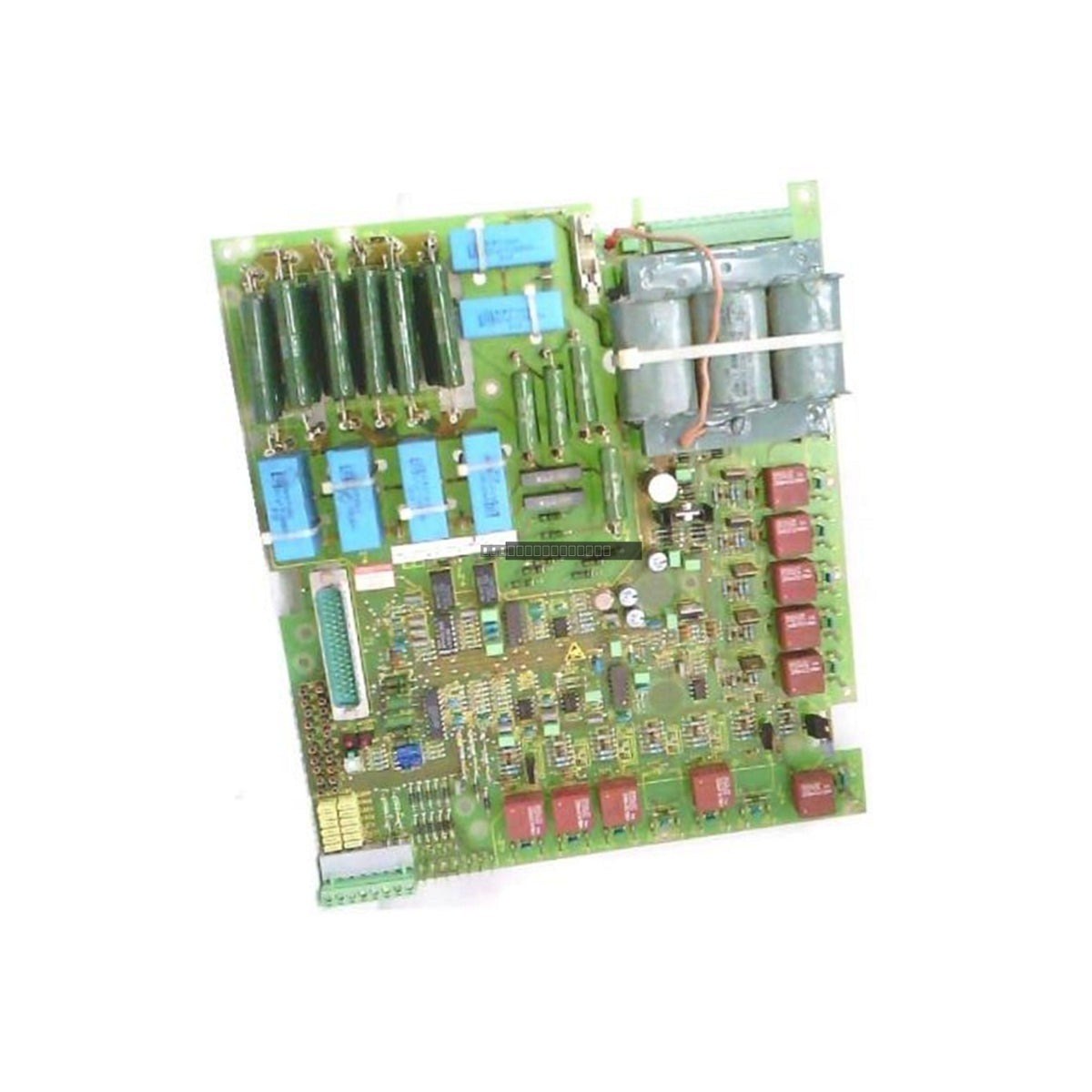

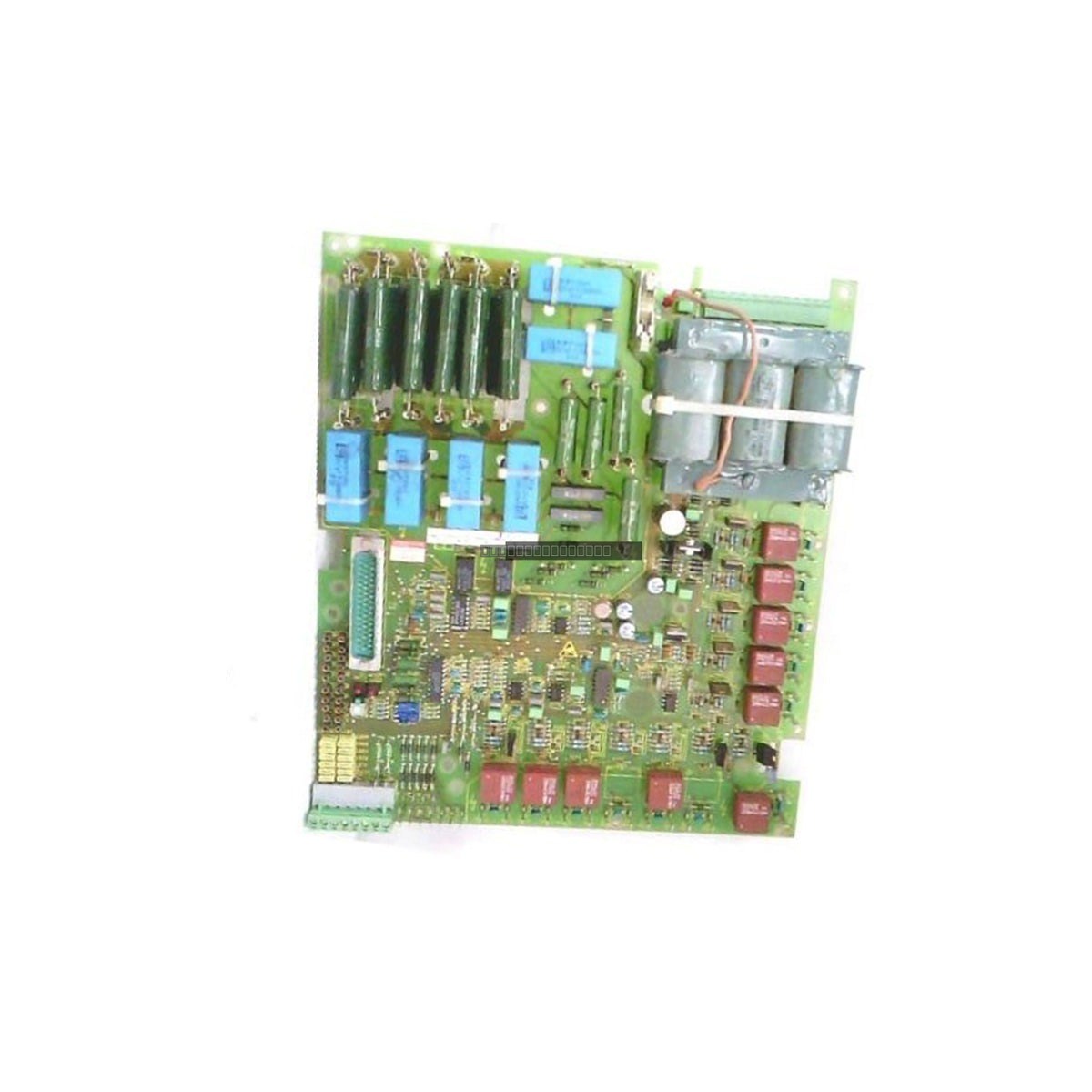

The Siemens 6QN5501-0BA is a specialized electronic module designed for integration within SITOR thyristor power control systems. This PC board serves as a vital link in power conversion architectures, facilitating precise gate firing control and monitoring for high-power semiconductor applications. It is engineered to maintain operational stability in environments where high-voltage regulation and switching reliability are essential.
Features
Designed specifically for SITOR thyristor power control systems.
High-speed signal conditioning and isolation to protect low-voltage control logic from switching transients.
Supports diagnostic feedback for real-time monitoring of thyristor status.
Robust PC board construction optimized for thermal stability and vibration resistance in industrial enclosures.
Standardized mounting interface for integration into existing power cabinet configurations.
Applications
This module is primarily utilized in heavy industrial power conversion systems, including:
Electrochemical refining processes.
Large-scale power distribution and regulation.
Steel manufacturing and metal processing equipment.
High-current AC/DC motor control and conversion stages.
Technical Specifications
Model
6QN5501-0BA
Brand
Siemens
Series
SITOR Thyristor Systems
Product Type
Electronic Module / PC Board
Operating Temperature
0 to 55 deg C
Storage Temperature
-20 to +70 deg C
Installation Guidelines
Ensure the main power supply is disconnected and locked out before installing or removing the module.
Handle the board using proper ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive components.
Verify that the mounting surface is clean and that all mechanical fasteners are securely tightened to ensure proper grounding.
Ensure adequate clearance around the module to allow for proper thermal dissipation within the cabinet.
Check all connector pins for alignment before seating the board to avoid mechanical damage to the interface.
FAQ
What is the primary function of the 6QN5501-0BA?
The 6QN5501-0BA acts as a control interface for thyristors within the SITOR system, managing gate firing and providing diagnostic feedback to ensure reliable power conversion.
Is this module compatible with all SITOR systems?
This module is specific to the SITOR series. Please verify the compatibility with your existing cabinet and power stage configuration by referencing your system documentation or the specific part number requirements.
