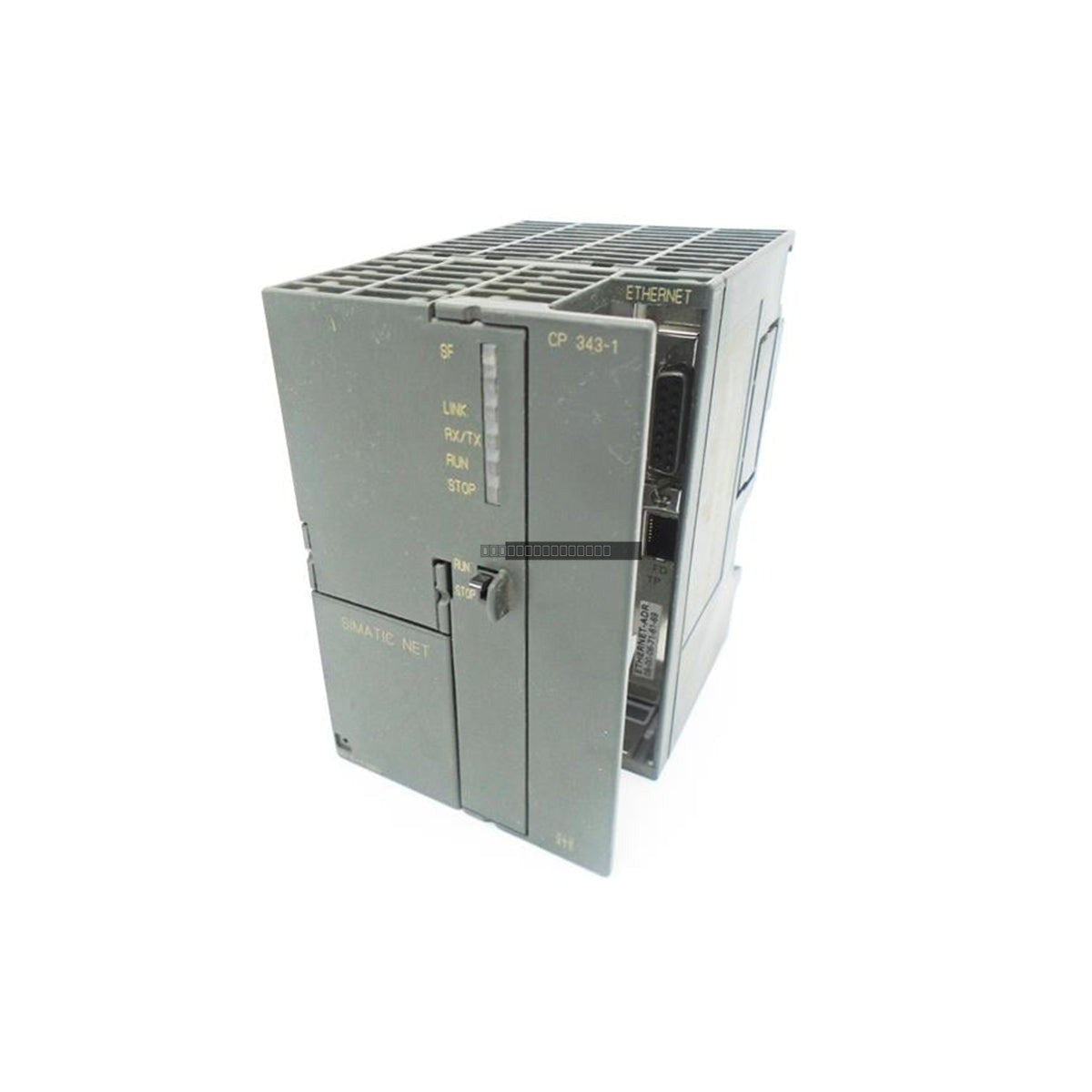

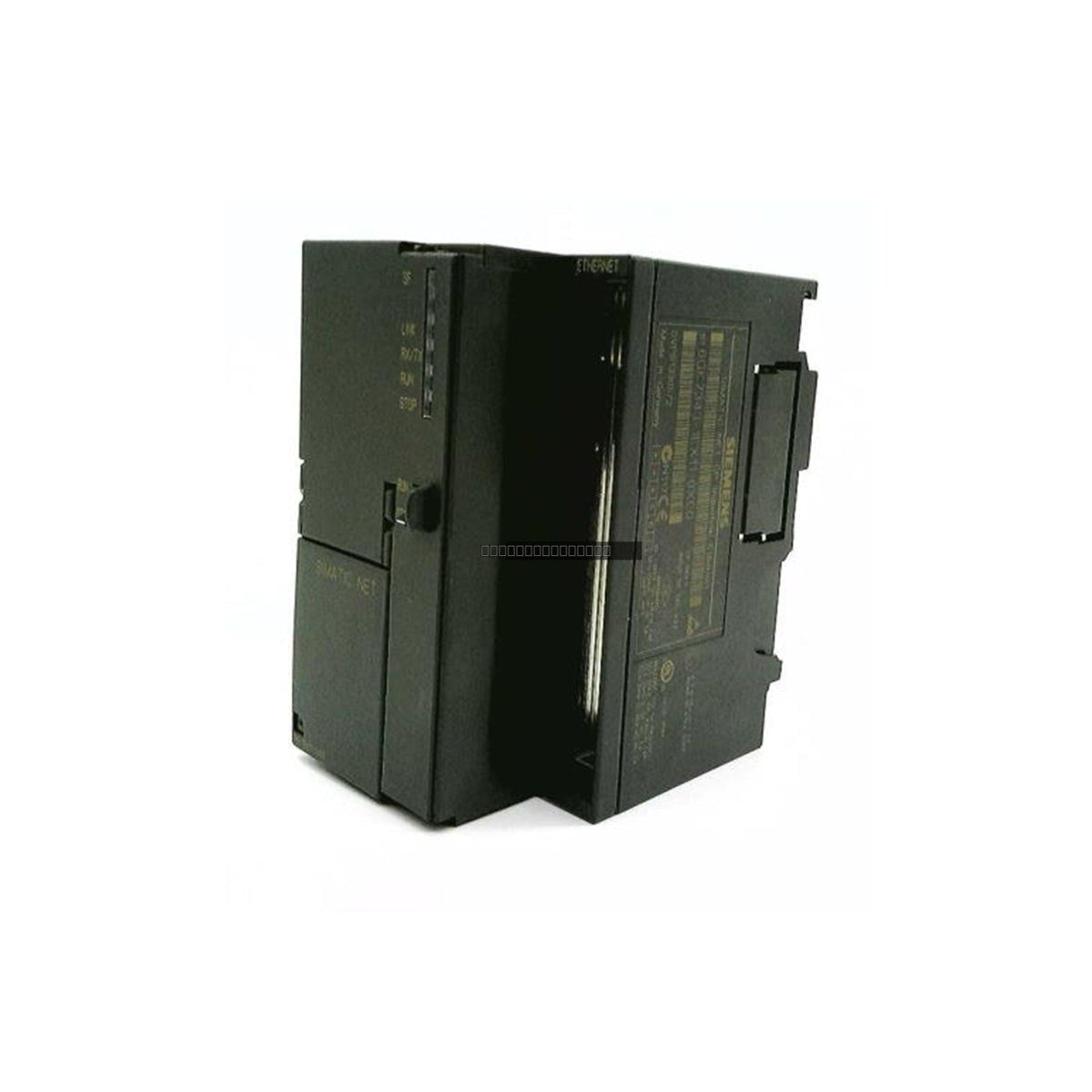

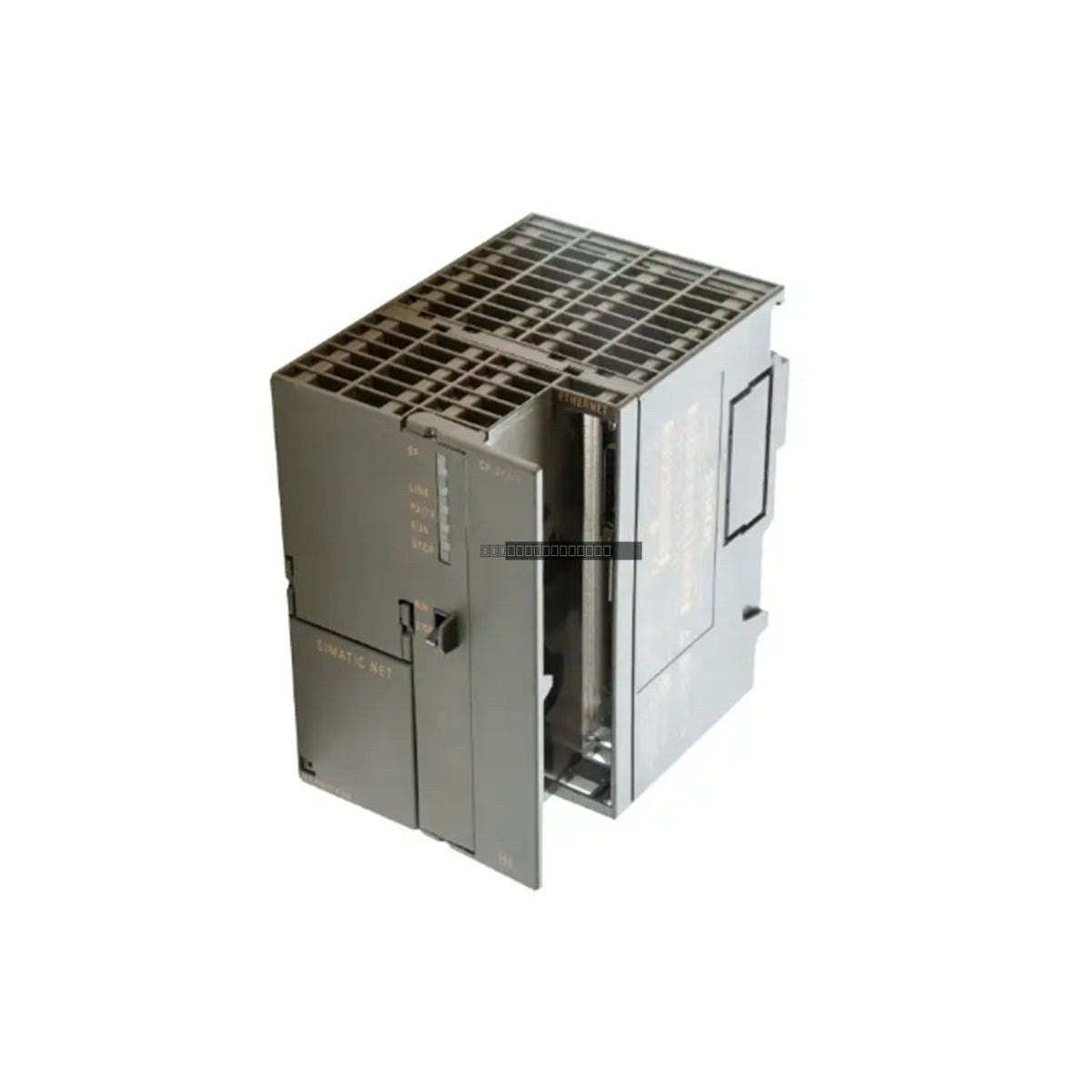

The Siemens 6GK7343-1EX11-0XE0 is a SIMATIC S7-300 CP 343-1 Ethernet communication module designed to connect the S7-300 PLC system to Industrial Ethernet networks. This module facilitates data exchange between the PLC and other automation components, including programming devices, HMI systems, and other S7 stations. It supports standard Ethernet protocols, enabling efficient communication for distributed control and monitoring applications.
Features
Supports data transfer rates of 10/100 Mbit/s.
Integrated RJ45 interface for industrial Ethernet connectivity.
Designed for seamless integration into the S7-300 backplane bus.
Supports multi-protocol communication for flexible network integration.
External 24V DC power supply requirement for operation.
Applications
This communication module is widely utilized in industrial automation environments requiring reliable Ethernet connectivity for the S7-300 PLC series. Typical applications include machine control, factory automation, process monitoring, and integration into larger plant-wide Ethernet networks.
Technical Specifications
Product Model
6GK7343-1EX11-0XE0
Communication Type
Ethernet CP 343-1
Data Rate
10/100 Mbit/s
Supply Voltage (Backplane)
5V DC
Supply Voltage (External)
24V DC
Current Consumption (5V)
0.07 A (typical)
Current Consumption (24V)
0.73 A (maximum)
Power Loss
10 W
Installation Guidelines
Ensure the S7-300 rack is powered down before inserting or removing the communication module.
Mount the module onto the S7-300 mounting rail and secure it using the integrated locking mechanism.
Use shielded twisted-pair Ethernet cables to minimize EMI interference in industrial environments.
Ensure proper grounding of the S7-300 rack to maintain signal integrity and safety.
Verify that the external 24V DC power supply meets the specified voltage range and current requirements.
Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
FAQ
Is this module still in production?
No, the 6GK7343-1EX11-0XE0 has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy systems.
What is the primary function of the CP 343-1?
The CP 343-1 acts as a communication processor, offloading Ethernet communication tasks from the S7-300 CPU to ensure efficient data exchange across the network.
