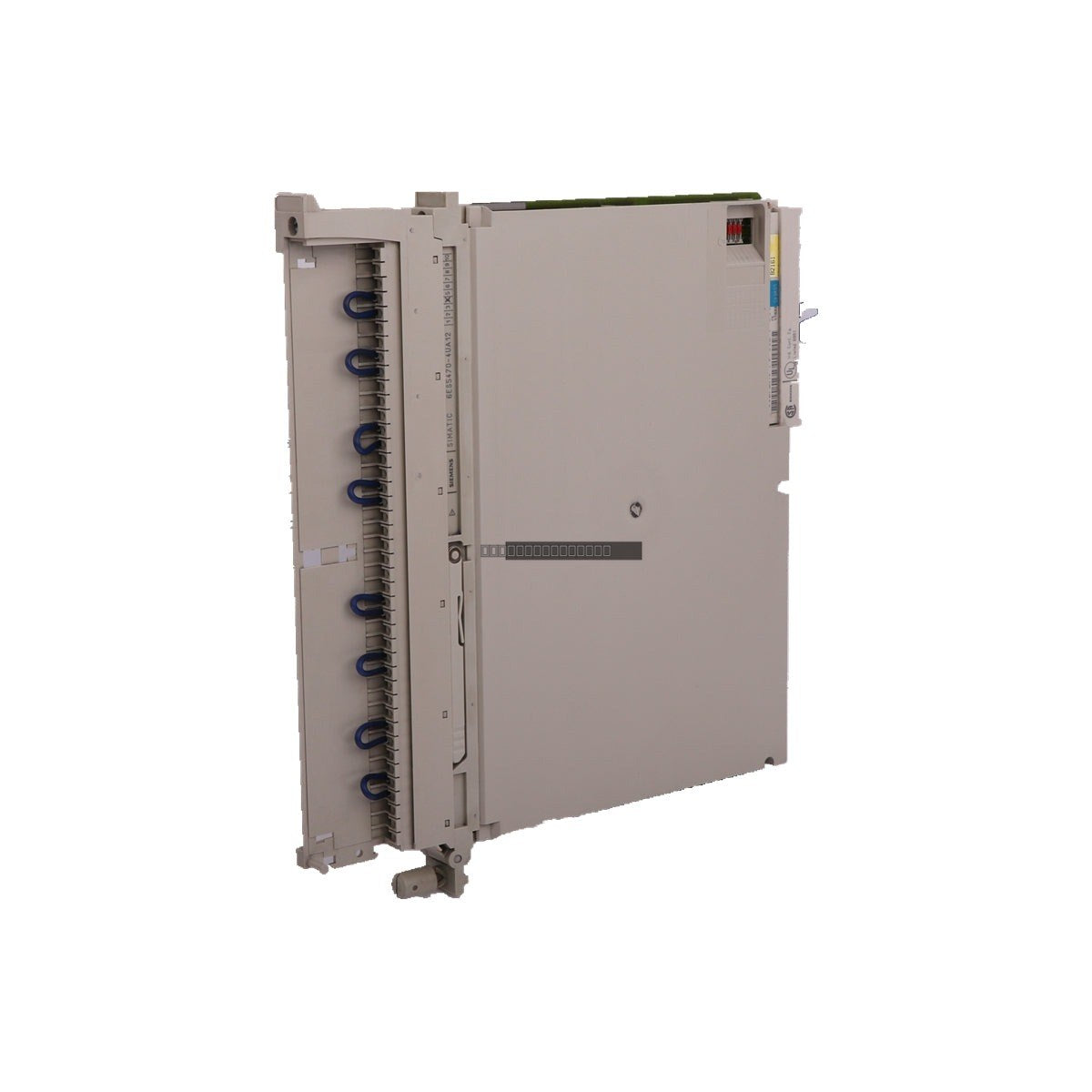

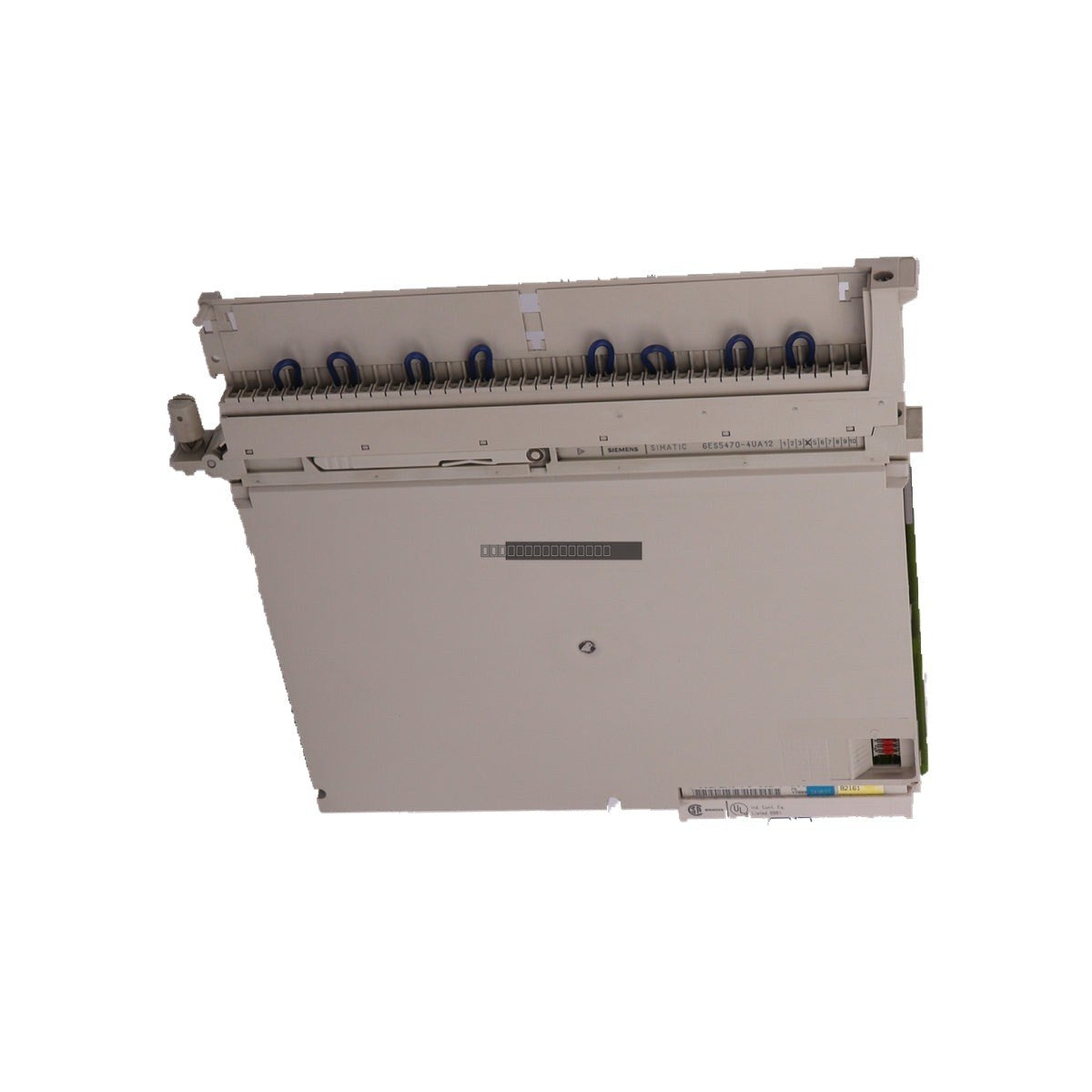

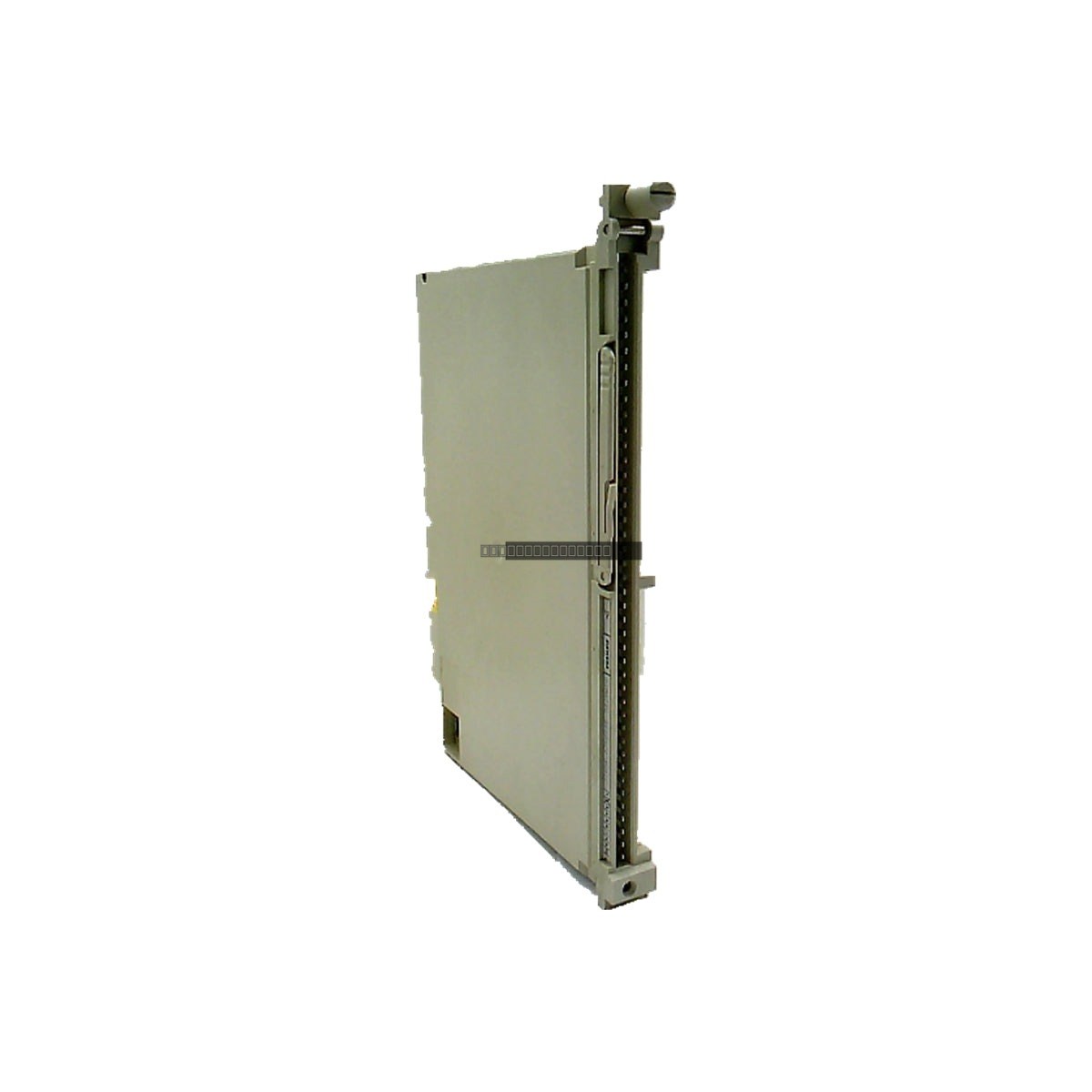

The Siemens 6ES5470-4UA12 is an analog output module designed for use within the SIMATIC S5-135 and S5-155 programmable logic controller systems. This module provides eight analog output channels, facilitating precise control for industrial automation processes. It is engineered to operate with a 24 VDC power supply and offers versatile signal output ranges, including +/- 10V and 0-20mA, to accommodate various instrumentation and actuator requirements.
Features
Eight independent analog output channels for multi-point control.
Supports configurable signal outputs including +/- 10V and 0-20mA.
Designed specifically for the legacy SIMATIC S5-135/155 automation series.
Requires a 24 VDC nominal supply voltage for operation.
Robust modular design suitable for standard industrial control cabinets.
Technical Specifications
Model Number
6ES5470-4UA12
Manufacturer
Siemens
Product Series
SIMATIC S5
Module Type
Analog Output Module
Channel Count
8
Supply Voltage
24 VDC
Output Signals
+/- 10V, 0-20mA
Weight
0.65 kg
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the backplane connector is aligned correctly with the slot before applying pressure.
Use shielded twisted-pair cabling for analog signal wiring to minimize electromagnetic interference (EMI) and noise.
Maintain proper separation between analog signal lines and high-voltage power lines to ensure signal integrity.
Ensure the module is installed in an environment with adequate ventilation to maintain operating temperatures within the manufacturer's specified range.
Verify that the 24 VDC power supply is stable and properly grounded according to site safety standards.
FAQ
Is this module still being manufactured?
No, the 6ES5470-4UA12 has been discontinued by the manufacturer. We provide this component as part of our inventory of legacy and spare parts for existing SIMATIC S5 installations.
What are the primary output ranges for this module?
This module supports both voltage outputs of +/- 10V and current outputs of 0-20mA, making it adaptable to a wide range of industrial actuators and controllers.
