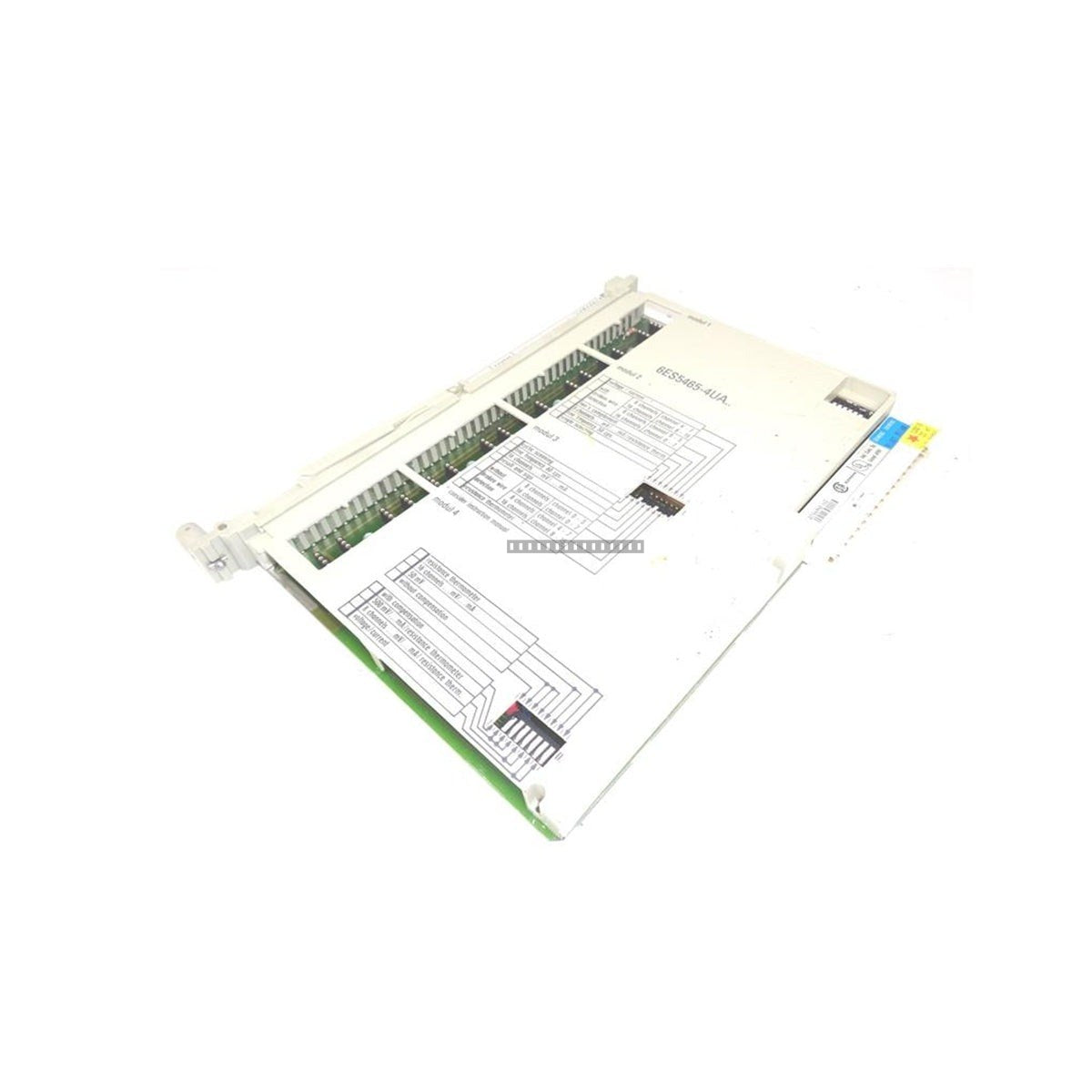

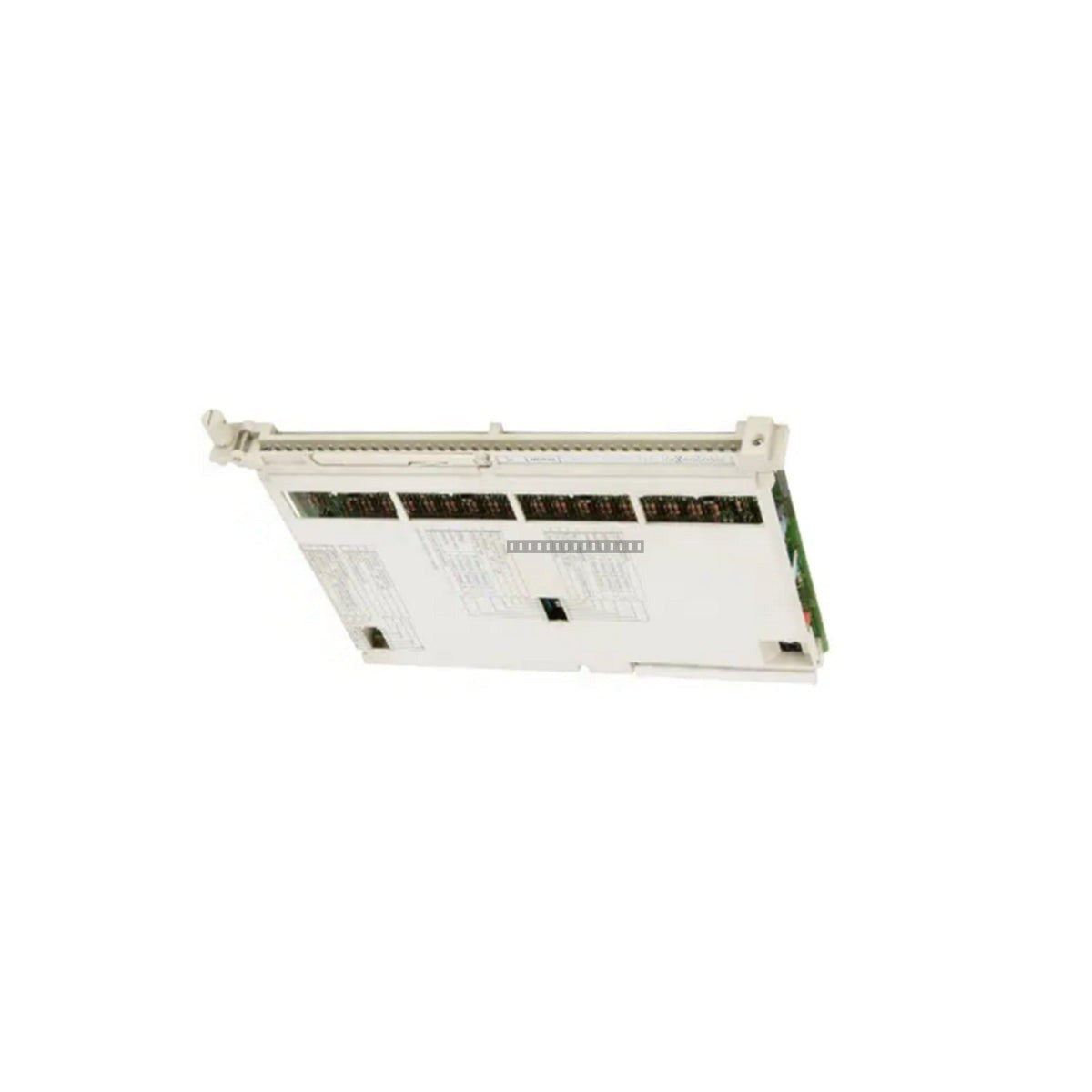

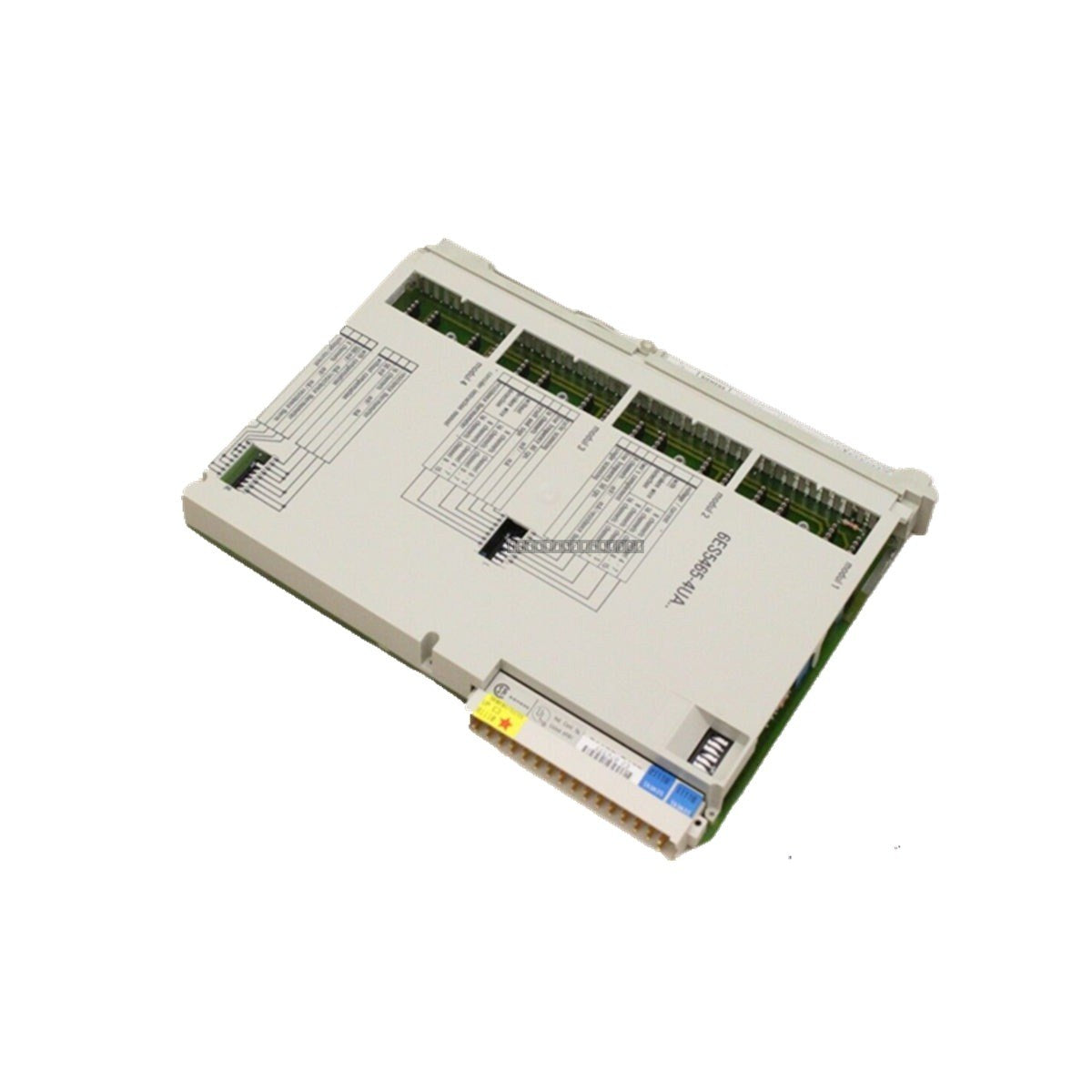

The Siemens 6ES5465-4UA12 is an analog input module designed for the SIMATIC S5-135U and S5-155U programmable logic controller systems. This module provides 16 analog input channels, allowing for the integration of various process signals into the S5 automation environment. As a legacy component, it is frequently utilized in the maintenance and expansion of existing S5-based industrial control architectures.
Features
16-channel analog input capacity for high-density signal processing.
Designed specifically for integration with SIMATIC S5-135 and S5-155 series controllers.
Robust industrial design suitable for standard control cabinet environments.
Direct compatibility with S5 backplane bus systems.
Applications
This module is primarily used in legacy industrial automation systems where precise monitoring of analog process variables such as pressure, temperature, or flow is required. It serves as a critical interface for sensors providing voltage or current signals to the central processing unit of the S5 system.
Technical Specifications
Model Number
6ES5465-4UA12
Manufacturer
Siemens
Product Type
Analog Input Module
Input Channels
16
System Compatibility
SIMATIC S5-135 / S5-155
Status
Discontinued by Manufacturer
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
Verify that the module is correctly seated in the designated S5 rack slot and that the locking mechanism is engaged.
Use appropriate shielded cabling for all analog signal inputs to minimize electromagnetic interference (EMI).
Maintain proper grounding practices for the S5 rack to ensure signal integrity and safety.
Ensure adequate ventilation within the control cabinet to prevent overheating during operation.
Handle the module using ESD-safe practices to protect sensitive internal circuitry.
FAQ
Is this module still manufactured by Siemens?
No, the 6ES5465-4UA12 has been discontinued by the manufacturer. It is typically sourced through surplus or refurbished inventory channels for maintenance of legacy systems.
What systems is this module compatible with?
This module is specifically engineered for the Siemens SIMATIC S5-135U and S5-155U programmable controller platforms.
