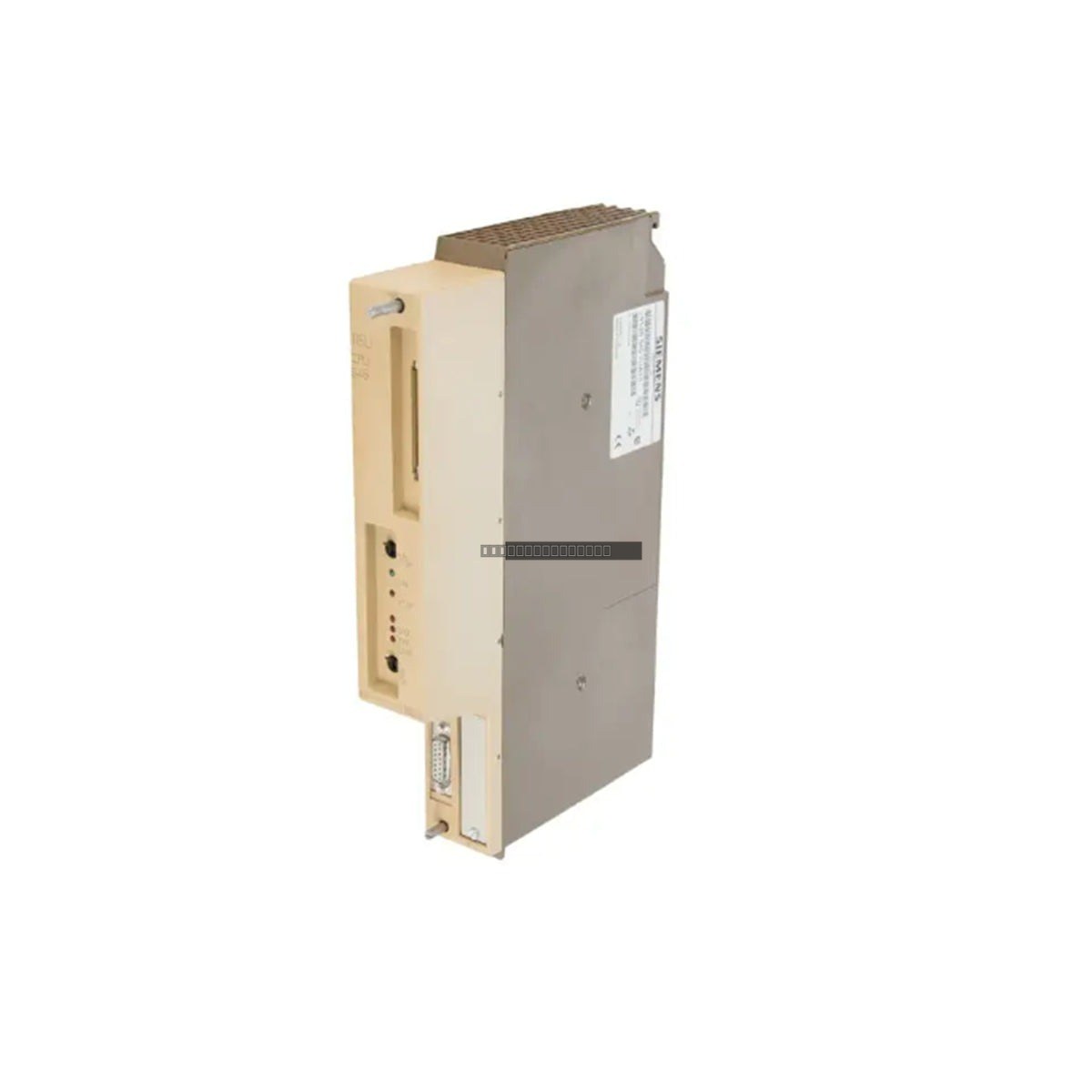

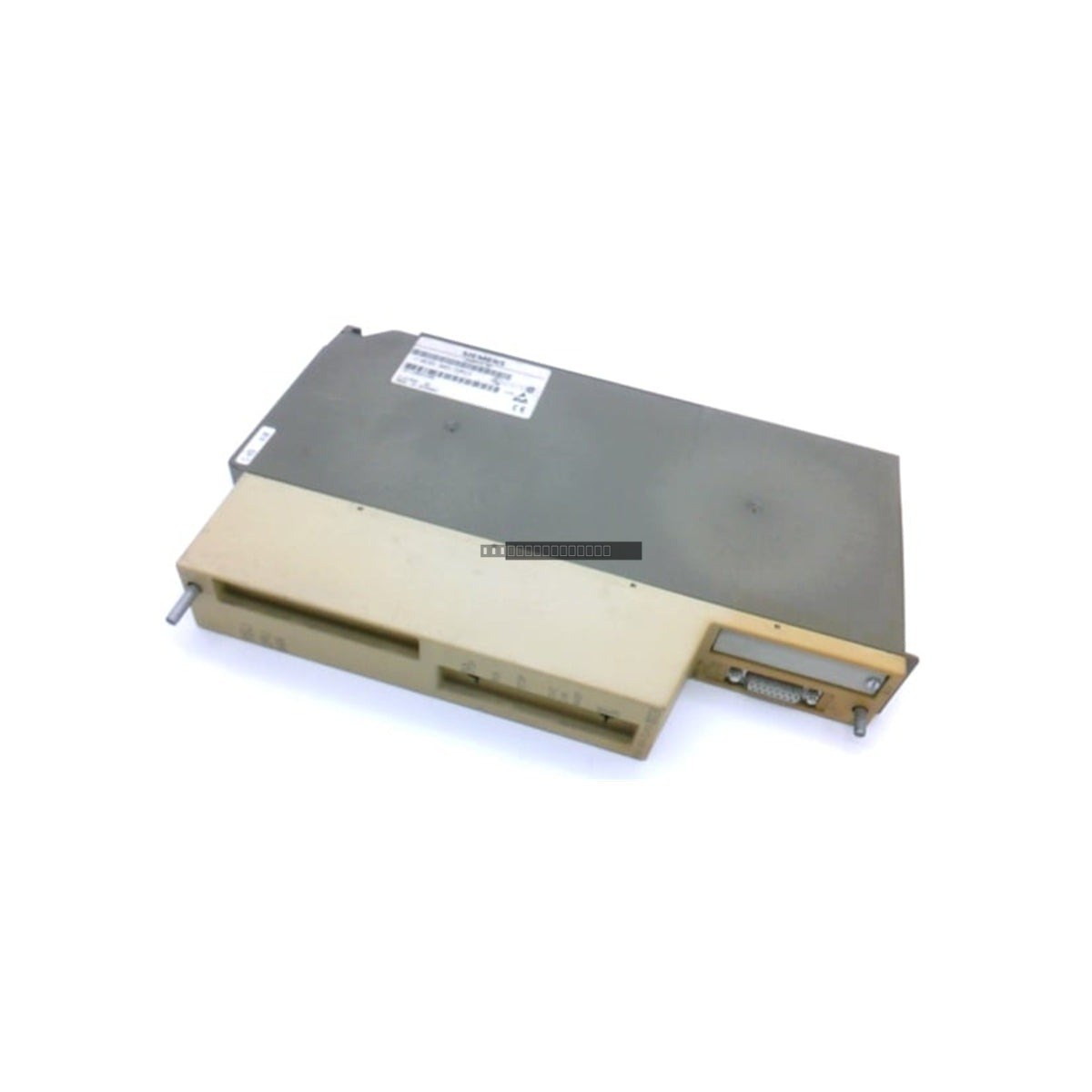

The Siemens 6ES5945-7UA13 is a high-performance central processing unit (CPU 945) designed for the SIMATIC S5-115U programmable logic controller system. This processor module is engineered to handle complex automation tasks, including high-speed ladder logic execution, statement lists, and advanced mathematical operations. It is widely utilized in industrial environments such as thermal power generation, petroleum refining, and large-scale mining operations, where deterministic control and reliable loop execution are critical for maintaining process stability.
Features
High-speed processing capabilities for demanding industrial control applications.
Integrated 256 KB memory capacity for extensive user programs and data storage.
Supports external memory cards for non-volatile backup and program portability.
Optimized parallel bus interface for high-throughput communication with S5-115U backplane modules.
Integrated TTY programming port for efficient engineering workstation connectivity.
Onboard diagnostic LED cluster for real-time monitoring of battery status, runtime errors, and I/O states.
Technical Specifications
Model
6ES5945-7UA13
Series
SIMATIC S5-115U
Memory Capacity
256 KB
Operating Voltage
5 VDC (via backplane)
Current Consumption
1.9 A
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Relative Humidity
95 percent non-condensing
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage.
Verify that the module is correctly seated in the designated CPU slot of the S5-115U rack.
Use shielded cables for TTY communication to minimize electromagnetic interference (EMI) in high-noise industrial environments.
Maintain proper ventilation in the control cabinet to ensure ambient temperatures remain within the 0 to 60 deg C operating range.
Handle with care to avoid electrostatic discharge (ESD) damage to the internal circuitry.
FAQ
What is the primary function of the CPU 945?
The CPU 945 acts as the central brain of the SIMATIC S5-115U system, responsible for executing user-defined control logic, managing I/O data, and coordinating communication with other modules in the rack.
Can this module be used with other S5 series PLCs?
The 6ES5945-7UA13 is specifically designed for the S5-115U framework. Compatibility with other S5 series controllers should be verified against specific system documentation.
How do I monitor the status of the CPU?
The front panel features a diagnostic LED cluster that provides visual feedback on the operational state of the CPU, including battery health and internal hardware status.
