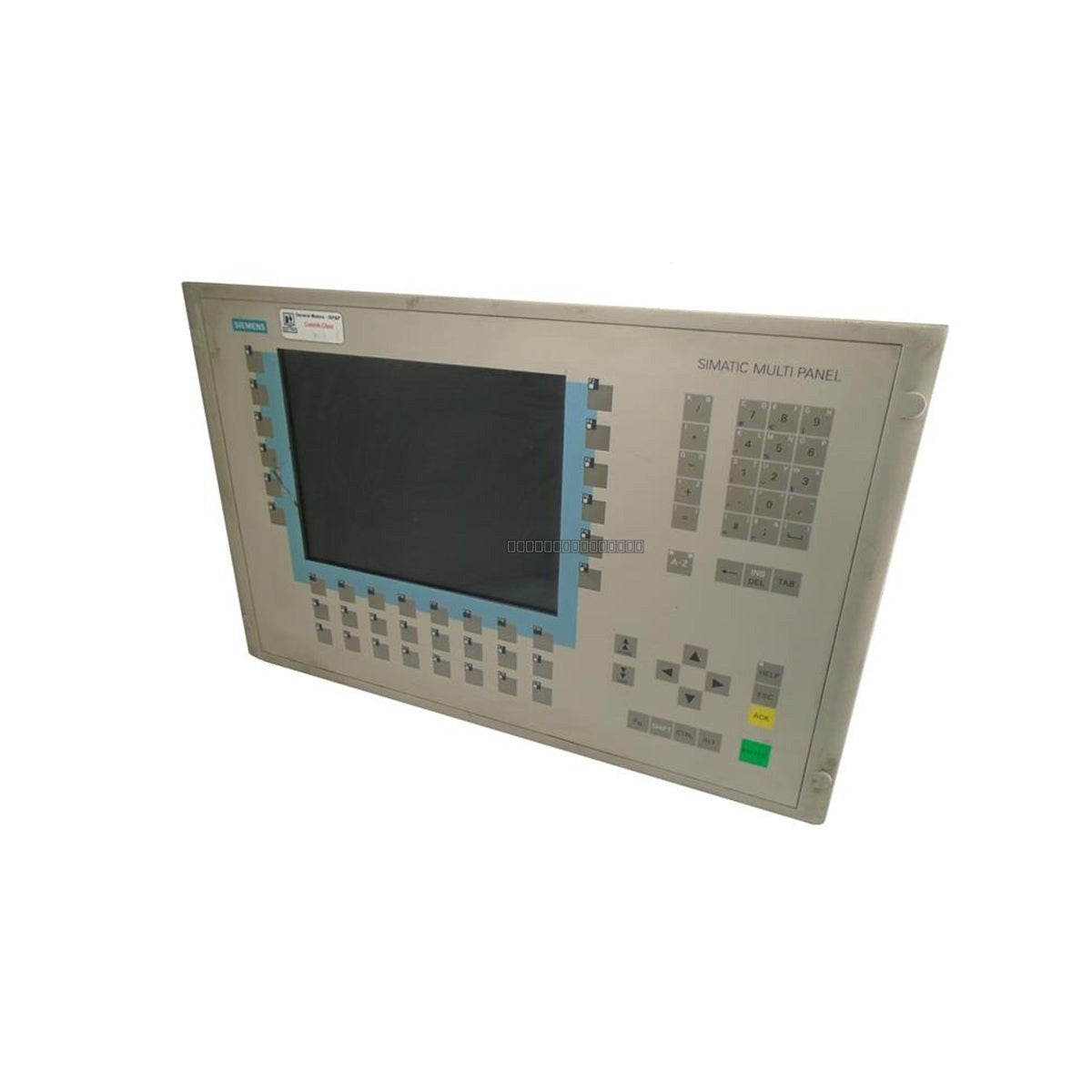

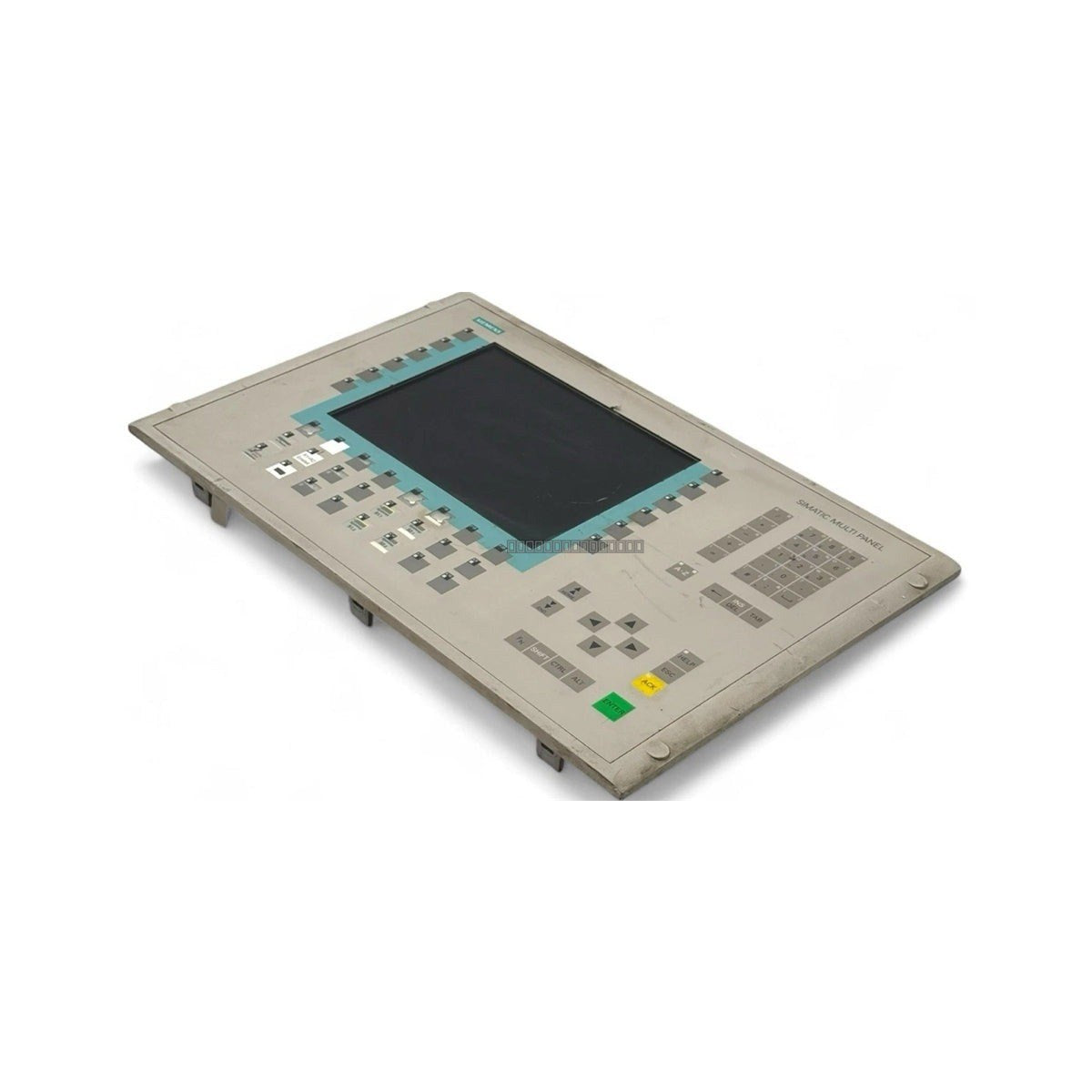

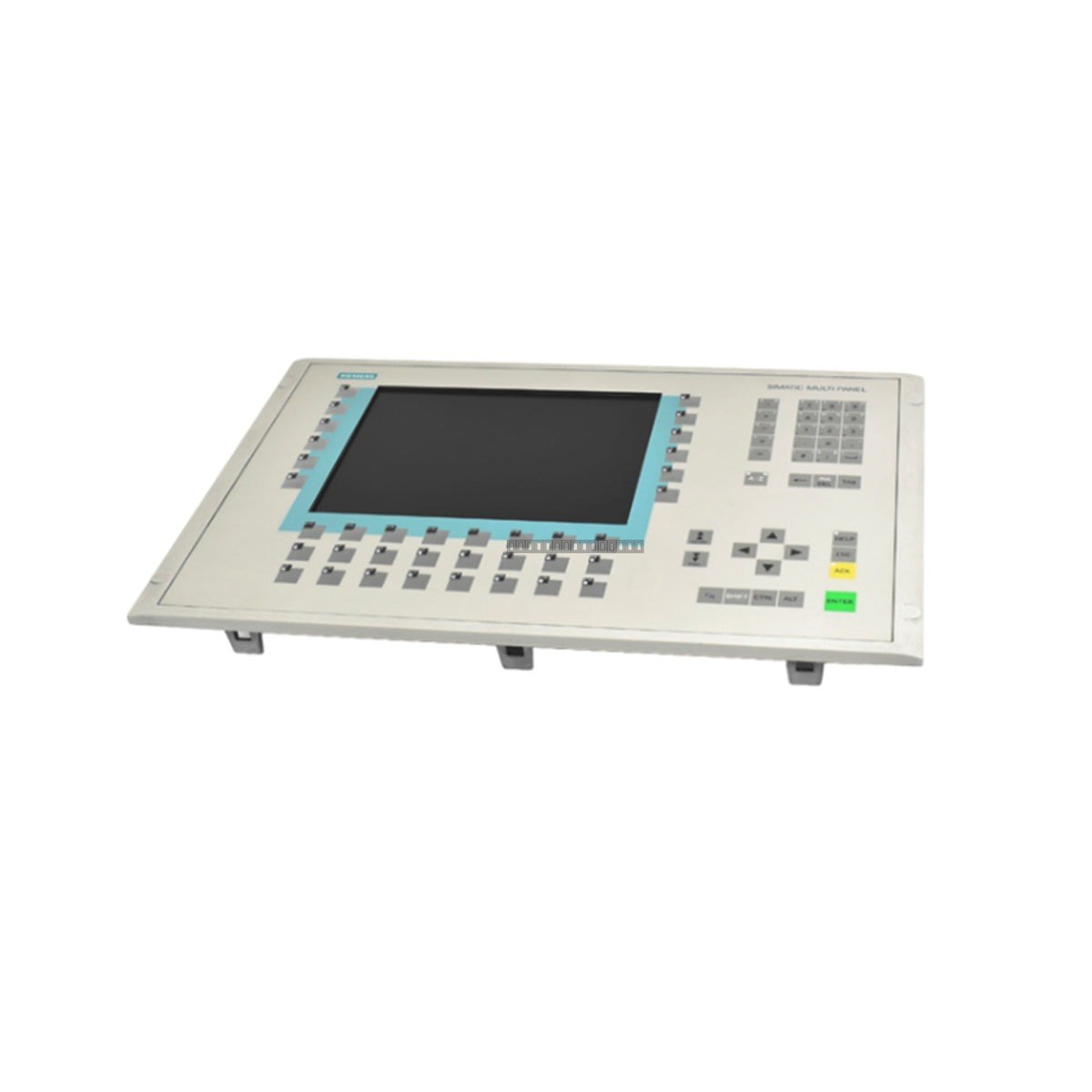

The Siemens 6AV6542-0AG10-0AX0 is a SIMATIC MP 270B Multi Panel designed for industrial operator interface applications. This unit features a 10.4-inch TFT color display and a membrane keypad, providing a robust solution for monitoring and controlling automated processes. As a legacy device, it is frequently utilized in established machine control systems requiring reliable human-machine interaction.
Features
10.4-inch TFT color display with 640 x 480 pixel resolution.
Integrated membrane keyboard for tactile operator input.
4 MB of configuration memory.
Configurable via Siemens ProTool software (Version V6.0 or higher).
Integrated USB interface for peripheral connectivity.
Designed for demanding industrial environments with a rated current consumption of 0.9 A.
Applications
Packaging and palletizing systems for recipe management and error logging.
Industrial kilns and ovens for multi-step temperature profiling.
Water treatment and pump station monitoring.
Injection molding machine cycle and pressure monitoring.
Maritime machinery and engine control systems.
Technical Specifications
Model
6AV6542-0AG10-0AX0
Display Type
TFT, 256 colors
Screen Diagonal
10.4 inch
Resolution
640 x 480 pixels
Backlight MTBF
50,000 hours (at 25 degC)
Control Elements
Membrane keyboard
Power Input (typ.)
22 W
Rated Current
0.9 A
Memory
4 MB configuration memory
Interfaces
1x USB
Installation Guidelines
Ensure the panel is mounted in a clean, dry environment within an appropriate IP-rated enclosure.
Verify that the mounting cutout dimensions are accurate to maintain the integrity of the front seal.
Use a damp, soft cloth for cleaning the front membrane; avoid abrasive cleaners or solvents that may damage the display or seal.
Ensure proper grounding of the panel chassis to minimize electromagnetic interference (EMI).
Power down the system before connecting or disconnecting communication cables or peripheral devices.
Maintain adequate ventilation around the rear of the unit to prevent overheating during operation.
FAQs
What is the 6AV6542-0AG10-0AX0?
The Siemens 6AV6542-0AG10-0AX0 is an industrial multi-panel with a 10.4-inch color display and functional keys, typically used with ProTool V6.0 or higher software for process visualization.
What is the difference between MP270 and MP270B?
The 6AV6542-0AG10-0AX0 is a Multi Panel 270B model. The 'B' designation generally indicates updated processor performance and memory specifications compared to the original MP270 series.
What is the memory capacity?
The device features 4 MB of configuration memory and supports up to 2,048 variables for process monitoring.
