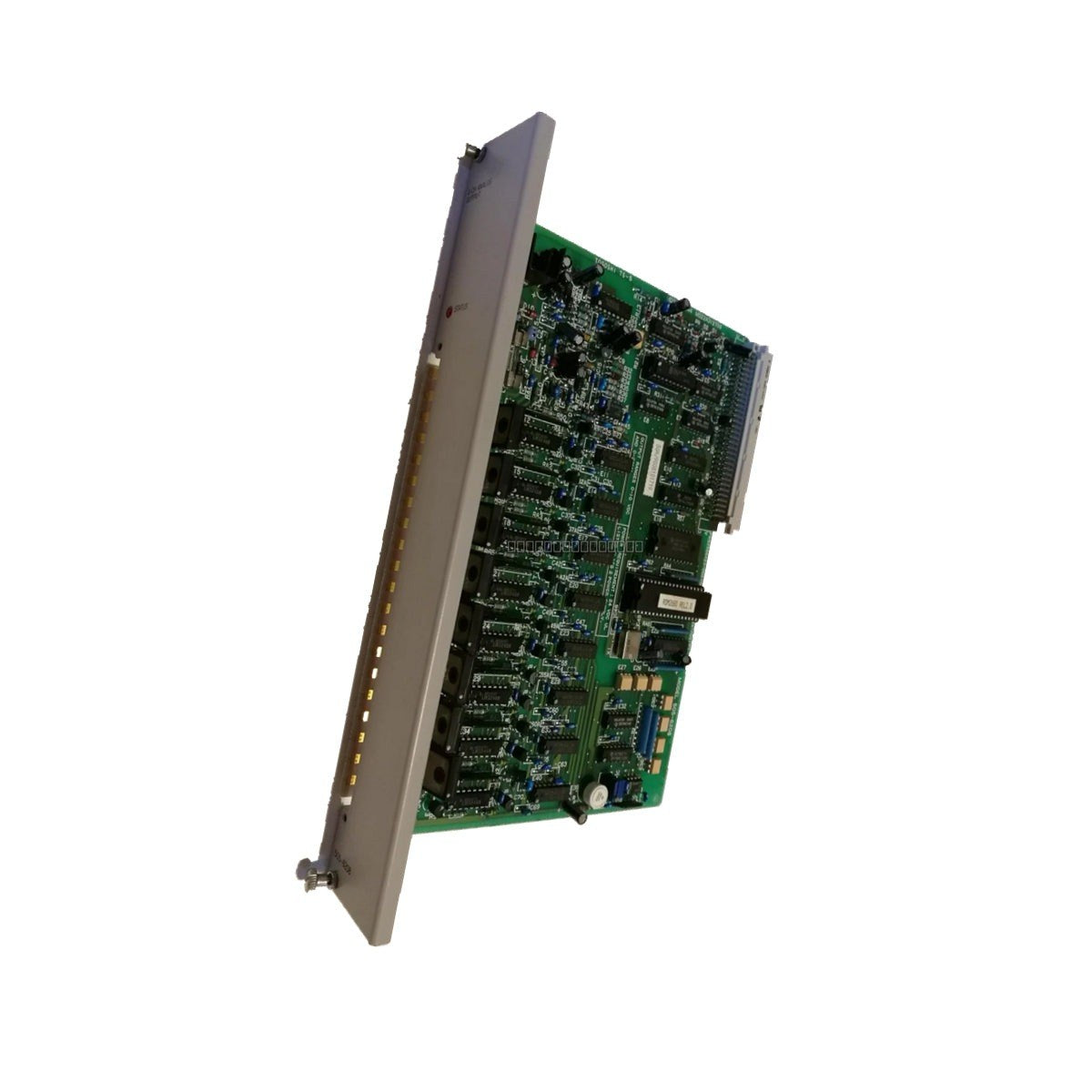

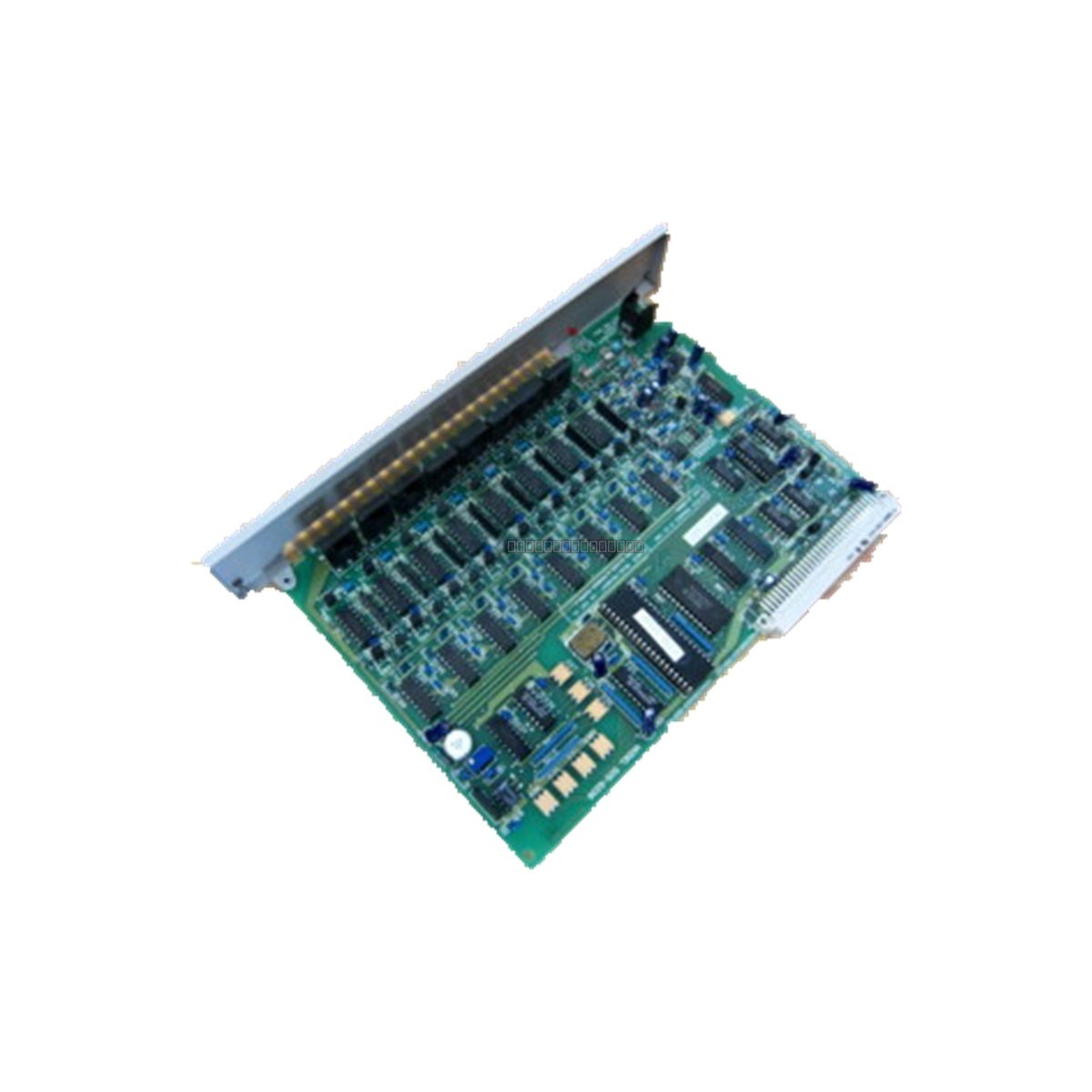

The Siemens 505-6208 is an 8-channel analog input module designed for the TI 505 series programmable logic controller (PLC) systems. This module provides high-resolution analog signal processing, converting external field signals into digital data for use within the controller's control logic. It is a critical component for monitoring process variables such as pressure, temperature, flow, or level in industrial automation environments.
Features
8-channel analog input configuration for multi-point process monitoring.
12-bit resolution for precise analog-to-digital conversion.
Compatible with standard TI 505 series I/O baseplates.
Designed for robust performance in industrial control applications.
Direct replacement or spare for legacy TI 505 control systems.
Applications
This module is typically utilized in manufacturing, water treatment, and process control industries where analog instrumentation integration is required. It serves as an interface between field sensors and the central PLC processing unit.
Technical Specifications
Product Model
505-6208
Alternative/Spare Model
PPX505-6108B
Module Type
Analog Input Module
Channel Count
8 Channels
Resolution
12-bit
Manufacturer
Siemens
Installation Guidelines
Ensure the PLC system power is disconnected before installing or removing the module from the I/O baseplate.
Handle the module using proper ESD (electrostatic discharge) protection measures to prevent damage to internal circuitry.
Verify that the module is firmly seated in the rack slot and that the locking mechanism is engaged.
Use shielded twisted-pair cabling for analog signal inputs to minimize electromagnetic interference (EMI) and noise.
Route signal cables away from high-voltage power lines and motor starters.
Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the manufacturer's specified range.
FAQ
Is the 505-6208 still in production?
No, the Siemens 505-6208 has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.
What is the difference between 505-6208 and PPX505-6108B?
The PPX505-6108B is often listed as a compatible spare or alternative part number for the 505-6208 module within the TI 505 ecosystem.
