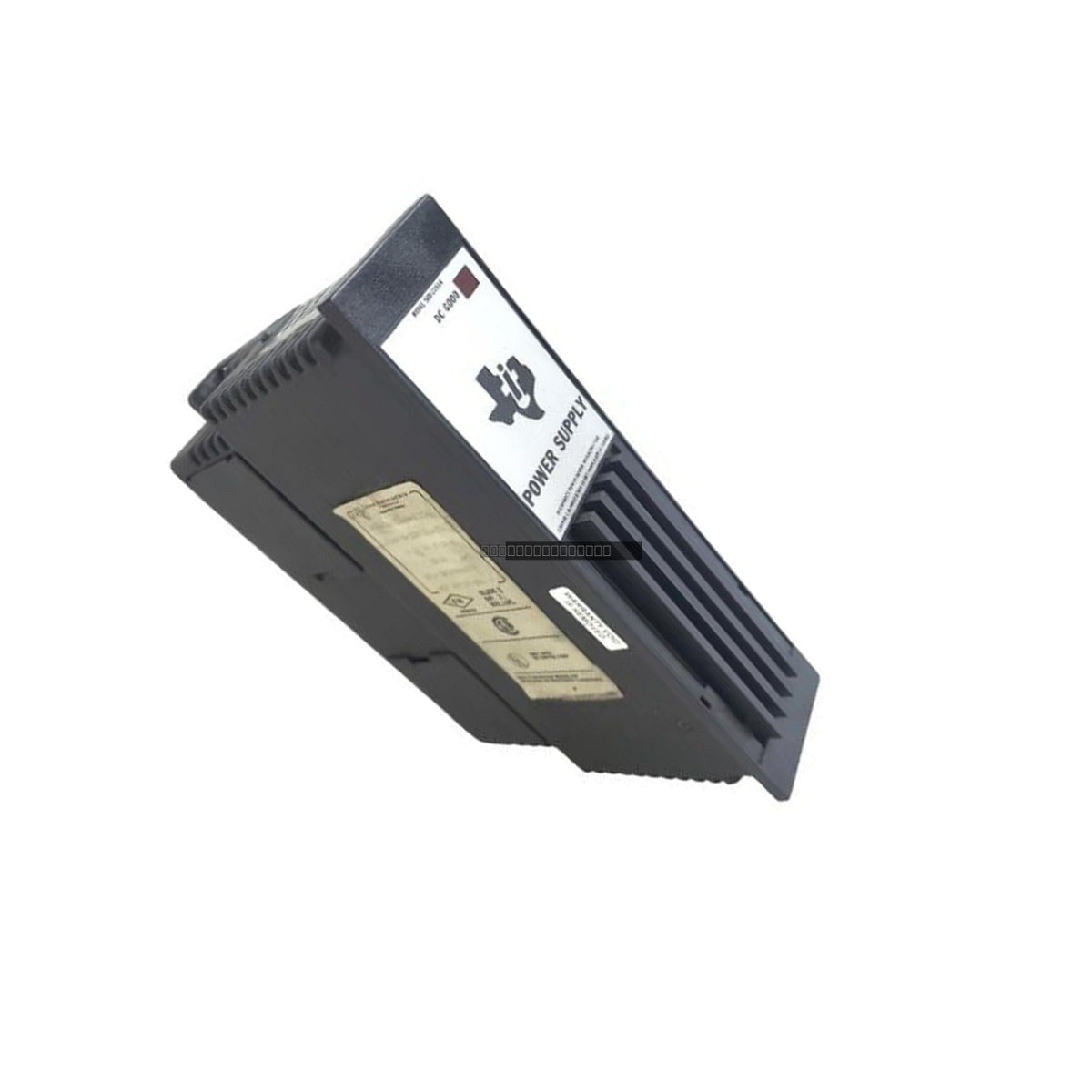

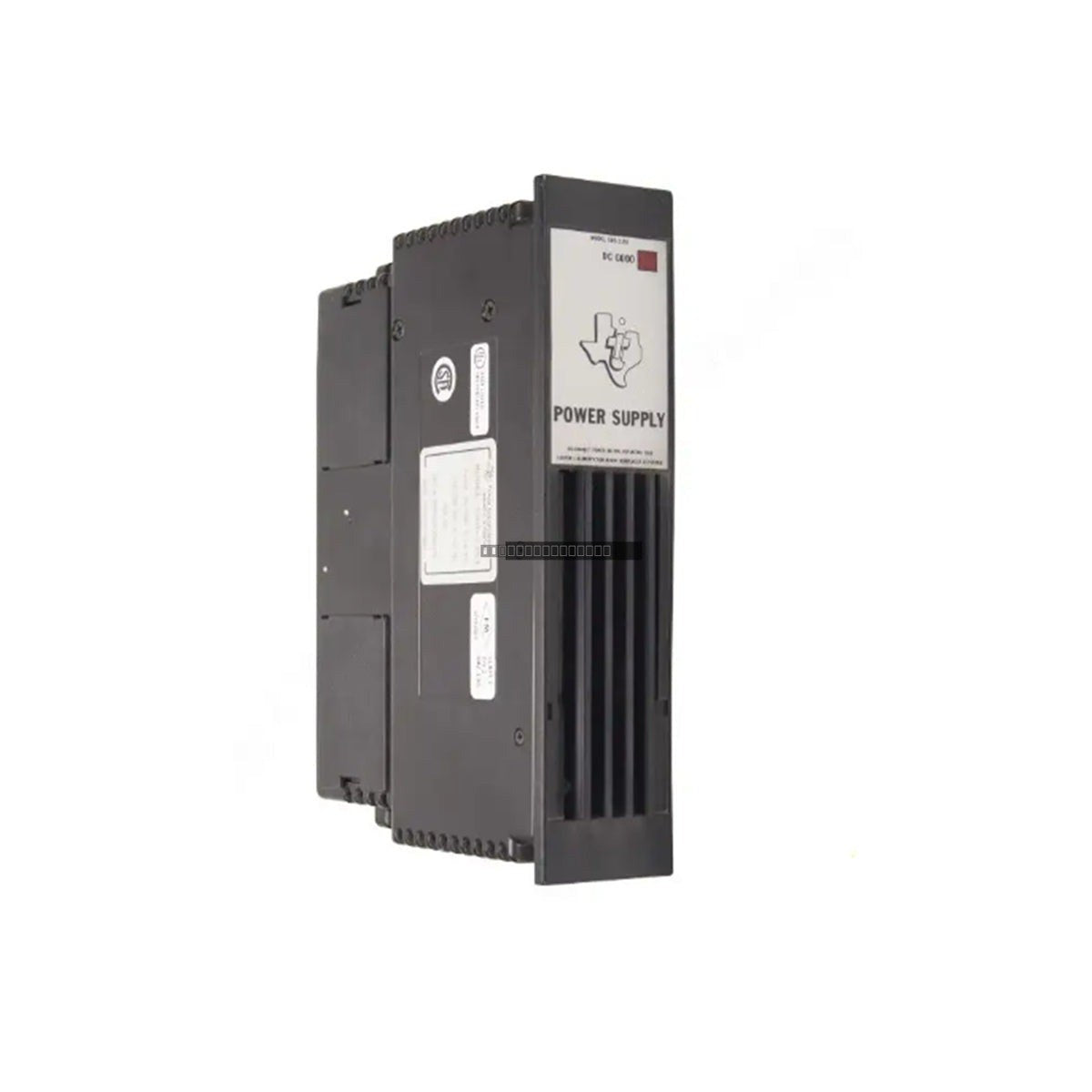

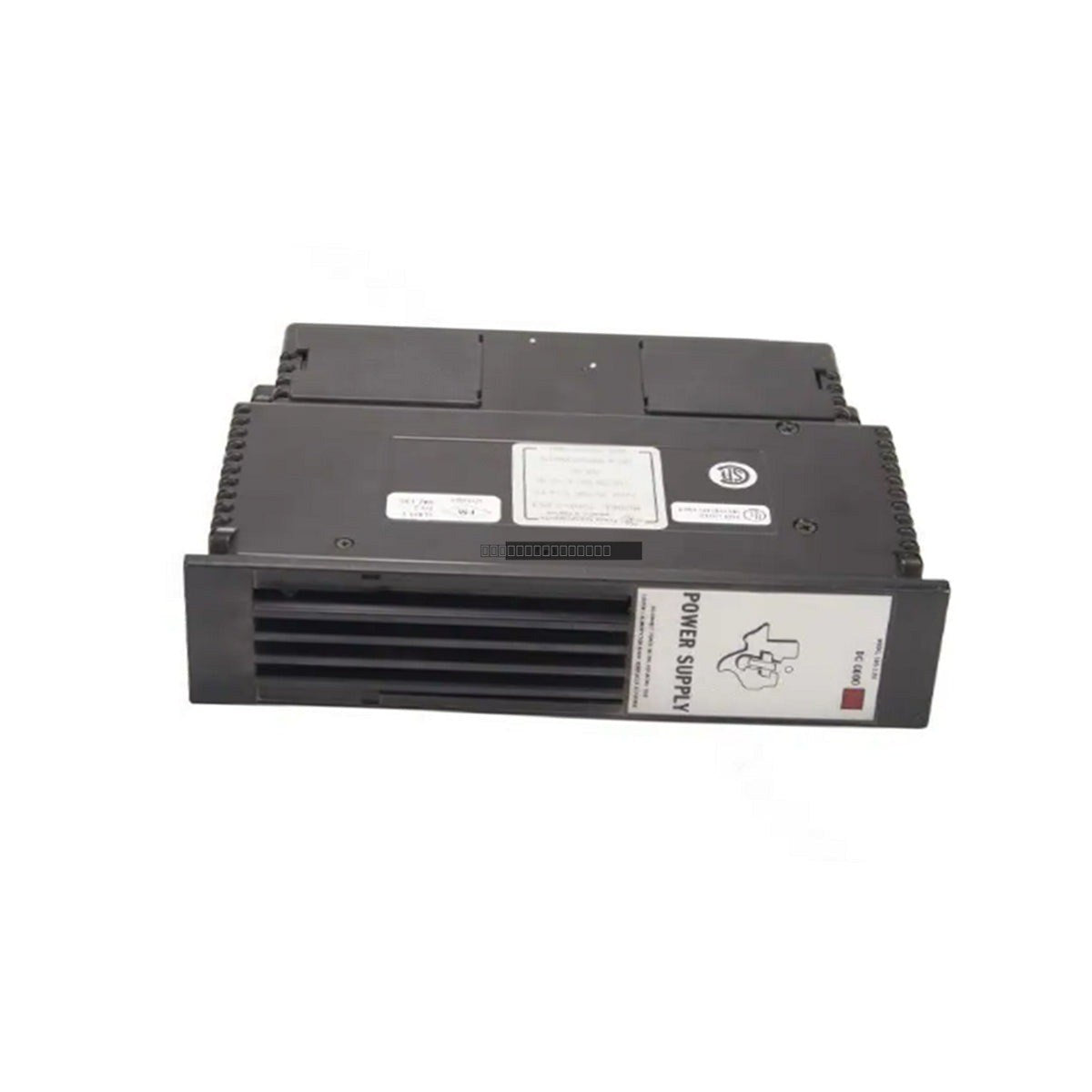

The Siemens 500-2151 is a robust power supply unit designed specifically for the SIMATIC TI500 PLC platform. This module provides reliable power distribution to the backplane, supporting the logic requirements of the processor and associated I/O modules. Featuring a user-selectable input range of 110 VAC or 220 VAC, it offers flexibility for diverse global power grids. Built for industrial longevity, this unit is widely utilized in sectors such as oil and gas, mineral processing, and heavy manufacturing to ensure continuous system availability.
Features
Dual-voltage capability with selectable 110/220 VAC primary input.
Delivers a stable 3 A output current for backplane and module power.
Integrated EMI filtering and surge suppression to protect against line noise and voltage transients.
Class 1 Division 2 certification for safe operation in hazardous industrial environments.
Advanced thermal overload and overvoltage protection mechanisms.
Applications
This power supply is essential for maintaining legacy TI500 control systems in demanding environments. It is frequently deployed in petrochemical plants, offshore platforms, and automated mining facilities where reliable power conditioning is required to prevent unscheduled downtime.
Technical Specifications
Model
500-2151
Brand
Siemens
Series
SIMATIC TI500
Module Type
AC Power Supply
Input Voltage
110 VAC / 220 VAC (selectable)
Output Current
3 A continuous
Power Rating
150 VA
Hazardous Rating
Class 1 Division 2
Operating Temp
0 to 60 deg C
Storage Temp
-40 to 85 deg C
Installation Guidelines
Ensure the rack power is completely disconnected before inserting or removing the module.
Verify that the voltage selection switch matches your facility's supply voltage before applying power.
Mount the module securely in the designated TI500 chassis slot to ensure proper backplane engagement.
Maintain adequate ventilation around the chassis to support the specified operating temperature range.
Use shielded cabling for all field connections to minimize potential EMI interference.
FAQ
Is the 500-2151 module compatible with all TI500 chassis? Yes, this module is designed for standard SIMATIC TI500 chassis architectures. Please verify your specific rack configuration to ensure compatibility.
What should I do if the module triggers a thermal shutdown? A thermal shutdown indicates the unit has exceeded its operating temperature limits or is experiencing an internal fault. Check the ambient temperature, verify that ventilation is not obstructed, and inspect the load on the backplane for potential short circuits.
