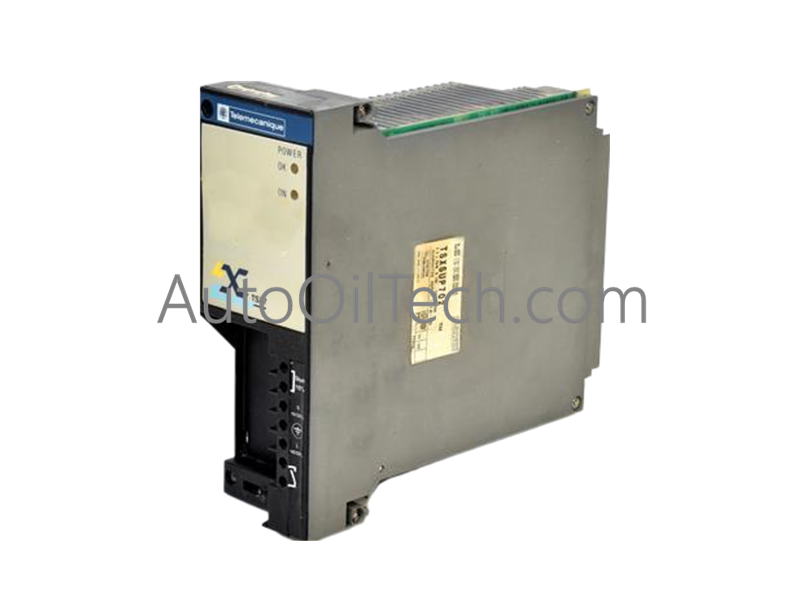

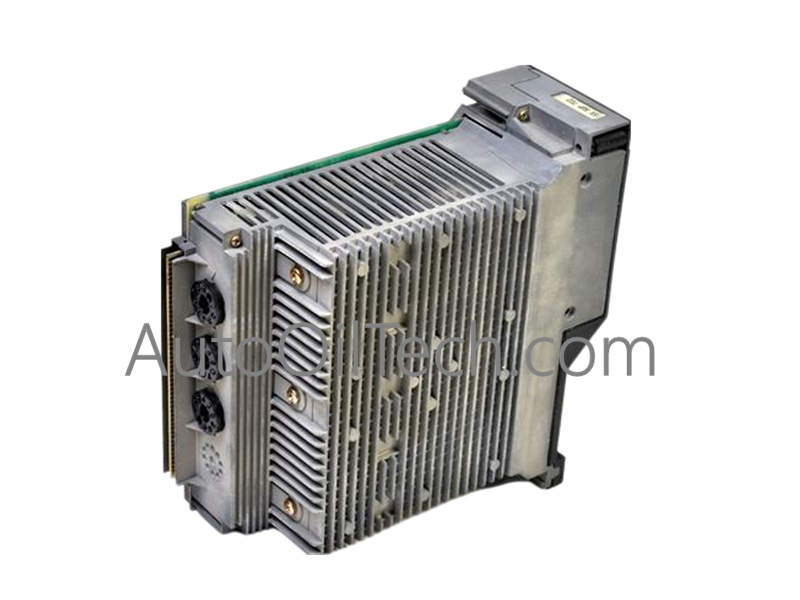

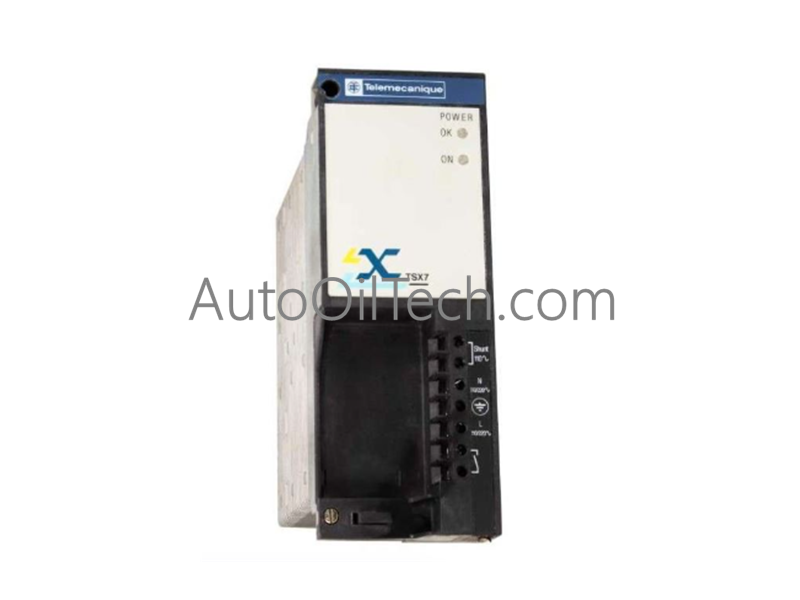

The Schneider Electric TSXSUP702 is a robust power supply module designed for the Modicon TSX Micro PLC series. It delivers regulated DC outputs to ensure stable operation of the PLC and its connected I/O modules, supporting both 110–127 V AC and 220–240 V AC input ranges.
Key Features
Product Range: Modicon TSX Micro PLC series
Type: Power Supply Module
Input Voltage: 110–127 V AC or 220–240 V AC
Frequency: 50/60 Hz
Output Voltage: 24 V DC or 48 V DC (depending on configuration)
Power Rating:
66 W at 110–127 V AC
100 W at 220–240 V AC
Inrush Current: 100 A at power-up (10 ms)
Cooling: Natural convection
Dimensions: 7.6 cm × 22.9 cm × 22.9 cm
Weight: 6.13 lbs (2.78 kg)
Environmental Ratings
Operating Temperature: 0…60 °C
Storage Temperature: −40…85 °C
Humidity: 95% non-condensing
Certifications: CE marked
Origin: France
Application Scenarios
The TSXSUP702 is widely used in industrial automation systems requiring reliable PLC power distribution. It is suitable for manufacturing, process control, and infrastructure automation where stable DC supply is critical.
FAQ
Q: What PLC series is the TSXSUP702 compatible with? A: It is designed for the Modicon TSX Micro series.
Q: What is the maximum power rating? A: Up to 100 W when operating at 220–240 V AC input.
Q: Does it include built-in protection? A: Yes, it provides regulated outputs with overload and short-circuit protection.
