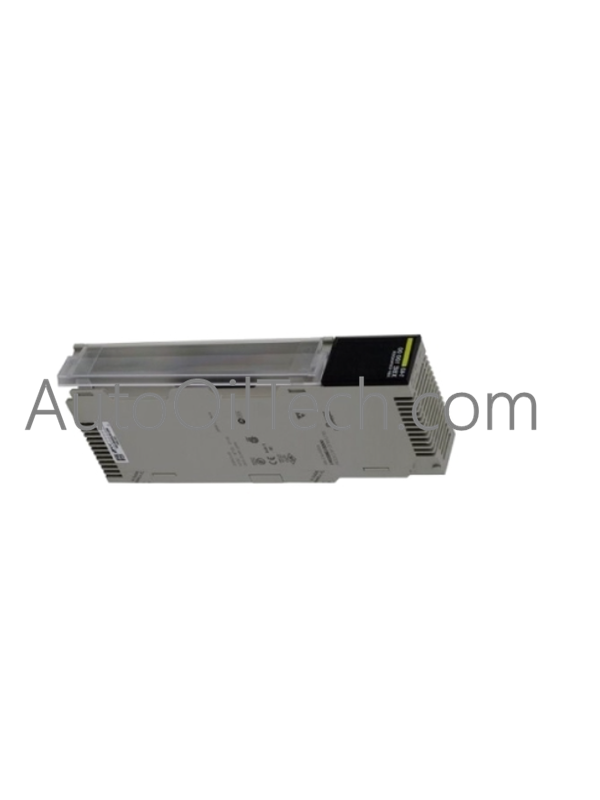

Schneider TSXP573634M Unity Processor Module

Product Description

The TSXP573634M is a high-performance Unity processor designed for the Schneider Electric Modicon Premium automation platform. As a "Transparent Ready" controller, it provides seamless integration into industrial networks via its built-in Ethernet TCP/IP and RS485 serial ports. Engineered for complex, multi-rack configurations, this processor supports up to 1024 discrete and 128 analog I/O points. It is optimized for the Unity Pro (Control Expert) software environment, offering advanced process control capabilities including up to 45 simple control loops, making it an ideal choice for sophisticated manufacturing and process industry applications.

Technical Specifications

• Model Number: TSXP573634M

• Range: Modicon Premium

• Software: Unity Pro

• Discrete I/O Capacity: 1,024 I/O

• Analog I/O Capacity: 128 I/O

• Application Specific Channels: 32

• Process Control Channels: 15 to 45 simple loops

• Memory Architecture:

• Internal RAM: 1792 kB (Program) / 192 kB (Data) with PCMCIA card

• Internal RAM: 192 kB (Program & Data) without PCMCIA card

• Expansion: Supports PCMCIA card up to 16,384 kB for additional data storage

• Integrated Communication:

• 1 x Ethernet TCP/IP (RJ45, 10/100 Mbit/s)

• 2 x RS485 Serial Link (Mini-DIN, up to 115 kbit/s)

• Rack Capacity: Up to 16 racks (4/6/8 slots) or 8 racks (12 slots)

• Bus Current Requirement: 320 mA

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Weight: 0.45 kg (0.99 lb)

Key Engineering Features

• Transparent Ready Networking: Features an integrated Ethernet port supporting 10BASE-T/100BASE-TX for high-speed data exchange, remote diagnostics, and easy HMI/SCADA integration.

• Flexible Memory Management: Utilizes PCMCIA card slots to drastically expand program and data storage, allowing for large-scale application code and extensive data logging.

• Robust Multi-Rack Support: Capable of managing up to 128 slots in a multi-rack configuration, providing the scalability needed for expansive factory floor layouts.

• Process Control Power: Specialized for motion and process control, it can manage complex unlocated data for DFB (Derived Function Blocks) and EFB (Elementary Function Blocks) up to 64 kB.

• Industrial Hardening: Certified for FM Class 1 Division 2 hazardous locations and tested for high ESD immunity (8 kV air, 4 kV contact), ensuring reliable operation in electrically noisy environments.
