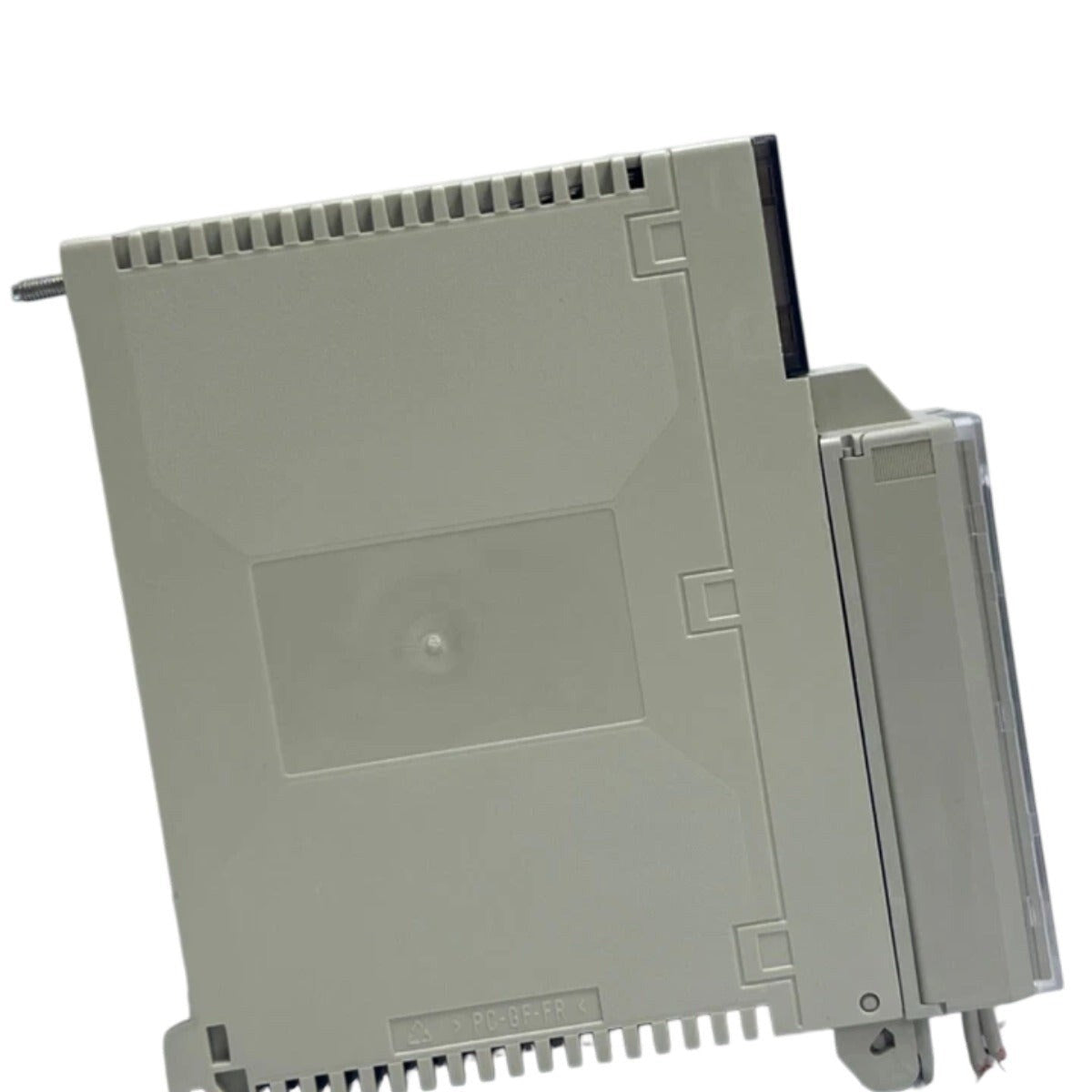

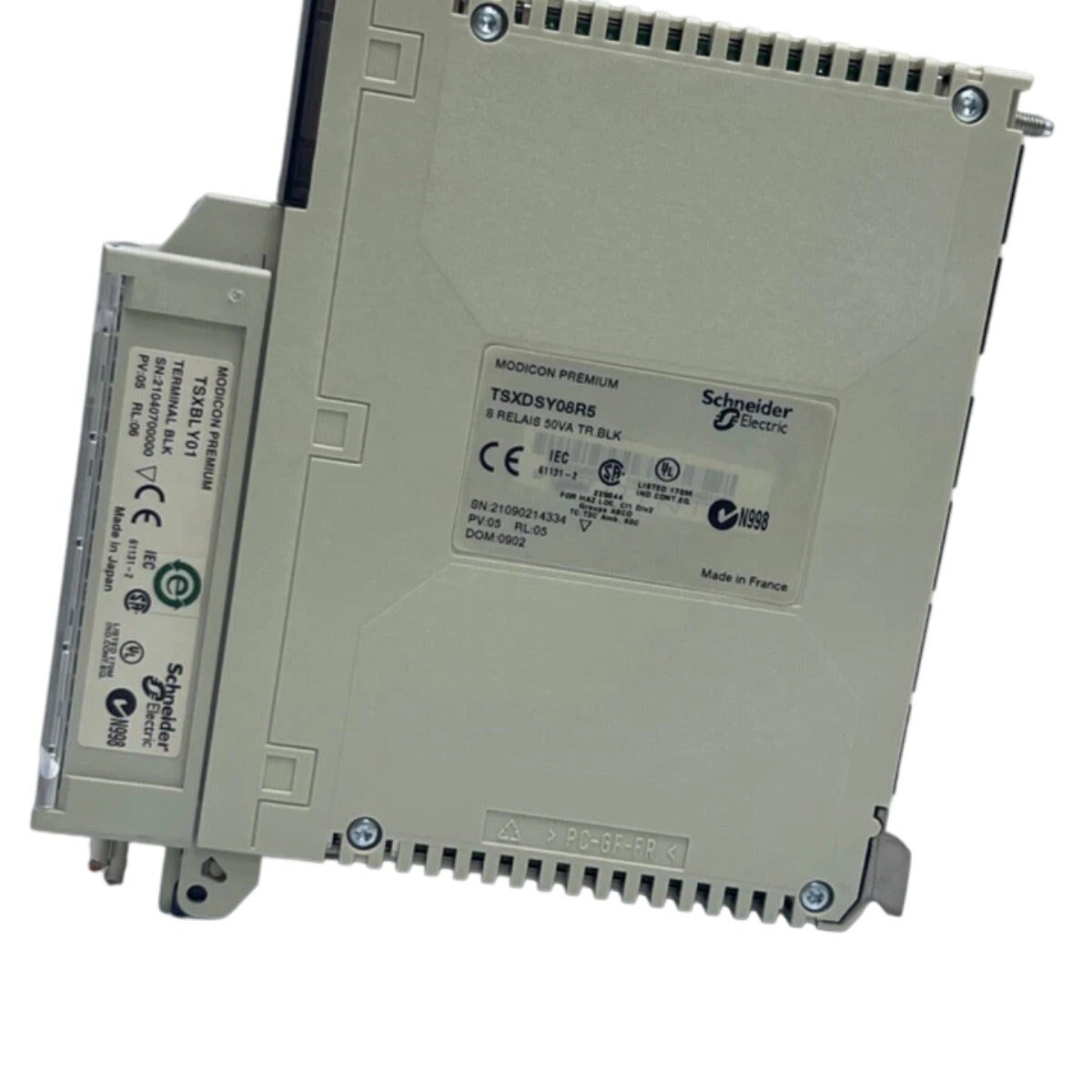

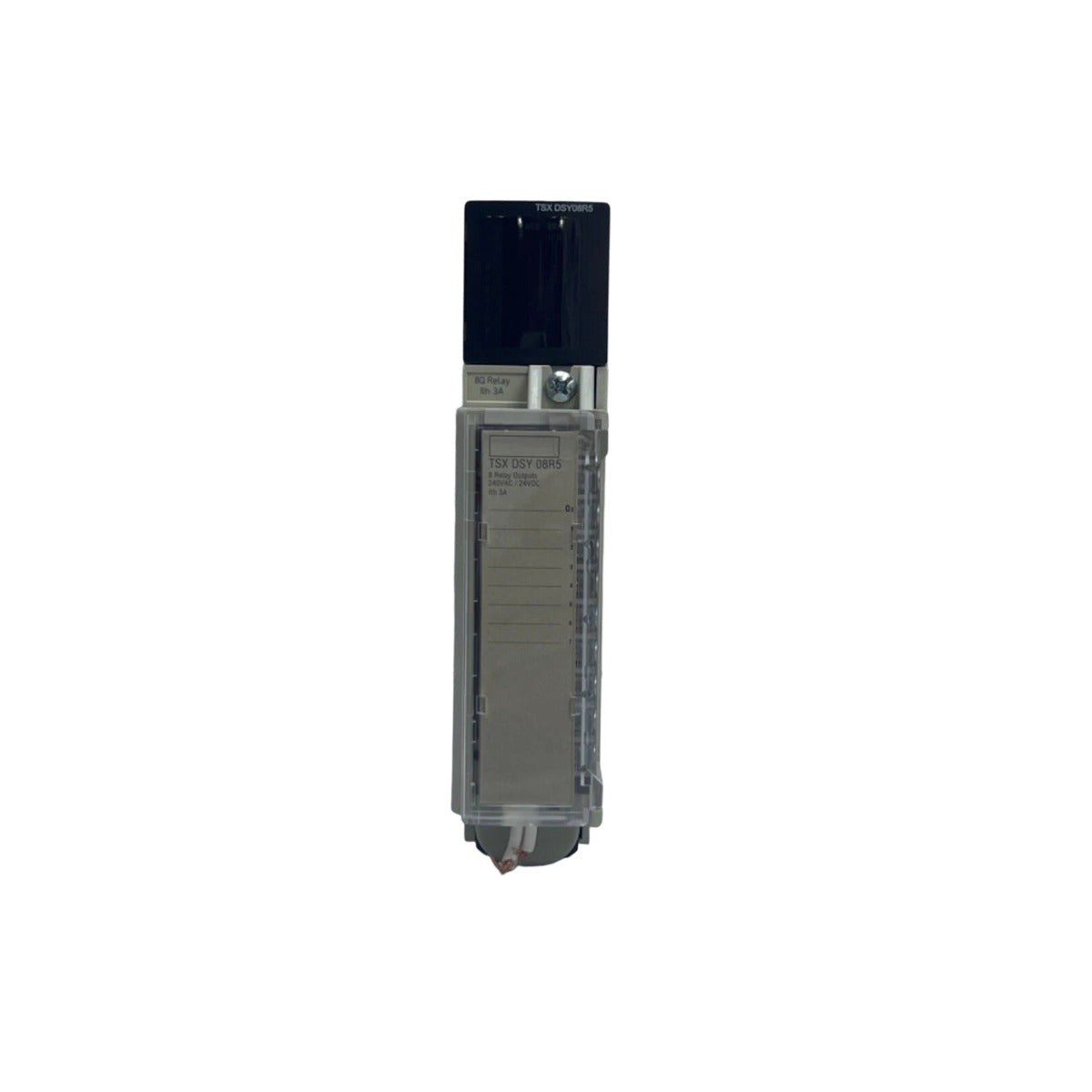

The Schneider TSXDSY08R5 is a high-performance discrete output module engineered for the Modicon automation platform. This module provides 8 independent output channels, offering significant flexibility for industrial control systems requiring both DC and AC switching capabilities. Designed for reliability in demanding environments, it serves as a robust interface between the controller and field-level actuators.
Features
8 discrete output channels with normally open (N/O) relay contacts.
Versatile voltage compatibility supporting 12-24 VDC and 24-240 VAC control circuits.
High current capacity of 3 Amps per output channel.
Integrated screw terminal blocks for secure and reliable field wiring.
Compact, DIN-rail mountable form factor for efficient cabinet space utilization.
Technical Specifications
Model
TSXDSY08R5
Product Line
Modicon
Number of Outputs
8
Output Type
Discrete (N/O Relay)
Output Capacity
3 Amp
Voltage Range
12-24 VDC / 24-240 VAC
Mounting Type
DIN Rail
Operating Temperature
-25 to 70 degC
Protection Rating
IP20
Humidity
5 to 95% (Non-condensing)
Installation Guidelines
Ensure the PLC rack or control system is powered down before installing or removing the module to prevent electrical damage.
Mount the module on a standard DIN rail, ensuring it is securely seated and locked in place.
Use appropriate wire gauges for the screw terminal blocks; ensure connections are tightened to the specified torque to prevent intermittent contact.
Maintain proper clearance around the module to allow for adequate ventilation and heat dissipation.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to ensure signal integrity.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
FAQ
What is the replacement for this module?
The TSXDSY08R5 is commonly superseded by the BXMDRA0805 module.
Can this module handle AC loads?
Yes, this module supports a wide voltage range including 24-240 VAC, making it suitable for both AC and DC control applications.
