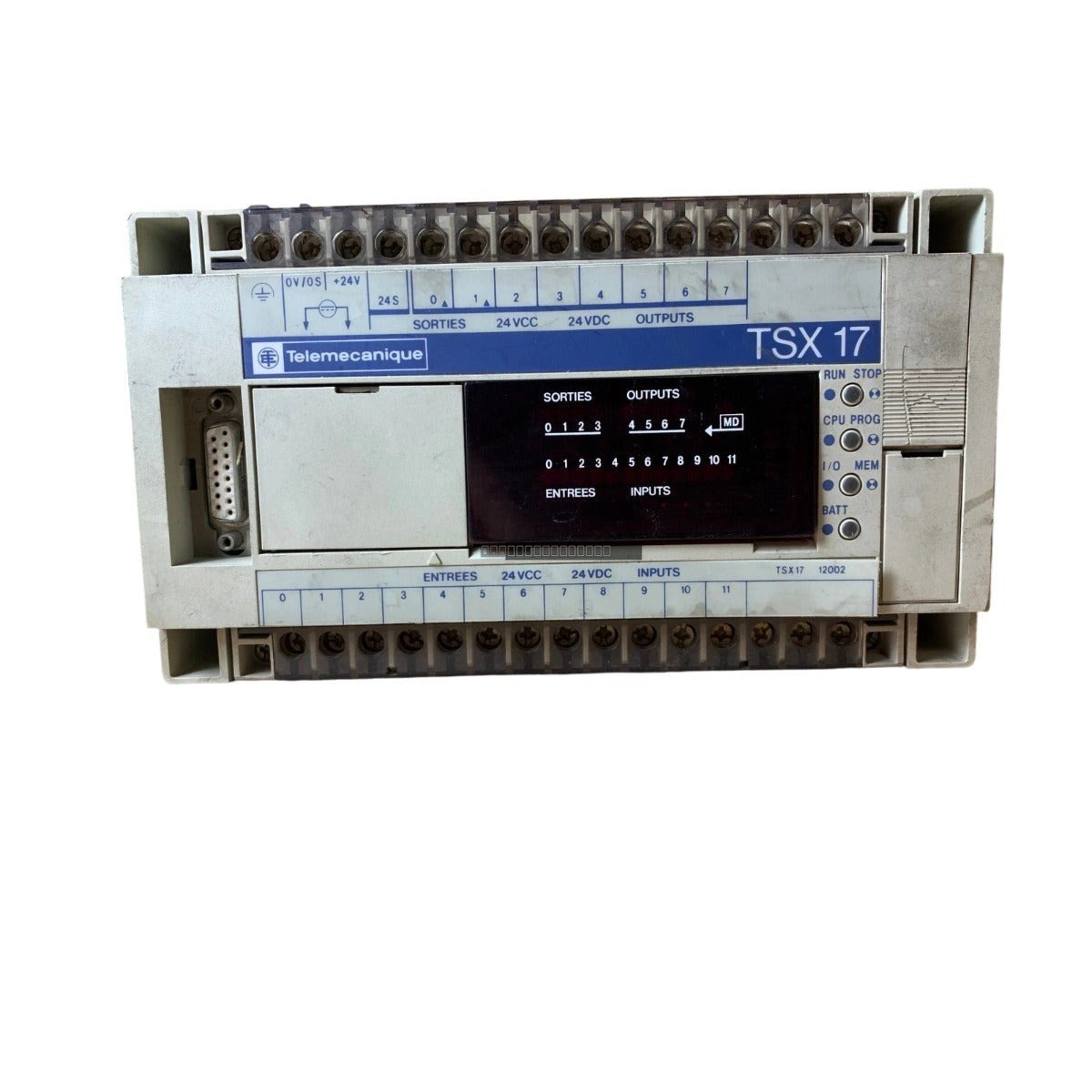

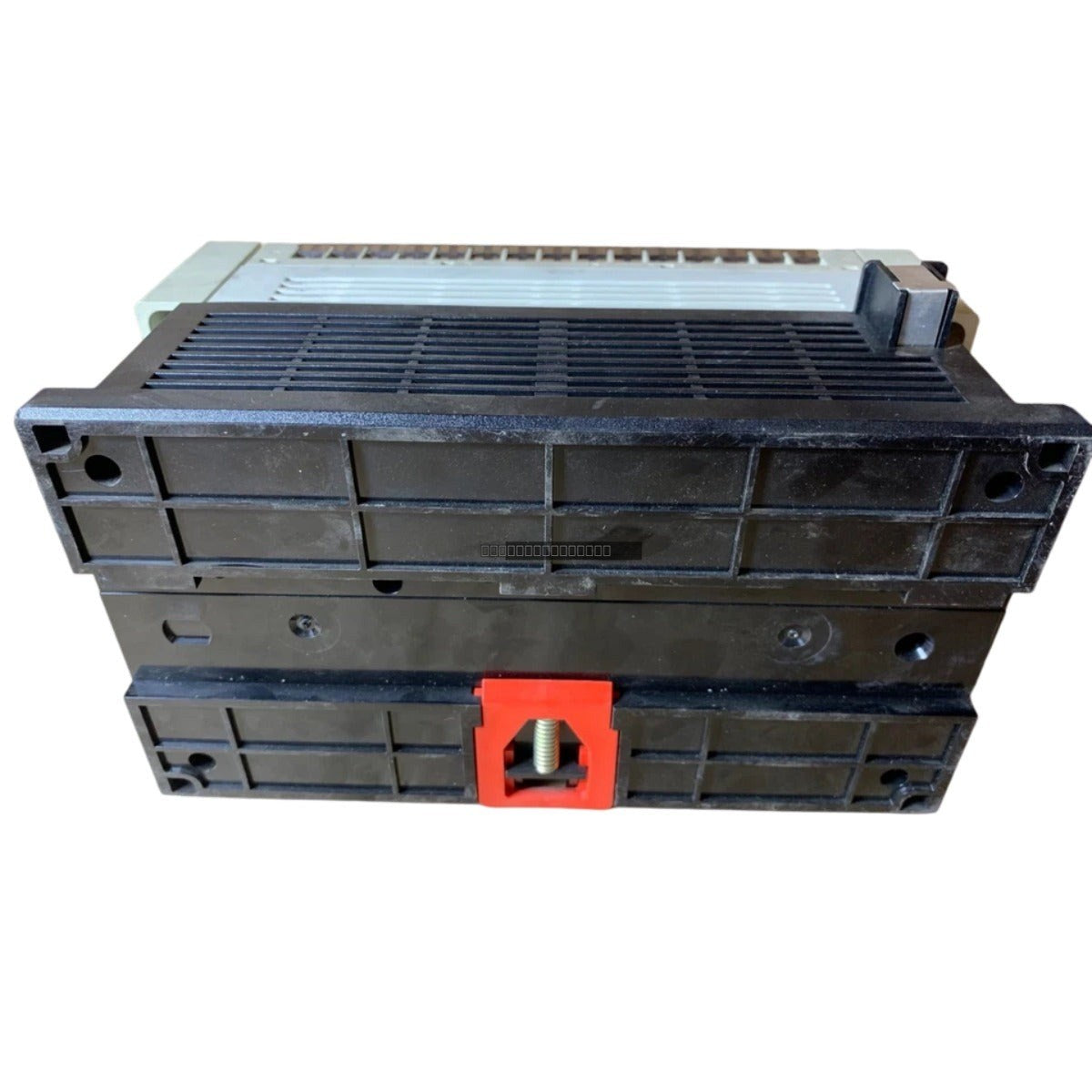

Schneider TSX1712002 PLC Controller

The Schneider TSX1712002 is a compact, brick-style programmable logic controller designed for efficient industrial automation and process control. Part of the Telemecanique legacy range, this controller provides a reliable solution for small-to-medium scale automation tasks, offering integrated digital I/O capabilities in a space-saving footprint.

Features

• Integrated I/O configuration: 11 digital inputs and 7 digital outputs.
• Standardized voltage: Operates on 24 VDC for both input and output circuits.
• Compact design: Brick-style form factor ideal for control panels with limited space.
• Mounting: Designed for standard DIN rail installation, ensuring quick and secure deployment.

Applications

This PLC is suitable for various industrial applications, including machine control, small-scale process automation, and discrete manufacturing systems where compact, reliable logic control is required.

Technical Specifications

Installation Guidelines

• Ensure the controller is mounted in a clean, dry environment within the specified IP20 rating.
• Use standard 35mm DIN rail for mounting; ensure the module is snapped securely into place.
• Verify that the power supply is disconnected before performing any wiring operations.
• Maintain adequate clearance around the unit to allow for natural convection cooling.
• Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the control panel to maintain signal integrity and safety.

FAQ

What is the primary input/output voltage for this unit?
The TSX1712002 operates on 24 VDC for both its digital inputs and outputs.

Is this controller DIN rail mountable?
Yes, it is designed for standard DIN rail mounting, facilitating easy integration into existing control cabinets.

What is the operating temperature range?
The unit is designed to operate reliably in temperatures ranging from 5 degC to 55 degC.
