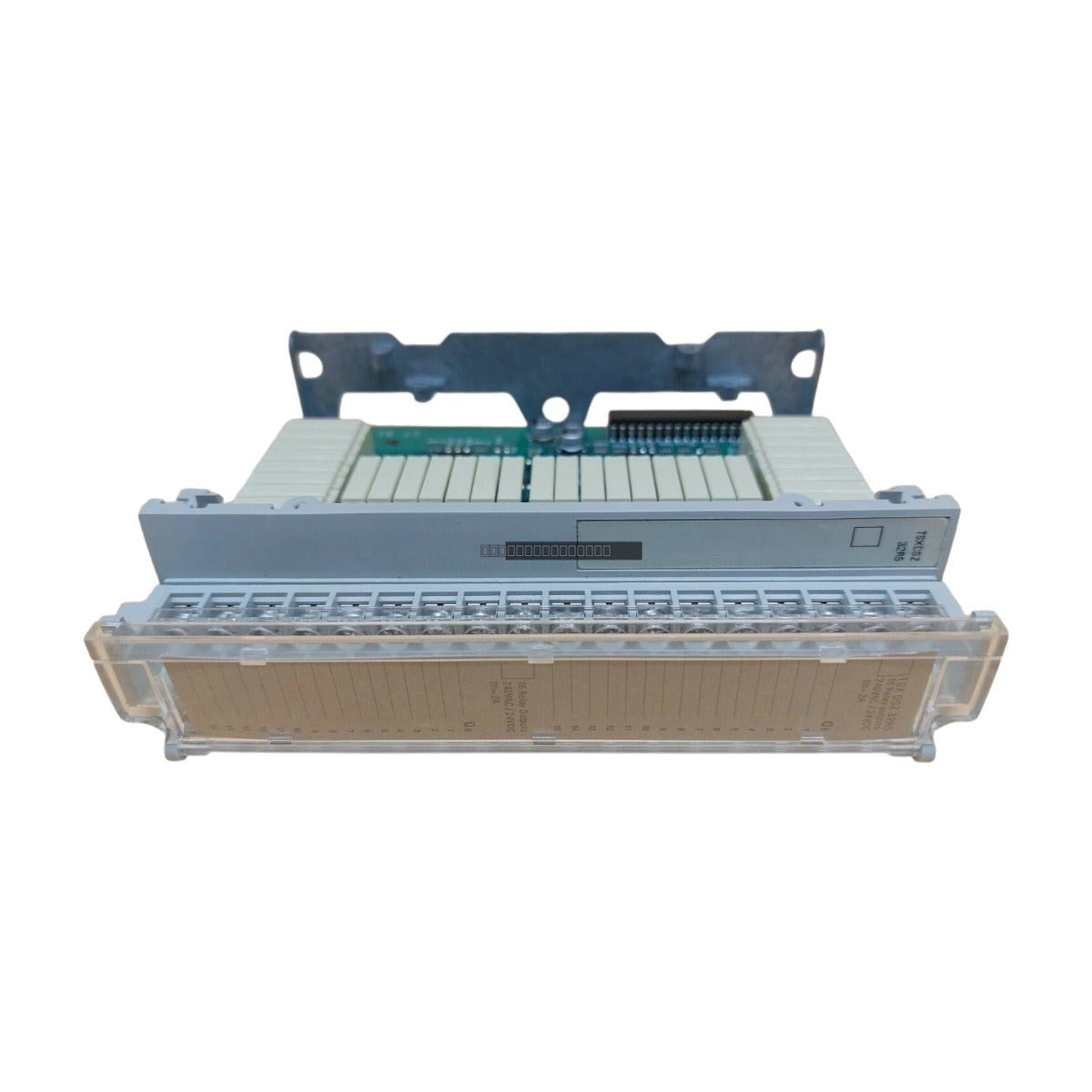

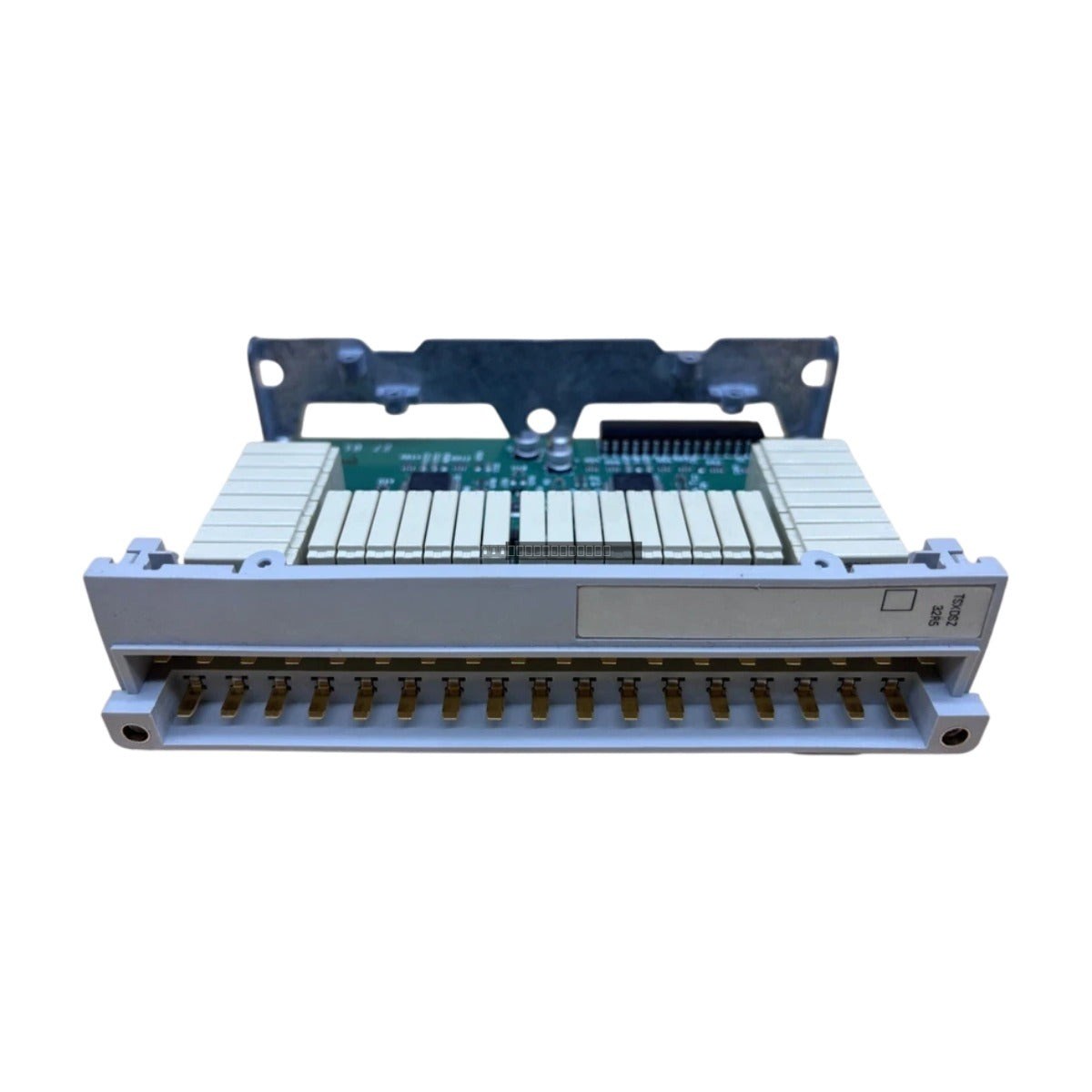

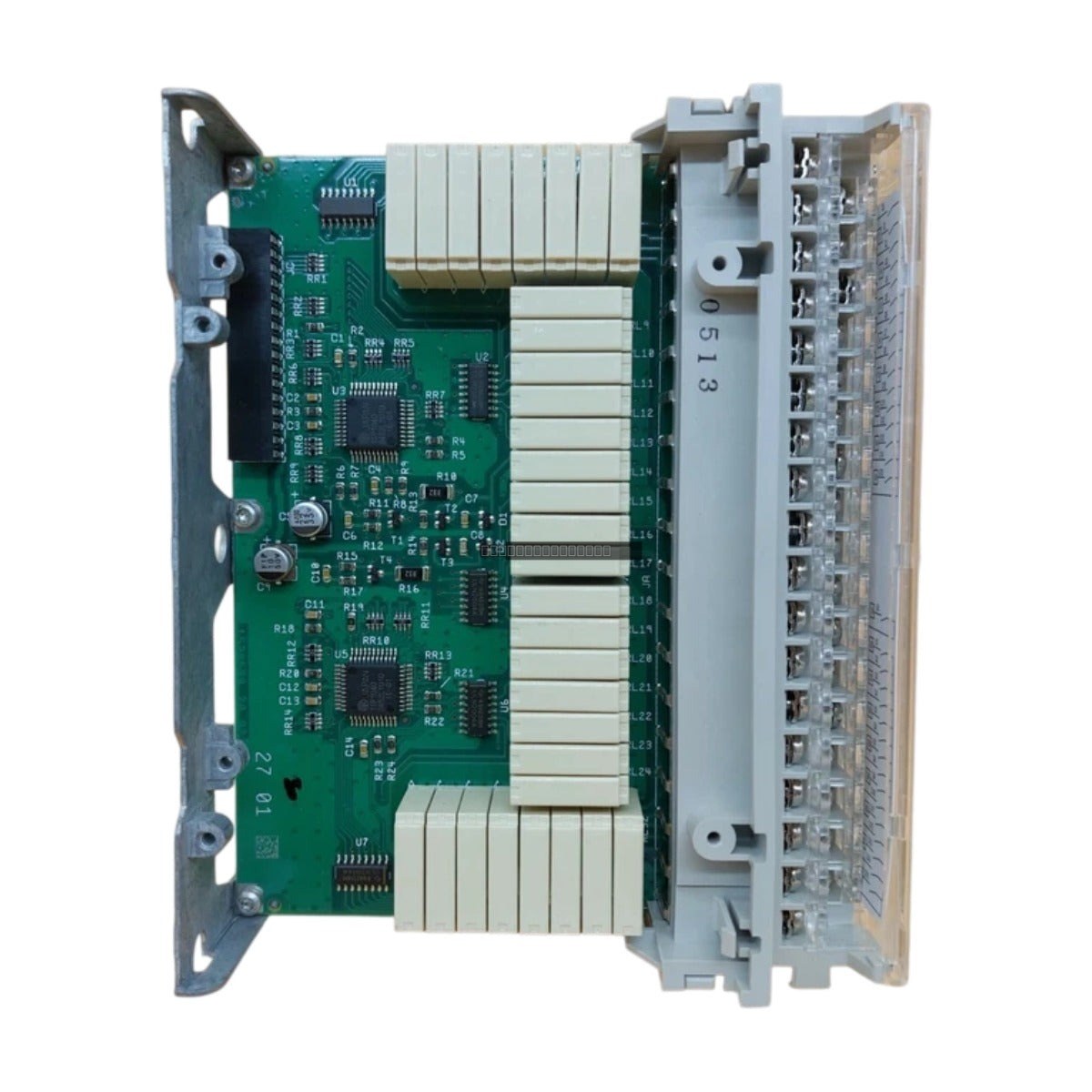

The Schneider Electric TSXDSZ32R5 is a specialized relay output module designed for use within the Modicon TSX Micro PLC platform. This module provides 32 relay output channels, offering robust switching capabilities for industrial control applications requiring isolation between the controller and field devices. Although officially discontinued by the manufacturer in 2020, this unit remains a critical component for maintaining legacy automation systems.
Features
32-point relay output configuration for versatile control.
Wide operating voltage range from 24 VAC to 240 VAC.
Integrated isolation protection rated at 1500 V for 1 second.
Low power dissipation of 3.5 W for efficient thermal management.
Fast response time of less than 10 ms for reliable switching performance.
Applications
This module is typically utilized in industrial automation environments where high-voltage or current-isolated switching is required. Common applications include motor starter control, interface to external contactors, and general-purpose digital output signaling in manufacturing and process control systems compatible with the TSX Micro series.
Technical Specifications
Product Model
TSXDSZ32R5
Output Type
Relay
Voltage Range
24 - 240 VAC
Current Consumption
175 mA
Power Dissipation
3.5 W
Response Time
< 10 ms
Isolation Voltage
1500 V (1 s)
Insulation Resistance
>= 10 mOhm
Installation Guidelines
Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
Mount the module securely in the designated TSX Micro rack slot, ensuring proper alignment with the backplane connector.
Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI) impact.
Verify that the field load does not exceed the relay contact rating to prevent premature wear or failure.
Maintain adequate ventilation around the PLC rack to accommodate the 3.5 W power dissipation.
Handle the module using ESD-safe practices to protect internal circuitry from electrostatic discharge.
FAQ
Is the TSXDSZ32R5 still in production? No, this module was officially discontinued by Schneider Electric in 2020.
What is the primary function of this module? The TSXDSZ32R5 is a relay output module designed to interface the TSX Micro PLC with external field devices, providing electrical isolation through its 32 relay contacts.
