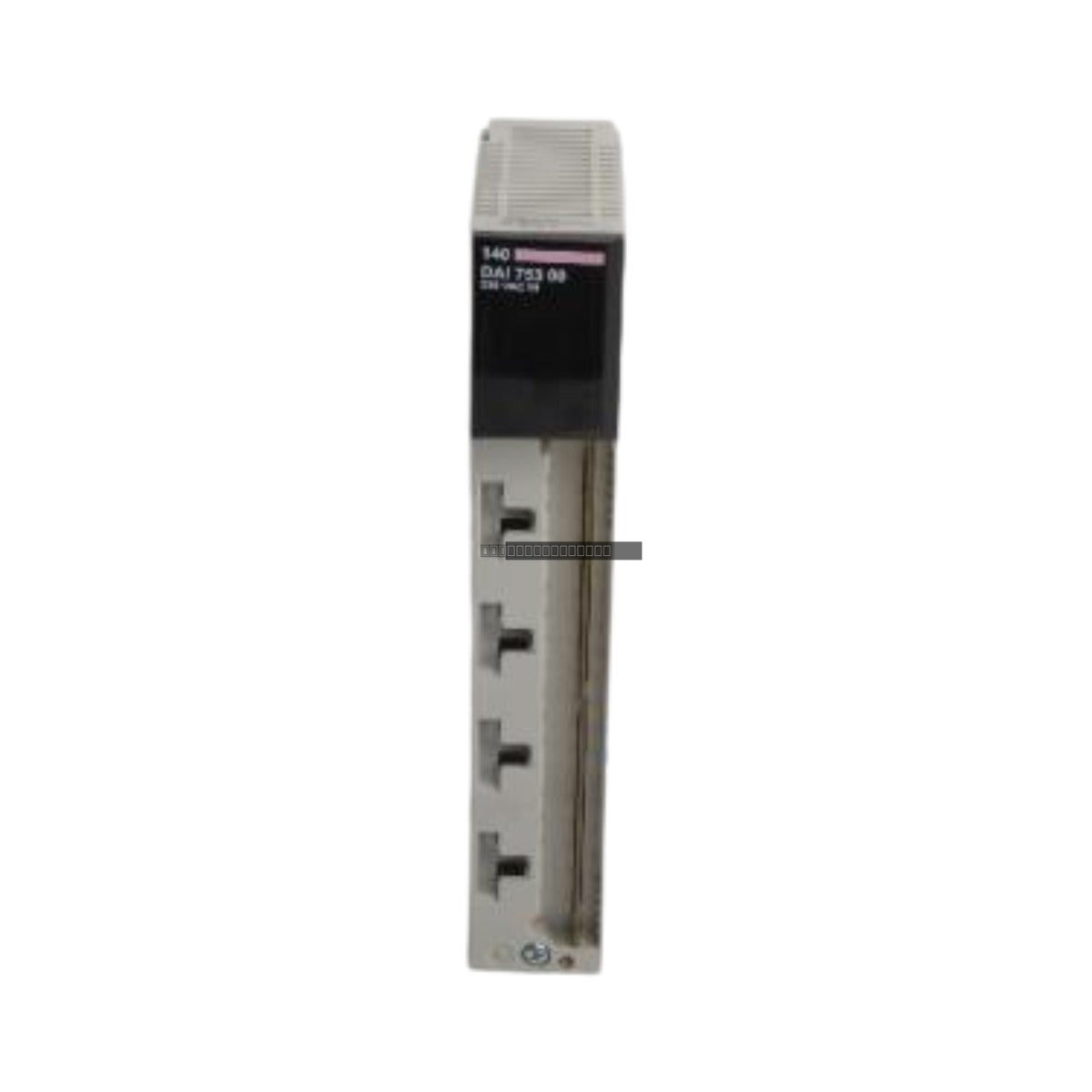

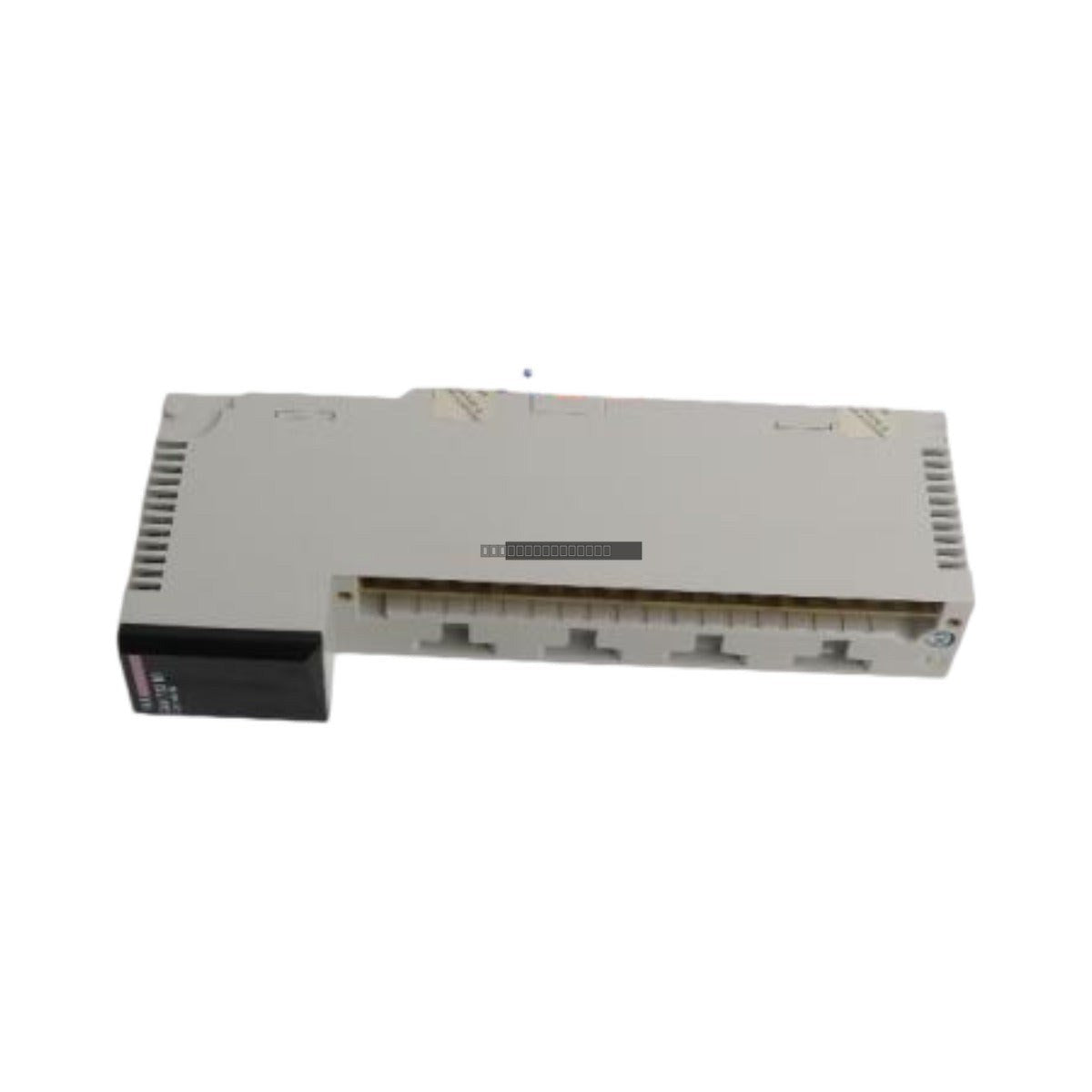

The Schneider Electric 140DAI75300 is a discrete input module designed for integration within the Modicon Quantum automation platform. This module is engineered to provide reliable signal acquisition for industrial control systems, facilitating the monitoring of field-side digital inputs. It is built to maintain signal integrity and system stability in demanding manufacturing and process control environments.
Features
Designed specifically for the Modicon Quantum series architecture.
Robust construction suitable for industrial automation requirements.
Provides high-density digital input signal processing.
Compatible with standard Quantum backplane configurations.
Integrated status indicators for local field diagnostics.
Applications
The 140DAI75300 module is utilized in various industrial sectors, including power generation, water management, and heavy manufacturing. It is suitable for applications requiring consistent monitoring of discrete field devices such as limit switches, pushbuttons, and proximity sensors in automated control loops.
Installation Guidelines
Ensure the PLC rack is powered down before module insertion or removal to prevent electrical damage.
Verify that the module is correctly seated in the backplane slot and secured with the integrated locking mechanism.
Ensure all field wiring is routed according to site-specific EMI guidelines, keeping signal cables separated from high-voltage power lines.
Confirm proper grounding of the control cabinet to minimize electromagnetic interference.
Maintain adequate clearance around the module to facilitate proper heat dissipation and airflow.
FAQ
What is the primary function of the 140DAI75300?
This module acts as a discrete input interface for the Modicon Quantum system, converting external field signals into digital data for the CPU.
Is this module compatible with other Modicon platforms?
The 140DAI75300 is specifically designed for the Quantum series. Please verify your system architecture before installation.
What should I do if the channel status LEDs are not displaying correctly?
First, check the field wiring for continuity and voltage levels. If the wiring is correct, ensure the module is fully seated in the backplane and that the rack power supply is functioning within nominal parameters.
