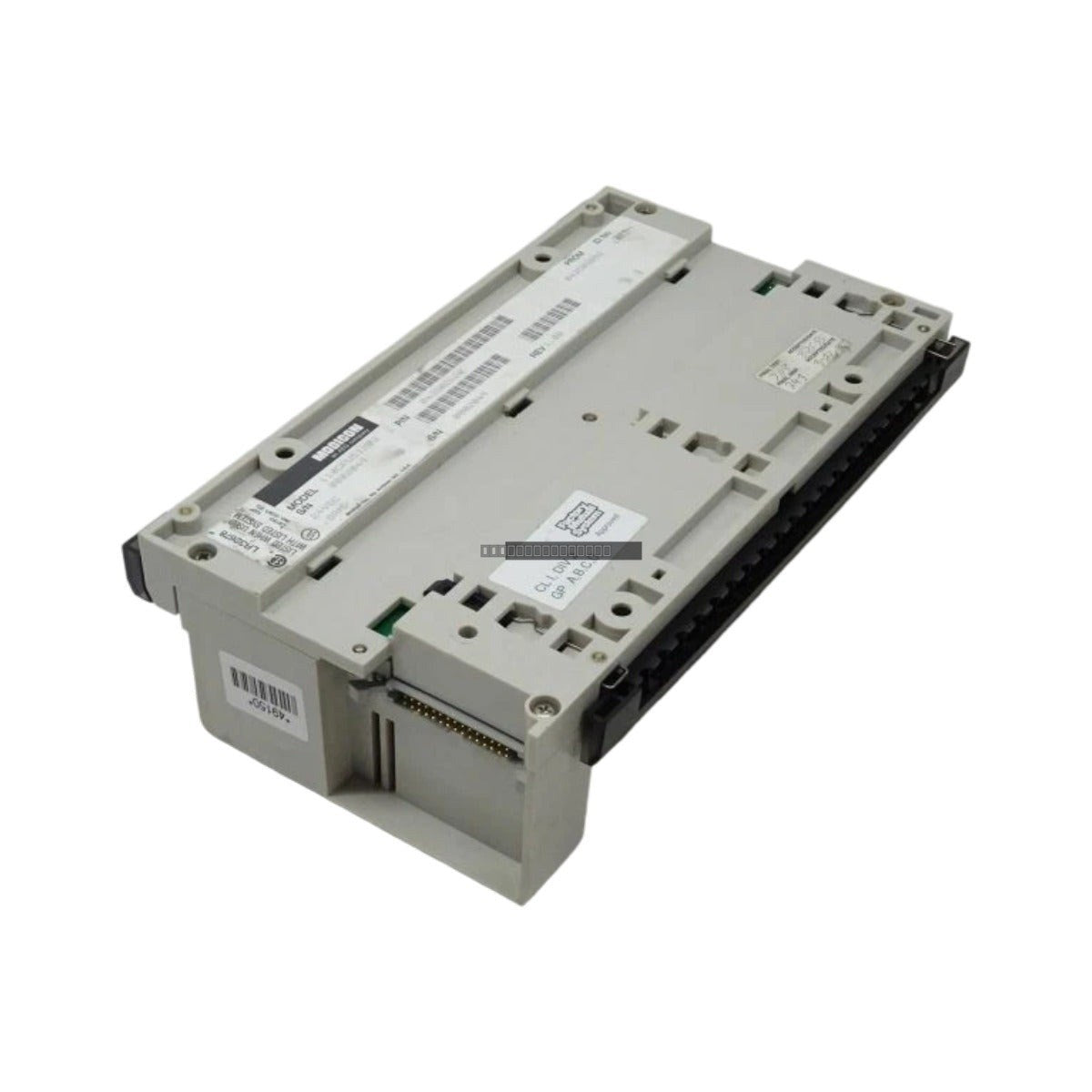

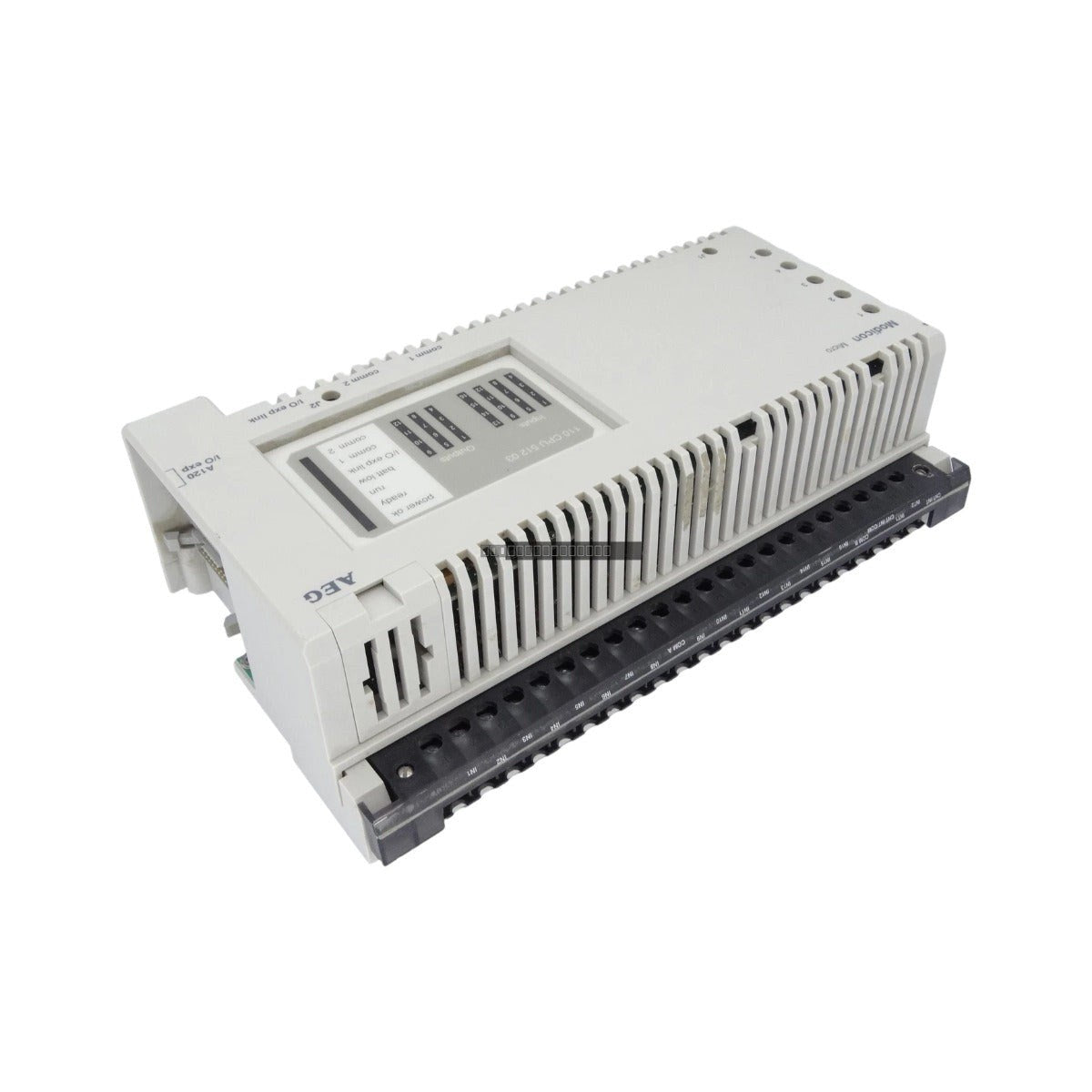

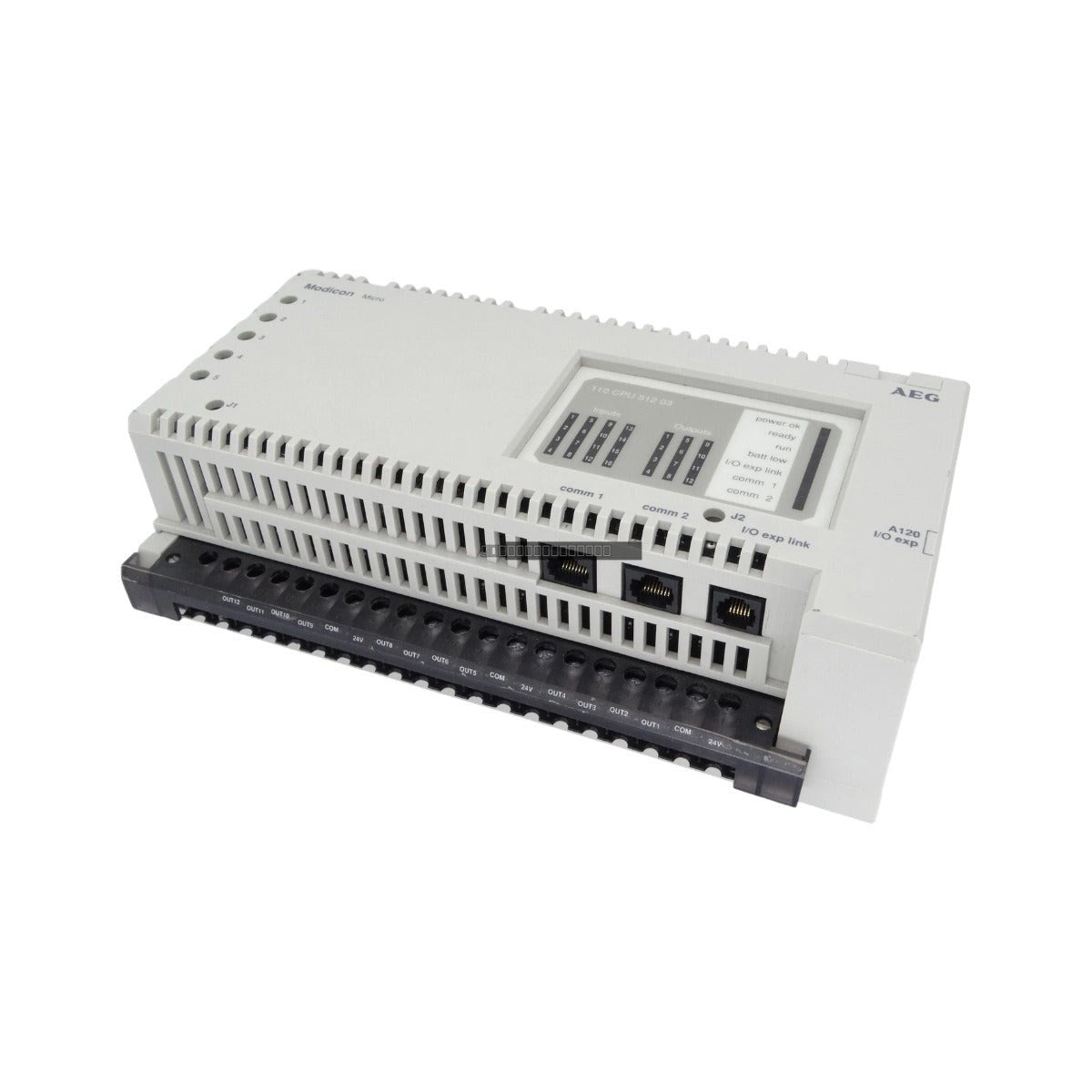

The Schneider Electric 110CPU51203 serves as a robust central processing unit within the Modicon Micro PLC family. Designed for compact automation tasks, this processor module integrates discrete I/O handling with serial communication capabilities, providing a reliable solution for deterministic logic execution in demanding industrial environments. The unit is engineered to manage cyclical machine processes, ensuring consistent timing and efficient relay control for localized sub-systems.
Features
Integrated processing core with 12 kBytes of internal RAM for program storage.
On-board discrete I/O configuration featuring 16 inputs and 12 outputs.
Native support for Modbus RS232 and RS485 communication protocols.
Front-panel LED diagnostics for real-time monitoring of system status, run conditions, and bus activity.
Persistent memory support via an internal battery backup to protect configuration data during power loss.
Compact, durable housing designed for protection against industrial vibration and electrical interference.
Applications
This processor module is widely utilized across various industrial sectors, including petroleum production, ore extraction, thermal power generation, and automated distribution. It is particularly effective for managing dedicated automation loops, basic analog sequencing, and interfacing with regional Human-Machine Interfaces (HMIs).
Technical Specifications
Model
110CPU51203
Brand
Schneider Electric
Product Series
Modicon Micro
Memory
12 kBytes RAM
Integrated I/O
16 Inputs / 12 Outputs (Discrete)
Communication
Modbus RS232 / RS485
Power Requirements
24 VDC, 0.85 A
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 85 deg C
Installation Guidelines
Ensure the PLC is mounted in an environment free from excessive dust, moisture, and extreme temperatures.
Verify that the power supply is disconnected before inserting or removing the module from the rack.
Use shielded communication cables for RS232/RS485 connections to minimize EMI impact.
Ensure proper grounding of the control cabinet to maintain signal integrity and safety.
Check the internal battery status periodically to prevent loss of program memory during extended power cycles.
FAQ
Is this processor compatible with standard Modbus protocols?
Yes, the 110CPU51203 natively supports Modbus RTU and ASCII protocols via its integrated serial interfaces, allowing for seamless integration with HMIs and other compatible industrial hardware.
What should I do if the module loses power?
The unit includes an internal battery backup designed to maintain static RAM memory. If the unit has been in storage for a long period, verify the battery health before deployment to ensure program persistence.
