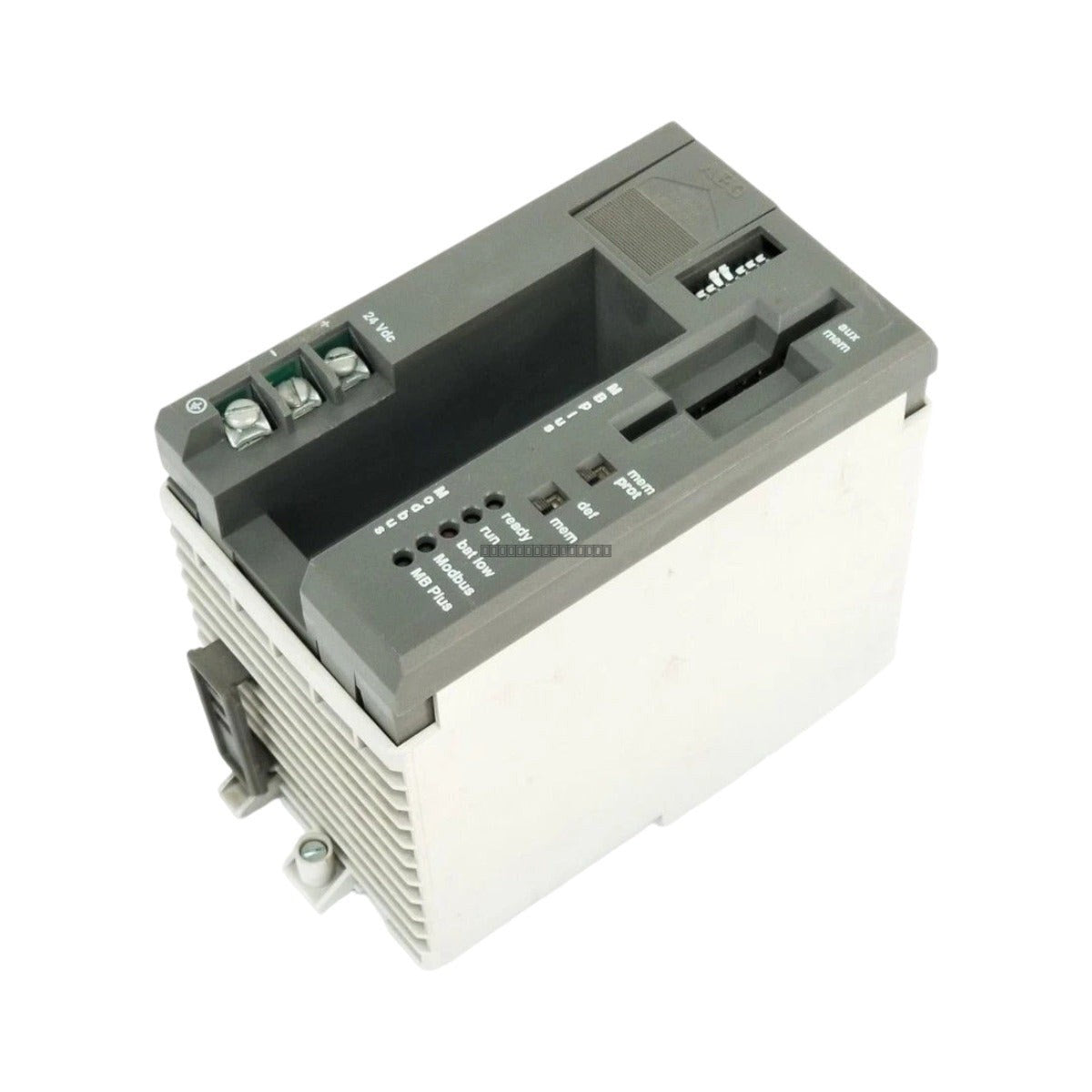

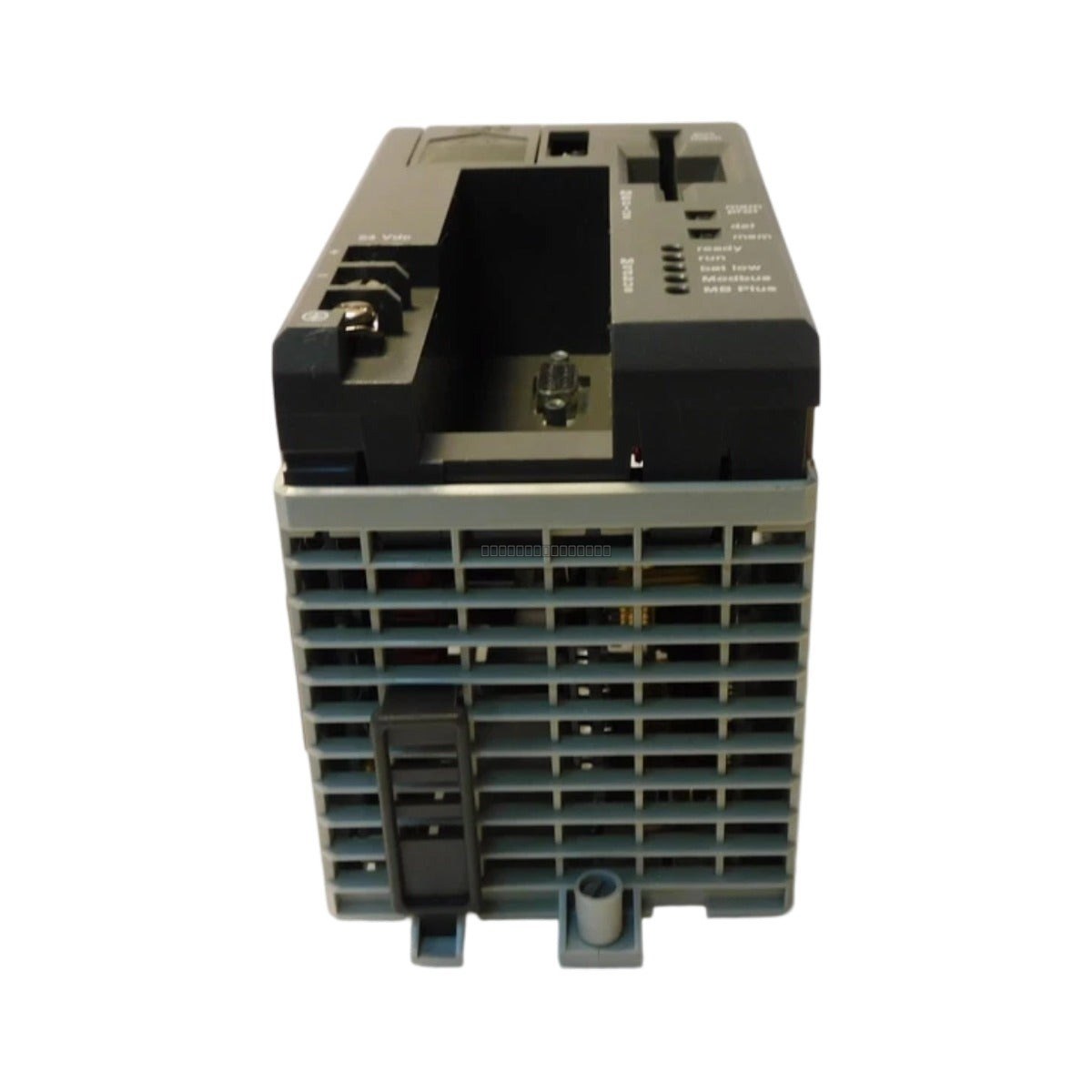

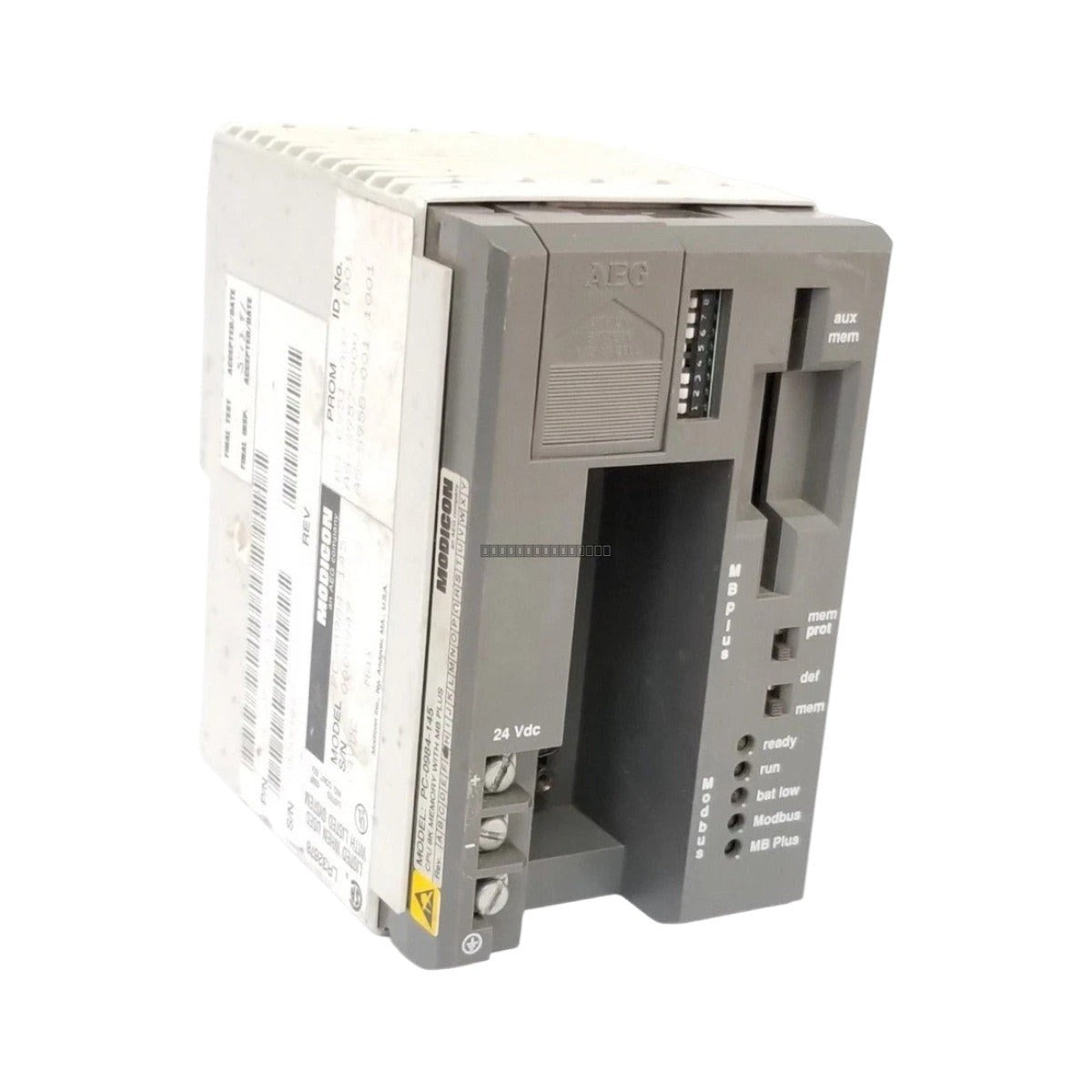

Schneider Modicon Compact PC0984145 PLC CPU Module

Description

The Schneider Electric Modicon Compact PC0984145 is a high-performance central processing unit designed for the Modicon 984 automation architecture. Built to provide reliable control in demanding industrial environments, this CPU handles complex ladder logic, mathematical operations, and data management for distributed I/O systems. It is widely utilized in sectors such as water treatment, petrochemical processing, and manufacturing automation, where deterministic performance and consistent scan cycles are essential for maintaining stable control loops.

Features

• Integrated processing core optimized for discrete and analog register management.
• Dual serial communication ports supporting Modbus RS232 and RS485 protocols for seamless integration with HMIs and engineering workstations.
• 4 kWords of user-accessible register memory for robust logic storage.
• Supports up to 1024 discrete I/O points, facilitating scalable control system design.
• Onboard battery-backed memory circuit to ensure parameter retention during power loss.
• Compact, ruggedized housing with effective EMI shielding for installation in high-noise industrial environments.

Applications

This controller is engineered for centralized logic processing in distributed control systems. It is suitable for applications requiring local I/O sub-assembly management, including automated assembly lines, material handling networks, and infrastructure monitoring systems.

Technical Specifications

Installation Guidelines

• Ensure the PLC is installed in a clean, dry location free from excessive dust and corrosive gases.
• Mount the module securely onto the designated backplane rails to ensure proper electrical contact.
• Always power down the backplane before inserting or removing the CPU module to prevent electrical damage.
• Route communication cables away from high-voltage power lines to mitigate electromagnetic interference.
• Verify that the battery is functional during commissioning to ensure data retention during power cycles.
• Maintain adequate clearance around the module to allow for proper airflow and cooling.

FAQ

Is this module compatible with existing Modicon 984 backplanes?

Yes, the PC0984145 is designed specifically for the Modicon Compact 984 series and is intended for use with compatible backplane architectures.

Does this unit require external power?

The module draws its primary operating power (5 VDC, 1.2 A) directly from the system backplane.

How is the memory protected during power outages?

The unit features an integrated battery-backed circuit designed to maintain the integrity of software parameters and internal state registers when the main power supply is disconnected.
