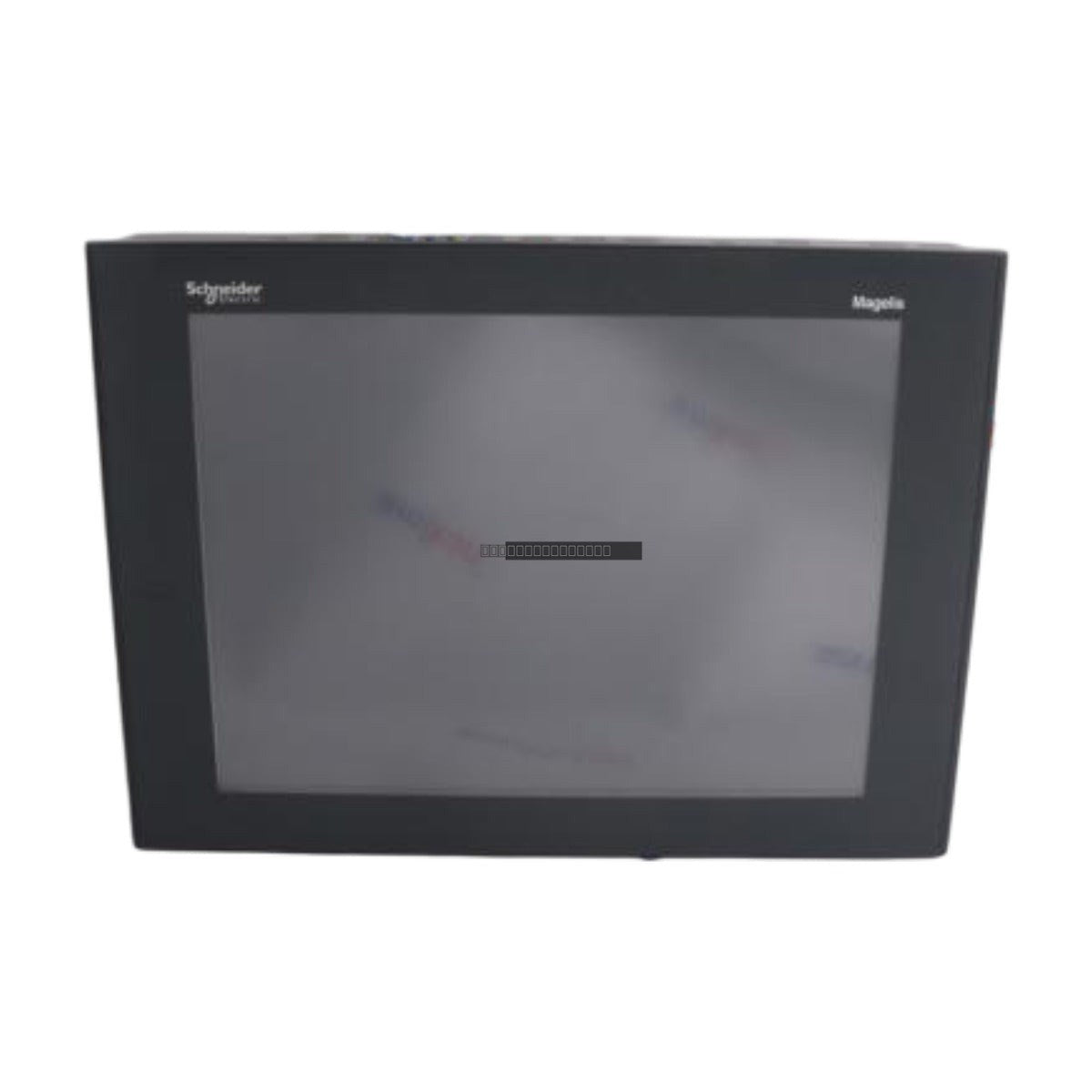

The Schneider Electric XBTF034510 is a high-performance operator interface terminal from the Magelis series. Designed for industrial visualization and control, this unit features a 10.4-inch touch screen interface, providing operators with a clear and responsive medium for monitoring machine status, adjusting process parameters, and managing alarms in real-time. Although now discontinued by the manufacturer, this unit remains a critical component for maintaining legacy automation systems.
Features
10.4-inch high-resolution touch screen display for intuitive operator interaction.
Robust industrial design suitable for panel-mount applications in harsh environments.
Integrated communication capabilities for seamless connectivity with PLC and controller networks.
Reliable 24 VDC power input, consistent with standard industrial control cabinet power supplies.
Optimized for use within the Magelis ecosystem, supporting complex graphical HMI applications.
Applications
The XBTF034510 is widely utilized in industrial automation environments, including manufacturing lines, packaging machinery, and process control systems. It serves as the primary human-machine interface (HMI) for data visualization, setpoint entry, and system diagnostics.
Technical Specifications
Manufacturer
Schneider Electric
Model
XBTF034510
Series
Magelis
Display Size
10.4 inches
Input Voltage
24 VDC
Power Consumption
35 W
Interface Type
Touch Screen
Installation Guidelines
Ensure the panel cutout dimensions are strictly followed to maintain the integrity of the NEMA/IP rating.
Use a clean, flat surface for mounting to prevent screen distortion or gasket failure.
Verify that the 24 VDC power supply is stable and properly grounded before connecting the unit.
Maintain adequate clearance around the unit for proper ventilation to prevent overheating during operation.
Ensure all communication cables are shielded and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
Always power down the system before performing any wiring or maintenance on the terminal.
FAQ
Is the XBTF034510 still available from the manufacturer?
No, this model has been discontinued by Schneider Electric. We provide these units as refurbished or surplus spare parts to support legacy system maintenance.
What is the required power supply for this unit?
The unit requires a 24 VDC power source with a power consumption rating of 35 W.
