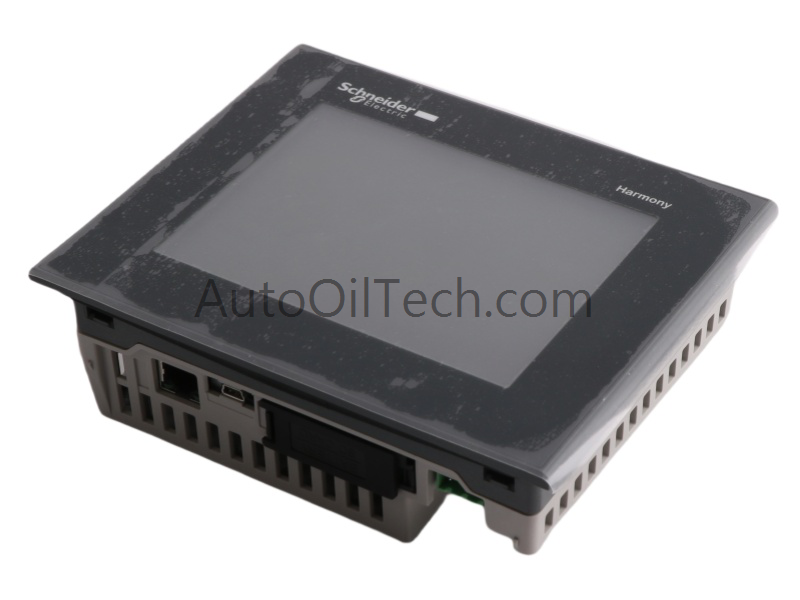

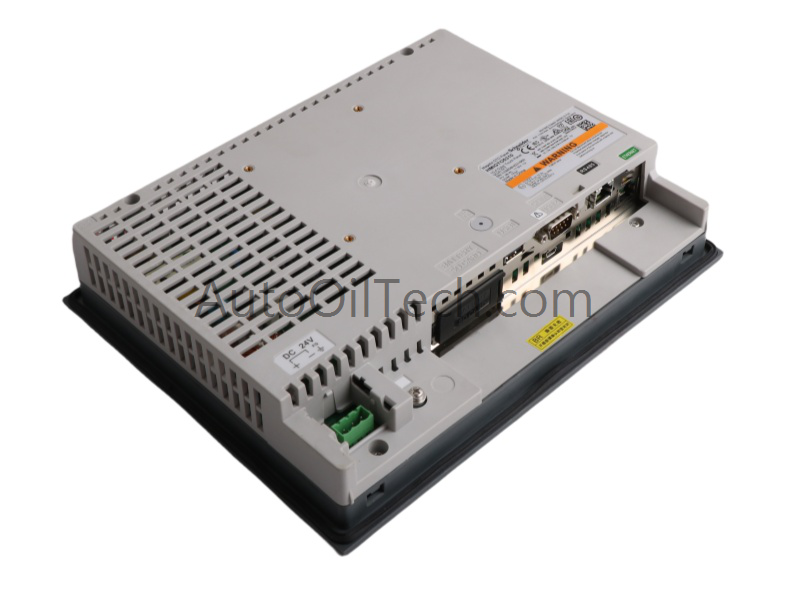

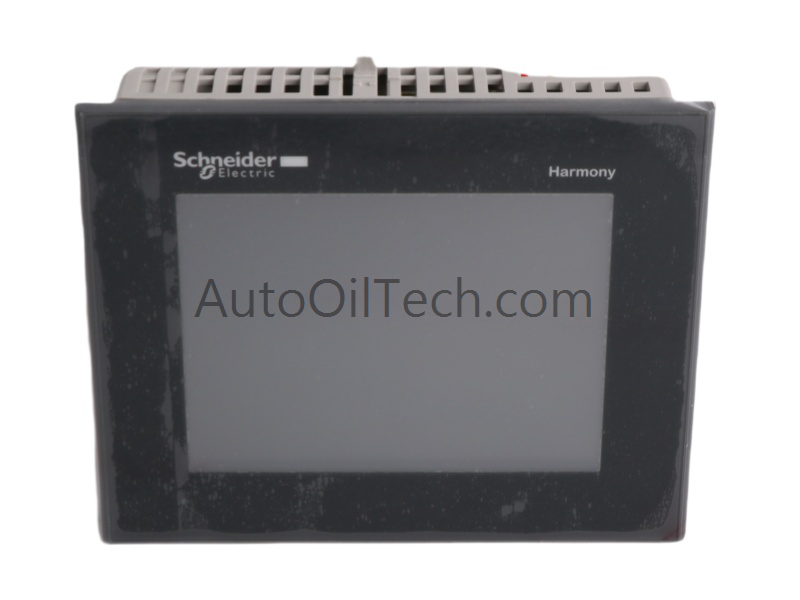

The HMIGTO6310 Touch Screen by Schneider Electric is a robust 12.1-inch HMI panel from the Harmony GTO series. Engineered for industrial automation, it offers high-resolution visualization, reliable data retention, and seamless protocol integration for demanding control environments.
Technical Specifications
Parameter
Value
Manufacturer
Schneider Electric
Model Number
HMIGTO6310
Module Type
Touch Screen
Product Range
Harmony GTO Series
Display Size
12.1 inches
Display Type
TFT, 65,536 colors
Resolution
800 × 600 pixels (SVGA)
Touch Sensitivity
1024 × 1024 zone
Flash Memory
96MB EPROM
Internal RAM
512KB
Battery Backup
SRAM retention up to 100 days
Input Voltage Range
19.2V to 28.8V DC
Inrush Current
30A
Dimensions (W×H×D)
31.5 × 24.1 × 5.6 cm
Weight
2.5 kg
HS Code
8537101190
Operating Temperature
0°C to 55°C
Humidity Resistance
10–90% non-condensing
IP Rating
IP20
Communication Protocols
Modbus, Ethernet/IP
Software Compatibility
Vijeo Designer
System Compatibility
PLC (Harmony platform)
Product Origin
France
Lifecycle Status
Active
Minimum Order Quantity
1
Lead Time
In Stock
Features
12.1" SVGA TFT display supports 65K colors for clear process visualization.
96MB Flash and 512KB RAM enable reliable program and data storage.
Lithium battery maintains SRAM data for up to 100 days.
Supports Modbus and Ethernet/IP for flexible industrial integration.
Rugged design withstands vibration, shock, and wide temperature ranges.
Compatible with Vijeo Designer software for streamlined HMI development.
