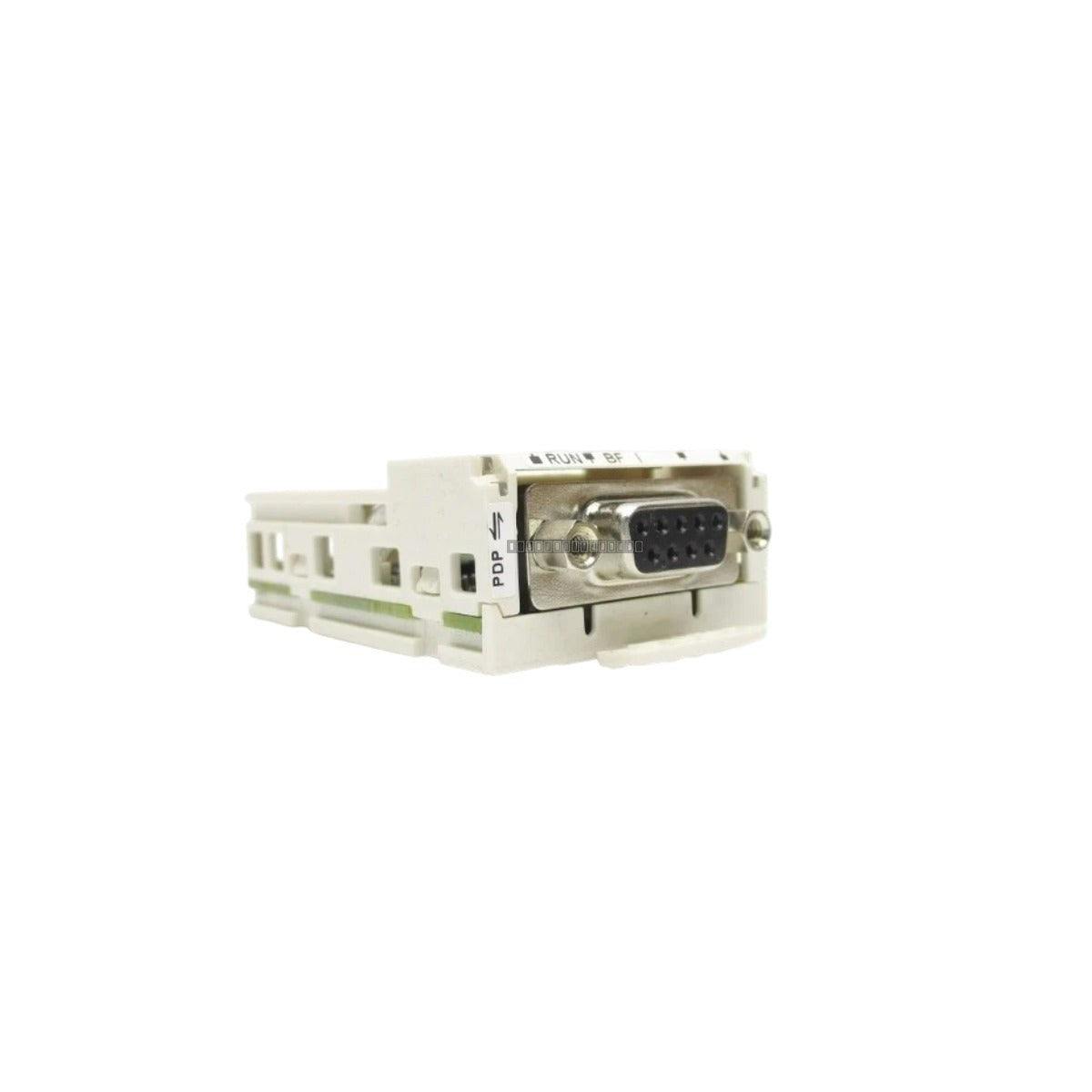

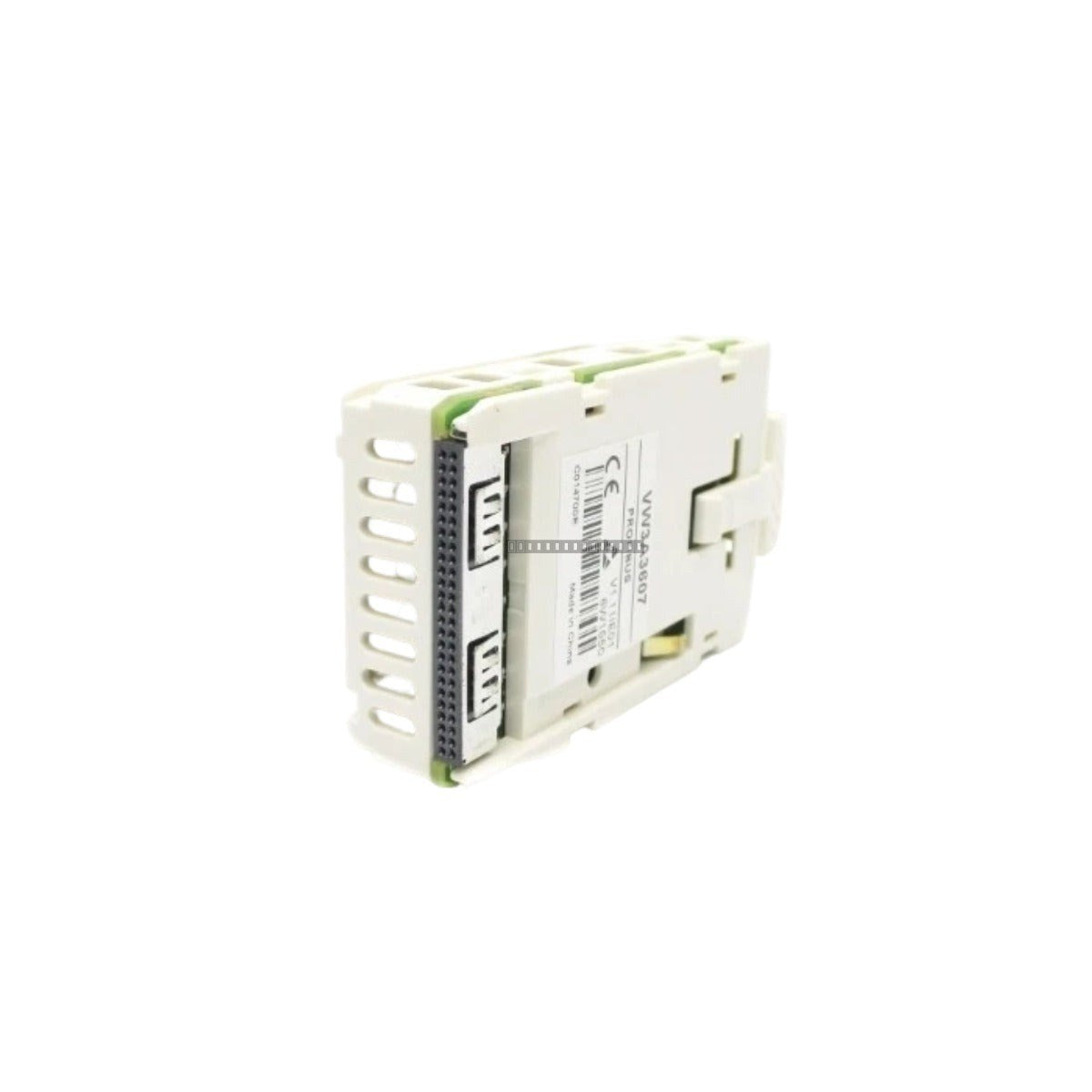

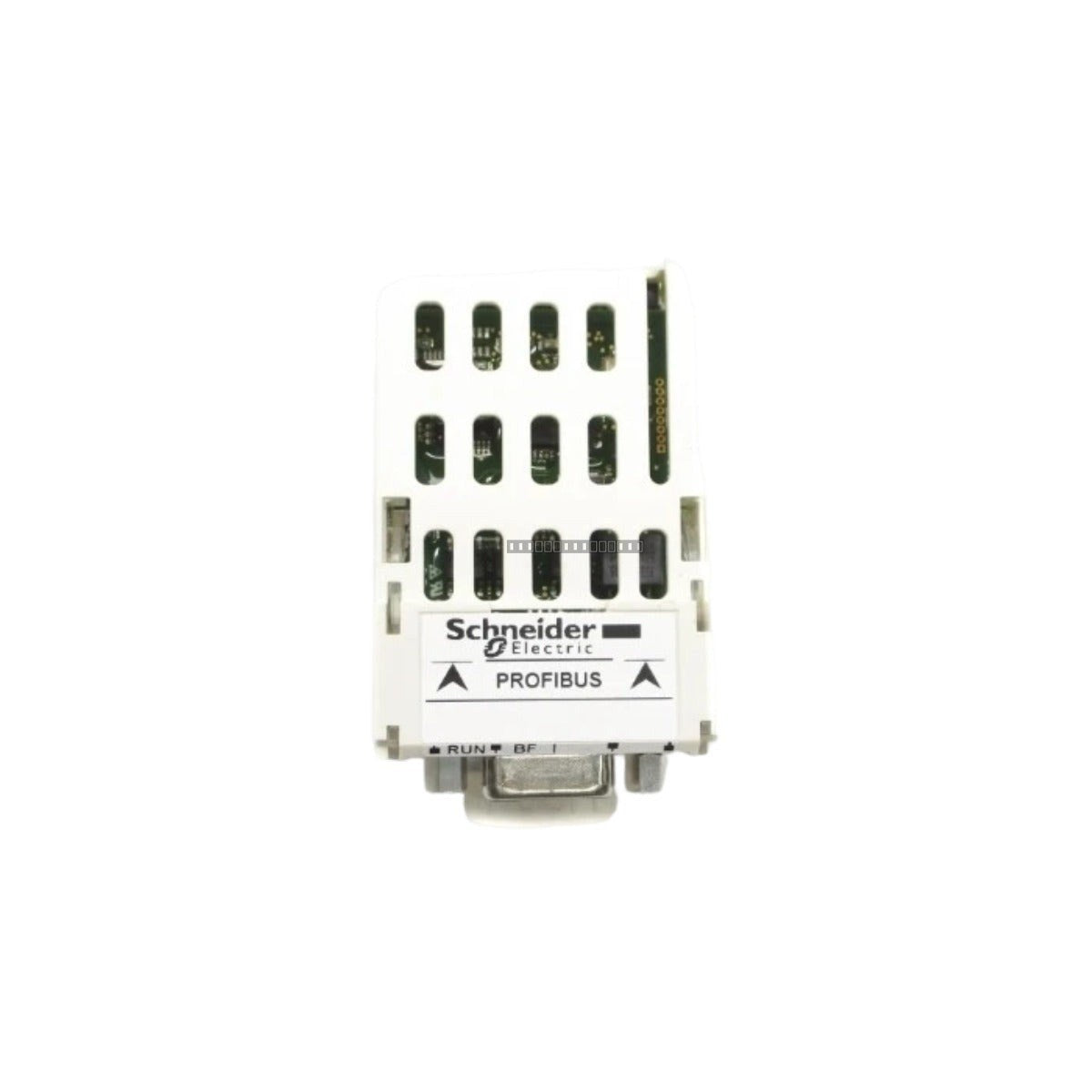

The Schneider Electric VW3A3607 is a dedicated communication module designed for integration within the Altivar drive range. This module enables seamless connectivity and data exchange between Altivar variable speed drives and a Profibus DP V1 fieldbus network, facilitating advanced control and monitoring in industrial automation environments.
Features
Designed specifically for the Altivar product range.
Supports Profibus DP V1 communication protocol for robust fieldbus integration.
Equipped with a standard 9-pin female SUB-D connector for reliable physical connection.
Supports a wide range of transmission rates from 9.6 kbps up to 12 Mbps.
Technical Specifications
Product Model
VW3A3607
Product Type
Communication Module
Communication Protocol
Profibus DP V1
Electrical Connection
1 x Female SUB-D 9 connector
Transmission Rate
9.6 kbps to 12 Mbps
Weight
0.28 kg
Installation Guidelines
Ensure the drive is completely powered down and the DC bus capacitors have discharged before installing or removing the communication module.
Handle the module with care, observing standard ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Insert the module into the designated option slot on the Altivar drive, ensuring it is firmly seated and secured using the provided mounting hardware.
Use high-quality, shielded Profibus-compliant cabling to minimize electromagnetic interference (EMI) in industrial environments.
Ensure the cable shield is properly grounded at the cabinet entry point or as specified by the drive installation manual.
Verify that the Profibus address and termination settings are correctly configured via the drive's HMI or software parameters after installation.
FAQ
What is the primary function of the VW3A3607? The VW3A3607 acts as a gateway, allowing an Altivar drive to function as a slave device on a Profibus DP V1 network, enabling remote control, monitoring, and parameterization.
Is this module compatible with all Altivar drives? This module is designed for the Altivar range. Please verify your specific drive model's compatibility documentation to ensure the VW3A3607 is supported for your hardware configuration.
