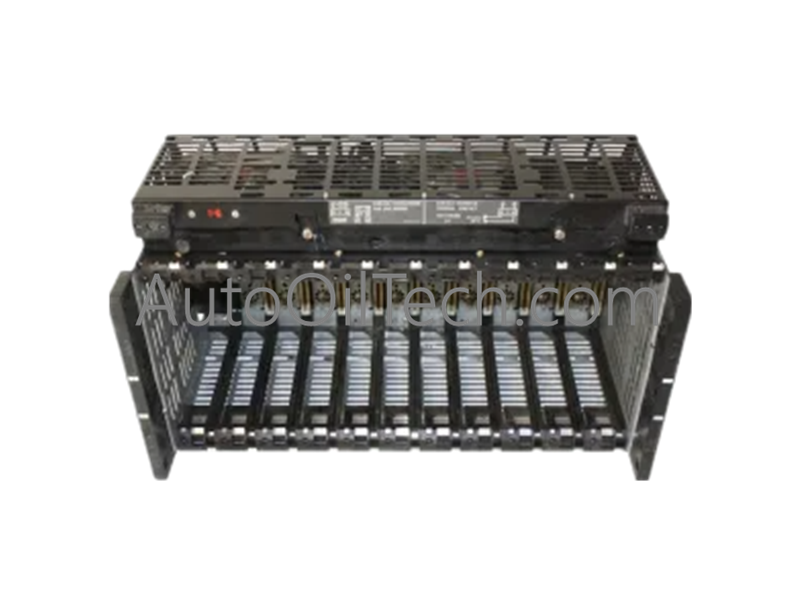

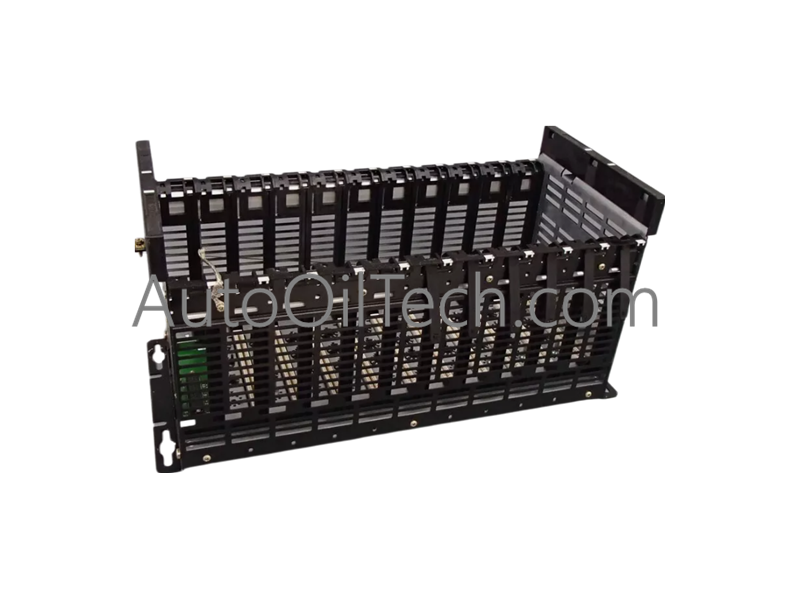

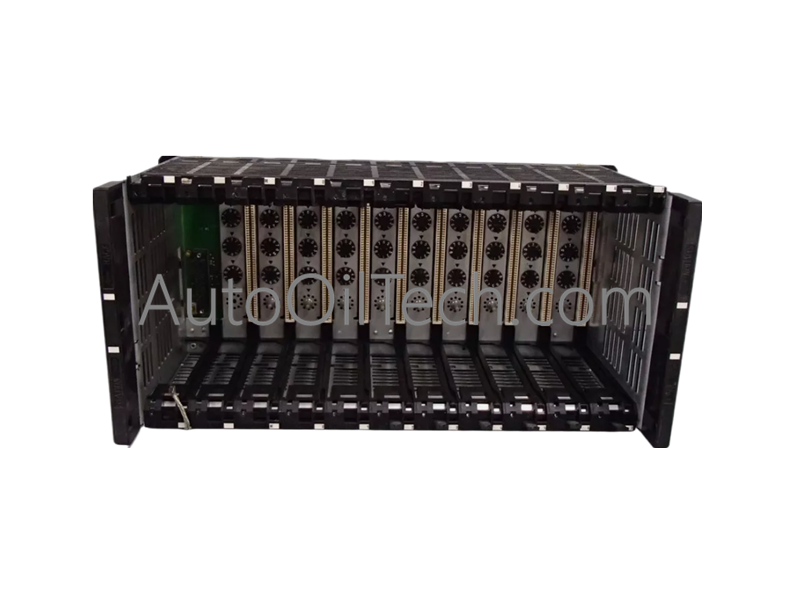

TheSchneider Electric TSXRKN8 rack is an 8-slot backplane designed for the Modicon Premium automation platform. It provides the mechanical housing and electrical backbone for mounting processor, I/O, and power supply modules, ensuring reliable communication and power distribution across the PLC system.
Capacity: Supports up to 8 modules (CPU, I/O, power supply)
Backplane Current: Up to 20 A max
Voltage: 5 V DC (via power supply module)
Construction: Compact and modular design for easy integration
Mounting Options: DIN rail or panel mounting
Clearance Requirements: 50 mm top/bottom, 40 mm sides
Physical Specifications
Width: 340 mm
Height: 151 mm
Depth: 152 mm
Weight: 2.5 kg
Environmental Ratings
Operating Temperature: 0…60 °C
Storage Temperature: −40…85 °C
Humidity: 95% non-condensing
Certifications: CE marked
Durability: Built to withstand industrial vibration and shock
Application Scenarios
The TSXRKN8 rack is ideal for modular PLC configurations in manufacturing, process control, and infrastructure automation. It allows flexible expansion and reliable integration of multiple modules in a single system.
FAQ
Q: How many modules can be installed? A: Up to 8 modules, including CPU, I/O, and power supply units.
Q: Is this rack compatible with Modicon Quantum or X80 modules? A: No, it is specifically designed for the Modicon Premium platform.
Q: What is the maximum backplane current supported? A: 20 A maximum.
