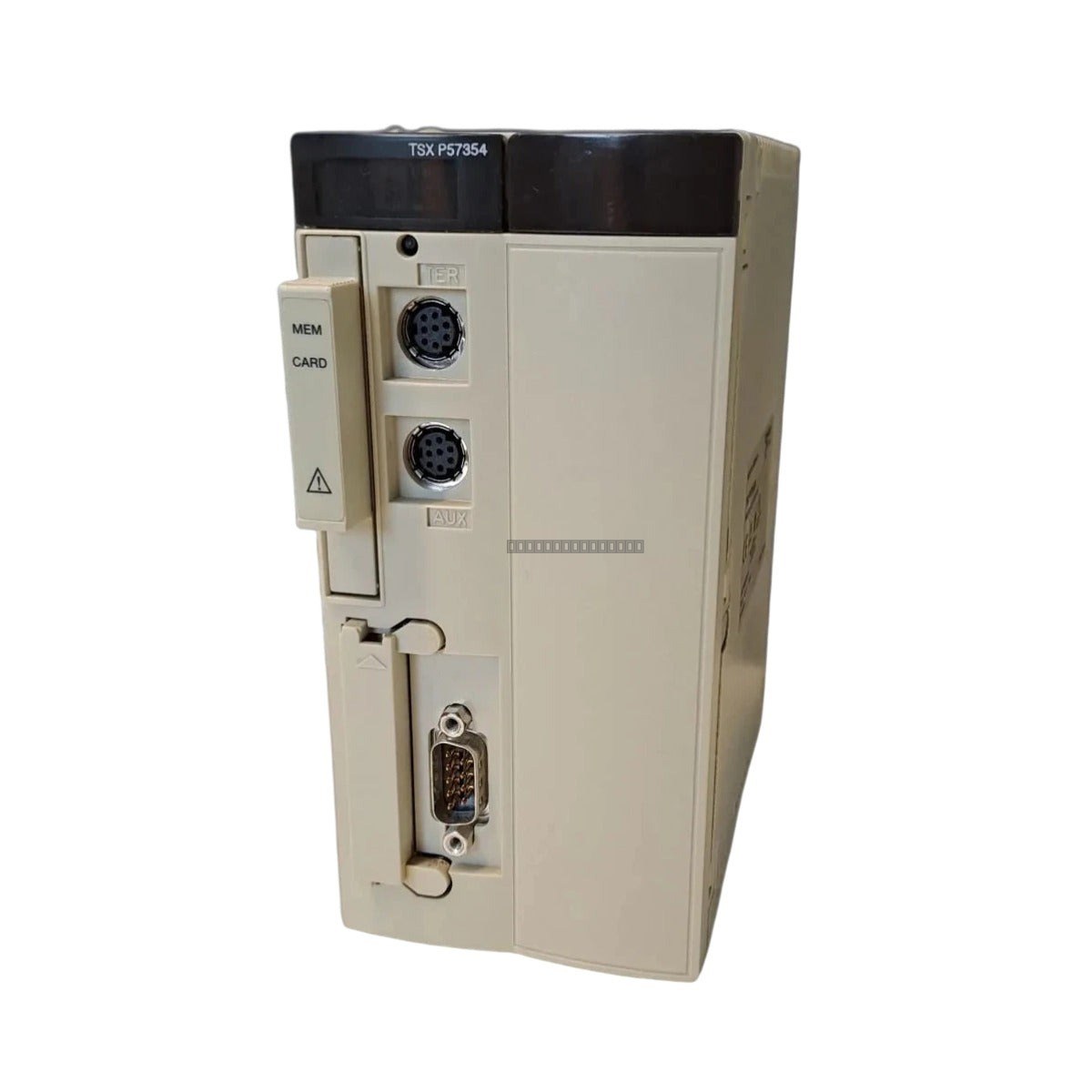

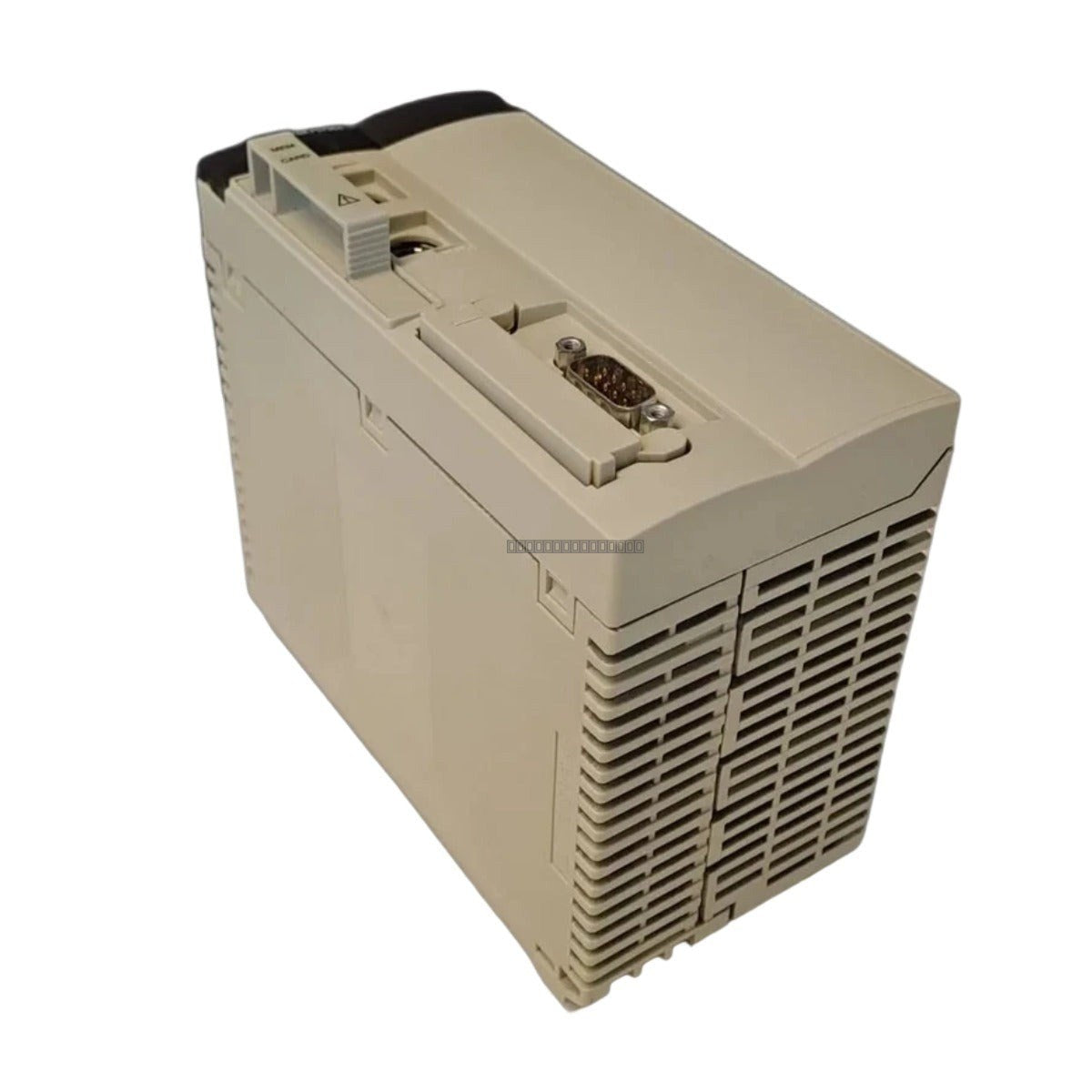

The Schneider Electric TSXP57354M is a high-performance Unity processor designed for the Modicon Premium automation platform. Engineered for demanding industrial control environments, this CPU provides robust processing capabilities and supports scalable system architectures, making it suitable for complex automation tasks requiring extensive I/O capacity.
Features
Unity processing platform for advanced automation control.
Supports large-scale rack configurations: up to 8 racks with 12 slots each or 16 racks with 4, 6, or 8 slots.
High current capacity to support expanded system configurations.
Designed for seamless integration into standard Modicon Premium rack assemblies.
Applications
This processor is intended for use in high-capacity industrial automation systems, including manufacturing process control, machine automation, and large-scale infrastructure management where reliable, high-speed logic execution is required.
Technical Specifications
Brand
Schneider Electric
Model
TSXP57354M
Series
Modicon Premium
Processor Type
Unity
Rack Configuration
8 racks (12 slots) or 16 racks (4/6/8 slots)
Current Consumption
1180 mA at 5 V DC
Mounting
Premium Rack Slot
Installation Guidelines
Ensure the PLC rack is powered down before inserting or removing the processor module.
Verify that the module is fully seated in the rack slot and secured using the integrated locking mechanism.
Maintain adequate clearance around the rack assembly to ensure proper ventilation and cooling.
Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
Ensure that the power supply unit installed in the rack is capable of supporting the 1180 mA current draw of the processor.
FAQ
Is this processor compatible with all Premium series racks? The TSXP57354M is designed for the Modicon Premium platform. Please verify your specific rack configuration and backplane compatibility before installation.
What is the primary function of the Unity processor? The Unity processor acts as the central intelligence for the PLC system, executing user logic, managing I/O data exchange, and coordinating communication across the automation network.
