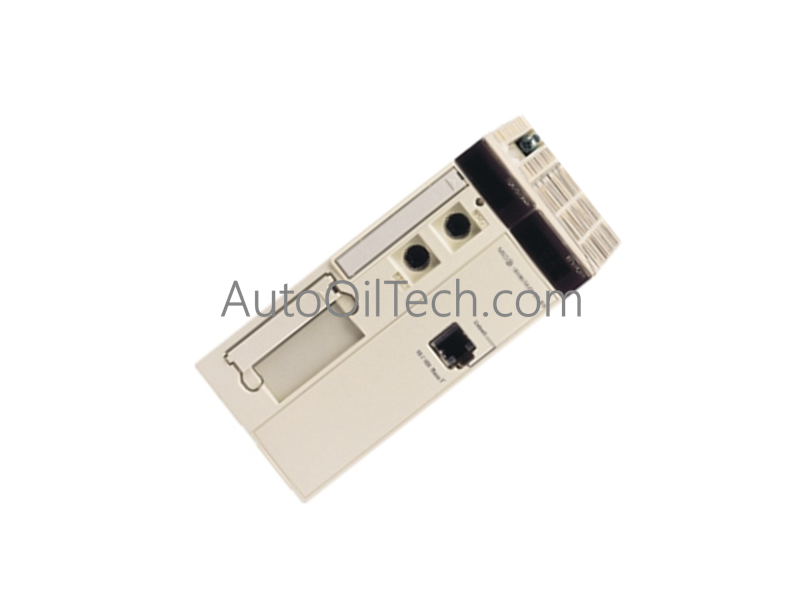

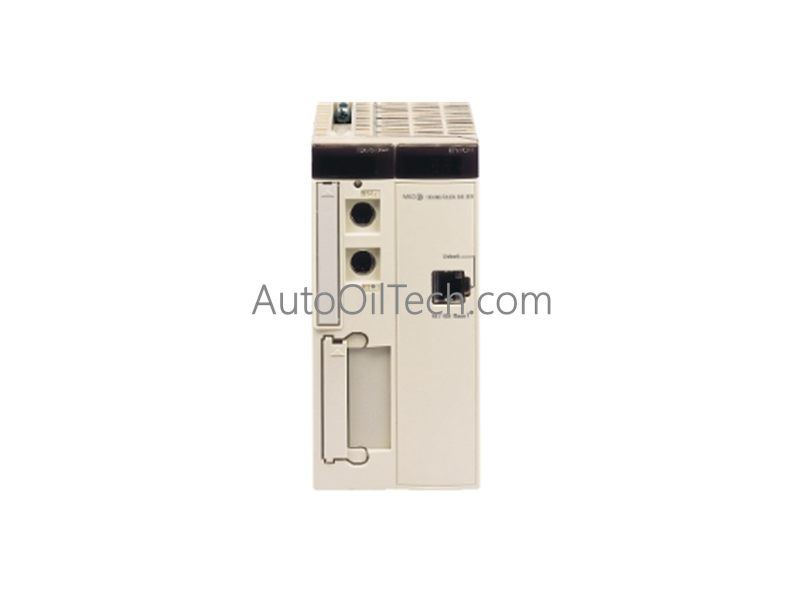

The Schneider Electric TSXP57303AM, also cataloged as the TSXP57303AM PL7 Processor Module, operates as a dedicated hardware component for centralized logic execution and multi-rack control within Modicon Premium automation platforms.
Hardware Specifications
Parameter
Specification
Model
TSXP57303AM
Brand
Schneider Electric
Origin
France / Global Standard Architecture
Weight
0.52 kg (1.15 lb) net module mass
Dimensions
Double-format Premium slot configuration
Operating Temp
0 to 60 deg C (32 to 140 deg F)
Power Consumption
1000 mA at 5 V DC internal backplane draw
Discrete I/O Capacity
Up to 1024 discrete I/O points
Analogue I/O Capacity
Up to 128 analog I/O channels
Memory (Base Configuration)
64 Kwords internal RAM for program and data (without PCMCIA card)
Serial Interfaces
2 x non-isolated female mini-DIN terminal links (19.2 to 115 kbit/s)
Software Designation
PL7 Junior / Pro firmware environment
Module Format
Double-width module form factor
Modicon Premium Platform Backplane Architecture
The TSXP57303AM central processing core drives hardware multitasking layers designed to track system variables across backplane bus communication velocity Licences. Occupying a double-width mechanical slot footprint on the master rack, the processor schedules synchronized data scanning across up to 16 extension racks over Profinet / EtherNet/IP deterministic networks via dedicated network co-processor adapters.
