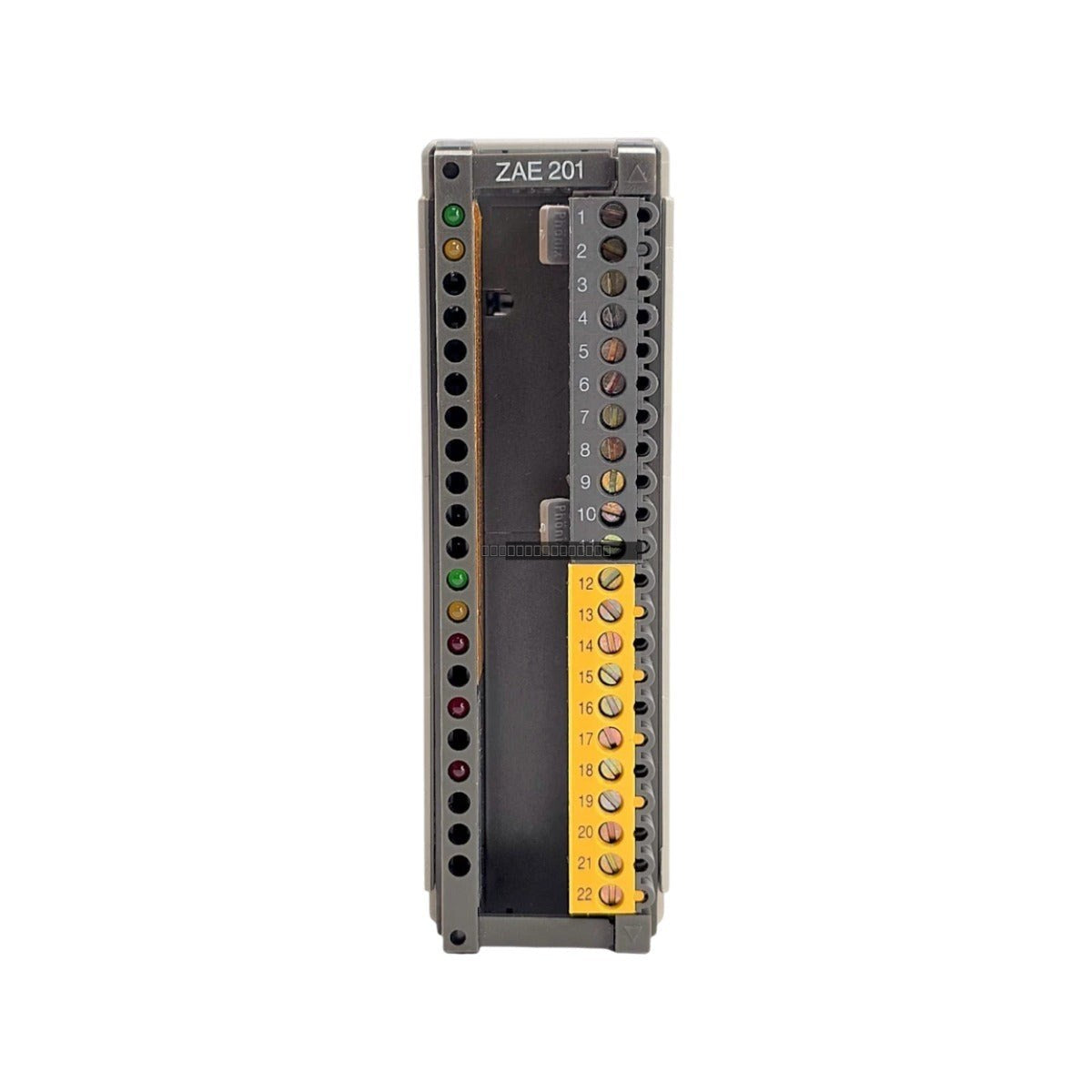

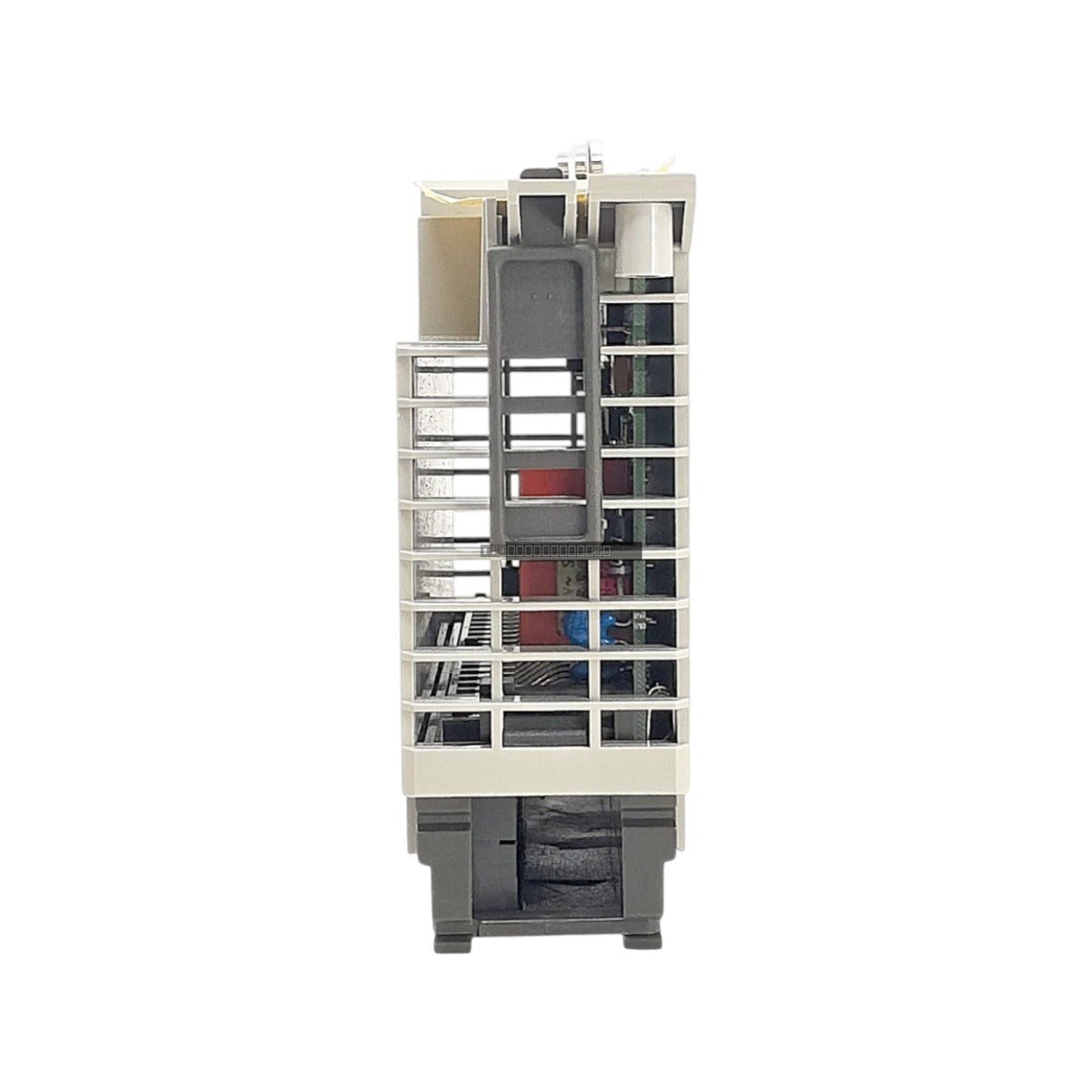

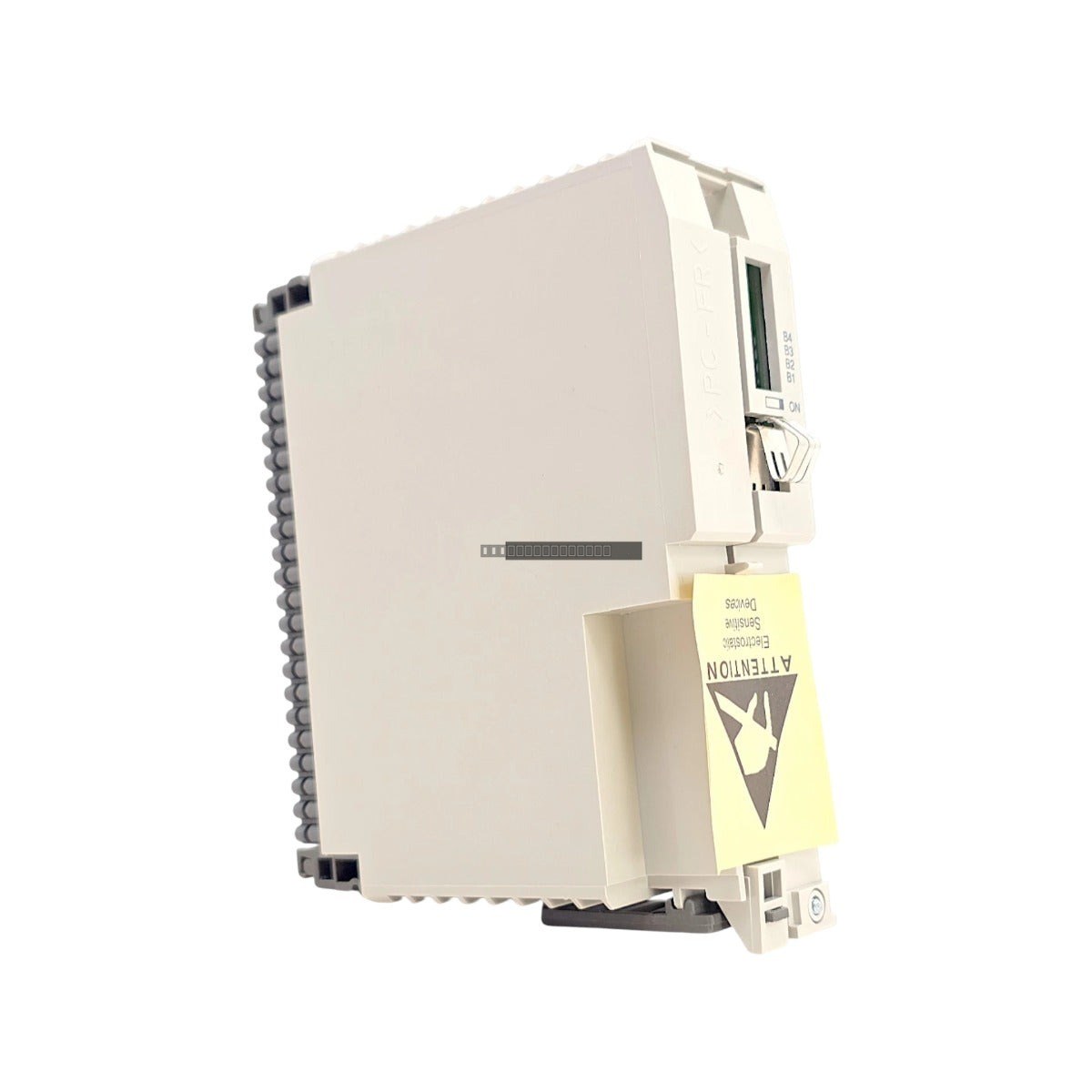

Schneider Electric Modicon A120 ZAE 201 High-Speed Counter Module

Description

The ZAE 201 is a high-speed counter module designed for the legacy AEG Schneider Electric Modicon A120 automation platform. This module is engineered to process high-frequency pulse trains, rotary encoder signals, and flow meter inputs that exceed the scanning capabilities of standard digital I/O modules. By performing high-speed count accumulation and hardware gating locally, the ZAE 201 offloads the central CPU, reduces calculation jitter, and ensures system bus integrity through robust optocoupler isolation.

Features

• Dual independent high-speed counting channels supporting up to 50 kHz frequency.
• Supports single-phase counting and dual-phase quadrature decoding (A/B phases) with Z-pulse marker capability.
• Integrated auxiliary discrete inputs for remote gate control (start/stop) and hardware reset triggers.
• Onboard diagnostic LED panel providing real-time status for bus communication (RUN), internal hardware health (ERR), and individual channel activity.
• Galvanic isolation between field terminals and internal logic to protect against electrical noise and surges.

Applications

The ZAE 201 is suitable for specialized positioning and velocity tracking loops in demanding industrial environments, including:

• Mineral processing and mining operations.
• Turbine monitoring and control in power generation plants.
• Fluid metering and flow control systems in petroleum refining.
• Precision motion control and rotary encoder integration.

Technical Specifications

Installation Guidelines

• Ensure the Modicon A120 rack is powered down before inserting or removing the module to prevent electrical damage or bus errors.
• Mount the module in a clean, dry environment within the specified temperature range to ensure long-term reliability.
• Use shielded twisted-pair cabling for high-speed encoder and pulse signals to minimize EMI interference.
• Maintain proper grounding practices for the rack assembly to ensure the effectiveness of the galvanic isolation.
• Verify that input signal levels comply with the 24 V DC nominal requirements; ensure signal state 1 is above 15 V DC and state 0 is below 5 V DC.

FAQ

Is the ZAE 201 compatible with modern Modicon platforms?

The ZAE 201 is specifically designed for the legacy Modicon A120 series. It is not natively compatible with newer Modicon M340 or M580 platforms without specialized gateway hardware.

Does this module require external power for the inputs?

Yes, the field inputs require a nominal 24 V DC supply within the 19.2 to 30 V DC range to function correctly as per the sink logic configuration.
