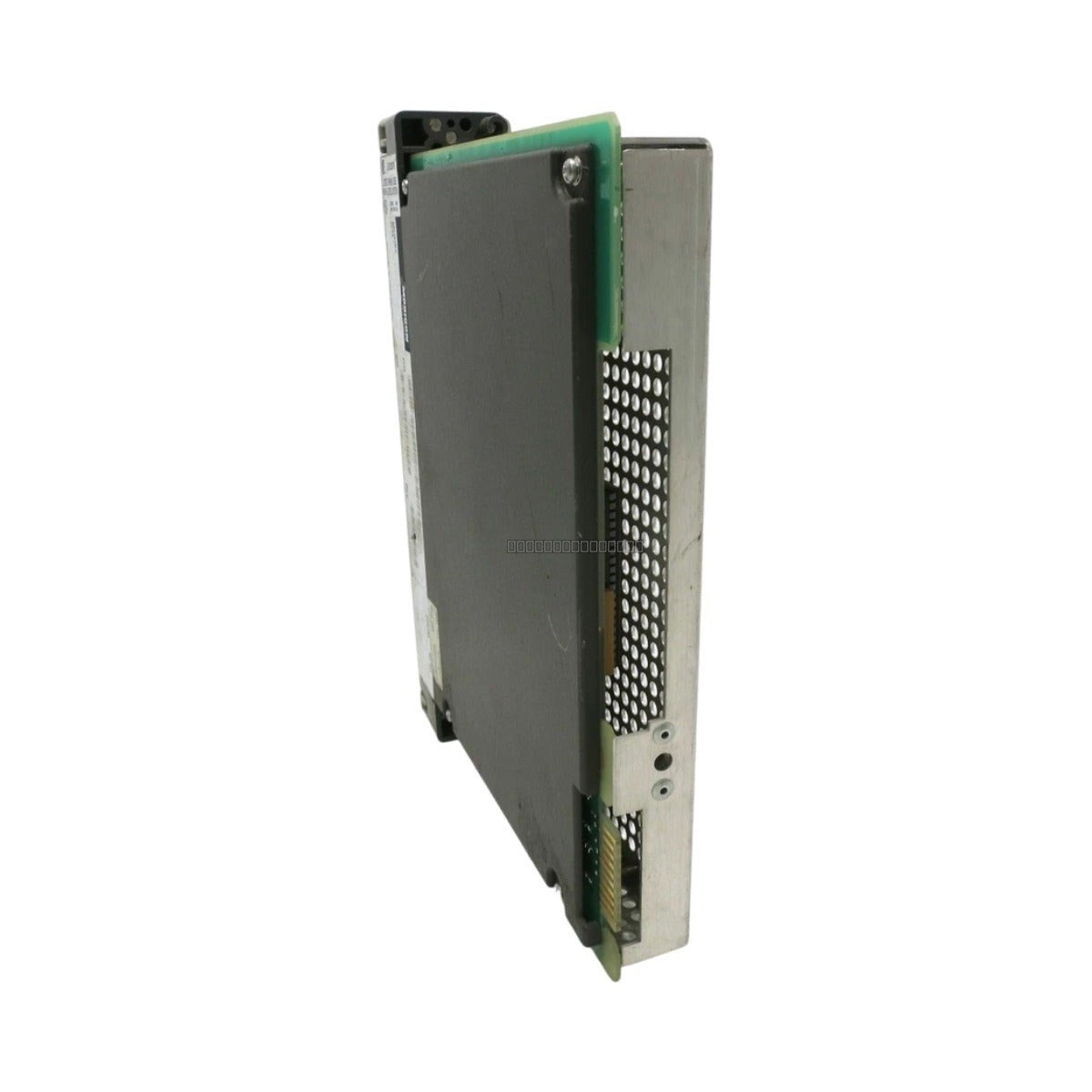

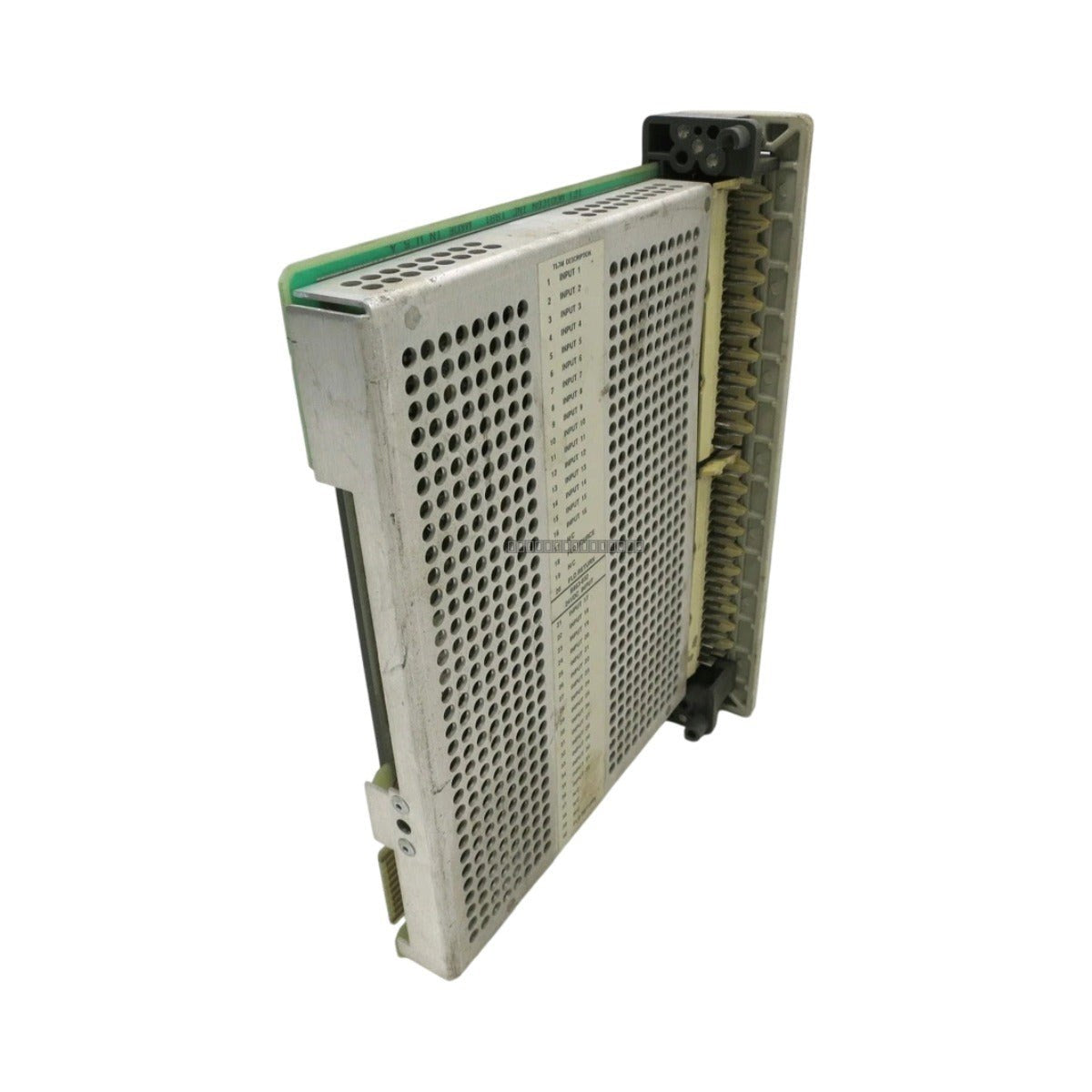

Schneider Electric ASB863032 Modicon 800 Discrete Input Module

Description

The Schneider Electric AS-B863-032 (ASB863032) is a high-density discrete input module designed for the Modicon 800 series I/O platform. This industrial-grade module provides 32 independent input channels, enabling the reliable interface of external binary signals into the central control system. It is widely utilized in demanding environments such as thermal power plants, petroleum refineries, and mining operations to ensure continuous, accurate monitoring of field contacts. The module incorporates advanced optoelectronic isolation to protect low-voltage backplane logic from electrical noise and voltage transients, ensuring deterministic signal processing and enhanced system safety.

Features

• 32-channel discrete input capacity for high-density I/O requirements.
• Integrated optoelectronic isolation (1500 VAC channel-to-bus) for superior noise immunity.
• Compatible with 24 VDC nominal field circuits.
• Supports both sink and source input configurations.
• Front-accessible terminal block for efficient wiring and maintenance.
• Hot-swappable design allows for module replacement without requiring a full controller restart.

Applications

This module is engineered for critical industrial automation tasks, including:

• Status monitoring of field-mounted sensors and switches.
• Interfacing binary signals in large-scale process control systems.
• Safety-critical signal acquisition in power generation and petrochemical facilities.
• High-speed logic state capture for deterministic PLC processing.

Technical Specifications

Installation Guidelines

• Ensure the PLC chassis is powered down before inserting or removing the module to prevent electrical damage.
• Verify correct seating of the module in the Modicon 800 backplane slot to ensure proper bus communication.
• Use shielded cabling for field inputs to minimize EMI/RFI interference in high-noise industrial environments.
• Ensure proper grounding of the module chassis to the system common ground to maintain isolation integrity.
• Maintain adequate ventilation clearance around the module to ensure operation within the specified 0 to 60 deg C temperature range.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connector pins.

FAQ

Is this module hot-swappable?

Yes, the ASB863032 is designed for hot-swapping within the Modicon 800 series backplane, allowing for maintenance and replacement without shutting down the entire controller rack.

What is the isolation rating of this module?

The module provides 1500 VAC isolation between the field input channels and the internal bus logic, protecting the processor from external electrical transients.
