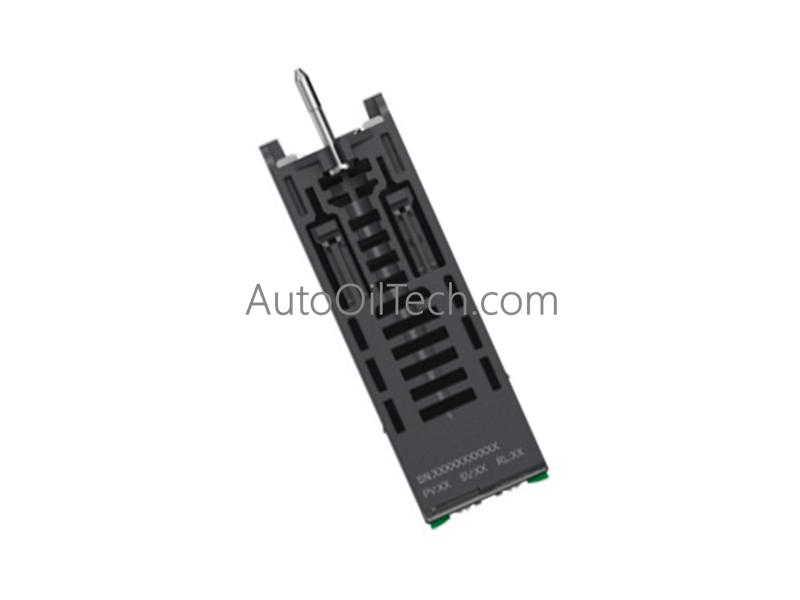

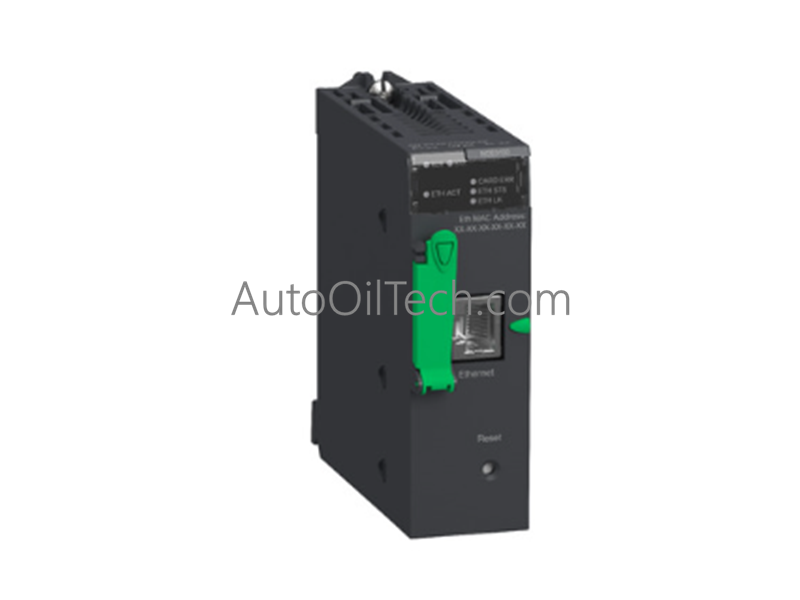

Schneider Electric BMXNOE0100 Modicon M340 Ethernet Network Module

The Schneider Electric BMXNOE0100, also cataloged as the BMXNOE0100 Ethernet Network Module, operates as a dedicated hardware component for high-velocity industrial communication and web-enabled device diagnostics within Modicon M340 control platforms.

Hardware Specifications

Modicon M340 Platform Backplane Architecture

The BMXNOE0100 hardware architecture establishes dedicated industrial protocol stacks designed to track system variables across backplane bus communication velocity Licences. Acting as a network coprocessor on the native chassis infrastructure, the module offloads complex communication tasks from the main CPU, routing prioritized packets over Profinet / EtherNet/IP deterministic networks without introducing data conversion loop lag.

The communications subsystem implements Transparent Ready Class B30 parameters, relying on the supplied Flash memory card to manage application backup files alongside an active embedded factory server. The processing framework supports automated I/O density scaling routines by managing multi-node Modbus TCP messaging layers, Global Data variables, and synchronous I/O scanning tables in parallel. The engineering interface provides continuous synchronization routines to manage embedded web server structures, Rack Viewer utilities, and Fast Device Replacement (FDR) server parameters while maintaining complete software configuration firmware flash compatibility across standard EcoStruxure Control Expert platforms.

Frequently Asked Questions

Q: What specific data retention behavior occurs if the BMXRWSC016M Flash memory card is extracted during operational runtime?

A: Removing the card interrupts the web server data structures and application saving pathways. The internal controller logs an active memory exception, illuminates the red front panel CARD ERR indicator, and sets a diagnostic error bit in the status words, though standard Modbus TCP messaging continues via the local volatile buffer.

Q: How does the hardware control interface execute a manual cold restart without power cycling the main rack?

A: The front panel contains a recessed RESET push-button. Pressing this mechanical switch initiates a hard hardware cold restart of the network module, forcing the internal microprocessors to reload configuration files directly from the non-volatile Flash card and re-initialize the physical layer network links.
